DORMA DOOR CLOSER EN1-5 PUSH SIDE HOLD OPEN W/ ANGLE BRACKET & ARM TS93G15GNRFAB

Prime HardwareSKU: DORMTS93G15GNRFAB
filler

Price:
$876.50

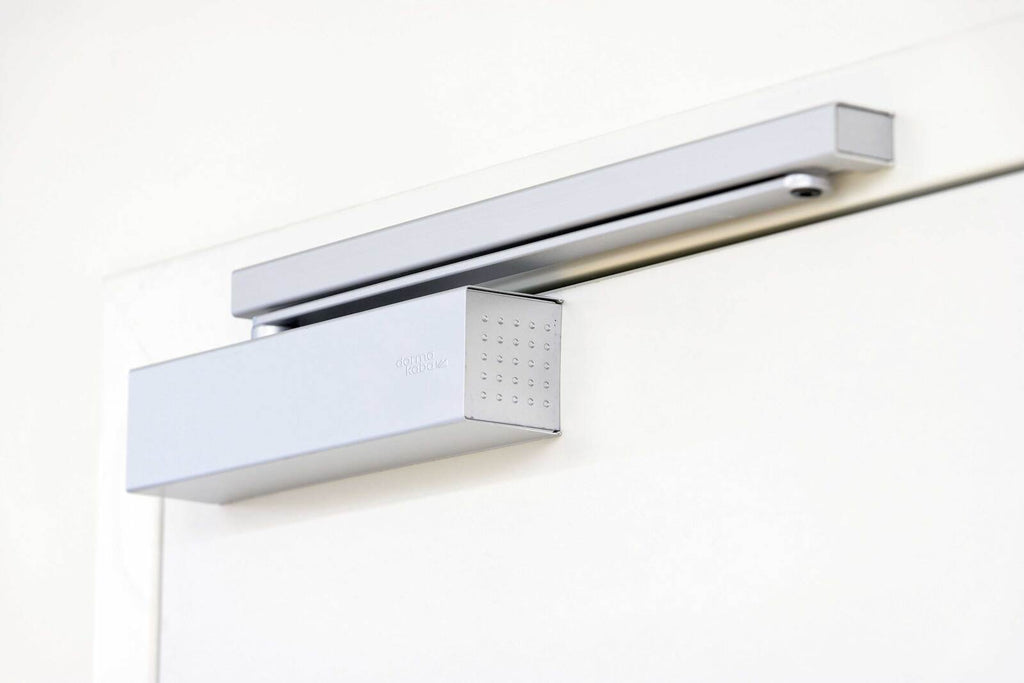

Dorma Door Closer EN1-5 Push Side Hold Open w/ Angle Bracket & Arm
TS93G EN1-5 SIL

Door CloserĀ is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer FunctionĀ - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

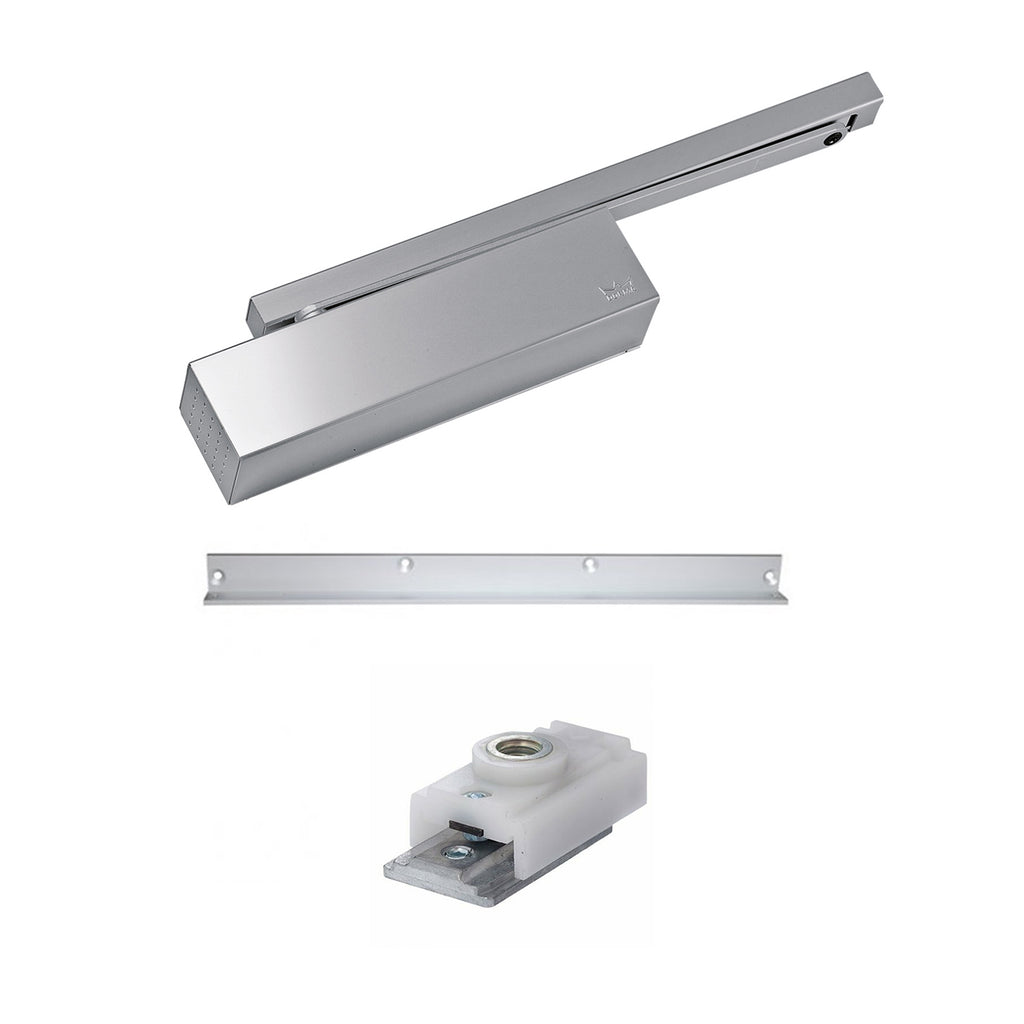

Includes:

  • 1 x Dorma Door Closer TS93G EN1-5 Push Side SilverĀ  (43100501)
  • 1 x Dorma 93GN Slide Arm and Channel Silver (64010001)
  • 1 x Dorma Hold Open Device (18570000)
  • 1 x Dorma TS92AB Angle Bracket Suits G92/G93 N/RF Silver (64430001)

Features:

  • Mounted on push side of door
  • Adjustable closing force size EN1-5
  • Suitable for standard doors up to 1250mm wide
  • For External doors up to 1250mm
  • Suits fire and smoke check doors
  • Slide channel arm assembly
  • Closing force variable by means of adjustment screw
  • Closing speed adjustable by valve
  • Latching speed adjustable at valve
  • Backcheck (BC/OD) adjustable at valve
  • Delayed action (DC/SV) adjustable at valve
  • PDF files

Specifications:

  • Brand: Dorma
  • Length:Ā 275mm
  • Depth:Ā 53mm
  • Height:Ā 60mm
  • Weight:Ā 3.5kg
  • Finish:Ā Silver

Rapidly Decreasing Opening Force:

  • Unlike rack and pinion slide-channel door closers, the DORMA TS93 system with its the linear drive mechanism and heartshaped cam ensures that the resistance encountered when opening the door decreases almost instantly with the opening action. So even children, the elderly and handicapped people have no problem in opening the door.
