DORMAKABA 8300/8PV VISION DOOR LEVER HANDLE ON ROUND ROSE PRIVACY

primehardwareSKU: DORM83008PVBLK
filler

Price:
$98,504

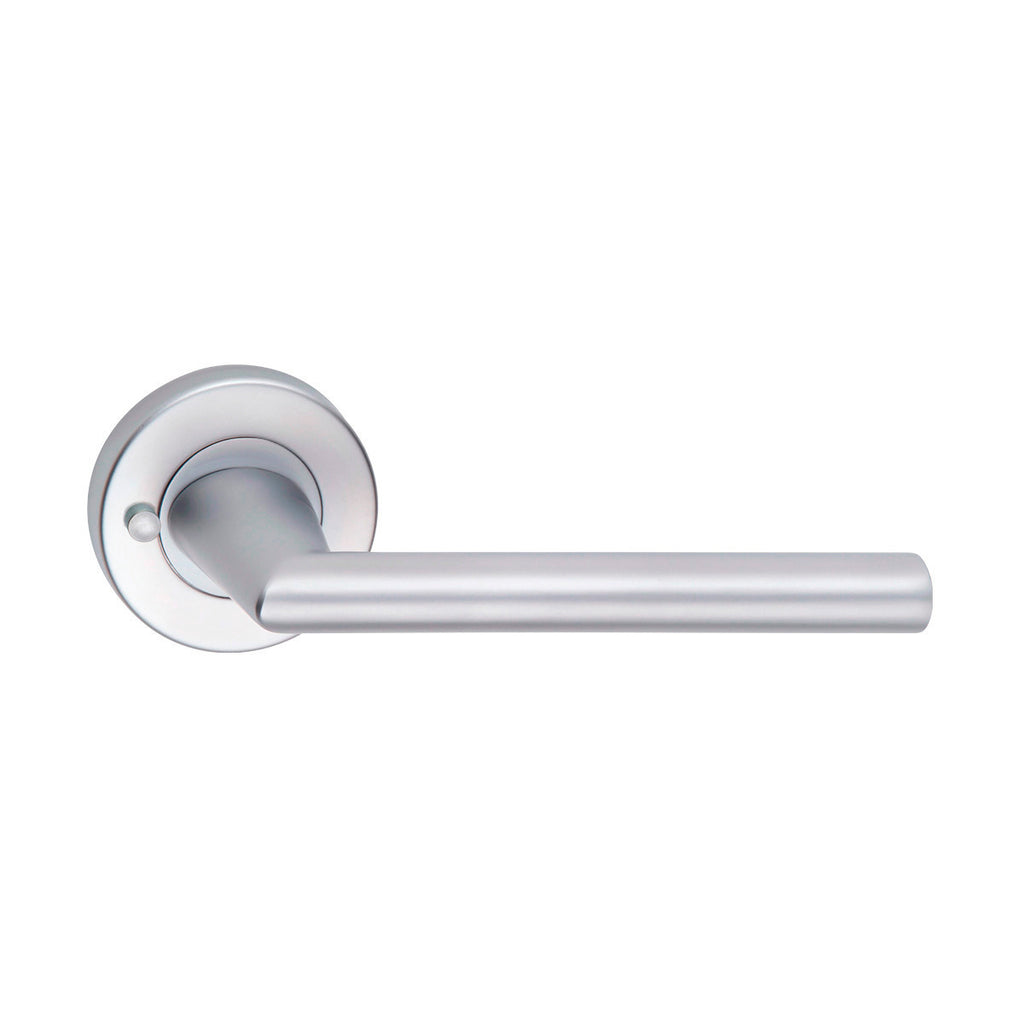

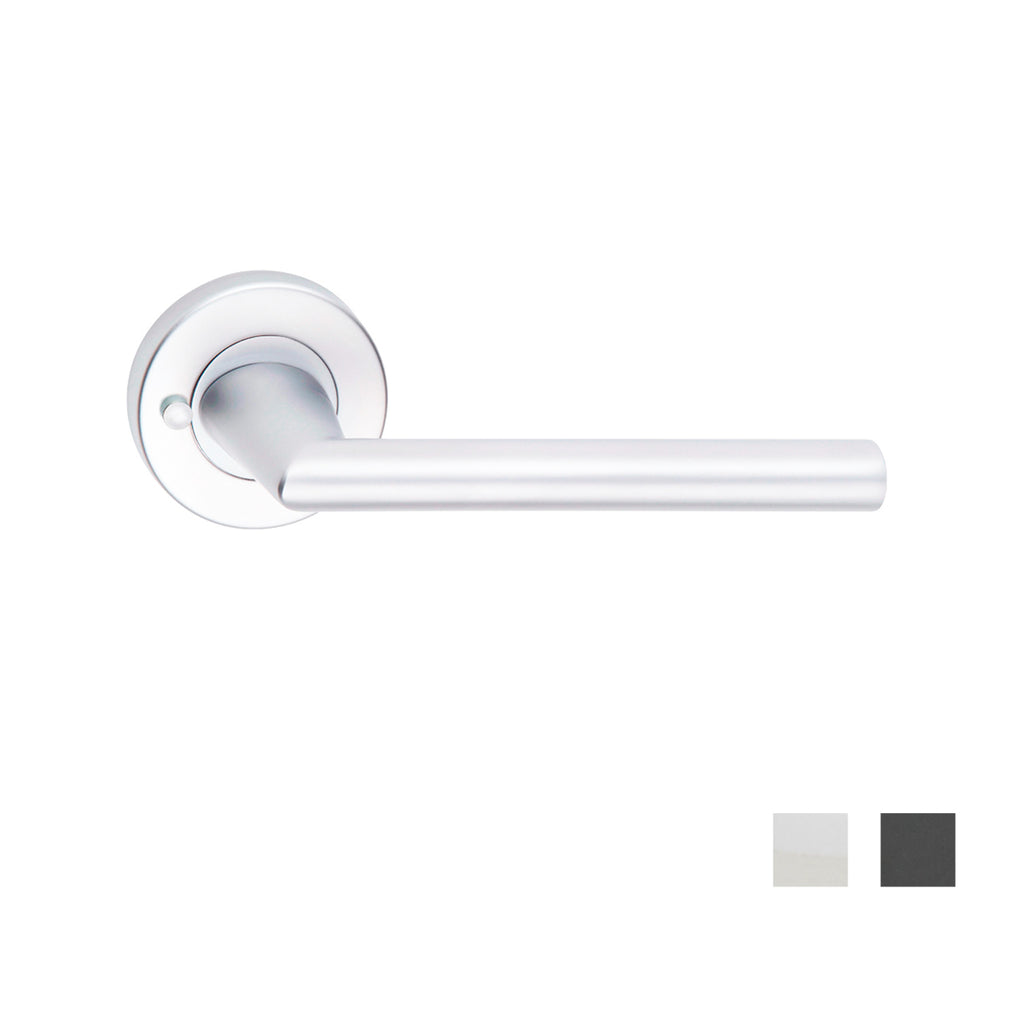

Dormakaba 8300/8PV Vision Door Lever Handle on Round Rose Privacy

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Features:

  • PDF
  • Brand: Dormakaba
  • High quality cost effective range of handles for light commercial and domestic applications
  • Well suited for residential applications where aesthetics and contemporary appeal is desired
  • It is ideal for retrofitting in place of existing door fittings due to its larger diameter rose

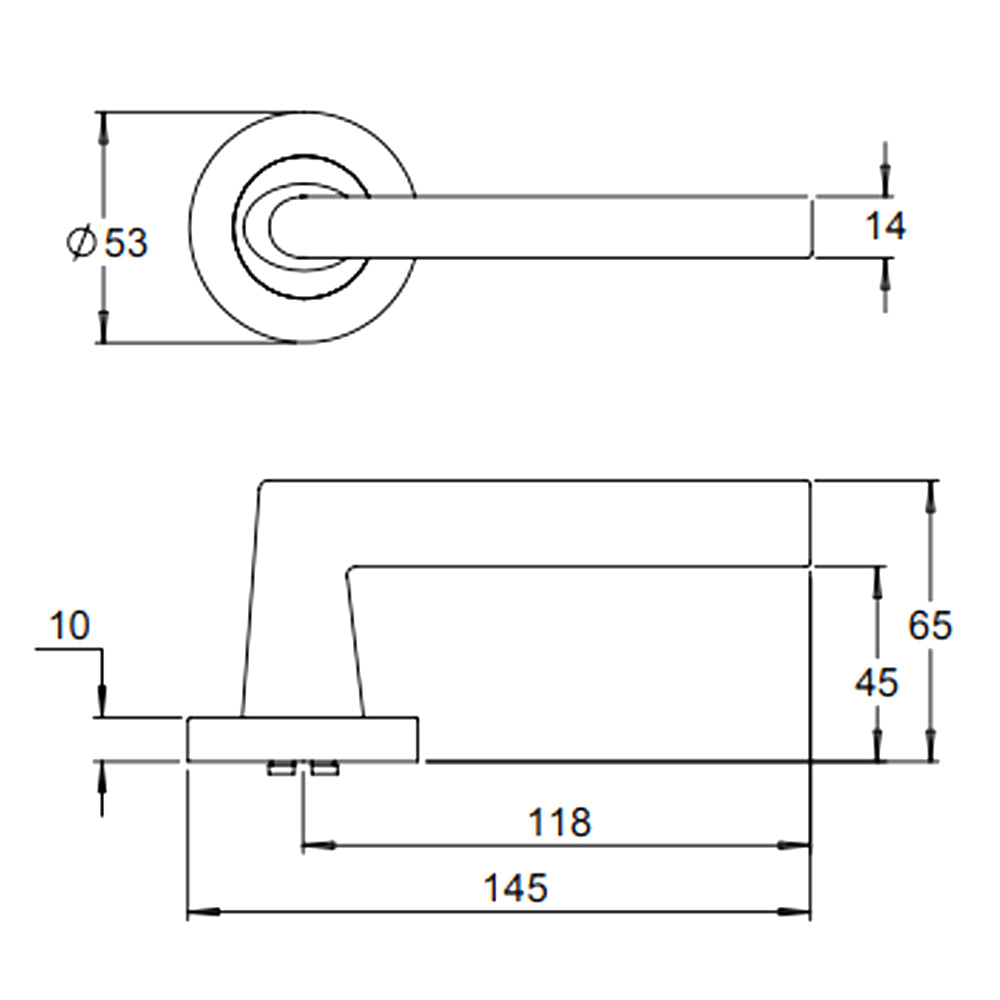

  • Levers are fitted onto a 53mm rose mounting plate which has a slim 10mm projection of the door face
  • Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches

Specifications:

  • Material:¬†Die-cast zinc
  • Diameter Rose:¬†53mm
  • Thickness:¬†10mm
  • Fixing Centres:¬†41mm
  • Fixings:¬†Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
  • Handing:¬†Roses are non-handed and in most cases can be reversed (refer to lever designs for more information).
  • Fire Rating:¬†Vision 8000 series furniture is fire rated and comply with AS1905.1.
  • Disabled Access Compliance:¬†A selection of lever handle designs comply with AS1428.1 2009.
  • Function:¬†Privacy
  • Available Finish:

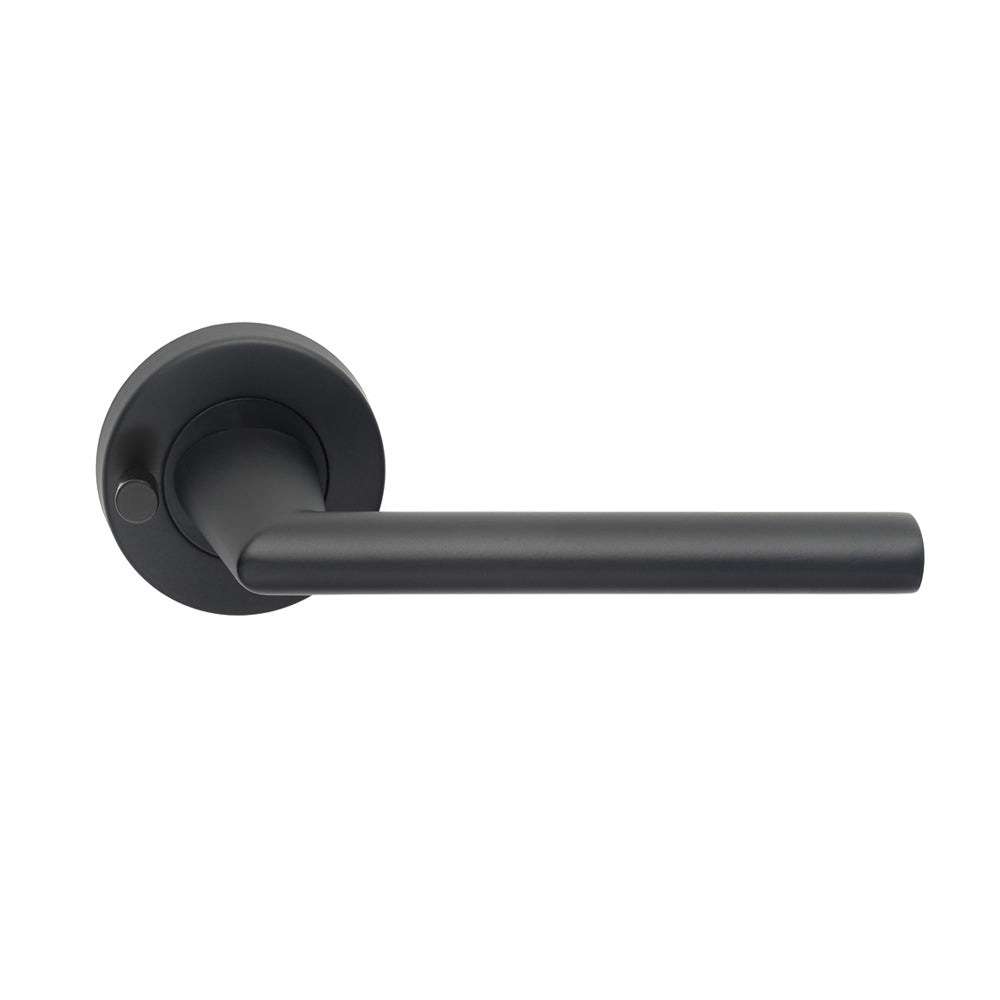

    • Black
    • Polished Chrome
    • Satin Chrome
  • Sold as Pair

Note: Latches are sold separately
