Save 9%
Prime HardwareSKU: ASS3782KIT04

$400.55 $440.16

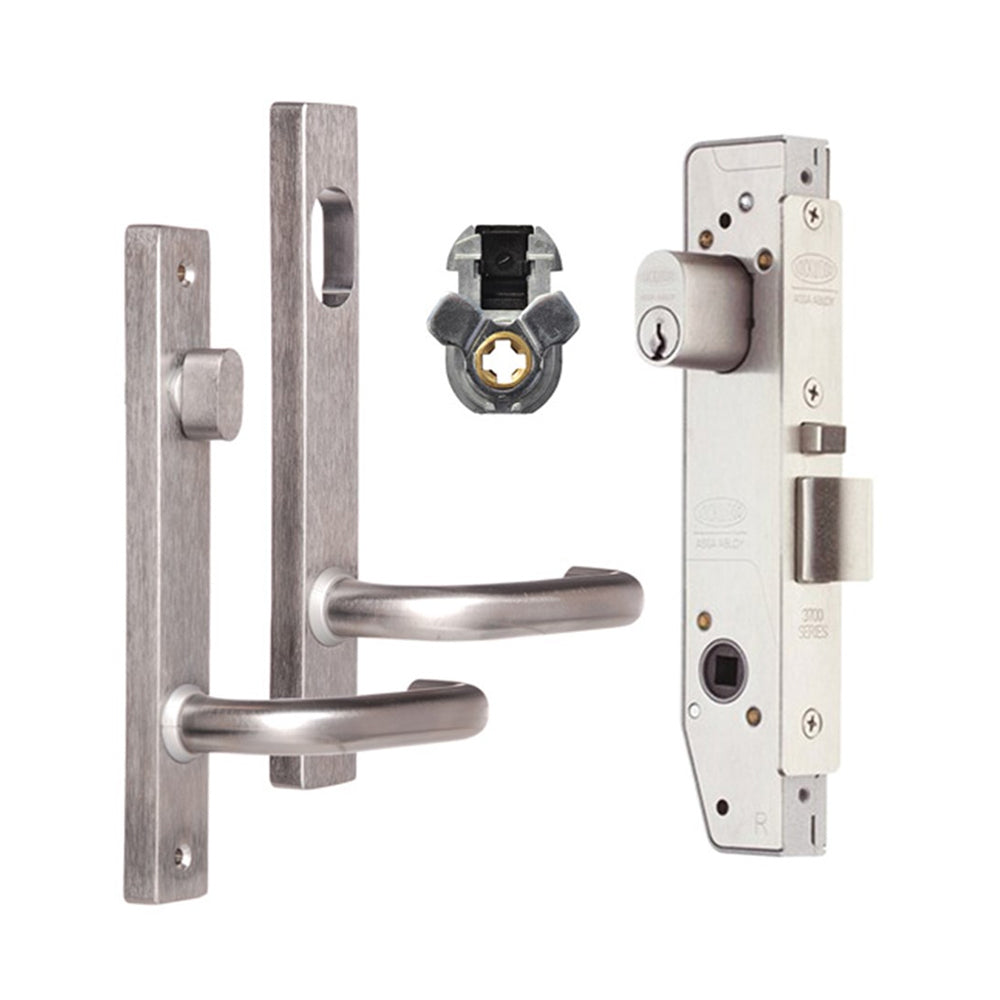

Lockwood Narrow Cylinder Mortice Lock Kit with Door Lever

Cylinder Mortice Lock Kit provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Cylinder Mortice Lock Kit Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever.

  • Designed to incorporate a greater range of lock functions into one primary lock.
  • First holdback capable lock, also includes an selectable anti-lockout feature.


  • 1 x 38782SS mortice lock.
  • 1 x 4801/70SC external lever on plate.
  • 1 x 4904/70SC internal lever on plate with turn.
  • 1 x 570 cylinder with keys.
  • 1 x 3772-ADAPTOR turn adaptor.

Mortice lock:

  • PDF
  • Brand: Lockwood
  • Short backset universal primary mortice lock.
  • Easy Red /Green function setting.
  • All lock settings are made from under the faceplate allowing for simple in-door configuration.
  • Standard primary locks include holdback and anti-lockout capabilities.
  • Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
  • Operated by key or handle outside or by turnsnib, key or handle inside.
  • Zinc diecast body with stainless steel chassis plates for improved strength.
  • Electric Strike compatibility.
  • Supplied with cylinders.
  • Supplied with Selector® 'V' cam.
  • Compatible to most restricted keying systems.
  • Backset: 23mm backset as standard
  • Suits metal door thickness: 35mm to 50mm.
  • Stainless steel reversible latch bolt: 15mm
  • Finish: Stainless Steel.

External furniture:

  • Narrow stile exterior square end plate.
  • Cylinder hole and 70 series tubular lever.
  • Plates are designed to fit back to back.
  • External plates supplied with fixing screws.
  • Disabled access AS1428.1 compliant lever.
  • Plate size: 185mm x 26mm x 11.5mm
  • Suits door thickness: from 32mm to 50 mm
  • Screw fixing centres: 160mm
  • Fixing: Concealed
  • Finish: Satin Chrome

Internal furniture

  • Narrow stile internal square end plate.
  • Turnsnib and 70 series tubular lever.
  • Features a unique self adjusting turnsnib tail bar to suit varies door thickness.
  • Visible fixing.
  • Plates are designed to fit back to back.
  • Disabled access AS1428.1 compliant lever.
  • Fixing: Visible
  • Fixing holes centres: 160mm
  • Suits door thickness: from 32mm to 50mm
  • Plate size: 185mm x 26mm x 11.5mm
  • Finish: Satin Chrome
