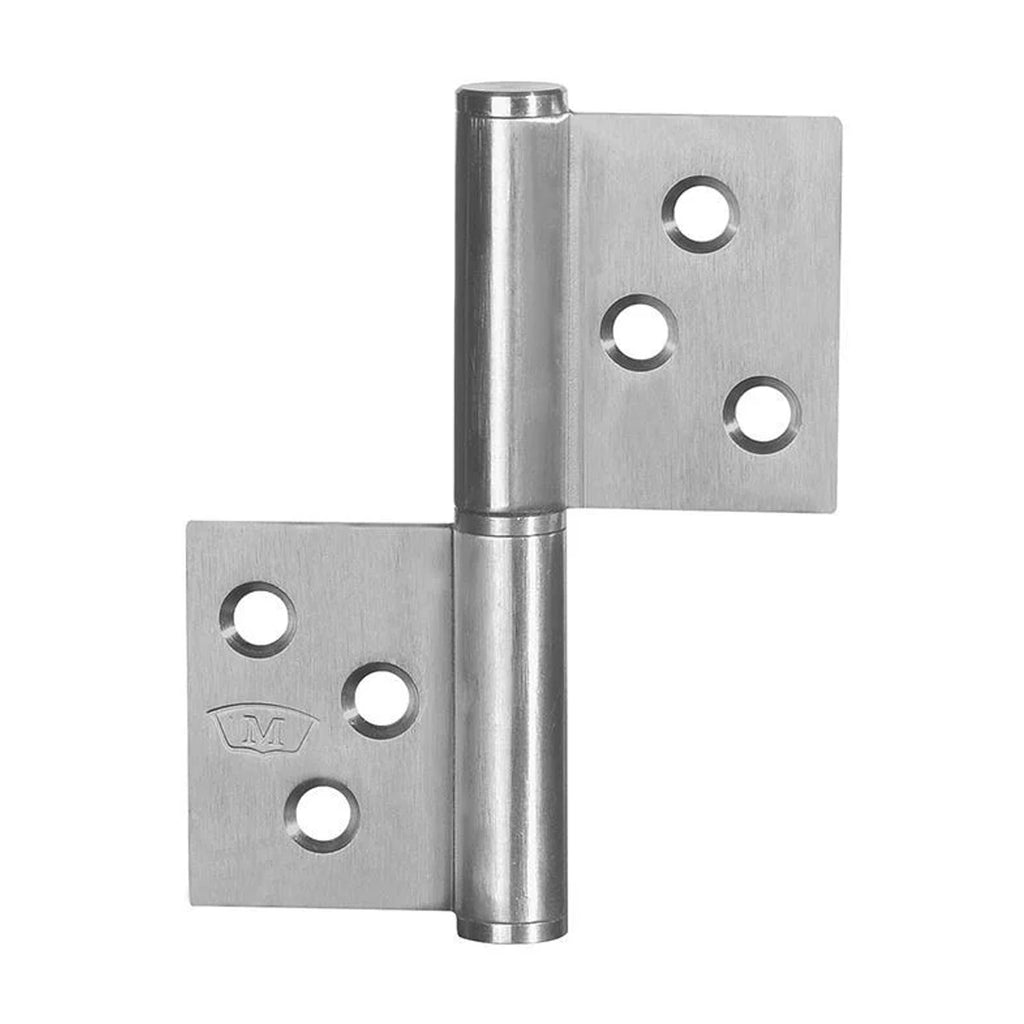

McCallum S203 Stainless Steel Lift-off Hinge Non-handed 100 x 82 x 3mm

Save 8%
Prime HardwareSKU: MCCS203
filler

Price:
$9.05 $9.81

McCallum S203 stainless steel lift-off hinges are versatile and durable hinges suitable for wood and aluminum doors or frames. It's non-handed design and universal fitting makes it suitable for both left and right handed doors. It is made of high-quality stainless steel which gives it a modern and sleek look. This hinge is 304 grade and the pin diameter is 6.9mm. Its non-handed design and 15mm pin length make it adaptable to a variety of doors.

McCallum Stainless Steel Lift Off Hinge
S203

Lift Off Hinge can be installed to inward opening doors. Most common building solution used for access into fully enclosed sanitary compartments.

Lift Off Hinge Function -  a mechanical bearing that allows doors to pivot on one edge when they open and close, allowing for limited rotational movement of the object to which it is attached.

Features:

  • Suitable for timber and aluminium doors or frames
  • Universal fitting means application for both left and right handed doo
  • Fastening screws supplied
  • Pop rivets are not recommended
  • PDF files

Specifications:

  • Brand: McCallum
  • Hinge Type: Liff Off
  • Material: Stainless Steel 304 Grade
  • Knuckle: Round
  • Hinge Pin: 6.9mm
  • Endcaps: Pressed-in interference fit
  • Material: Stainless Steel 304 Grade
  • Handing: Non- Handed
  • Pin Length: 15mm
  • Frame Type: Metal and Timber
  • Door Thickness: 25mm to 35mm
  • Dimension: 100mm x 82mm x 3mm
  • Door Weight: up to 25kg
  • Finish: Stainless Steel
