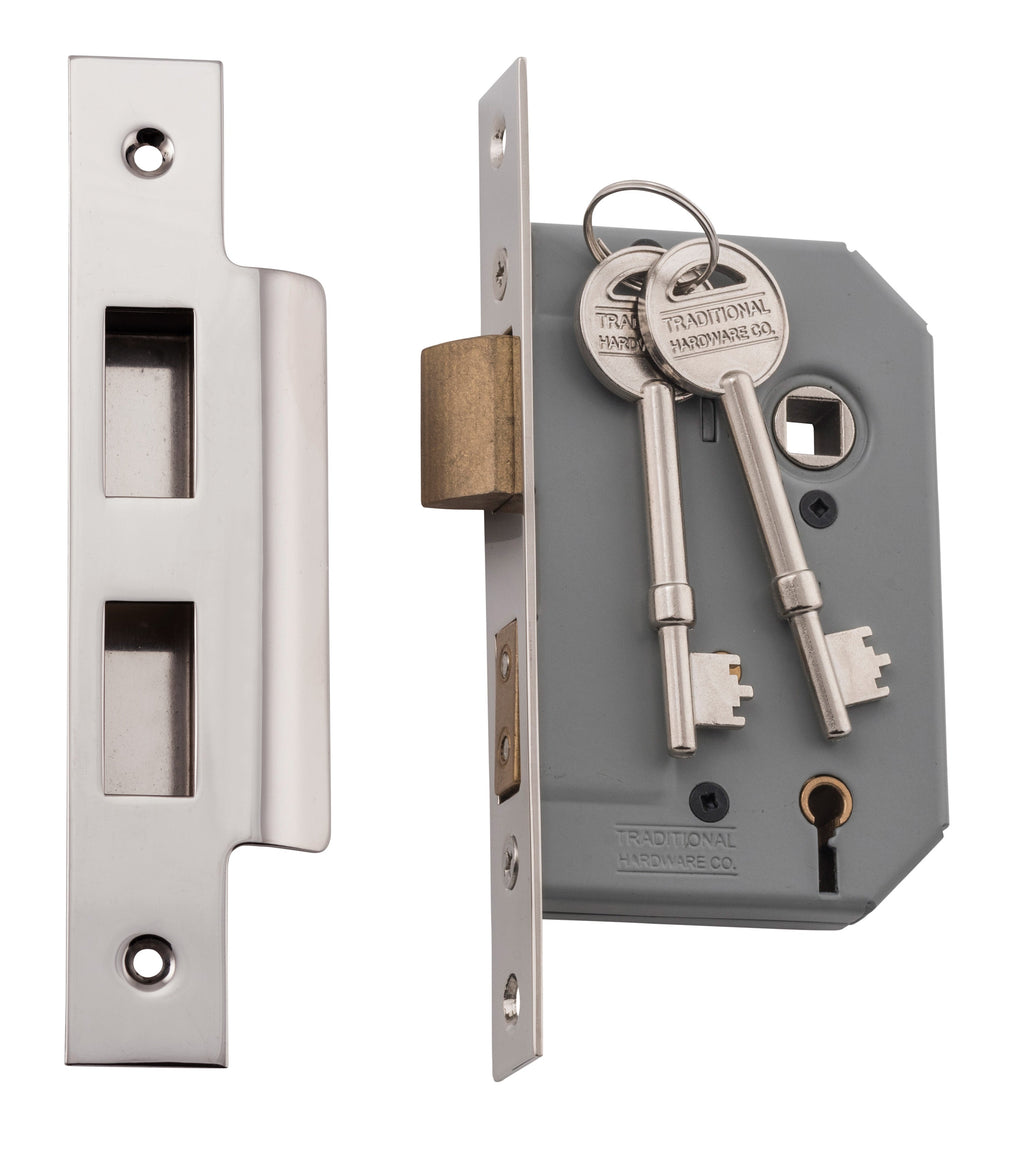

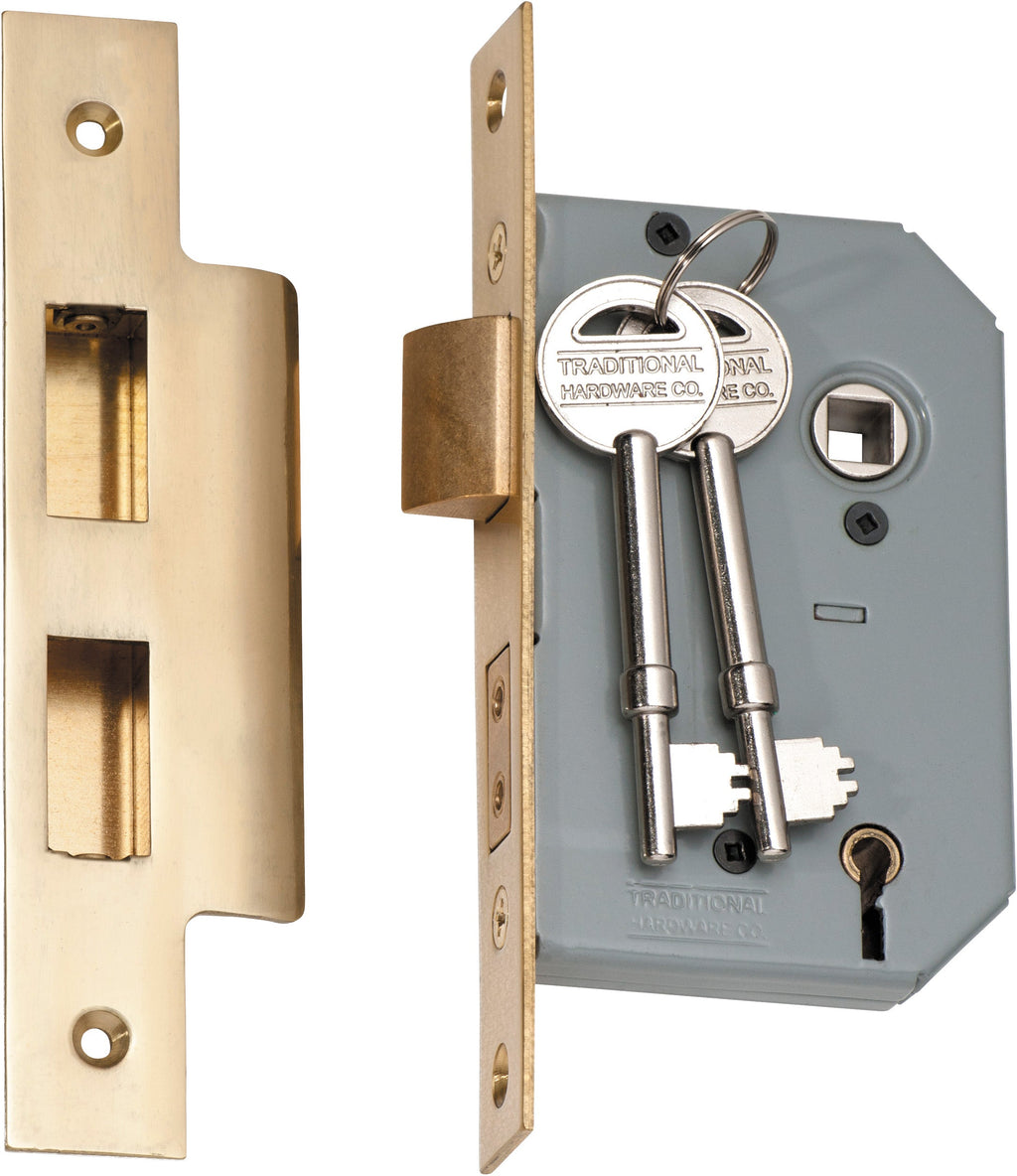

Tradco 5 Lever High Security Mortice Lock 46mm Backset | 10 Finishes Available
The Tradco 5 Lever Mortice Lock is a high-security lock designed for external applications, built with solid brass face and striker plates, reinforced steel pins and an anti-pick curtain for enhanced protection. It is tested over 130,000 cycles and available in ten finishes.
High security, suitable for external doors and entry points. Features reinforced steel pins and an anti-pick curtain.
| ✓ Lock case | ✓ Faceplate |
| ✓ Strike plate | ✓ Fixing screws & keys |
Suits handles with a traditional keyhole. A compatible knob, lever or handle is required separately to operate the lock. Fitting instructions are supplied.
Security Features
|
Anti-pick curtain
Guards the lever mechanism against picking attempts. |
Reinforced steel pins
Adds strength against forced entry attempts. |
Reversible tongues
Suits both left and right-hand doors. |
Specifications
| Lock type | 5 lever, high security, external applications |
| Face & striker plates | Solid brass |
| Backset | 46mm (57mm also available) |
| Faceplate size | 150mm × 23mm |
| Projection | 69mm |
| Lock body height | 110mm |
| Centre to centre (pitch) | 57mm |
| Keying | Keyed alike or random keyed (specify at order) |
| Testing | Tested over 130,000 cycles |
| Suitability | External and high-security applications |
Available Finishes

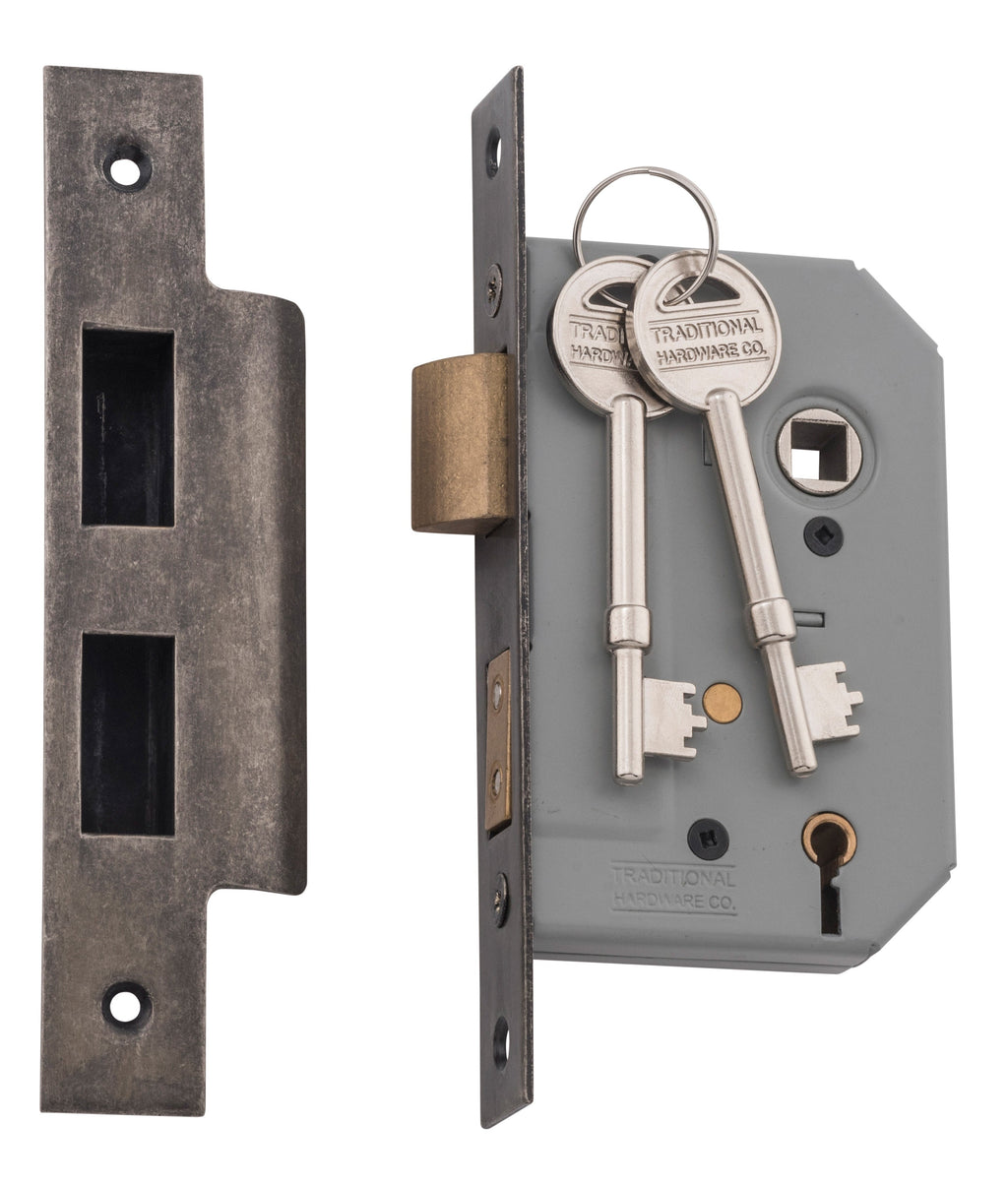

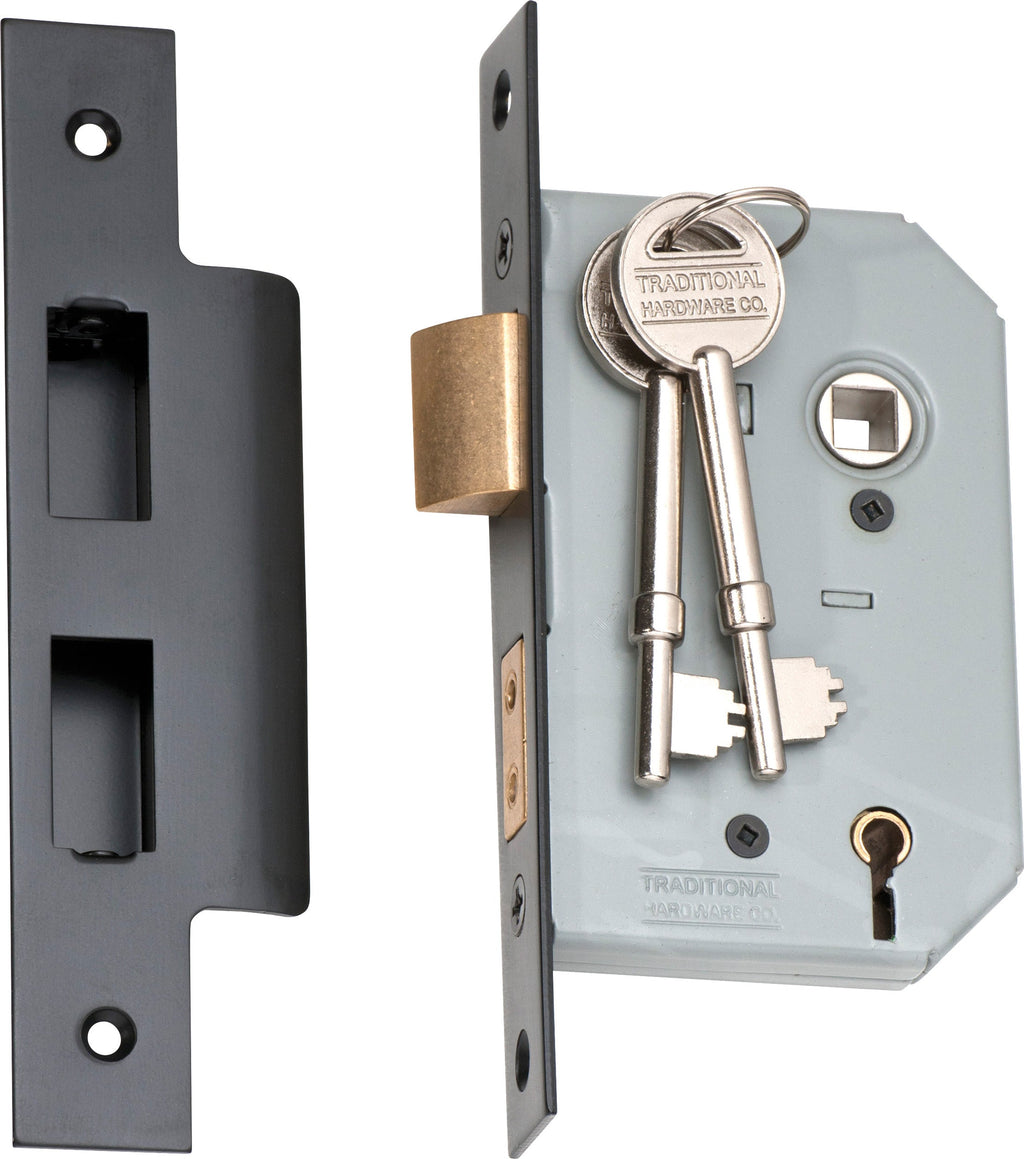

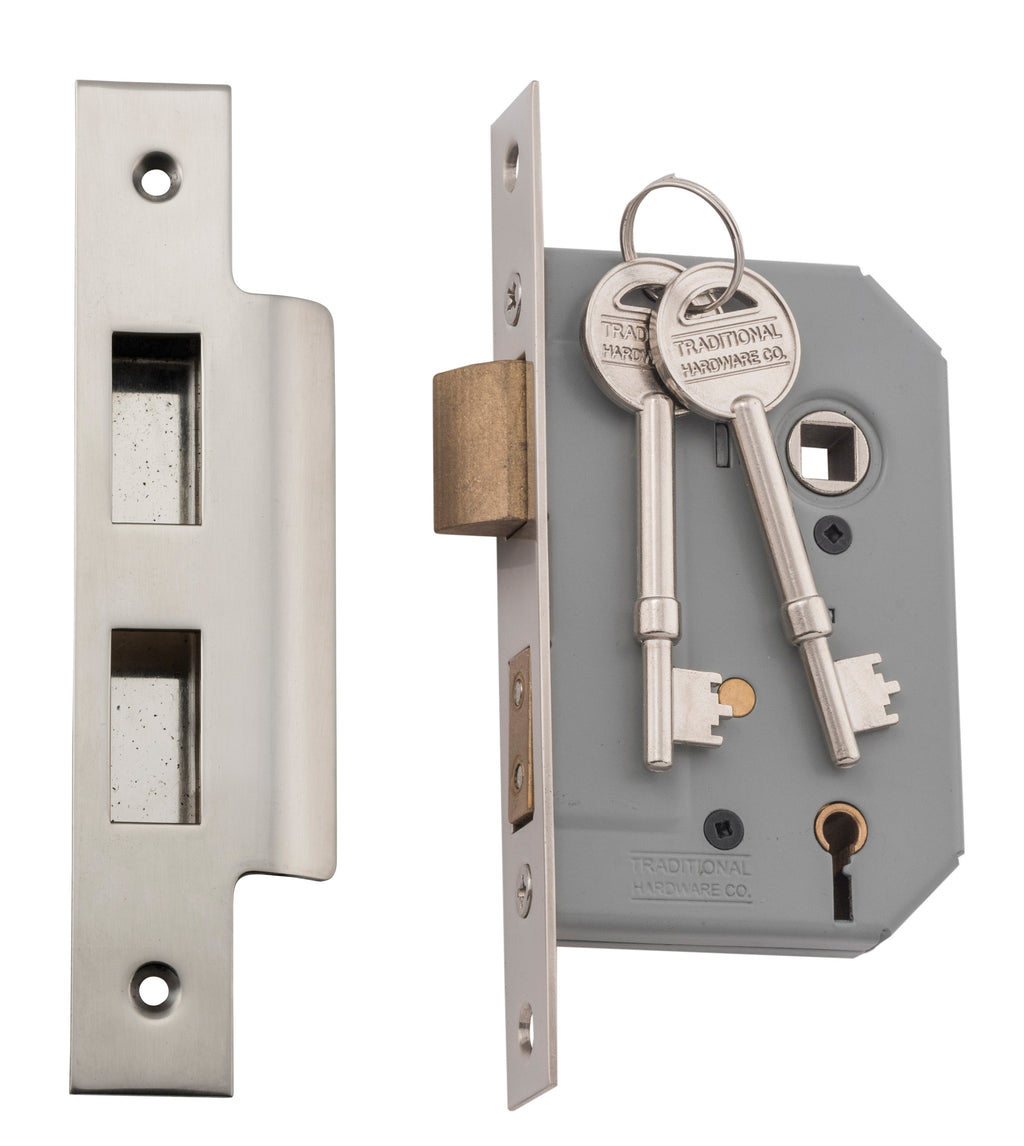

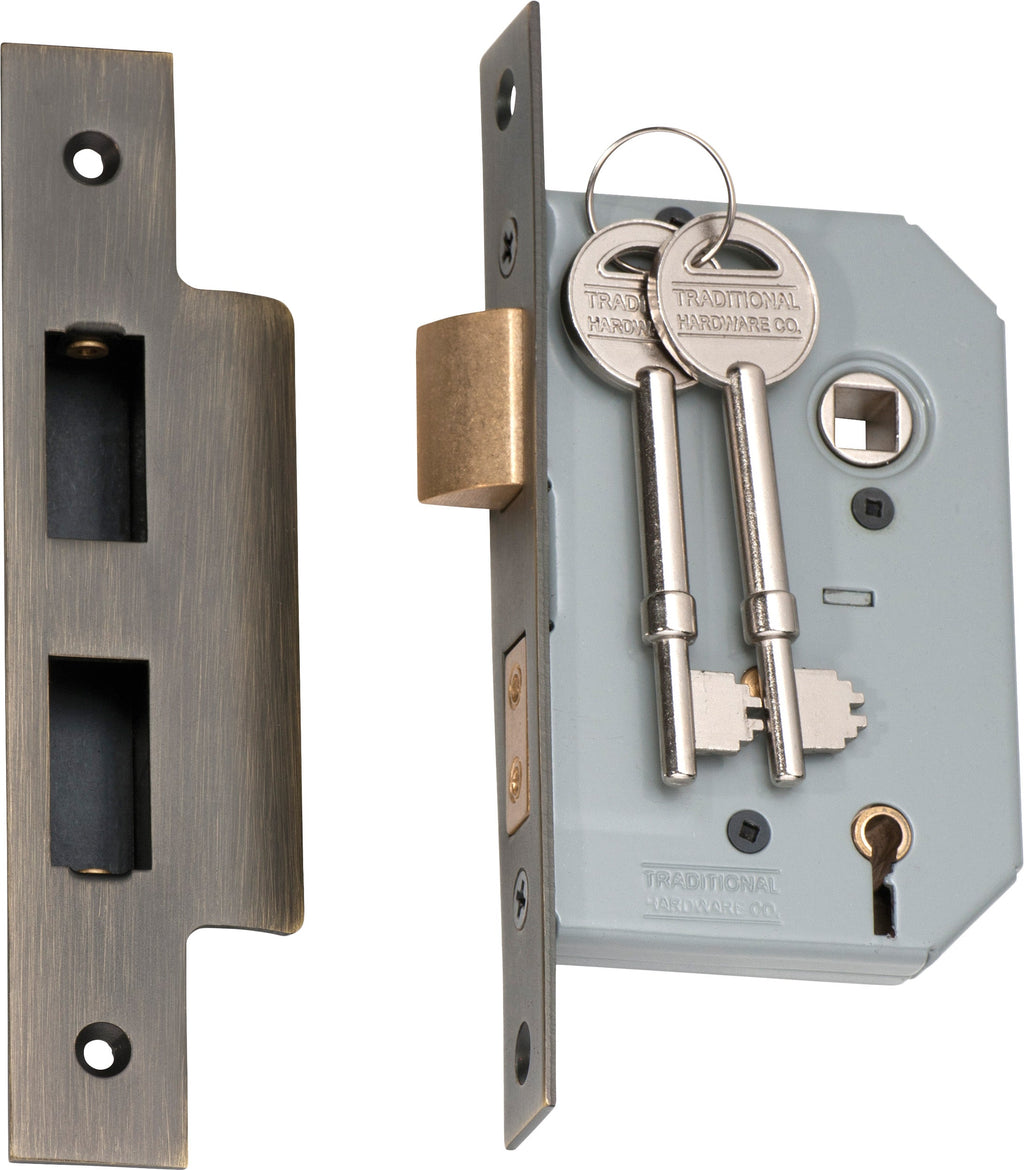

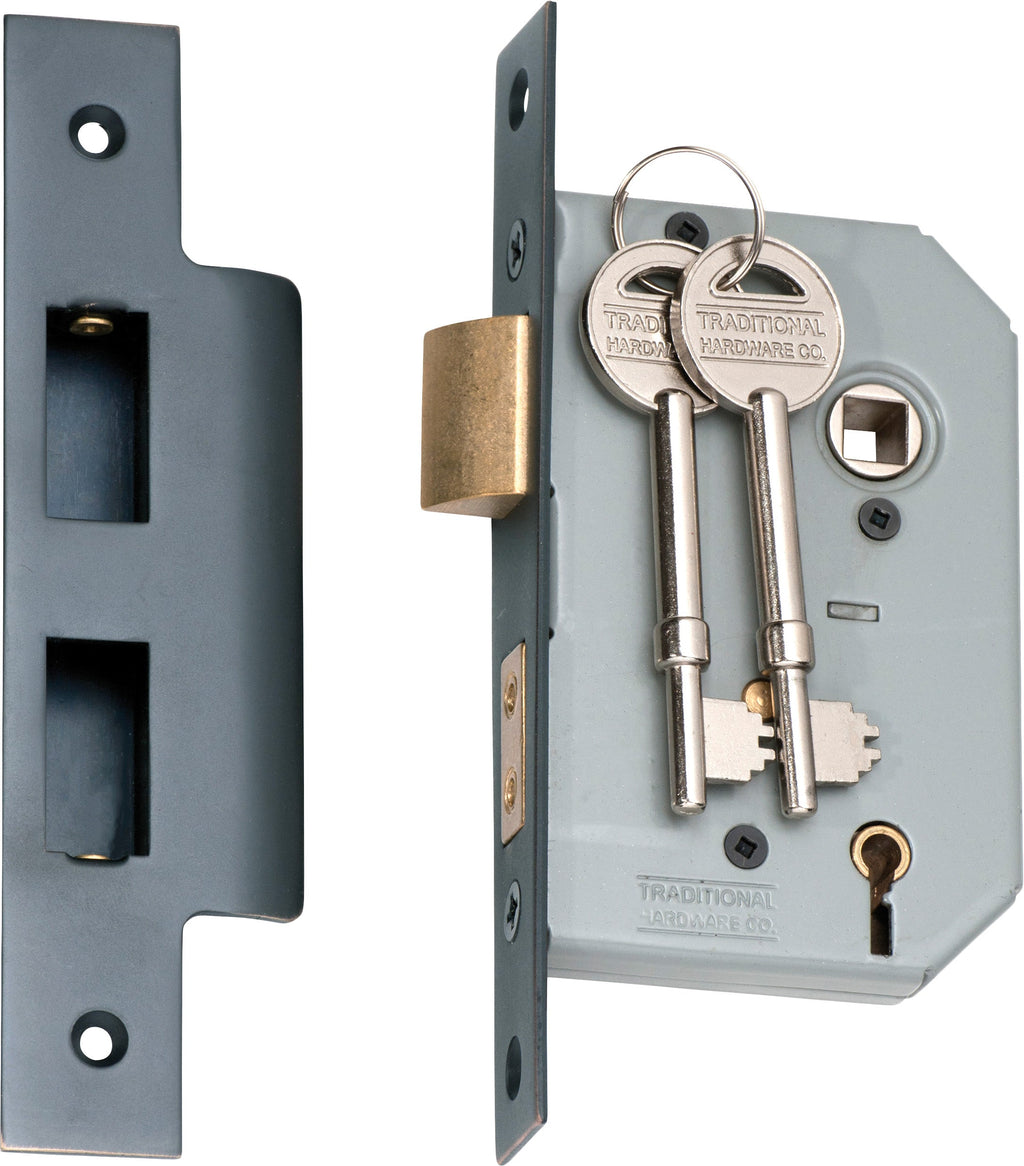

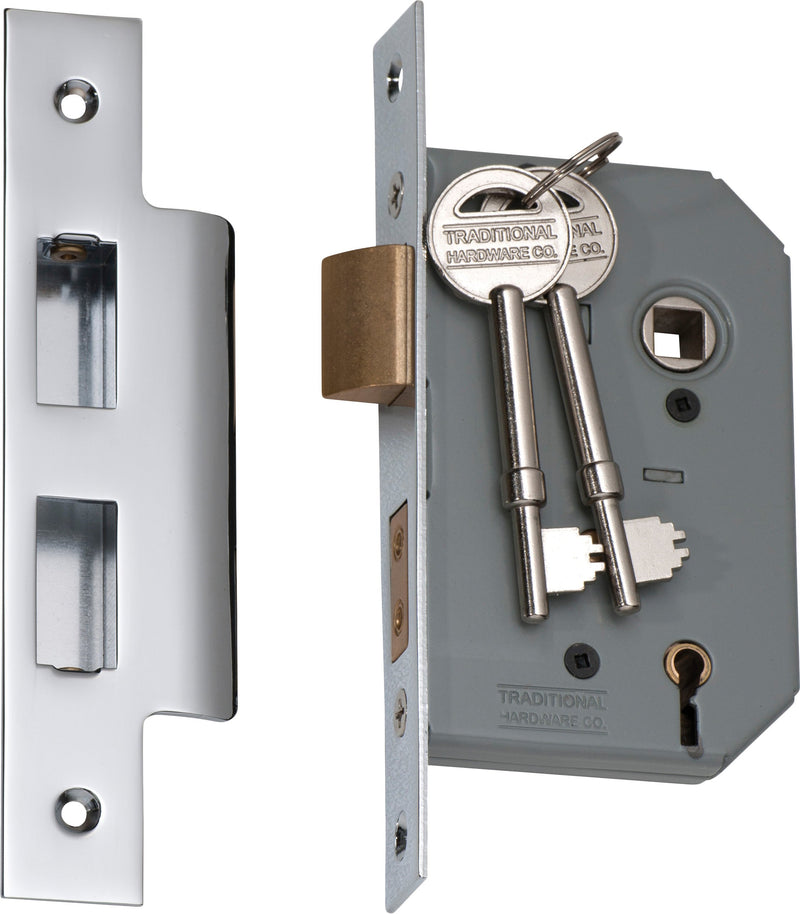

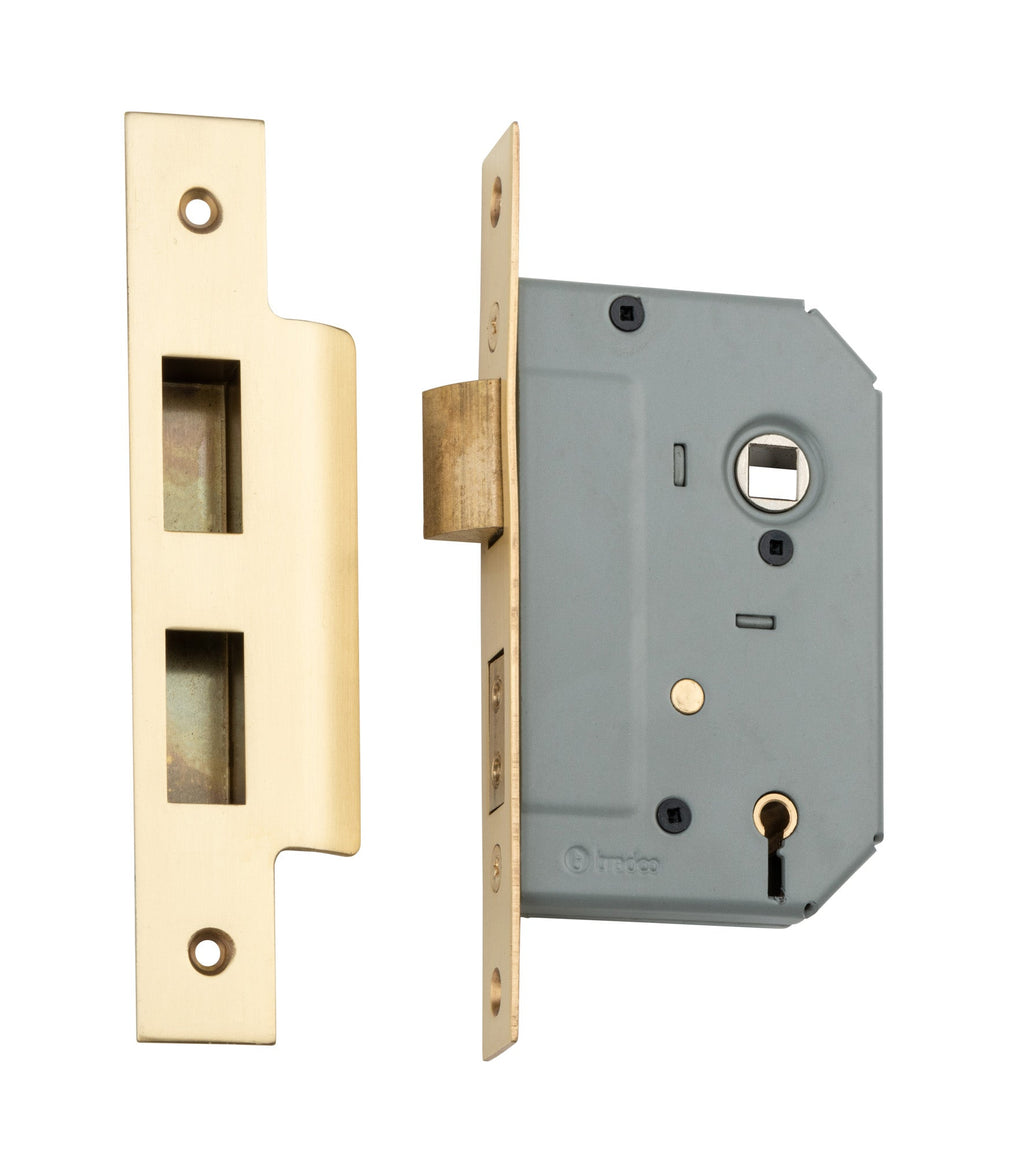

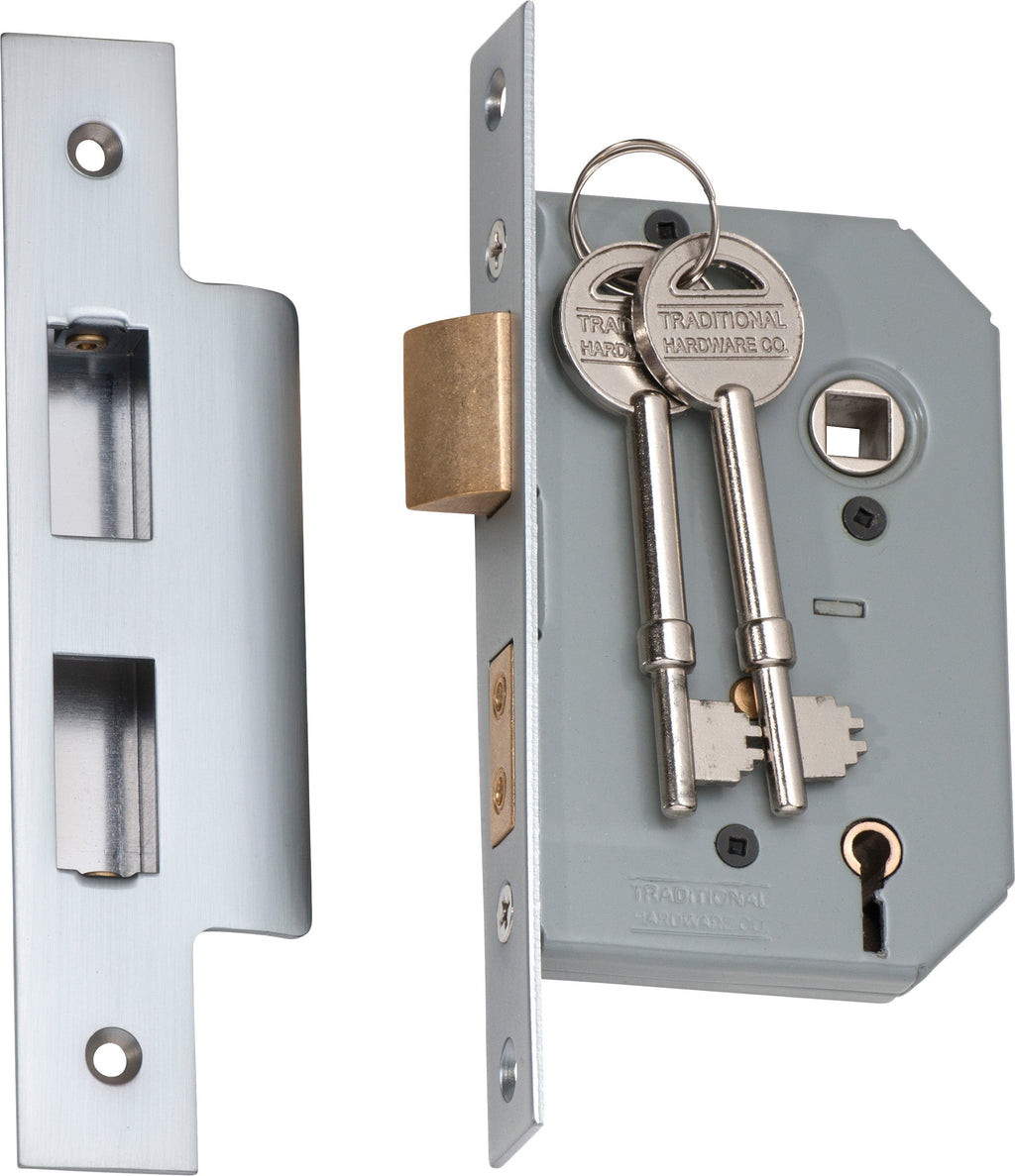

| Antique Brass | Antique Copper | Chrome Plated |
| Matt Black | Polished Brass | Polished Nickel |
| Rumbled Nickel | Satin Brass | Satin Chrome |
| Satin Nickel |
Lifetime Finish Warranty on Chrome Plated and Satin Chrome. Living finishes are designed to develop a patina over time and are not covered by the finish warranty. All products are also covered under Australian Consumer Law.
Is this lock suitable for entry doors?
Yes. This is a 5 lever high security mortice lock designed for external applications, including entry doors.
What security features does it have?
It has solid brass face and striker plates, reinforced steel pins, and an anti-pick curtain. It is tested over 130,000 cycles.
What backset options are available?
This listing is for the 46mm backset. A 57mm backset is also available in this range.
What are the lock dimensions?
The faceplate measures 150mm by 23mm, with a projection of 69mm, a lock body height of 110mm and a centre-to-centre pitch of 57mm.
Can I get the lock keyed to match my other doors?
Yes. This lock is available keyed alike or random keyed. Please specify your preference at the time of order.
Does this lock come with a knob or lever?
No. This is the lock body only, suited to handles with a traditional keyhole. A compatible knob, lever or handle is required separately to operate the lock.
What finishes are available?
Ten finishes are available: Antique Brass, Antique Copper, Chrome Plated, Matt Black, Polished Brass, Polished Nickel, Rumbled Nickel, Satin Brass, Satin Chrome and Satin Nickel.
Is it covered by a warranty?
Yes. Tradco hardware carries a 10-Year Warranty, with a Lifetime Finish Warranty on Chrome Plated and Satin Chrome. Living finishes are designed to patina and are not covered by the finish warranty, but remain protected under Australian Consumer Law.
