Intro

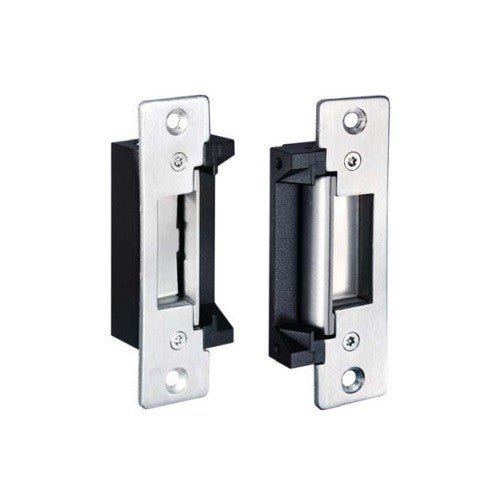

The Zanda Electric Strike – 100 Series (Model ESV100) is a high‐performance access control device designed for commercial, industrial and high-traffic door installations. Built with a stainless steel keeper and face-plate, dual voltage flexibility and strong holding capacity, it offers reliable security for architects, security integrators and builders.
Key Features & Benefits
✅ Function: Electric strike for controlled access doors (Power-to-Lock / Power-to-Open selectable)
✅ Material & Finish: Stainless steel face-plate and keeper for corrosion resistance and durability
✅ Voltage & Operation: Dual‐voltage (12 VDC / 24 VDC) with field‐reversible handing (non-handed design)
✅ Holding Strength: Up to 680 kg static strength rating for enhanced security
✅ Compatibility: Suitable for latch depths up to 15 mm, weather-resistant design for harsh conditions
✅ Monitoring Options: Available in non-monitored and monitored versions for access control integration
✅ Certification: CE tick and RoHS compliant for standard safety and environmental adherence
Specifications
-
Holding Strength: 680 kg (static)
-
Voltage: 12 VDC = 250 mA / 24 VDC = 150 mA
-
Dimensions (Approx.): 124 mm (Length) × 32 mm (Width) × 30 mm (Depth)
-
Material: Heavy-duty stainless steel face plate & keeper, weather resistant body
-
Latch Depth Compatibility: Up to 15 mm
-
Finish: Stainless steel (standard architectural finish)
-
Operation Modes: Power-to-Lock / Power-to-Open selectable
-
Handing: Fully reversible/non-handed for easy installation
Available Finishes
-
Stainless Steel
Applications
Ideal for use on access controlled hinged doors in commercial offices, educational facilities, healthcare centres and industrial environments. Suitable for retrofit and new installations where robust performance and integration with security systems are required.
Installation & Inclusions
-
Requires standard door frame preparation for electric strike installation (verify latch depth and frame dimensions).
-
Easy to convert between Power-to-Lock and Power-to-Open on-site.
-
Package typically includes: 1 × Electric Strike body (ESV100), keeper assembly, face plate, fixing screws.
-
Recommended to be installed by a qualified hardware installer or security system integrator to ensure optimal alignment, handing and system integration.
Why Choose Zanda / Electric Strike – 100 Series?
Zanda is recognized for precision-engineered architectural hardware trusted by builders and security professionals. The 100 Series Electric Strike offers high holding strength, dual-voltage flexibility, weather-resistant construction and compatibility with modern access control systems — making it a dependable choice for demanding installations.
👉 This is an electric strike designed for access-controlled doors where electronic release and secure closure are required.
Q2. What material is it made from?
👉 It is made from heavy-duty stainless steel face plate and keeper, with a weather-resistant body designed for durability and commercial use.
Q3. Does it include installation screws?
👉 Yes — the unit typically includes fixing screws along with the strike body and keeper for installation.
Q4. Is it compatible with all door systems?
👉 It is compatible with doors where the latch depth is up to 15 mm and the frame allows the strike mounting; the unit supports both left and right hand doors and can switch between Power-to-Lock and Power-to-Open.
Q5. What finish does it come in?
👉 The standard finish is stainless steel; other decorative finishes may be available depending on supplier stock and project requirement.
Q6. Does this product come with a warranty?
👉 Yes — the Zanda Electric Strike – 100 Series is backed by the manufacturer’s warranty covering defects in materials and workmanship under normal use.
