Intro

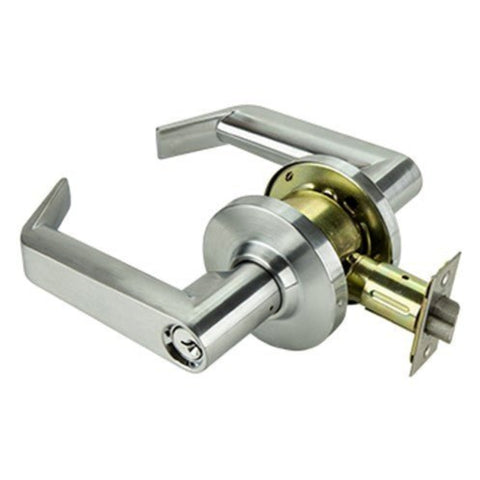

Zanda’s Phoenix CL Series Commercial Leversets – DDA offer high-performing locksets tailored for commercial, institutional and disabled-access compliant doors. Produced for spec-grade installations, these sets are designed to combine durability, accessibility and modern finish for architects, builders and facility managers.
Key Features & Benefits
✅ Function: Commercial leverset lockset for keyed or non-keyed access depending on configuration.
✅ Door Compatibility: Suitable for doors with thickness between 35 mm and 47 mm.
✅ Backset: Standard 70 mm backset.
✅ Rose Size: 75 mm diameter rose for strong architectural presence.
✅ Keyway: C4 6-pin keyway in keyed models for enhanced security.
✅ Material & Durability: Stainless steel latch-bolt and commercial-grade components for heavy usage; fire-tested to AS1530.4; disabled access compliant to AS1428.1.
✅ Warranty: 10-year mechanical warranty for long-term peace of mind.
Specifications
-
Door Thickness Range: 35 mm – 47 mm
-
Backset: 70 mm
-
Rose Diameter: 75 mm
-
Keyway: C4, 6-pin (on keyed variants)
-
Material: Heavy-duty metal with stainless steel latch-bolt
-
Function: Designed for commercial entrance, privacy, storeroom, classroom, escape/leverage, double-door communicating etc. applications
Available Finishes
-
Satin Chrome
-

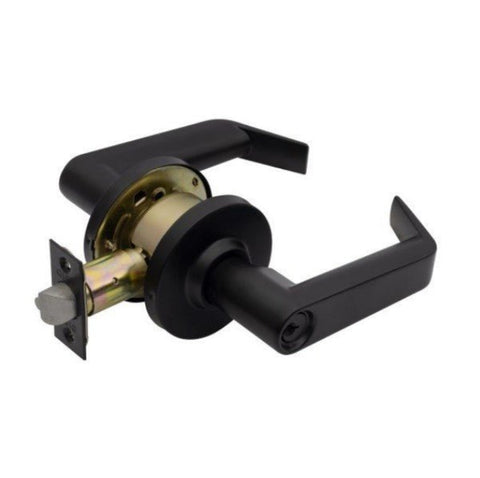

Matt Black
Applications
Ideal for commercial office entrances, classroom and educational facility doors, healthcare building entries, institutional fit-outs, and any door needing DDA compliance, fire-rating and high use durability.
Installation & Inclusions
-
Designed for standard door preparation: 35 – 47 mm thick doors, 70 mm backset.
-
Supplied with full lockset kit including levers, rose plates, latch mechanism, fixing hardware.
-
Suitable for both new installations and retrofits.
-
Installers should verify door handing, fire rating, handing of double doors and ensure DDA compliance when relevant.
Why Choose Zanda / Phoenix CL Series Commercial Leversets – DDA?
Zanda is renowned for precision-engineered architectural hardware which meets specification demands of commercial and institutional projects. The Phoenix CL Series stands out with its fire certification, disabled-access compliance, long warranty, and premium finish options—making it a reliable and stylish choice for high-traffic and specialist door applications.
👉 This is a commercial-grade leverset lockset designed for doors requiring high usage, keyed or non-keyed access, and compliance with disabled access standards.
Q2. What material is it made from?
👉 It is constructed from heavy-duty commercial-grade hardware with a stainless-steel latch-bolt for durability and reliability.
Q3. Does it include installation screws?
👉 Yes — the lockset comes with the levers/rose plates, latch mechanism and fixing hardware necessary for standard installation.
Q4. Is it compatible with all door fittings?
👉 It is compatible with doors of thickness 35 – 47 mm and backset of 70 mm. For non-standard sizes or backsets, compatibility should be verified.
Q5. What finishes are available?
👉 The finishes available are Satin Chrome and Matt Black.
Q6. Does this product come with a warranty?
👉 Yes — it comes with a 10-year mechanical warranty from Zanda.
