Intro

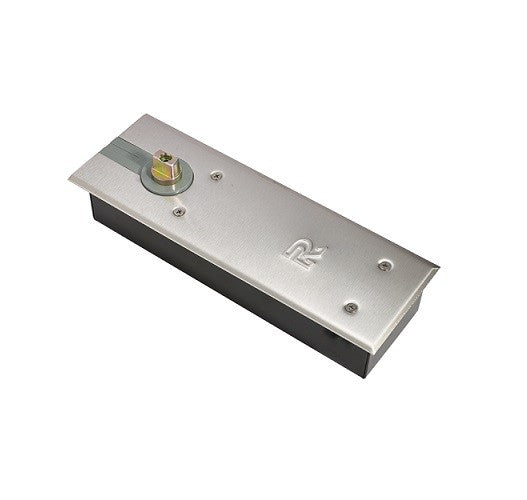

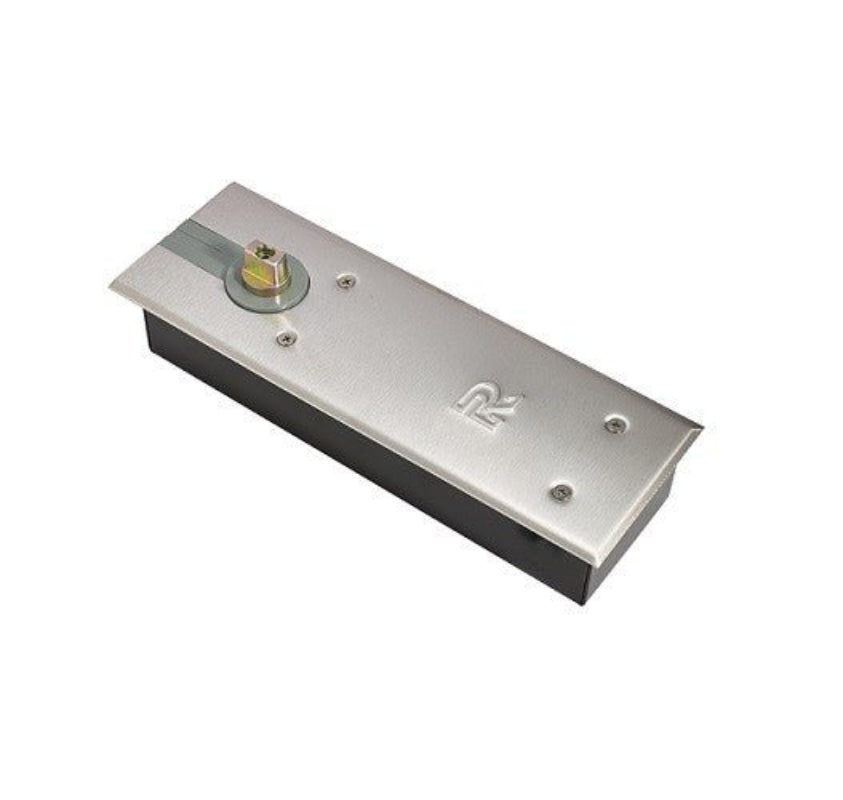

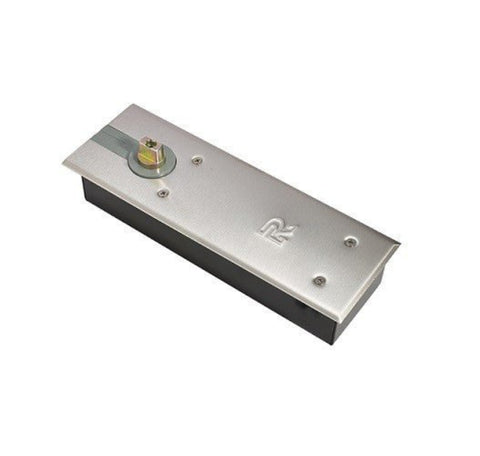

The Zanda TS7306 Heavy Duty Floor Spring is a premium-grade architectural door control system designed for heavy-duty pivot and swing doors. Offering smooth operation and long-lasting performance, this floor spring is ideal for commercial, institutional, and high-traffic environments. Its adjustable power (EN3–6) and sleek satin stainless finish ensure both functionality and a refined appearance.
Key Features & Benefits
✅ Function: Heavy-duty floor spring with hold-open option
✅ Finish: Satin Stainless
✅ Material: Durable hydraulic and mechanical steel construction
✅ Compatibility: Suitable for single and double-action pivot doors, maximum door width 1400 mm, door weight up to 300 kg
✅ Operation: Adjustable closing and latch speed, with back-check function
✅ Inclusions: Floor spring mechanism with PS.190 double-action pivot set and installation hardware
✅ Certification: Complies with EN3–6 door control standards
Specifications
-
Power Size: Adjustable EN3–6
-
Opening Angle: 130°
-
Maximum Door Width: 1400 mm
-
Maximum Door Weight: 300 kg
-
Material: Steel mechanism with high-strength components
-
Finish: Satin Stainless
-
Function: Floor spring with hold-open option
Applications
The Zanda TS7306 is ideal for commercial buildings, hospitals, retail outlets, hotels, and office complexes. Its heavy-duty build ensures reliability in high-traffic environments, while the elegant satin stainless finish complements modern architectural designs.
Installation & Inclusions
-
Installation: Professional installation is recommended due to floor preparation requirements.
-
Package Includes: Floor spring mechanism, PS.190 double-action pivot set, mounting screws, and fixings.
Available Finishes
-
Satin Stainless
Why Choose Zanda TS7306 Heavy Duty Floor Spring?
Zanda products are trusted by builders and designers across Australia for their superior quality and longevity. The TS7306 Heavy Duty Floor Spring combines reliable performance, smooth operation, and modern aesthetics—making it the perfect choice for demanding architectural door applications.
👉 This is a heavy-duty floor spring designed for controlling the opening and closing of pivot or swing doors in commercial environments.
Q2. What material is it made from?
👉 It is constructed from high-strength hydraulic and mechanical steel components, ensuring durability and stability during frequent use.
Q3. Does it include installation screws and accessories?
👉 Yes, the package includes the floor spring mechanism, PS.190 double-action pivot set, and all required mounting screws and fixings.
Q4. What finishes are available?
👉 This model is available in a Satin Stainless finish, offering a modern and professional appearance suitable for any setting.
Q5. What is the warranty on this product?
👉 According to Zanda’s warranty policy, floor spring hardware falls under the “Door Closers” category, which includes a 10-year mechanical warranty and a 5-year finish warranty under normal use and maintenance.
