DESCRIPTION

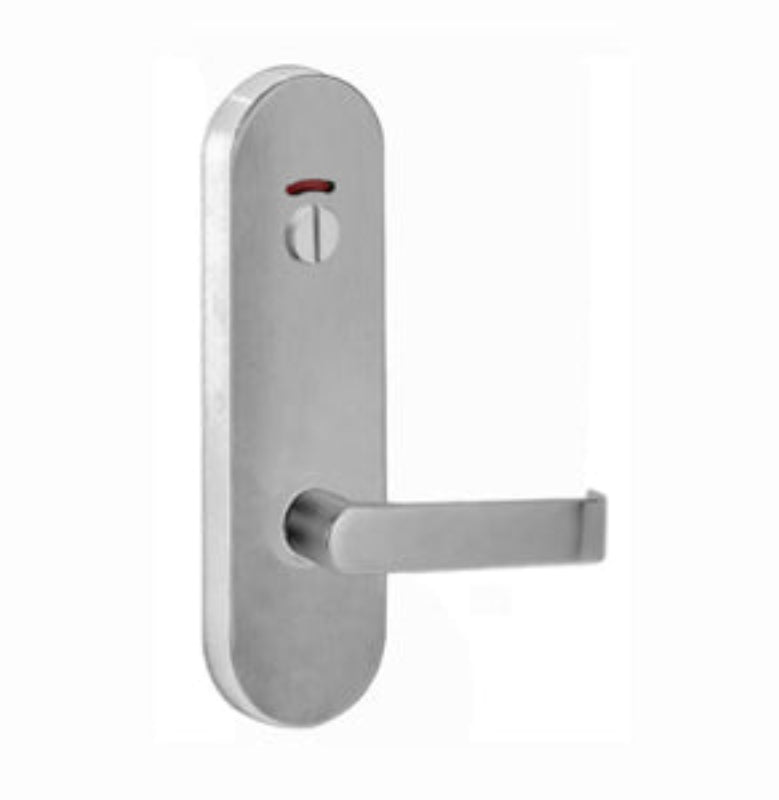

The Lockwood 2814/74PC features a round end plate with privacy indicator and emergency turn function, combined with the 74 lever finished in durable polyester powdercoat. The plate measures approximately 166mm in height, 48mm in width, and 12mm in thickness, suitable for timber doors 32mm to 45mm thick with options for longer screws for thicker doors. The 74 lever is designed with an ergonomic, straight profile optimized for comfortable and reliable door operation. The polyester powdercoat finish provides excellent resistance to corrosion, wear, and scratching, making it ideal for high-traffic commercial and public environments. Concealed fixing screws enable a clean installation aesthetic. This product complies with Australian fire safety and accessibility standards and carries a 25-year mechanical warranty, ensuring durability and style for demanding applications.
This handle set is designed for privacy-focused areas such as bathrooms or change rooms. It includes a round-end plate, a 74-style lever, a privacy indicator, and an emergency turn for safe and convenient access.
Main Features
- Plate Size: 166mm (H) × 48mm (W) × 12mm (D)
- Lever Style: 74 – contoured design for comfortable grip
- Lever Dimensions: 120mm length, 65mm projection, 48mm finger clearance
- Privacy Function: Indicator shows if the room is occupied; emergency turn allows access from outside
- Fixing: Concealed screws, suits doors 32–45mm thick
- Compatibility: Designed for Lockwood Selector and Synergy Series mortice latches
- Handing: Non-handed; lever can be reversed by removing the stop screw
| Model No | 2814/74PC |
|---|---|
| EAN | 9340116132365 |
| Handle Type | Lever 74 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
