DESCRIPTION

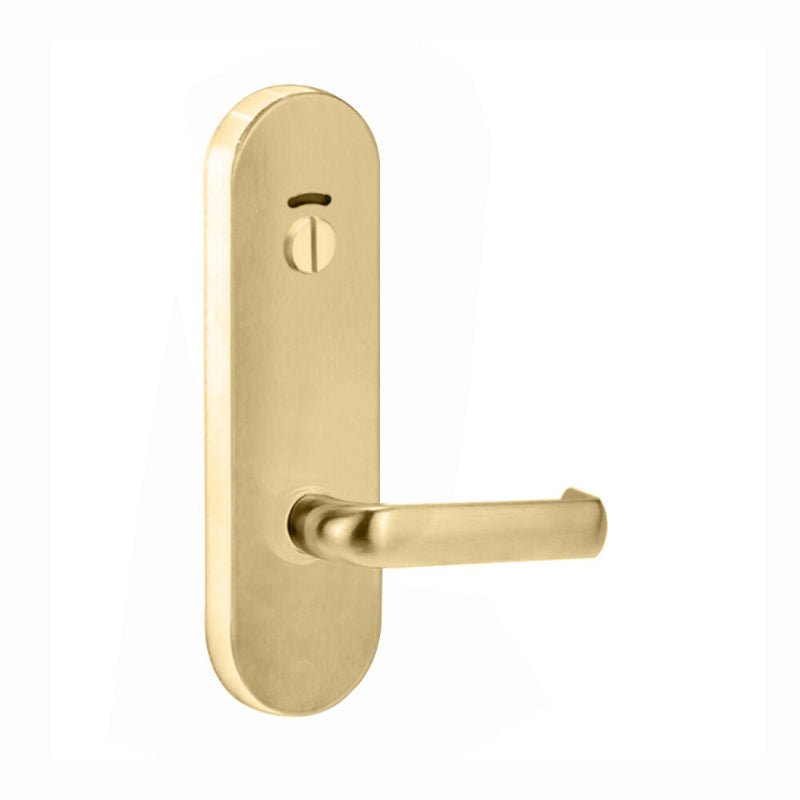

The Lockwood 2814/77SB features a round end plate measuring approximately 166mm in height, 48mm in width, and 12mm in thickness, fitted with a privacy indicator and emergency turn feature, combined with the 77 lever finished in Satin Brass. The 77 lever is a smooth, ergonomic design for easy grip, measuring 121mm in length with a 51mm projection and 48.3mm finger clearance. The privacy function shows if the room is occupied, and the emergency turn allows access from outside when needed. The plate is fixed with concealed screws and suits doors 32mm to 45mm thick. The lever is non-handed but can be reversed by removing the stop screw. This hardware is compatible with Lockwood Selector and Synergy Series mortice latches and carries a 25-year mechanical warranty. The Satin Brass finish offers durability with a warm matte metallic appearance suitable for commercial and residential use.
This handle set is designed for privacy-focused areas like bathrooms or change rooms. It includes a round-end plate, a 77-style lever, a privacy indicator, and an emergency turn for safe access when needed.
Main Features
- Plate Size: 166mm (H) × 48mm (W) × 12mm (D)
- Lever Style: 77 – smooth, ergonomic design for easy grip
- Lever Dimensions: 121mm length, 51mm projection, 48.3mm finger clearance
- Privacy Function: Indicator shows if the room is occupied; emergency turn allows access from outside
- Fixing: Concealed screws, suits doors 32–45mm thick
- Compatibility: Works with Lockwood Selector and Synergy Series mortice latches
- Handing: Non-handed; lever can be reversed by removing the stop screw
| Model No | 2814/77SB |
|---|---|
| EAN | 9340116069517 |
| Handle Type | Lever 77 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
