DESCRIPTION

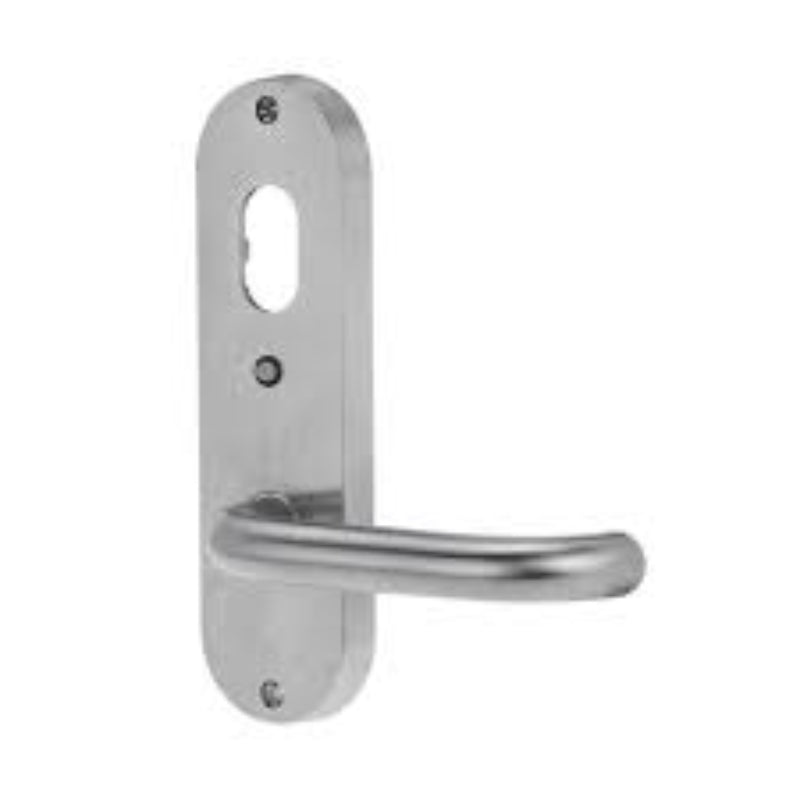

The Lockwood 2920 Round End Plate with Cylinder Hole, LED indicator, and 74 Lever in Satin Chrome finish is a robust and architecturally styled door hardware solution for corporate, commercial, and public spaces. The brass plate measures 166mm by 48mm by 12mm and fits timber doors with thicknesses between 32mm and 45mm. This model features an integrated LED indicator for clear door status and an ergonomic 74 lever that complies with AS1428.1 accessibility standards. The satin chrome finish offers corrosion resistance with a modern brushed look ideal for high-traffic use. The plate supports back-to-back installation with concealed fixing externally and visible fixing internally. Rated for fire resistance up to 4 hours and backed by a 25-year mechanical warranty, it offers durability, style, and compliance for architects, builders, and facility managers.
The Lockwood Round End Plate with Cylinder Hole, LED & Lever 74 is a high-quality internal door furniture solution designed for secure access and visual status indication. With its satin chrome finish and ergonomic lever design, it suits both residential and commercial environments where durability and style are essential.
Key Features
- Design: Round end plate with integrated cylinder hole and LED indicator
- Lever Style: 74 Lever – designed for slip resistance and comfortable grip
- Finish: Satin Chrome for a sleek, modern appearance
- Material: Solid brass construction for strength and longevity
- Functionality: LED indicator provides clear visual status; cylinder hole allows for secure locking (cylinder not included)
- Durability: Rated D8 under AS4145.2:2008 – tested to exceed 500,000 operational cycles
Dimensions:
- Plate: 166mm height × 48mm width × 12mm depth
- Lever: 120mm length, 65mm projection, 48mm finger clearance
- Door Thickness Range: Suitable for doors 32mm to 45mm thick
- Handing: Non-handed; symmetrical levers can be reversed by removing the stop screw
- Fixing: External plate with concealed fixing; screws included
| Model No | 2920/74SC |
|---|---|
| EAN | 9340116048574 |
| Handle Type | Lever 74 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
