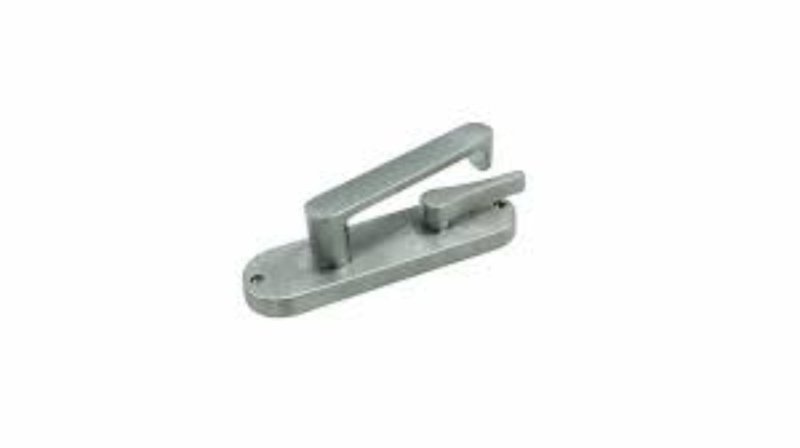

Lockwood 2939 Round End Plate with Disabled Turn & 166 Lever Satin Chrome 2939/166SC

DESCRIPTION
The Lockwood 2939 Round End Plate with Disabled Turn and 166 Lever in Satin Chrome finish is a premium-grade door hardware designed for corporate, commercial, and public buildings requiring accessibility and durability. Measuring 166mm by 48mm by 12mm, it fits timber doors with thicknesses ranging from 32mm to 45mm. This product features a clutching disabled turn mechanism, allowing cylinder operation even if the turn knob is held from inside, enhancing accessibility and security. The 166 lever offers ergonomic comfort and reliable function, suitable for frequent use. The satin chrome finish provides corrosion resistance and a modern brushed appearance ideal for high-traffic environments. It supports back-to-back installation with concealed fixing externally and visible fixing internally. This plate is fire rated for up to 4 hours and is backed by a 25-year mechanical warranty, ensuring long-lasting reliability and compliance.

The Lockwood Round End Plate with Lever 180 is part of the Lockwood 2800 Series, designed for commercial, institutional, and public environments. This model features a robust lever style and satin chrome finish, offering both compliance and architectural appeal.

Key Features:

• Disabled access turn for ease of use and compliance with AS1428.1 standards
• Lever 180 with a strong, angular profile for confident grip and operation
• Satin chrome finish for a sleek, corrosion-resistant surface
• Compatible with Lockwood Synergy 3570 and Selector 3770 Series mortice locks
• Designed for timber doors with thickness between 32mm and 45mm
• Fire-rated up to 4 hours when installed with compliant accessories
• Plate dimensions: 166mm (L) × 48mm (W) × 12mm (T)
• Lever dimensions: approx. 134mm (L), 53mm projection, 40mm finger clearance
• Cylinder pitch: 64mm; Centre to centre: 148mm
• Non-handed design; levers may be reversed by removing the stop screw
