DESCRIPTION

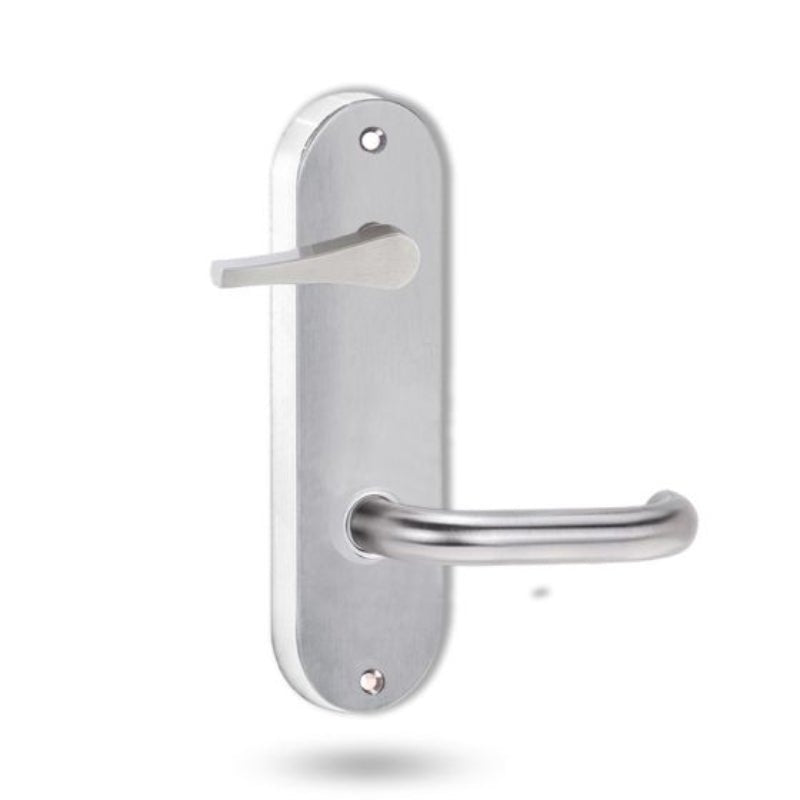

The Lockwood 2939 Round End Plate with Disabled Turn and 70 Lever in Satin Chrome finish is a versatile, high-quality door hardware product suited for commercial, corporate, and public buildings requiring accessibility and durability. The plate measures 166mm by 48mm by 12mm, designed to fit timber doors with thicknesses between 32mm and 45mm. Featuring a clutching disabled turn mechanism, it allows the mortice cylinder to operate even if the turn knob is forcibly held from inside. The 70 lever is ergonomically designed for comfortable and reliable use. The satin chrome finish provides a corrosion-resistant, modern brushed appearance, ideal for high-traffic environments. This plate supports back-to-back installation with concealed fixing externally and visible fixing internally. It is fire rated up to 4 hours and backed by a 25-year mechanical warranty, ensuring long-lasting functionality and compliance.
Lockwood 2800 Series Round End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
The timeless design of this tubular shaped lever signifies quality and strength.
The 2800 Series features a classic oval shapped plate suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever 70
- Internal plate with visible fixing (screws not included)
- Accessibility turn
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Dimensions: 166mm
Cylinder pitch: 48mm
Fixing centres: 12mm
Lever Dimensions
Length: 121mm
Projection: 53mm
Finger clearance: 37mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 2939/70SC |
|---|---|
| EAN | 9340116106649 |
| Handle Type | Lever 70 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
