DESCRIPTION

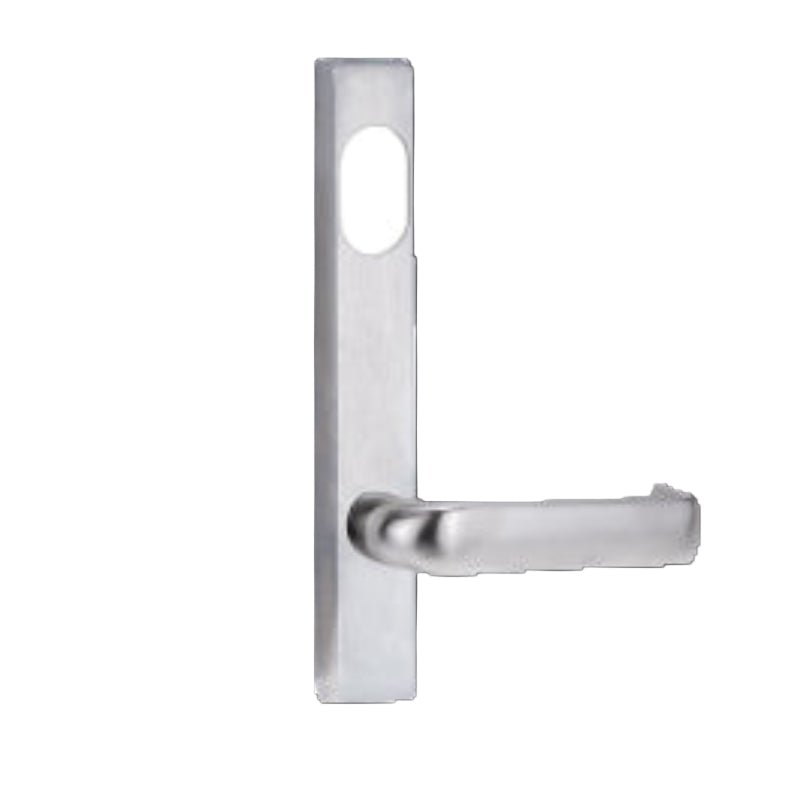

The Lockwood 4601 External Square End Plate with Cylinder Hole and 144 Lever in Satin Chrome finish combines architectural style with robust engineering, designed for high-use commercial and institutional environments. The plate measures approximately 166mm in height, 48mm in width, and 12mm in depth, suitable for doors with thicknesses ranging from 32mm to 45mm. The 144 lever features an ergonomic tubular design offering a length of 128.8mm, projection of 57.5mm, and a finger clearance of 40mm, providing comfort and ease of use. The satin chrome finish offers a corrosion-resistant brushed surface that complements contemporary architectural aesthetics. The plate supports concealed fixing externally and visible fixing internally for back-to-back installation. It is non-handed with reversible levers by removing a stop screw and meets accessibility standards. This product comes with a 25-year mechanical warranty ensuring long-lasting and reliable performance for architects, builders, and facility managers.If more detailed specifications or assistance with other Lockwood products is required, please feel free to ask!
This external square end plate is part of Lockwood’s 4800 Series brass door furniture, designed for use with Synergy 3580 and Selector 3780 Series Mortice Locks. It features a cylinder hole and the 144 leAver, combining architectural style with robust engineering for high-use commercial and institutional environments.
Key Features:
- Designed for Lockwood Synergy 3580 and Selector 3780 Series Mortice Locks
- External plate with concealed fixing (screws included)
- Cylinder hole (cylinder not included)
- Lever 144: elongated cylindrical design for ergonomic grip
- Non-handed configuration; symmetrical levers reversible by removing stop screw
- Supplied in trade pack
- Plate Dimensions: 185mm (H) × 26mm (W) × 11.5mm (D)
- Lever Dimensions: 128.8mm (L) × 57.5mm (Projection) with 40mm finger clearance
- Cylinder Pitch: 89.9mm
- Fixing Centres: 160mm
- Finish: Satin Chrome (SC)
- Suits door thickness between 32mm and 50mm
| Model No | 4601/144SC |
|---|---|
| EAN | 9340116114477 |
| Handle Type | Lever 144 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
