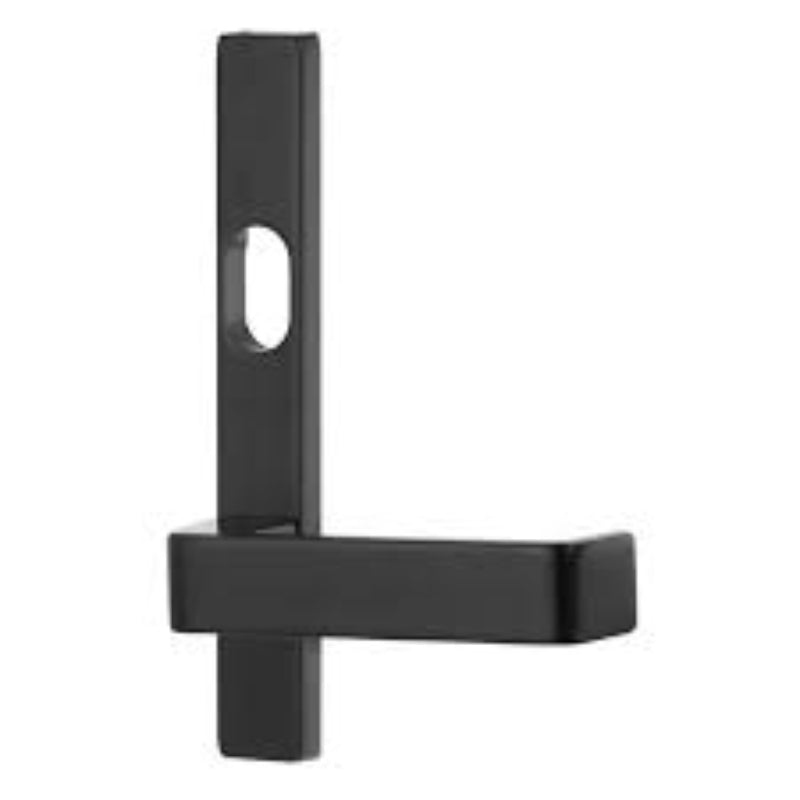

Lockwood 4601 Square End Plate With Cylinder Hole & 101 Lever Polyester Powdercoat 4601/101PC

DESCRIPTION
The Lockwood 4601 Square End Plate with Cylinder Hole and 101 Lever in Polyester Powdercoat finish is a slim, rectangular brass plate designed for use with Lockwood 3770/3570 Series Mortice Latches. It measures approximately 185mm in height, 26mm in width, and 11.5mm in depth, suitable for doors with thicknesses from 32mm to 50mm. The 101 lever features an ergonomic design for comfortable and frequent use. The polyester powdercoat finish provides excellent durability, corrosion resistance, and suitability for demanding commercial and institutional applications. The plate is designed for concealed fixing externally with back-to-back installation and visible fixing internally. This product meets accessibility standards and comes with a 25-year mechanical warranty, ensuring long-lasting performance for architects, builders, and facility managers.

This Lockwood square end plate set features a cylinder hole and the 101 lever, designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks. It offers a sleek, functional design suitable for both residential and commercial applications.

Key Features:

• Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks
• External plate with concealed fixing (screws included)
• Cylinder hole (cylinder not included)
• Supplied in trade pack
• Non-handed design for flexible installation
• Handle Type: Lever 101
• Cylinder Pitch: 64mm
• Fixing Centres: 148mm
• Plate Dimensions: 166mm (H) × 48mm (W) × 12mm (D)
• Lever Dimensions: 130mm (L) × 48.5mm (Projection) with 40mm finger clearance
• Available Finishes: Polished Brass, Polyester Powdercoat, Satin Chrome
• Compatible with back-to-back plate installation
• External plates supplied with fixing screws to suit door thickness between 32mm and 45mm
