DESCRIPTION

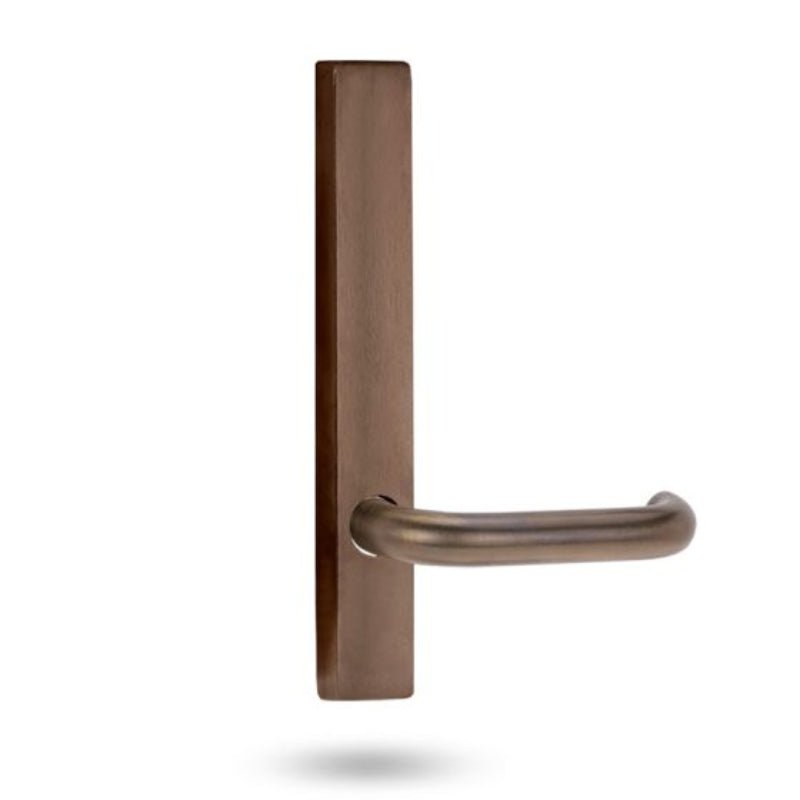

The Lockwood 4801 Square End Plate with Cylinder Hole and 97 Lever in Satin Brass Unlacquered finish is a slim, rectangular brass plate designed for commercial and institutional doors. Compatible with Lockwood 3770/3570 and 3780/3580 Series mortice latches, it measures approximately 185mm in height, 26mm in width, and 11.5mm in depth, fitting doors from 32mm to 50mm thick. The satin brass unlacquered finish offers a warm, natural patina that develops over time, providing both aesthetic appeal and corrosion resistance. Designed for concealed fixing with back-to-back installation capability, this plate combines style with long-lasting durability. It carries a 25-year mechanical warranty, making it a reliable and classic choice for architects, builders, and facility managers.
This Lockwood square end plate door furniture set features a 70 series tubular lever. It is part of the Lockwood 4800 series, designed for narrow stile applications in commercial, institutional, and high-traffic environments.
Key Features:
- Plate Type: Slim-line rectangular brass plate with bevelled edges.
- Lever Type: 70 series tubular lever, offering a clean and functional design.
- Fixing: External plate with concealed fixing. Plates are designed to fit back-to-back. If the external plate is concealed fixed, the internal plate must be visible fixed.
- Compliance: AS1428.1 compliant for disabled access.
- Tail Bar: Unique self-adjusting mechanism for turnsnib configurations to suit varying door thicknesses.
Compatibility: Designed for use with:
- Lockwood Synergy 3580 Series Mortice Locks
- Lockwood Selector 3780 Series Mortice Locks
- Lockwood 3540 Series short backset mortice deadbolts
Specifications:
- Plate Dimensions: 185mm (H) × 26mm (W) × 11.5mm (D)
- Fixing Hole Centres: 160mm
- Cylinder Pitch: 89.9mm
- Lever Dimensions: Length: approx. 121mm, Projection: approx. 53mm, Finger Clearance: approx. 40mm
- Door Thickness Range: 32mm – 50mm
- Material: Solid Brass
Finish Options: Satin Chrome and other architectural finishes available
| Model No | 4805/70AZ |
|---|---|
| EAN | 9340116123257 |
| Handle Type | Lever 70 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
