DESCRIPTION

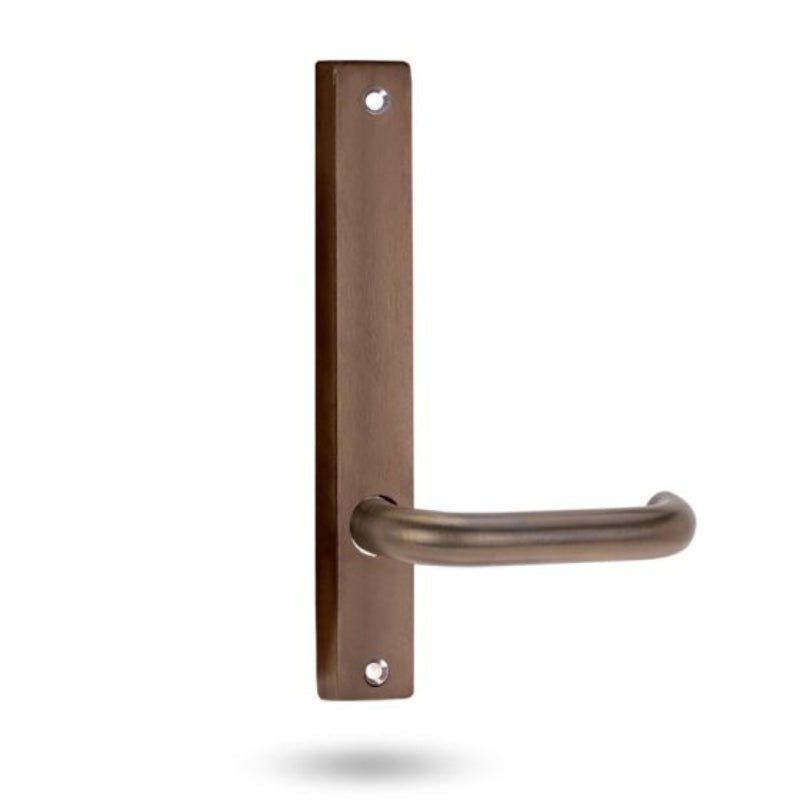

The Lockwood 4905 Square End Plate with 70 Lever in Architectural Bronze finish is a slim-line, rectangular brass plate designed for use on commercial and public building doors. The plate measures approximately 185mm in height, 26mm in width, and 11.5mm in depth, suitable for door thicknesses from 32mm to 50mm. It features a 70 lever with ergonomic design, 121mm length, 53mm projection, and 37mm finger clearance, optimized for comfortable and frequent use. The architectural bronze finish offers a warm, natural patina that provides corrosion resistance and a timeless aesthetic. The plate requires visible fixing, supports back-to-back installation, and fits Lockwood 3580/3780 series mortice locks. This product is backed by a 25-year mechanical warranty, ensuring durability and long-lasting performance for architects, builders, and facility managers.
Lockwood 4800 Series Square End Narrow Plate Brass Furniture
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
The timeless design of this tubular shaped lever signifies quality and strength.
The Lockwood 4800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3580 and Selector 3780 Series Mortice Locks. Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts.
Features
- Lockwood lever 70
- Internal plate with visible fixing (screws not included)
- No cylinder or turn
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 185mm
Width: 26mm
Depth: 11.5mm
Cylinder pitch: 89.9mm
Fixing centres: 160mm
Lever Dimensions
Length: 121mm
Projection: 53mm
Finger clearance: 37mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 50mm.
Finish
Architectural Bronze AZ
| Model No | 4905/70AZ |
|---|---|
| EAN | 9340116118871 |
| Handle Type | Lever 70 |
