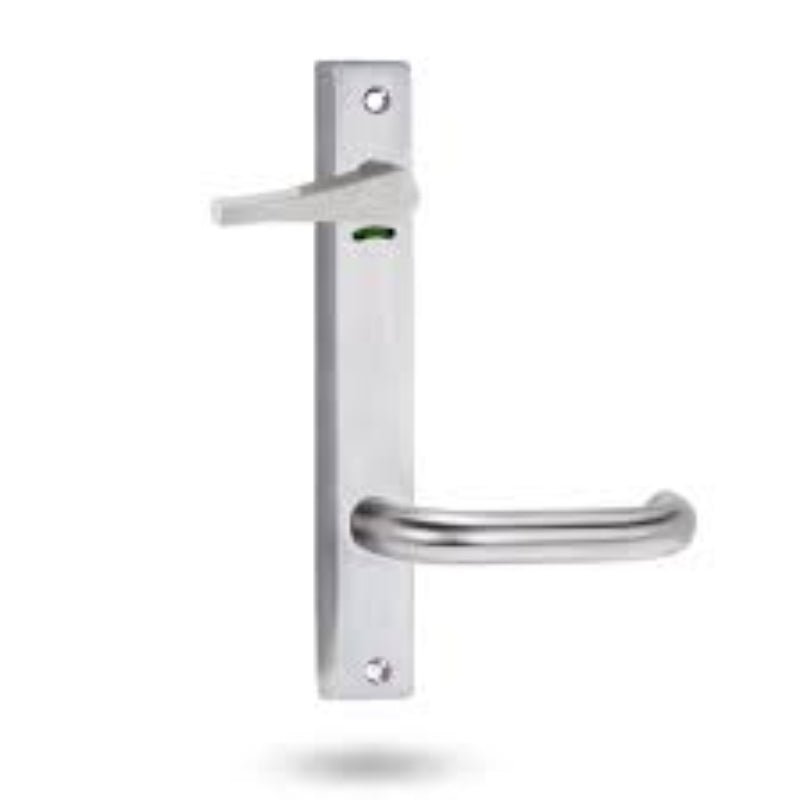

Lockwood 4981 Square End Plate To Suit 3540 Series With 45 Degree 77 Lever Only Polyester Powdercoat 4981/77PC

DESCRIPTION
The Lockwood 4981 Square End Plate is designed to suit the 3540 Series short backset mortice locks with a 45-degree angled 77 lever. Finished in polyester powdercoat, this slim, narrow square-end plate is ideal for high-use commercial, corporate, and public spaces. The plate provides a durable and corrosion-resistant surface suited for demanding environments. It is optimized for ergonomic use with the 77 lever angled at 45 degrees for ease and comfort. The design supports visible fixing and back-to-back installation, ensuring secure and compliant door hardware suitable for architects, builders, and facility managers seeking reliable and stylish hardware solutions.

This square end plate is part of Lockwood’s high-quality brass door furniture range, specifically designed to suit the 3540 Series short backset mortice deadbolts. Paired with the 45-degree Lever 77, it offers a distinctive angled design that combines ergonomic comfort with bold styling. Ideal for commercial and institutional environments where durability and design consistency are key.

Key Features

• Slim-Line Square End Plate: Rectangular brass plate with square ends, offering a clean and modern appearance
• Lever 77 (45-Degree Orientation): Angled lever design provides a unique visual profile and comfortable operation
• Visible Fixing: Designed for straightforward installation with exposed screws (concealed fixing available on request)
• Non-Handed Configuration: Suitable for both left- and right-hand doors; symmetrical levers can be reversed by removing the stop screw
• Back-to-Back Installation: Plates are designed to be mounted back-to-back for double-sided door setups
• Dimensions: Plate size approx. 184mm (H) × 26mm (W) × 11.5mm (D); fixing centres 160mm; cylinder pitch 89.9mm
• Door Thickness Compatibility: Supplied with fixing screws to suit doors between 32mm and 50mm thick
