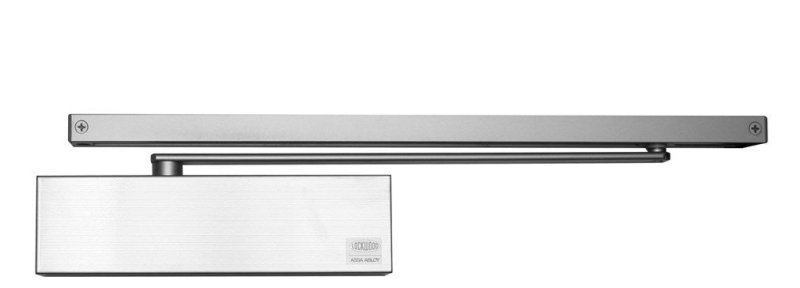

Lockwood 7714 Slide Arm Delayed Action Satin Stainless Steel
- Size 1 (20kg/750mm wide) to 3 (60kg/950mm wide)
- Rack & pinion mechanism
- Fire Rated
- Adjustable back check, latching & closing speed
- Adjustable hold open & delayed action
- Lockwood Surface Mounted Door Closers Catalogue
- Lockwood Warranty
Please note; Hold Open is not suitable for use on Fire Doors.
Products specifications
| Back Check | Yes |
| Cam Action | No |
| Delayed Action | Yes |
| Finish | Satin Stainless Steel |
| Fire Tested. Check with Manufacturer for Further Details. | Yes |
| Include PA Bracket | NA |
| Includes Fixing Screws | Yes |
| Material | Aluminium |
| Max Door Weight | 80kg |
| Max Door Width | 1100mm |
| Max Opening | 130 Degrees on Pull Side - 115 Degrees on Push Side |
| Warranty | 25 Years |
| Hold Open | Available |
| Spring Strength | 1-3 |
