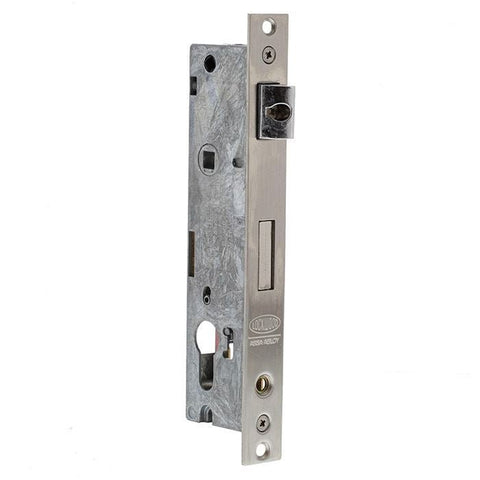

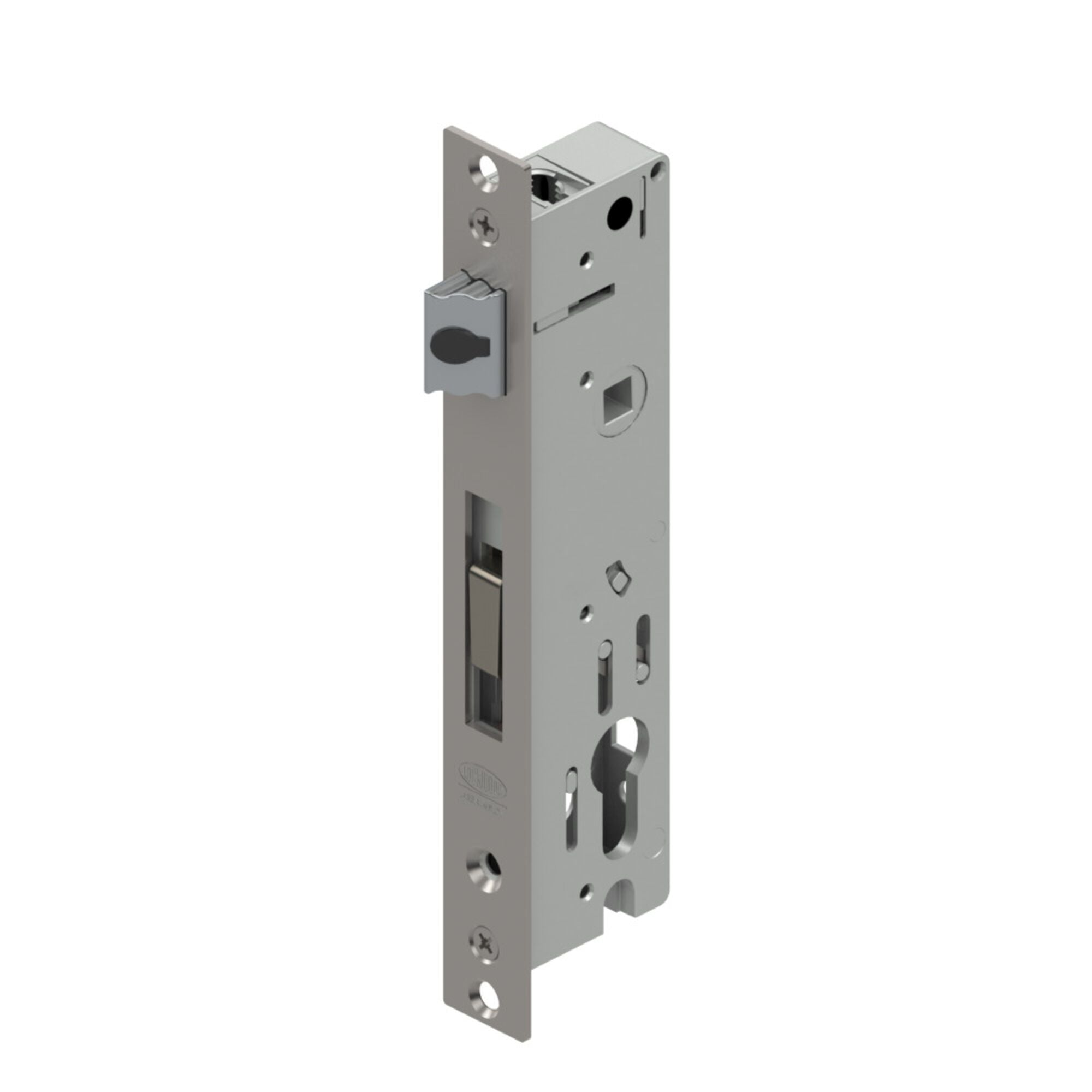

LOCKWOOD INDURO 4P 30 BACKSET LONG THROW TP Satin Stainless

LOCKWOOD INDURO 4P 30 BACKSET LONG THROW TP Satin Stainless

• Lockwood Induro 4-Point Series

  The Induro 4-point hinged door mortice lock offers a new and improved locking system with added security and sealing compression for increased thermal efficiency.
  With four points of locking, there is increased security compared to a 2-point lock, but with the new Induro 4-point, security has also been increased above any of the 4-point lock predecessors.
  The lift-bolt operation also improves sealing compared to a conventional projection bolt by compression of the door against the stile.


  Application

  The Lockwood Induro replaces the Optimum Mortice Lock, with upgraded features and specifications, but maintaining the same installation footprint and methods*, making it an easy change for current Optimum customers and a suitable retrofit replacement for Optimum, LCL and Millton locks.

  * Same door-side installation. Strikes and door jamb cut-outs may differ to Optimum due to Lift-bolt compared to previous projection bolt.


  Features


  • Features four points of locking including the latch, lift-bolt and shootbolts/remotes
  • When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
  • Upgraded furniture option (Palladium (Xtra) Snib) comes with safety snib for home security, enabling easy exit if required
  • Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
  • Easily reversible latch enables field selectable handing
  • Durable mechanism and stainless-steel faceplate

  Specifications

  • Accepts either 7.6mm or 8mm spindle
  • Latch can be deadlocked by key
  • Available in 30mm and 40mm backset variants
  • Short throw (13mm deadbolt projection) available for 30mm and 40mm backsets
  • Long throw (23mm deadbolt projection) available for 30mm backset only
  • A range of strikes are available to provide optimal seal compression (strikes must be ordered separately)
  • Achieves Australian Standards AS 4145.2-2008
  • Door thickness: 32mm to 45mm


  Standard Finishes

  Brushed stainless steel faceplate supplied
