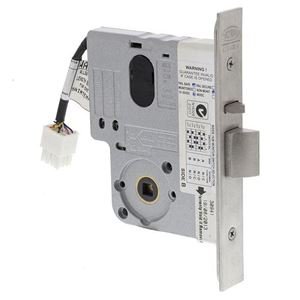

Lockwood 3570 Non-Monitored Electric Mortice Lock Satin Chrome
- Suits 32mm - 50mm timber doors
- Current Consumption
- 500mA (80mA Holding) @ 12Vdc
- 275mA (50mA Holding) @ 24Vdc
- LEDs - When fitted add 15mA to total current draw
- 60mm Backset
- 15mm latch projection - stainless steel
- 1 year manufacturer's warranty (electronics)
- Suits 3mm - 6.5mm door clearance
- Fire rated (4Hrs)
- S3 Security & D3 Durability Rating (AS4145.2-1993)
- Suits Lockwood furniture
- 12 pin, 1.6m of cable supplied\
- Lockwood Electric Mortice Lock Catalogue
- Lockwood Warranty
Products specifications
| Anti Lockout | No |
| Backset | 60mm |
| Can be Master Keyed or Keyed Alike | Yes |
| Case Material | Zinc |
| Fail Safe / Secure | Selectable |
| Finish | Satin Chrome Plate |
| Fire Tested. Check with Manufacturer for Further Details. | Yes |
| Internal Escape Function | Selectable |
| Material | Composite |
| Monitored | No |
| SCEC Rated | No |
| Voltage | 12-24VDC |
| Warranty | 1 Year |
