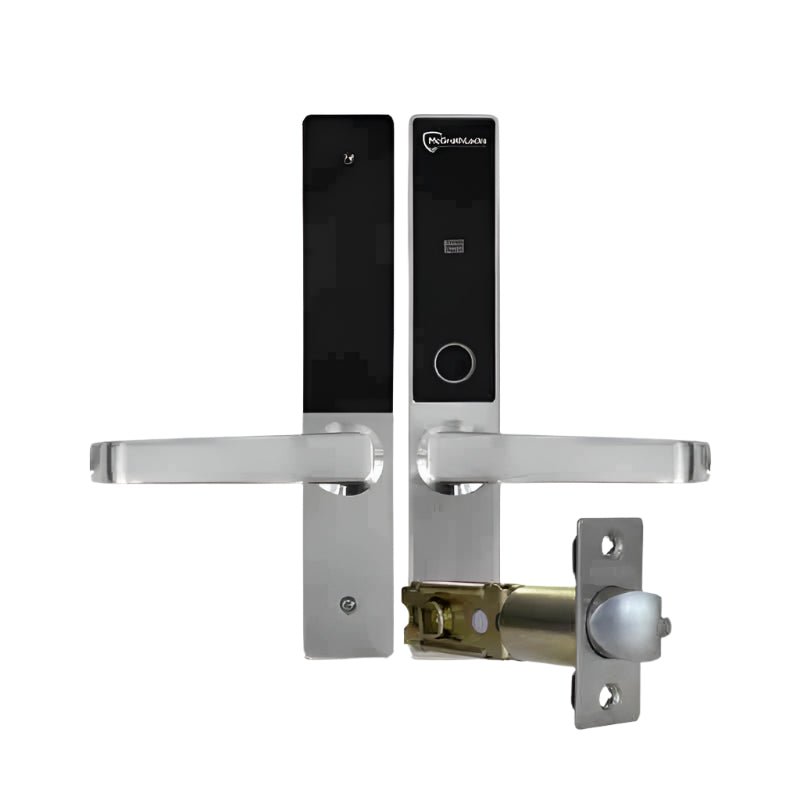

HAMILTON by McGrath Locks — Advanced 5-in-1 Digital Door Lock (Satin Nickel)

The McGrath HAMILTON is a premium 5-in-1 smart lock designed for residential, commercial, and accessible applications. It offers entry via PIN, RFID, fingerprint, Bluetooth eKey (via TTLock App), and mechanical key override. Supplied with a 60–70 mm adjustable tubular latch, it’s also compatible with Australian mortice locks.

Easily manage users, access, and audit trails through the TTLock App. Add the McGrath Wi-Fi Gateway for remote access. Fire-rated, DDA-compliant, and IP66-rated for external use, the HAMILTON suits high-traffic and accessibility-focused installations.

Key Features:

• 5-in-1 access: PIN, RFID, fingerprint, BLE eKey, mechanical key

• Fire-rated to AS1905.1:2005 (when used with approved latches)

• AS1428.1-2009 compliant lever for accessible installations

• IP66-rated external housing

• Remote unlock (with Wi-Fi Gateway), audit trail, passage mode

• Anti-peep PIN, incorrect attempt lockout, reset button disable

• USB-C emergency power, accepts full-size 570 oval cylinder

• Supplied with 60/70 mm adjustable tubular latch

• Compatible with timber, aluminium, and standard stile doors

Specifications:

• Finish: Satin Nickel

• Power: 4 x AA (not included)

• Dimensions: 260 (H) x 45 (W) x 23 mm (D)

• Door Thickness: 35–54 mm

• Operating Temp: -30°C to +60°C

• Humidity: 10–97% RH

• Warranty: 24 months
