Carbine York cylindrical knob lever vestibule SS 70mm
Function: Vestibule
Finish: Brushed Satin chrome
Backset: 70mm
Type: Disability lever
Keyway: C4
Packaging: Boxed
Keying: Keyed to differ
Inner box qty: 1
Box quantity: 8

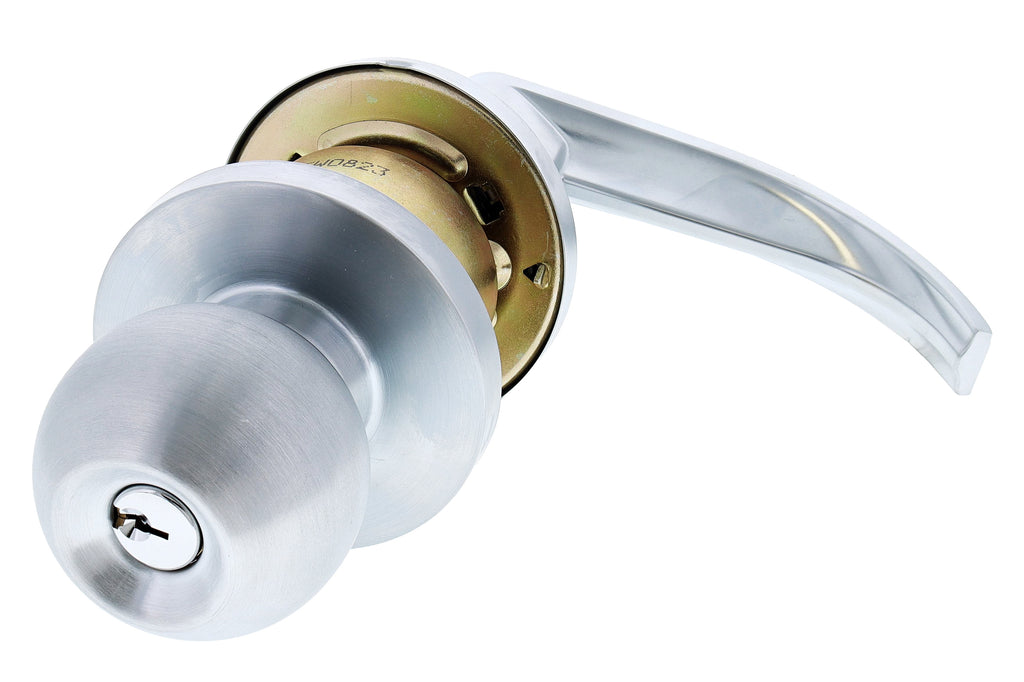

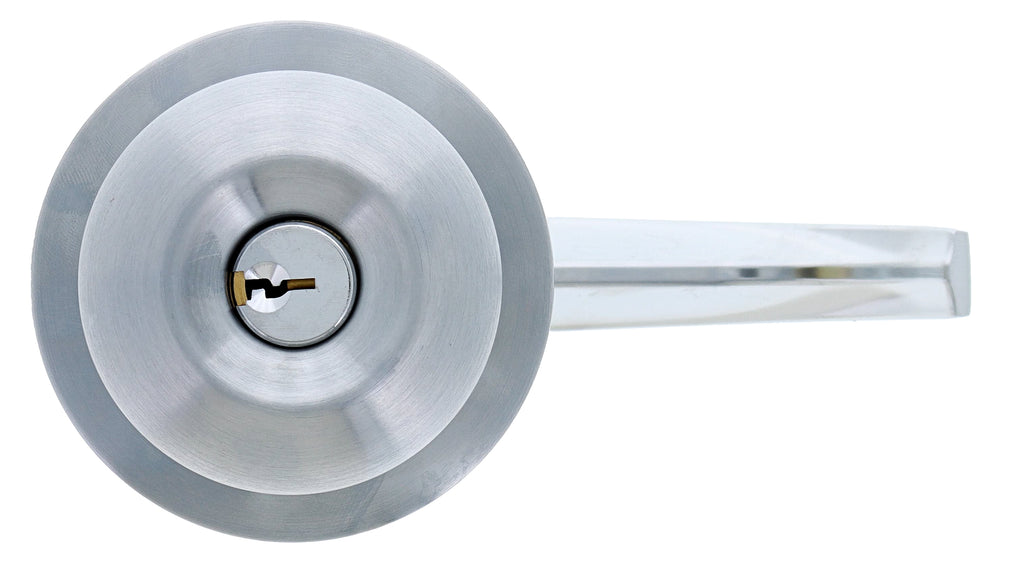

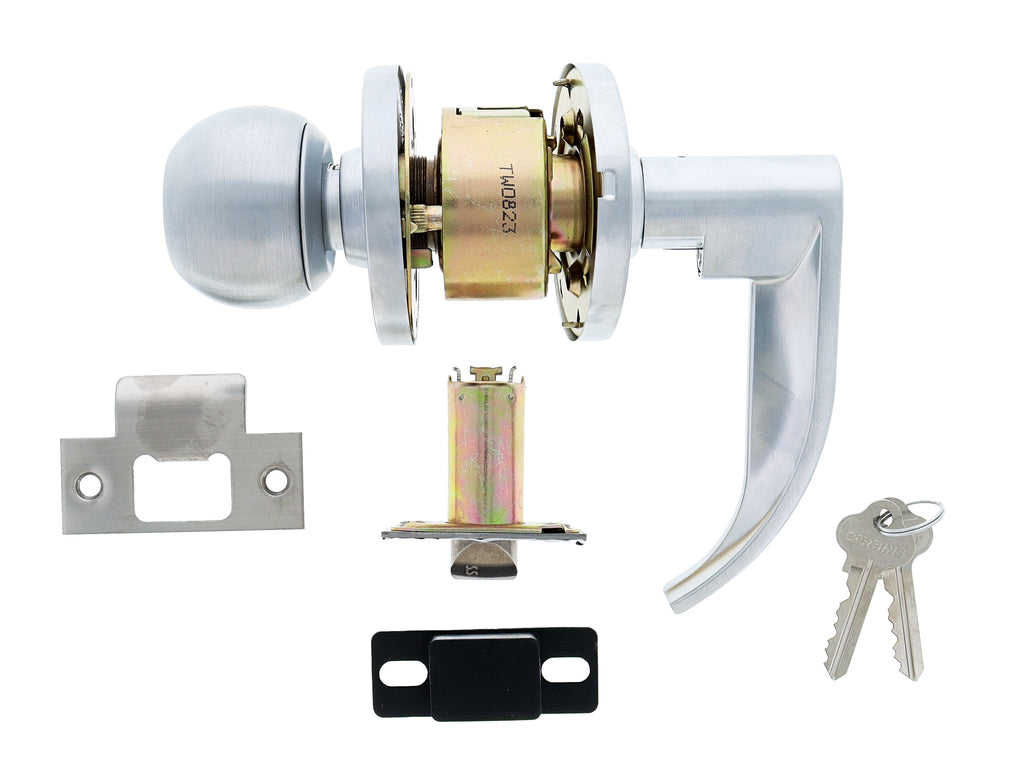

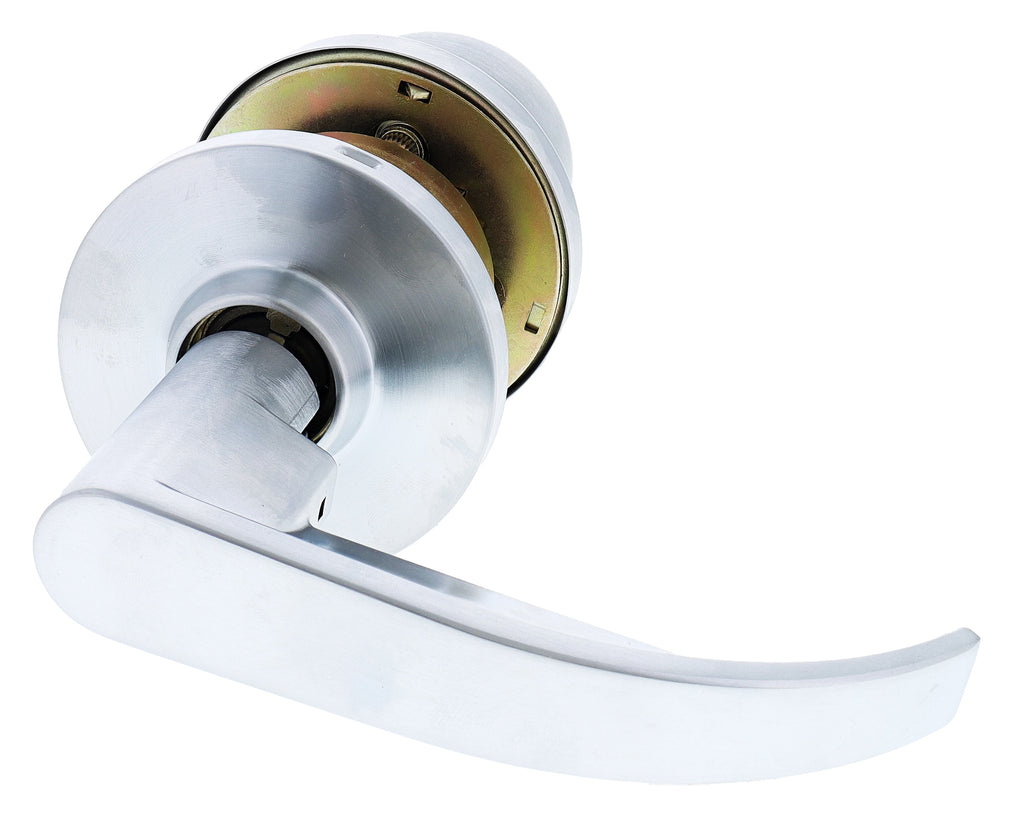

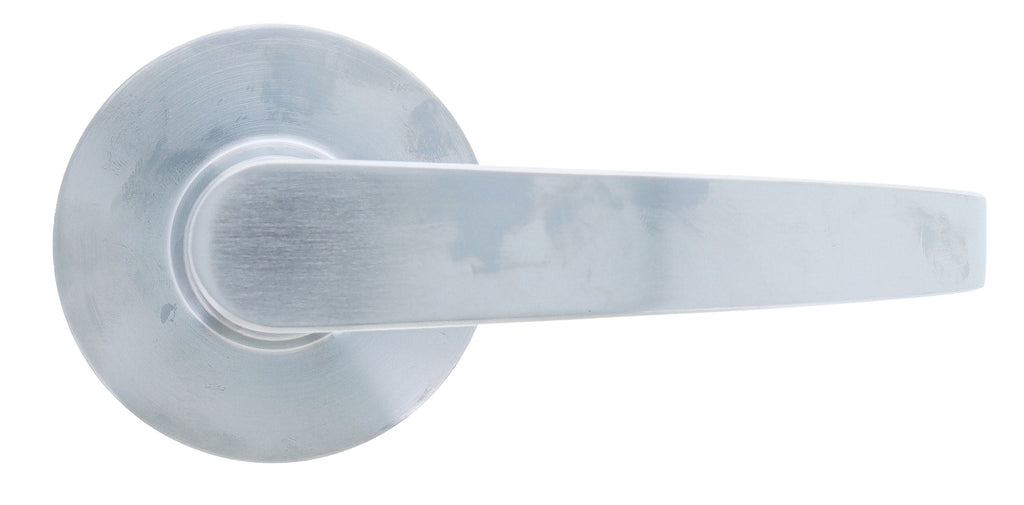

Carbine York PY3000 Knob & Leverset
The Carbine York PY 6000 series is an addition to Carbine’s innovative and bench setting commercial lockset range. This revolutionary, high quality lockset has a heavy duty sprung rose mechanism and upgraded springs and cylindrical mechanism it’s not only simpler to install than other locksets but is more durable with the benefit of less lever sag over time.
- Fire rated for up to 2 hours
- Tested to 500,000 openings no failures
- Cylindrical fixing
- Suits KeyLine LKW9 (Silca LW5) profile
- Cylinder is a 6 pin PD style brass cylinder
- Spare cylinder available for TES5 to suit Gainsborough keyway CLAIC-TES5
- Supplied standard with a 70mm backset, 60mm available upon request and an extension tube to extend to 127mm is available
- 75mm wide rose
- Additional heavy duty sprung rose for added strength and durability
- Suitable for doors 35mm - 45mm in thickness
- Stainless steel latch bolt with a 12mm projection
- L1 lever design is compliant with NCC codes and AS1428
