Description

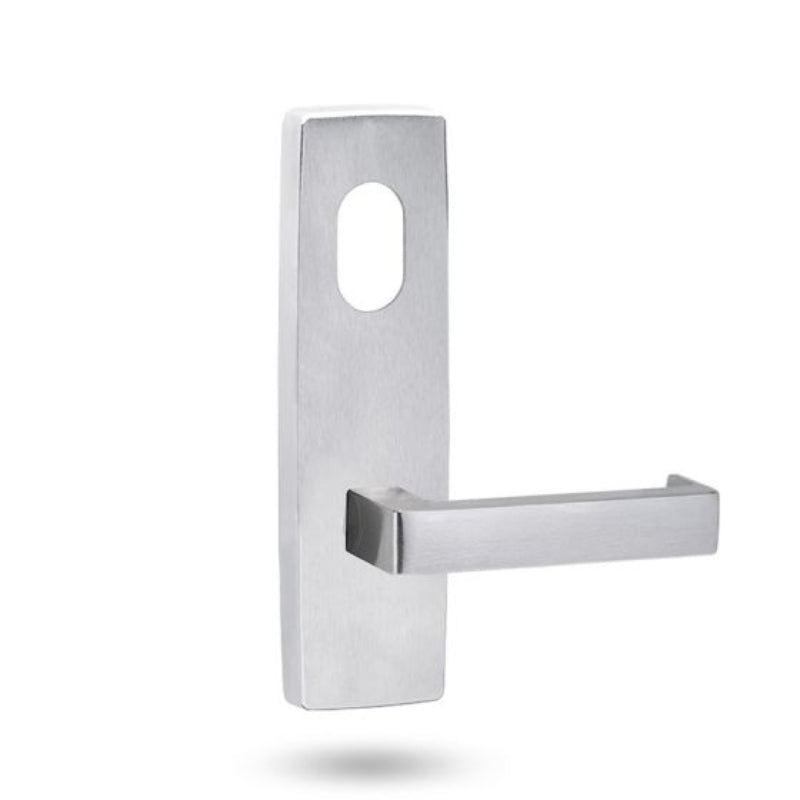

The Lockwood 1801 Square End Plate with Cylinder Hole & 142 Lever in Satin Chrome finish combines both elegance and durability for versatile door hardware applications. Designed with precision, this end plate includes a cylinder hole tailored for secure locking mechanisms, offering reliable protection and smooth operation. The satin chrome finish provides a sleek, modern appearance with a subtle matte sheen that resists fingerprints, tarnish, and corrosion, making it suitable for high-traffic areas. The 142 lever enhances ease of use, ensuring consistent and smooth functionality. Perfect for residential and commercial use, this robust end plate delivers long-lasting performance while maintaining a stylish look. The Lockwood 1801 product is an excellent choice for those seeking a blend of strength, aesthetic appeal, and dependable hardware quality.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
In door furniture design this lever provides distinct movement with its full face lever design punctuated by a right angle, thus making a strong and purposeful statement.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever 142
- External plate with concealed fixing (screws included)
- Cylinder hole (cylinder not included)
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 130.5mm
Projection: 55mm
Finger clearance: 40mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1801/142SC |
|---|---|
| EAN | 9340116073453 |
| Handle Type | Lever 142 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
