Description and Specifications

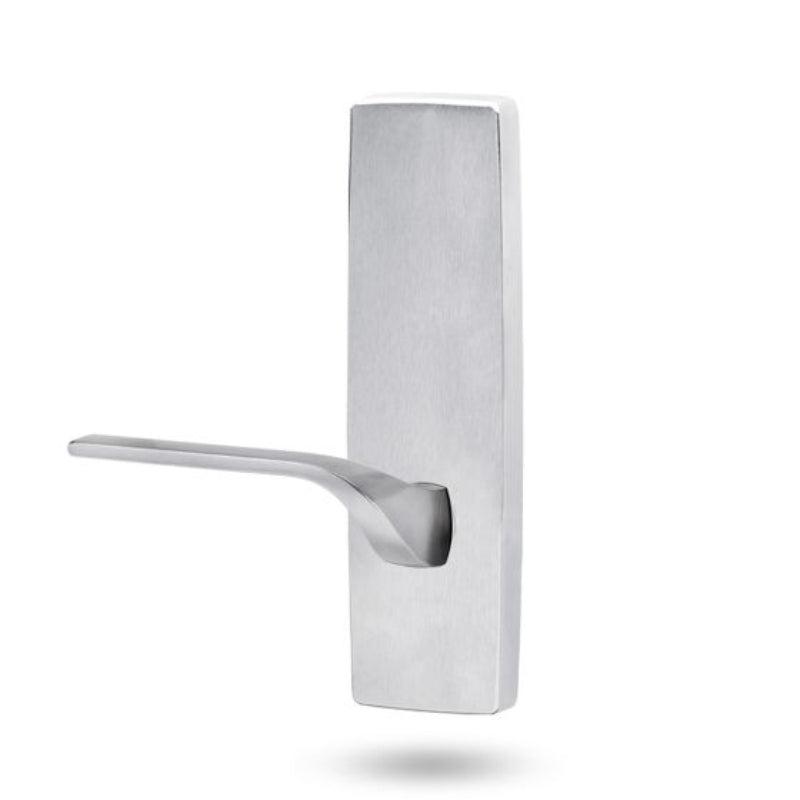

The Lockwood 1805/122RSC is a right-hand lever set featuring a square end plate with an ergonomic 122 Lever design finished in durable Satin Chrome. The satin chrome finish resists fingerprints, corrosion, and wear, maintaining a sleek appearance in both residential and commercial settings. The plate measures approximately 166mm in height, 48mm in width, and 12mm in thickness, suitable for timber doors 32mm to 45mm thick. The lever length is about 130.5mm with a projection of 59mm and finger clearance of 28.4mm. This handed lever is designed specifically for right-hand doors.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
A distinctly modern approach combining elegant lines and an offset lever action give the Lockwood Lever 122 its unique appeal. The Lockwood Lever 122 is an asymmetrical design and therefore must be handed.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood lever 122
- External plate with concealed fixing (screws included)
- Lever only
- Cylinder pitch 64mm
- Fixing centres 148mm
- Right handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Length: 130.5mm
Projection: 59mm
Finger clearance: 40mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Levers of asymmetrical design cannot be reversed. Specify left or right handed when ordering.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1805/122RSC |
|---|---|
| EAN | 9340116076478 |
| Handle Type | Lever 122 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
