Description

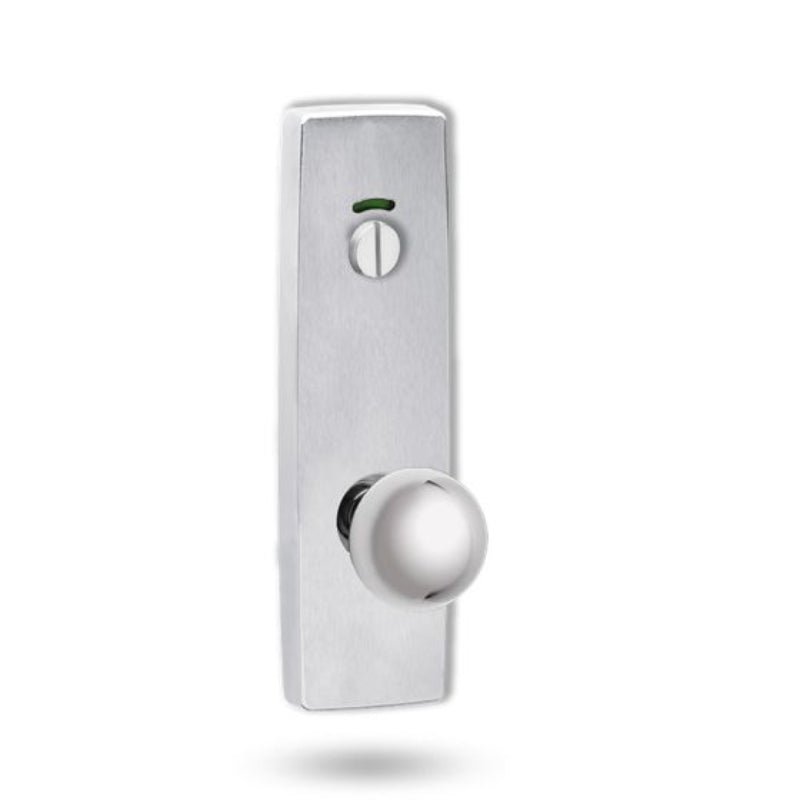

The Lockwood 1814 Square End Plate with Privacy Indicator, Emergency Turn, and 20 Knob in satin chrome finish is a premium door hardware solution suitable for commercial and residential use. Crafted from high-quality brass, this rectangular plate measures approximately 166mm by 48mm by 12mm and fits doors with thicknesses from 32mm to 50mm. The satin chrome finish offers a smooth, matte sheen that resists corrosion, fingerprints, and wear, ensuring a sleek and lasting aesthetic. Features include a slotted privacy indicator for visual occupancy status, emergency coin turn for accessible and safe operation, and a comfortable, ergonomic 20 knob for reliable use. Concealed fixing screws ensure a neat and professional installation. This Lockwood product exemplifies superior craftsmanship, functional design, and durability.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
The classic, spherical form of this knob is pleasant to hold and complements a wide range of plates
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Lockwood knob 20
- External plate with concealed fixing (screws included)
- Privacy indicating emergency turn
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
Lever Dimensions
Diameter: 50mm
Projection: 63.6mm
Finger clearance: n/a
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Handing
Symmetrical levers may be reversed by removing the stop screw.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Satin Chrome SC
| Model No | 1814/20SC |
|---|---|
| EAN | 9340116029405 |
| Handle Type | Knob 20 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
