Description

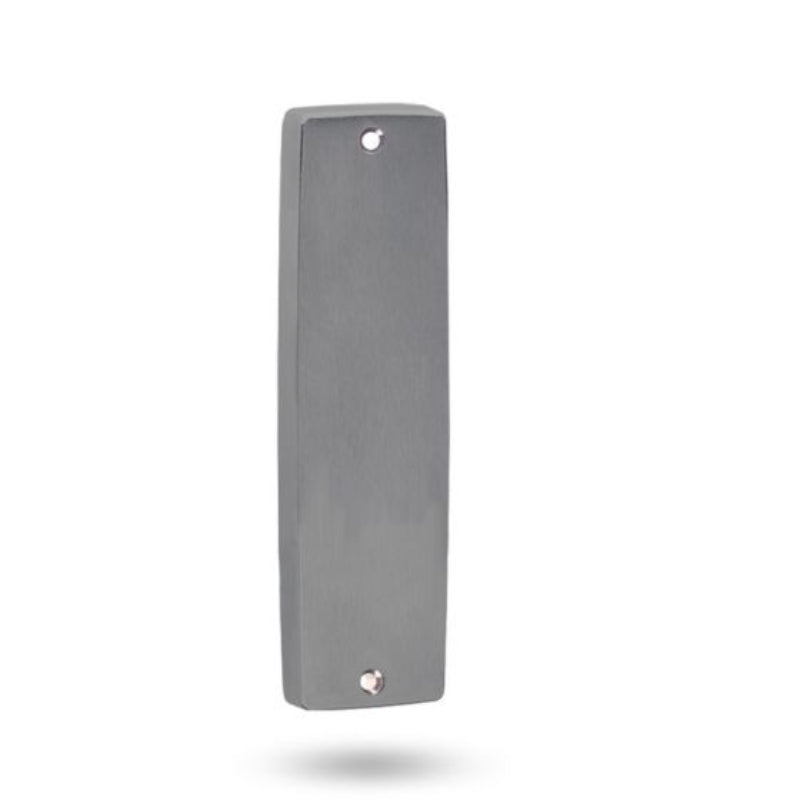

The Lockwood 1907 Square End Plate in Polyester Powdercoat finish is a durable and contemporary option designed for internal timber doors between 32mm and 50mm thick. The plate measures 166mm high by 48mm wide with a rectangular profile featuring bevelled edges, suitable for commercial and residential interiors requiring robust hardware. Constructed from solid brass, the polyester powdercoat finish provides excellent resistance to scratches, corrosion, and wear, offering a matte, low-maintenance surface ideal for demanding environments. Installation features visible fixings designed for back-to-back mounting on double-sided doors for a clean, professional appearance. This plate is compatible with Lockwood Selector & Synergy Series mortice locks and latches. It is fire rated and compliant with Australian accessibility standards, making it fit for architectural and institutional applications.
Lockwood 1800 Series Square End Plate Brass Furniture
Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
Features
- Plain plate only
- Internal plate with visible fixings (screws not included)
- No lever
- Cylinder pitch 64mm
- Fixing centres 148mm
- Non-handed
- Supplied in trade pack
Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
Fixing
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
Finish
Available in the Australian powdercoat colour range PC
| Model No | 1907PC |
|---|---|
| EAN | 9340116023434 |
