Description

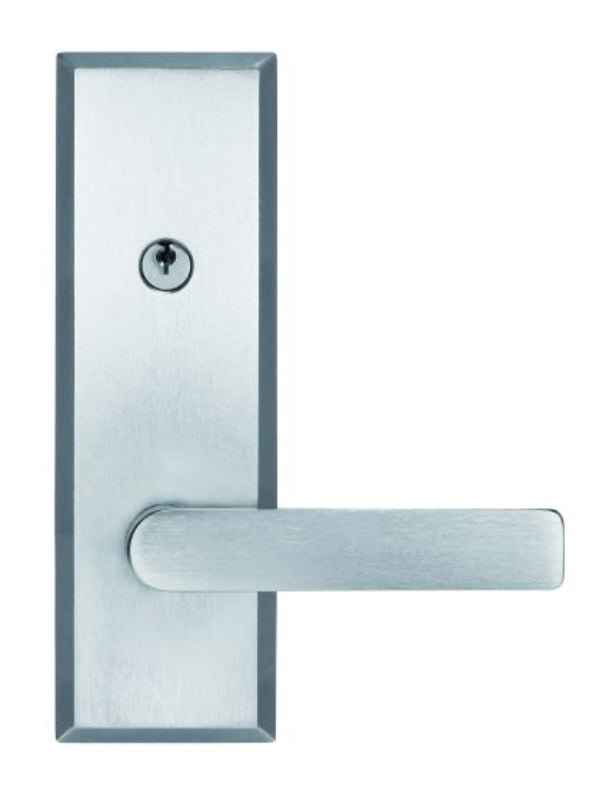

The Velocity Entrance Lock L3 SC 5PK in Satin Chrome is a high-security mechanical lockset designed for residential and commercial entrance doors. It features the Element Lever 3, crafted from high-purity zinc alloy and finished in a durable satin chrome to offer corrosion resistance and modern aesthetics. Suitable for door thicknesses from 35mm to 45mm, this lockset includes a 13mm projection brass deadlatch bolt and a box strike reinforced with a concealed crossgrain door frame strengthening screw. The lockset provides three security modes: Secure (locked inside and outside), Safety (locked outside, free inside), and Passage (free entry and exit), plus the Safety Release™ feature to minimize accidental lock-ins. Installation is quick, with Allen key fixing screws and reversible handing for left or right-opening doors. Cylinders are brass with 5-pin tumbler mechanisms supporting keying options for builder systems, keyed alike, or keyed to differ. This lockset is designed and manufactured to Australian Standards and supplied in convenient trade packs of six units for professional or project use.
Features and Specifications
- High security latch
- Box strike with concealed crossgrain door frame strengthening screw
- Installation template included
- Can be keyed alike to other Lockwood door locks
Product Details
| Backset | 60mm as supplied 70mm optional (order part 530-222SC) |
| Case | High purity zinc alloy |
| Door Thickness | 35 to 45mm |
| Finishes | Satin Chrome (SC) |
| Handles | Lever 3 |
| Latch | 13mm projection brass bolt |
| Strike | Box strike with concealed crossgrain door frame strengthening screw |
| Templates | Installation template included |
| Handing | Adjustable handing by set screw |
| Cylinder | Internal and external. 5 pin tumber mechanism with 6pin capability. Brass cylinders and brass barrels. |
Standards and Compliance
| (Security) Australian LockStandard (AS4145.2.2008) | |
| (Durability) Australian LockStandard (AS4145.2.2008) | |
| (Corrosion) Australian LockStandard (AS4145.2.2008) | |
| CE Approved | |
| Conforms to Australian Standard (AS4145.2‑2008 SL7D8C5K6) |
Keying
- Supplied individually keyed with twokeys per lock
- 78,000 key combinations
- Key blank KB2015P
Please refer to Lockwood Keying Catalogue or contact your local sales office or customer service for specific information.
|
Kinetic Defence® Bump and pick resistant. |
|
|
Safety Release™ Minimises the risk of being locked in. |
|
|
Safety Mode Securely locked from outside and free from inside. |
|
|
Secure Mode Securely locked from both inside and outside. For when nobody is home. |
|
|
Passage Mode Free to enter from outside and free to exit from inside. |
|
|
Deadlatch Bolt 13mm projection brass bolt. |
|
|
2 Keys Included Can be keyed alike to other Lockwood door locks. |
|
|
Quick Installation Suitable for door thicknesses between 35–45mm. |
|
|
Retrofitable Fits majority of doors with 54mm hole.' |
| Model No | VEL0/L3SC5PK |
|---|---|
| EAN | 9340116033105 |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Keying Type | 5 PIN PROJECT KEYED |
