Description

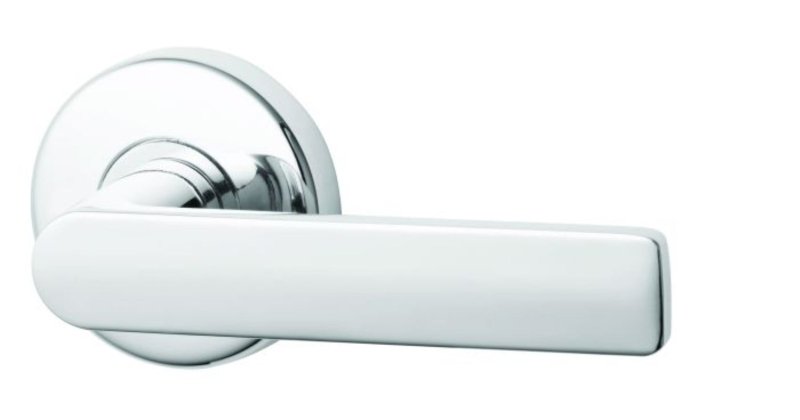

The Velocity Passage Set & L3 Lever DP Chrome Plate is part of the Velocity Series, designed primarily for residential applications. It features an Element L3 lever and a sleek chrome plate finish that offers durability, corrosion resistance, and a modern aesthetic. Both the lever and rose are made from solid zinc die-cast for strength and longevity. The set is suitable for hinged doors with thicknesses ranging from 32mm to 45mm and includes a 60mm backset tubular latch. The lever measures 122mm in length with a projection of 54.5mm and finger clearance of 47.5mm, ensuring comfortable and ergonomic use. Installation is simple with a twist-and-tighten fixing method, pre-assembled to reduce loose parts and hassle. Concealed fixings beneath a removable rose trim create a clean look, complementing various interior styles. This passage set fits seamlessly into both new installations and retrofit projects.
Lockwood Velocity® Series 63mm Rose Door Handles offer home owners and builders a contemporary collection of levers on rose for use within a residential environment. Designed in Australia, the Velocity series encompasses the robust design and product quality that has become synonymous with Lockwood. An attractive yet unobtrusive rose design complemented with four modern lever designs. The Velocity Series captures the aesthetic tone of the residential market providing style whilst maintaining utilitarian desire.
With a design that transcends the basic functional and aesthetic requirements of residential hardware, the Velocity series sets a new benchmark in ease of installation. The Velocity Series includes passage sets for connecting doors, privacy sets for bathroom and toilet doors and dummy half sets for use on cupboard and wardrobe doors where a consistent styling is desired.
Velocity levers styles are common to the Lockwood Nexion and Lockwood Palladium ranges, facilitating a uniform design aesthetic throughout the home. It is also the perfect complement to the uncompromising Paradigm 005 deadbolt.
Functions
- Passage
- Privacy
Features of the Velocity Series Door Furniture
- All fixings are concealed beneath a removable rose trim providing a crisp and clean presentation desired by the discerning home owner
- A simple twist and tighten fixing method and lever set pre-assembly allows for super easy and super fast installation
- Available in a choice of six lever designs and two finishes
- The rose fits 50mm or 54mm diameter holes making it suitable for retrofit and common door preparations
- Designed in Australia for the specific needs of the Australian market
| Model No | VEL1/L3CPDP |
|---|---|
| EAN | 9311847997516 |
| Fire Rating | Not Tested |
| Body / Case Material | Zinc |
| Access and Mobility | No |
| Handle Type | Element L3 |
| Handing | Reversible |
| Warranty / Guarantee | Lockwood 25YR Mechanical |
| Rose Diameter | 63mm |
| Rose Design | Round |
| Backset | 60mm |
| Door Type | Hinged |
| Residential | Yes |
| Fixing Type | Concealed |
| Door Thickness Range | 32-45mm |
| Approved Standards Rating Level | D1, Corrosion Security C3 |
