Intro

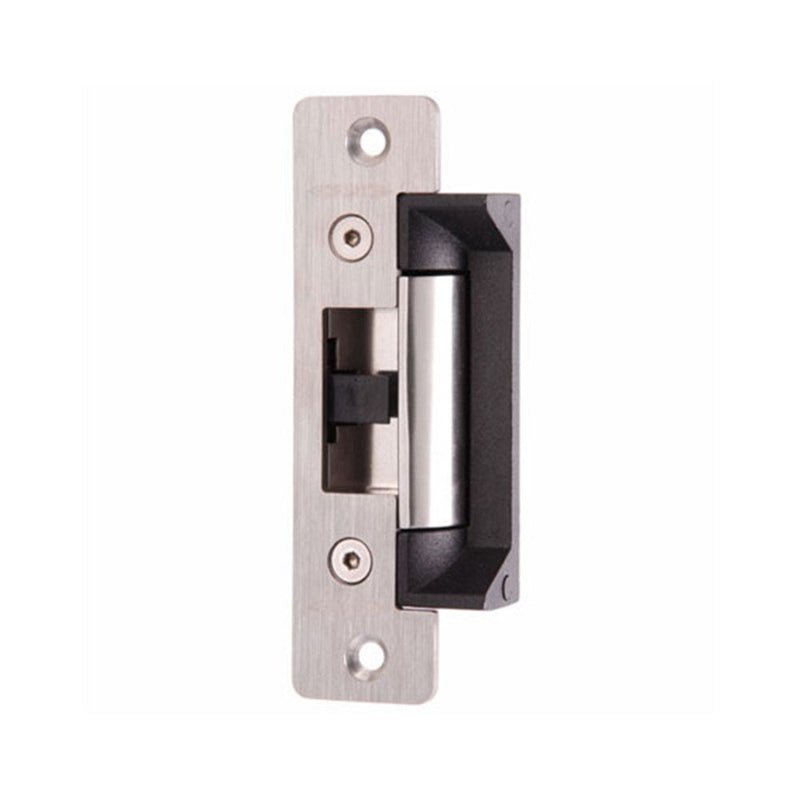

The FSH FES10M Electric Strike is a compact, monitored access control solution engineered for dependable performance on hinged doors. Designed for compatibility with all access control systems, it combines door latch monitoring, dual-voltage operation, and certified 2-hour fire-rated compliance for regulated commercial environments.
Key Features & Benefits
-
✅ Function: Electric strike for access control door locking
-
✅ Monitoring: Door latch monitored configuration
-
✅ Fire Rating: Successfully fire rated up to 2 hours on approved fire door assemblies
-
✅ Material: Stainless steel faceplate and striker for durability
-
✅ Voltage: Dual voltage operation at 12V DC or 24V DC
-
✅ Operation: Power to lock or power to open, field selectable
-
✅ Security: Patented barbell steel locking pin for enhanced holding strength
-
✅ Strength: Holding strength exceeding 1300kg for secure applications
-
✅ Installation: Supplied with self-adhesive installation template and tab mounting kit
Specifications
-
Brand: FSH
-
Product Code: FES10M
-
Fire Rating: Up to 2 hours
-
Working Voltage: 12V DC to 24V DC
-
Current Draw: 200mA at 12V DC, 100mA at 24V DC
-
Monitoring Type: Door latch monitored
-
Holding Strength: Over 1300kg
-
Locking Mode: Fail safe or fail secure, field selectable
-
Strike Construction: Stainless steel striker with patented barbell steel locking pin
-
Lip Extension: Pre-drilled for optional extension lips
-
Door Type Compatibility: Hinged doors
-
Latch Compatibility: Suitable for 18mm latch with a 3mm door gap
-
Power Capability: Solenoid suitable for continuous power
Available Finishes
-
Stainless Steel
Applications
This electric strike is ideal for commercial buildings, offices, apartments, access-controlled entry points, and fire-rated door assemblies where monitored latch status and certified fire performance are required. Its professional design supports both new installations and retrofit upgrades.
Installation & Inclusions
-
Easy installation using the supplied self-adhesive template
-
Includes tab mounting kit
-
Pre-drilled fixing points for optional extension lips
-
Designed for continuous solenoid power operation
Why Choose Fsh Fes10M Electric Strike?
The FSH FES10M delivers a reliable blend of door latch monitoring, strong holding force, and fire-rated compliance. It is a practical choice for access control installations that demand safety, visibility, and consistent performance.
👉 This is a door latch monitored electric strike designed for use with access control systems on hinged doors.
Q2. Is this electric strike fire rated?
👉 Yes, it is successfully fire rated up to 2 hours when installed on approved fire door assemblies in accordance with relevant standards.
Q3. Can the locking mode be changed during installation?
👉 Yes, the FES10M allows on-site selection between fail safe and fail secure, as well as power to lock or power to open operation.
Q4. What finishes are available for this model?
👉 The FSH FES10M Electric Strike is supplied in a stainless steel finish for durability and corrosion resistance.
Q5. What warranty applies to this electric strike?
👉 This electric strike is covered by the manufacturer’s warranty against faulty workmanship and materials from the date of purchase, subject to correct installation, normal use, and proper maintenance conditions.
