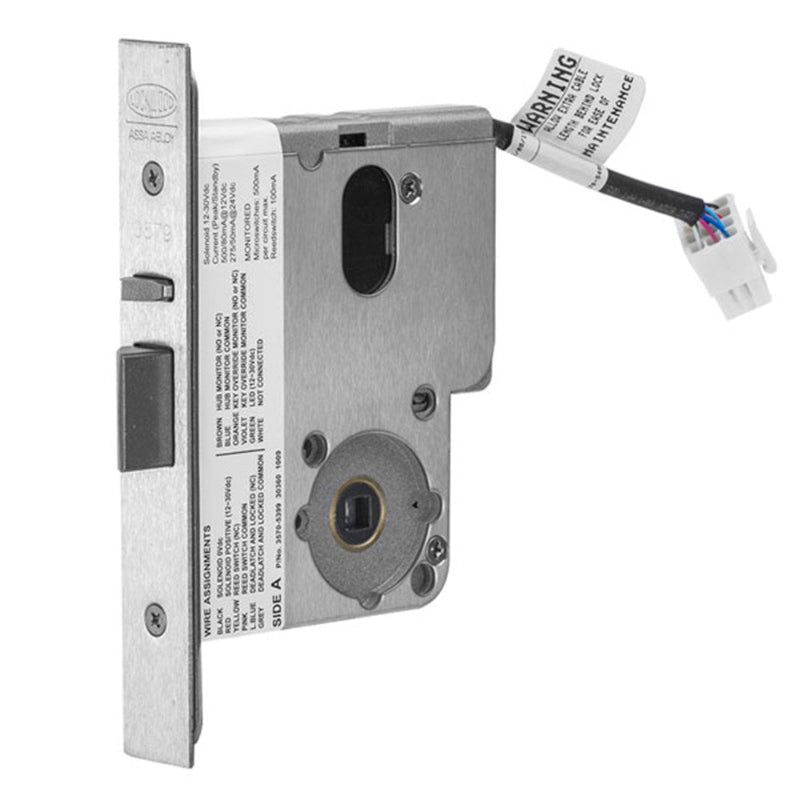

Lockwood 3579Hs High Security Electric Mortice Lock Fully Monitored 60Mm Backset Scec Approved

lscSKU: LSCLW3579HSELM0SC
filler

Price:
$1,458.70

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options

Intro

The Lockwood 3579Hs High Security Electric Mortice Lock is a specialised locking solution designed for secure-area and custodial-style applications where fail secure operation is required externally and fail safe operation internally. Engineered for integration with electric strikes, this SCEC-endorsed lock delivers advanced monitoring, fire-rated performance, and exceptional strength for high-risk environments.


Key Features & Benefits

  • Function: High security electric mortice lock for secure area applications

  • Security Configuration: Fail secure externally and fail safe internally when used with an electric strike

  • Monitoring: Fully monitored including lock, door, latch, and request-to-exit status

  • Fire Rating: Certified fire rated up to 4 hours

  • Approval: SCEC endorsed for secure area use

  • Construction: Reinforced stainless steel plates for increased cylinder and latch strength

  • Voltage: Dual voltage operation 12V DC to 24V DC

  • Operation: Solenoid-controlled inside lever locking and unlocking

  • Flexibility: Field configurable and fully reversible for left or right hand doors

  • Integration: Designed for use with electronic access control systems


Specifications

  • Brand: Lockwood

  • Product Code: Lw3579HsElm0Sc

  • Product Type: Electric mortice lock (less cylinder)

  • Backset: 60mm (89mm and 127mm variants available)

  • Working Voltage: 12V DC to 24V DC

  • Current Draw:

    • 500mA max, 80mA holding @ 12V DC

    • 275mA max, 50mA holding @ 24V DC

  • Monitoring Outputs:

    • Dual key override

    • Deadlatching

    • Door closed

    • Door locked

    • Request to exit

    • Reed switch monitoring

  • Handing: Reversible (left or right, in or out opening doors)

  • Door Thickness Suitability: 32mm to 50mm

  • Fire Rating: Up to 4 hours

  • Locking Mode: Fail secure externally, fail safe internally

  • Installation Requirement: Must be used in conjunction with an electric strike

  • Cable & Connector:

    • 1.6m cable with 12-pin socket

    • Positive latching 12-pin plug

  • Cylinder Supply: Supplied less cylinder


Available Finishes

  • Satin Chrome


Applications

This electric mortice lock is ideal for government buildings, defence facilities, secure offices, correctional environments, and controlled-access commercial sites where strict separation of internal and external locking logic is required to meet compliance standards.


Installation & Inclusions

  • Electric mortice lock body

  • Integrated reed switch inside housing

  • Protection diode for back EMF suppression

  • Pre-wired 12-pin connection system

  • Requires SCEC-endorsed cylinder and approved furniture for secure-area compliance


Why Choose Lockwood 3579Hs Electric Mortice Lock?

The Lockwood 3579Hs offers a unique dual-behaviour security solution that combines external fail secure protection with internal life-safety fail safe operation. Backed by SCEC endorsement, advanced monitoring, and Australian Standards compliance, it is trusted in environments where security and safety must coexist without compromise.

Frequently Asked Questions
Q1. What type of product is this?
👉 This is a high security, fully monitored electric mortice lock designed for secure-area applications and used in conjunction with an electric strike.

Q2. How does the Lockwood 3579Hs work?
👉 The lock operates as fail secure on the external side and fail safe on the internal side, achieved by pairing the mortice lock with an electric strike to meet secure-area requirements.

Q3. Is this lock suitable for SCEC secure areas?
👉 Yes, it is SCEC endorsed, provided it is installed with a SCEC-approved 570 cylinder and approved full plate furniture.

Q4. Is the Lockwood 3579Hs fire rated?
👉 Yes, it is certified fire rated up to 4 hours when installed on approved fire-rated door assemblies.

Q5. What warranty applies to this electric mortice lock?
👉 This product is covered by the manufacturer’s warranty against defects in materials and workmanship, subject to correct installation, normal use, and proper maintenance conditions.
