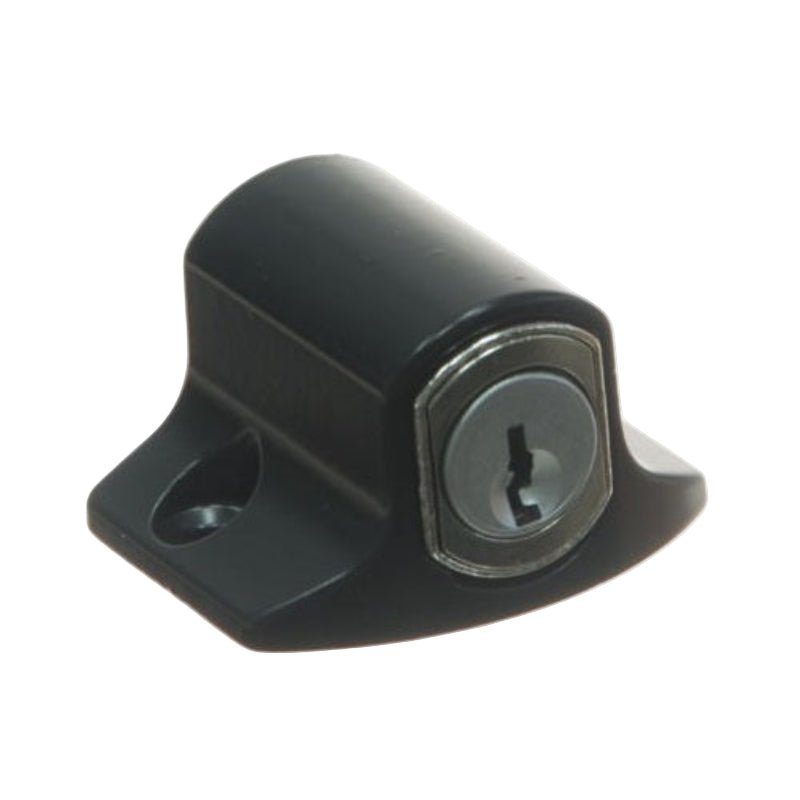

Whitco W2208117 D5W2208 Mini Push Lock 5DiscTpBlack

Product Overview

Model: WHITCO W2208117D5 (“W2208 Mini Push Lock – 5-Disc, Trade Pack, Black”)

• Lock Type: Mini Push Lock with a 5-disc wafer cylinder (D5)

• Finish/Colour: Black

• Packing: Trade Pack

• Keying Option: 5-disc wafer cylinder – can be keyed alike to other Whitco 5-disc products

• Keys Included: 2 Whitco keys whitco.com.au+1www.keelerhardware.com.au

Key Features & Benefits

• High-Security Mechanical Construction:
  Built with a solid zinc die-cast metal body and stainless-steel ferrule, the lock offers robust resistance to forced attack. primehardware.com.auwhitco.com.au

• Easy Push-to-Lock Operation:
  Locking is initiated simply by pushing the button; unlocking requires the use of the supplied key. whitco.com.au+1

• Wide Application Versatility:
  Compatible with sliding, casement, awning, and double-hung timber windows—making it highly adaptable for varied residential and commercial glazing setups. whitco.com.au+1

• Keying Convenience (Non-CYL4):
  This model features a 5-disc wafer cylinder that allows you to match it with other Whitco 5-disc locks—ideal for keyed-alike systems within existing hardware sets. whitco.com.au+1

Compliance & Standards (GMC Context)

• Trade Pack Format (TP):
  Designed for tradespeople and professional installers, facilitating bulk installation and consistent quality control.

• Keyed-Alike Compatibility:
  Supports streamlined key management by allowing system-wide keying using the same 5-disc configuration.

• Durability & Manufacturing Quality:
  Constructed from high-grade materials (zinc die-cast, stainless steel), aligning with GMC requirements for security and product longevity.

Installation & Warranty Details

• Installation Guidelines:
  Ensure a clear 3 mm gap between the lock body and window sash or sill for proper operation. Mark, drill, and fit using the supplied standard screws, and use the one-way screws for enhanced tamper resistance, retaining them permanently once set. A 12 mm hole is required for bolt engagement with the ferrule. whitco.com.au

• Warranty:
  Backed by a 10-year warranty for key locks and hinges (including this mini push lock), subject to correct installation and maintenance. whitco.com.au

• Lead Times & Ordering Notes:
  Some suppliers note lead times—for example, Keeler Hardware (SCL) powers of approx. 8 business days to dispatch, with longer processing when ordering multiple units. These units are non-returnable unless faulty. www.keelerhardware.com.au

Summary Table
