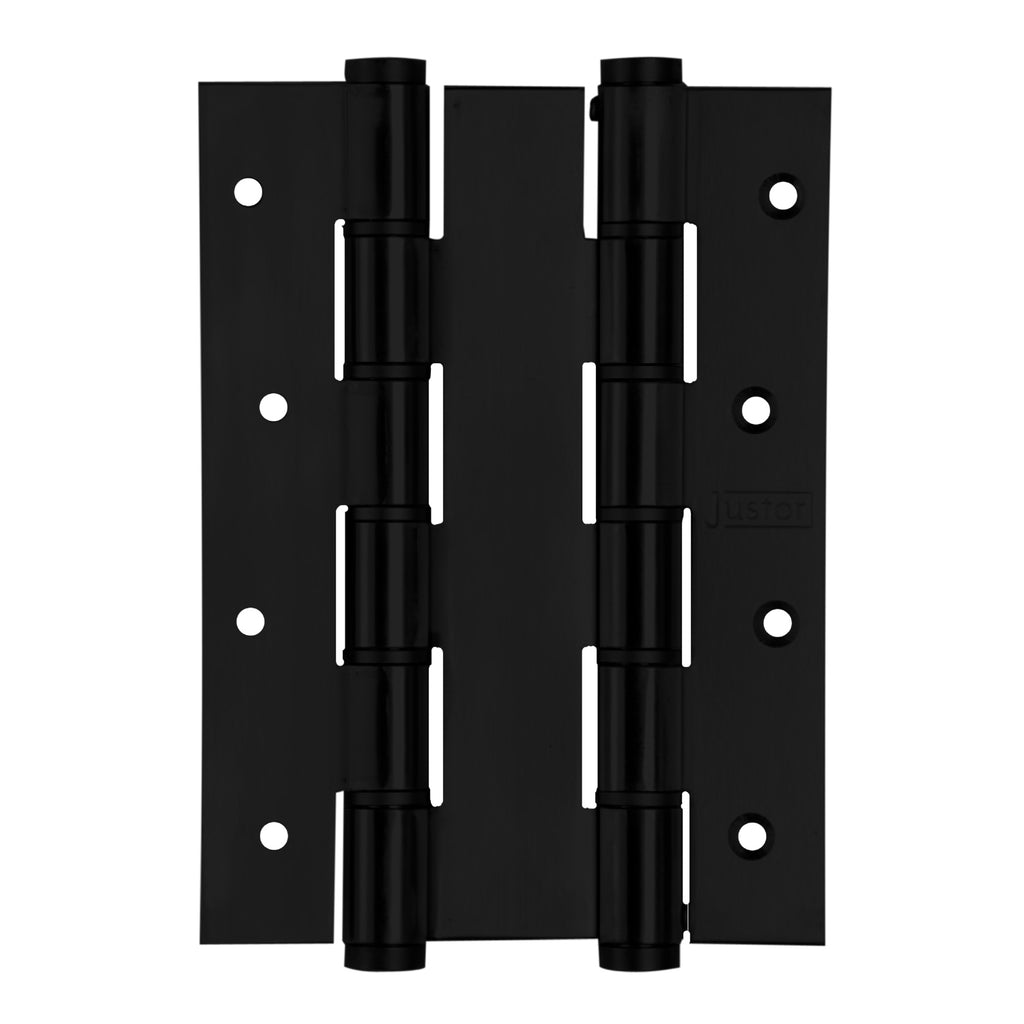

BELLEVUE JUSTOR DOUBLE ACTION SPRING HINGE BLACK BIDA180BLK

Bellevue Justor Double Action Spring Hinge
BIDA180BLK

Note: ****Sold As Single Hinge****

No need for unsightly door closers, the BIDA180 Double Action Spring Hinge is sleek, stylish and simple. Made in Spain by Justor, the BIDA180 is highly functional and adjustable, ideal for all doors that weigh up to 95kg (refer to weight graph).

Simplistically the function of the BIDA180 double action spring hinge is to bring a door that swings open in both directions back to the centre position i.e. a kitchen door in a restaurant. Made out of Aluminium, Zinc or Stainless Steel the BIDA180 Double Action Spring Hinges are ideal for internal or external applications, wherever a dual swing door (a door that swings in both directions such as a pivot door does) needs to return to a centre position without assistance.

The BIDA180 has three (3) tension settings in each direction and adjustments can be made without having to take the door off. Made to exacting European standards in Spain by Justor, the BIDA180 is a maintenance free solution - no periodic greasing or adjustments required, just 1 drop of oil in the top top caps once a year.

The BIDA180 spring hinge comes with a 2 year manufacturer’s Guarantee. Cost effective and highly functional, it is a real and effective alternative to traditional double action closers and pivot sets.

Features:

• Suits up to 40mm timber, aluminium & metal doors
• Variable Door Movement Strength
• Up to 95kg in door weight per door
• Highly efficient 180 degree working aperture
• Spring resistance + 500,000 cycles
• Maximum resistance to bending
• Torsion spring not a coil spring
• Resistant to extreme climatic conditions (cold and humidity)
• No periodical greasing required
• PDF files

Specifications:

• Dimensions: 180 x 133 x 3mm
• Material: High Grade Aluminium
• Finish: Black
