BRITON PANIC BAR B376E-D/SE SINGLE DOOR WITH OUTSIDE DOOR TRIM LEVER B1413/LE

Briton Single Door Vertical Panic Bolt w/ Dogging

Note: Panic bolt only, door not included

Panic Bolt allows for both doors to be locked closed and permits emergency exit from both doors (e.g. where emergency or panic situation could occur).

Panic Bolt Function - a safety device for critical emergency. These are designed specially for doors that may be used in the event of an emergency that would require a fast and unencumbered escape, such as a fire evacuation.

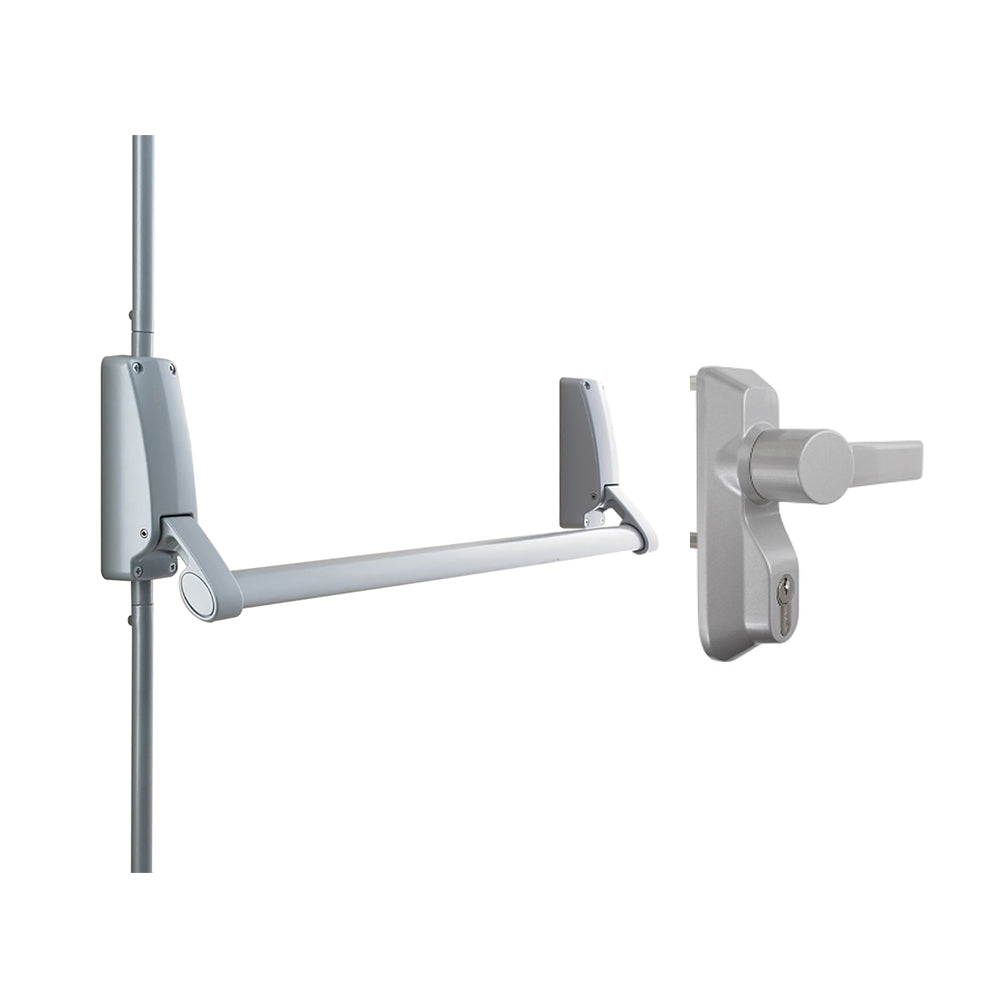

Includes:

• 1 x Briton Single Door Vertical Panic Bolt w/ Dogging (B376E-D/SE)
• 1 x Briton Outside Door Trim Lever Outside Access Device w/ Cylinder (B1413/LE)

Briton Single Door Vertical Panic Bolt w/ Dogging
B376E-D/SE

Features:

• The 376E vertical panic bolt device is suitable for all types of single doors and can be used in conjunction with either another 376E or a 379E for double nonrebated door applications.
• For double rebated door applications the 377E double door set can be used
• The 376E is field sizable to accommodate a range of door openings
• Two point locking for extra security
• Anti-thrust device, prevents unauthorised retraction of the latchbolt
• Non handed — will suit both left and right handed doors
• Adjustable top shoots
• Supplied with an easy clean floor socket

Specifications:

• Brand: Briton
• Door Type: Timber or Metal
• Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
• Door Width: 665mm to 1300mm
• Door Height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
• Material: Zinc diecast chassis. Steel rods and crossbars
• Supplied as: Trade pack with all fixing hardware
• Finish: Silver Enamel

Briton Outside Trim Lever w/ Cylinder
1413/LE

• Ergonomic design providing improved grip in wet conditions when locked, knob rotates freely.
• Non-handed.

Features:

• Using a Briton 1413E outside locking device will provide access when the door is locked. When unlocked the door can also be operated from the outside by using the knob or lever.
• The 1413E has been designed to suit all exit devices within the Briton 376E series.
• The 1413E has been designed to accept oval cylinders for key access.
• The 1413E is suitable for doors between 35mm and 70mm thick.
• Fixings supplied are suitable for both timber and metal doorsets.
• Please note: Not recommended for high use areas.

Specifications:

• Door Type: Timber or Metal
• Material: Zinc diecast chassis and lever
• Supplied as: Trade pack with all fixing hardware
• Finish: Silver Enamel
