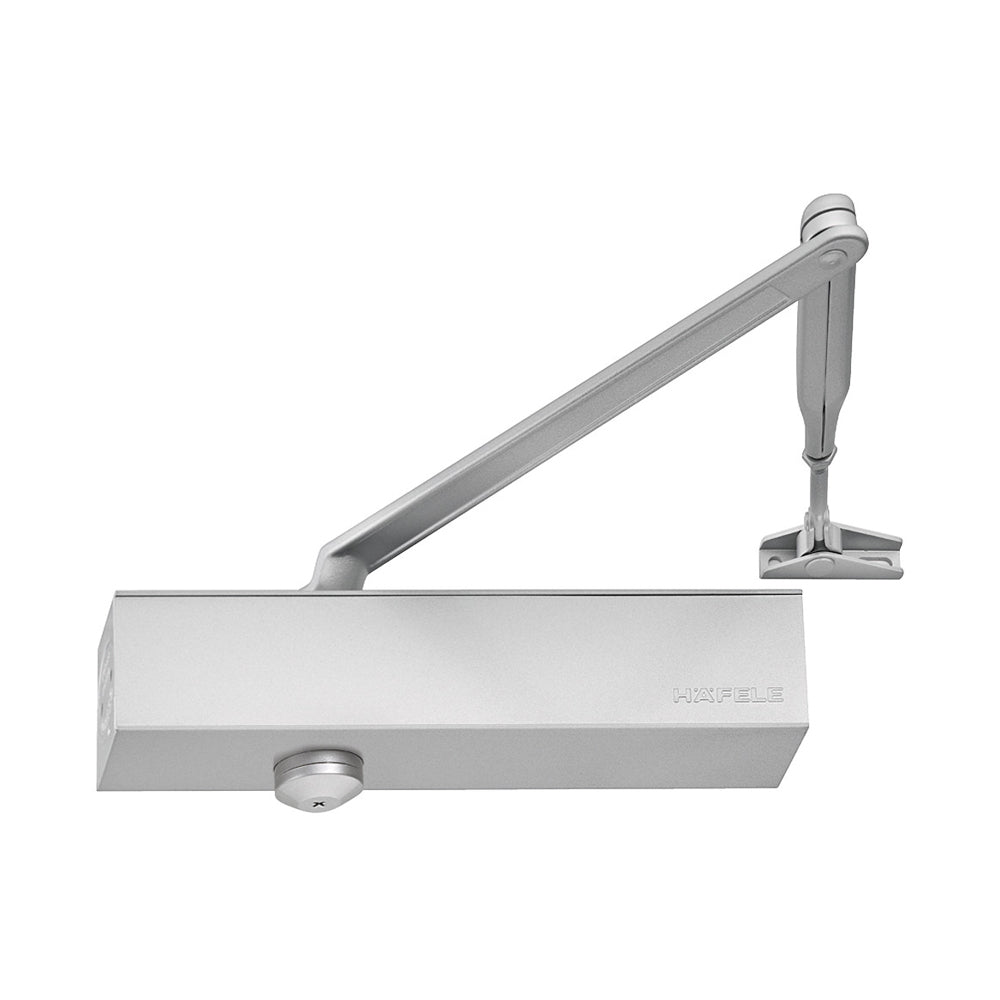

Hafele DCL55 EN-2-6 Overhead Door Closer with Standard Arm

Product Description: Hafele DCL55 EN-2-6 overhead door closer is designed to controlled closing of doors in various applications, such as commercial buildings, offices, and residential spaces. This door closer is compatible with doors weighing up to 150kg and it is suitable with 1,400 mm doors. Additionally, it comes with a standard arm, which is a commonly used arm for overhead door closers. This Hafele DCL55 EN-2-6 overhead door closer is available from PrimeHardware at Australia's standard.

Hafele DCL55 EN-2-6 Overhead Door Closer with Standard Arm
931.84.568

Note: Bracket not included.

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Specifications:

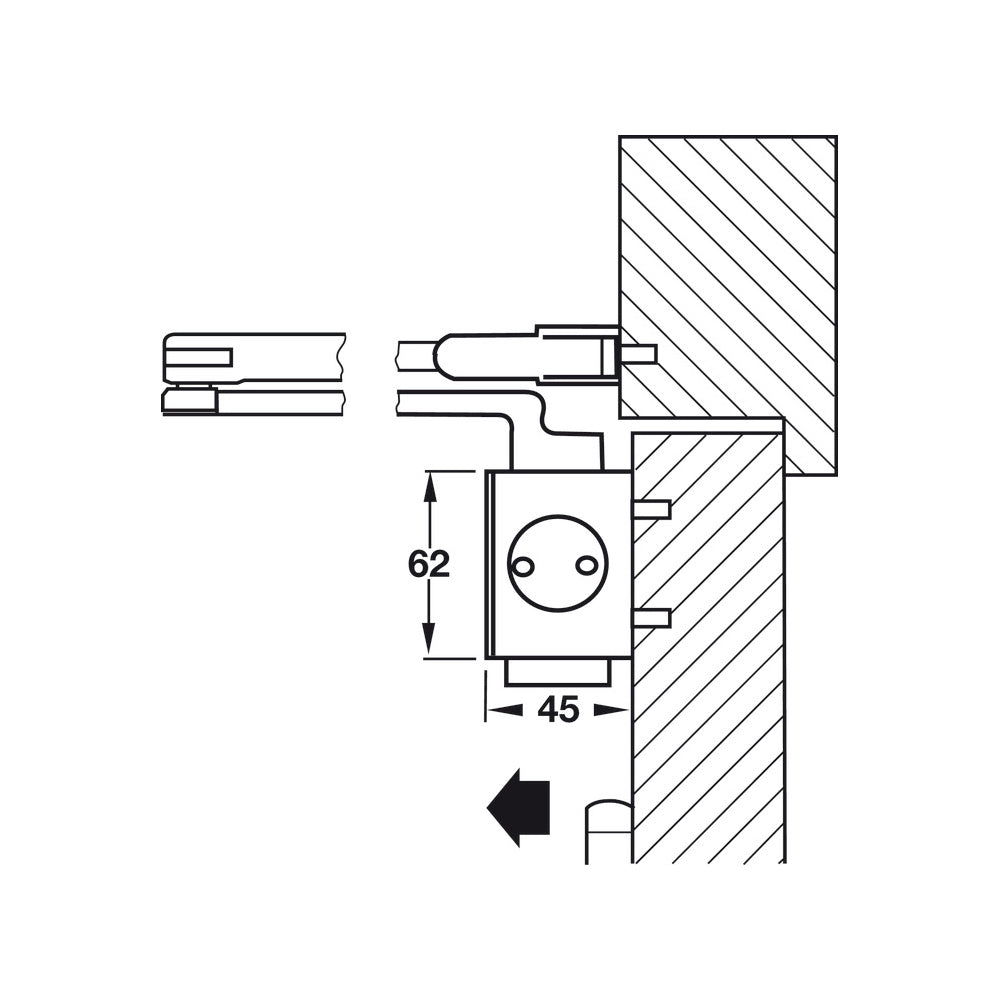

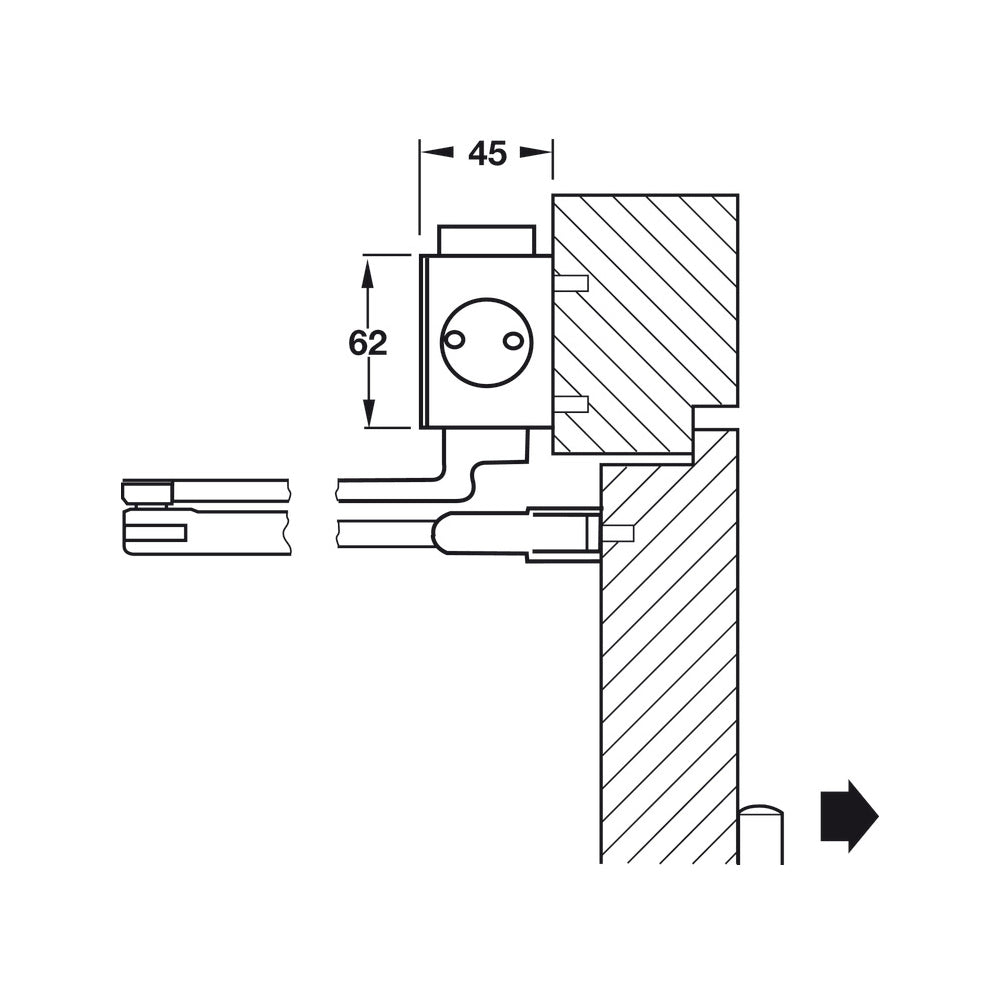

• Mounting method: Standard installation (door leaf installation) on pull side, Overhead installation (transom fixing) on push side
• For Door Width: ≤1,400 mm
• Mounting: For DIN left and DIN right hand use
• Door Weight: ≤150 kg
• Number of Doors: 1-leaf doors
• Adjustment Facility: Adjustable closing speed, soft opening mechanism and latching action
• Closing Force: 2–6 in accordance with EN 1154
• Opening Angle: ≤180 °
• Finish: Silver coloured, Lacquered

Includes:

• Door closer body
• Arm assembly
• Fixing material
• Installation instructions

Compliance:

• Standard: Certified in compliance with EN 1154:1996/A1:2002

  Brand:

• Hafele
