Iver Annecy Door Lever Handle On Rectangular Backplate

Name: Prime Hardware
Rating: 4.9 (110 reviews)

IVER Annecy Door Lever Handle On Rectangular Backplate

Description & Specifications FAQs

Iver

IVER Annecy Door Lever Handle On Rectangular Backplate

Product code (SKU): 10208–15708 (by finish)

Mounted on a clean rectangular backplate — a long-plate format that frames the Annecy's precise lines with structured, modern clarity. Crafted from solid brass and fire rated to 2 hours to meet Australian Standard AS1530.4:2014.

Solid BrassMaterial

9 FinishesAvailable Finishes

205mmCentre To Centre

35mm – 55mmDoor Thickness

Functions, Kits & What's Included

Each kit is built on the same lever set; only the latch or lock changes.

Kit / Function	What’s included	SKU suffix

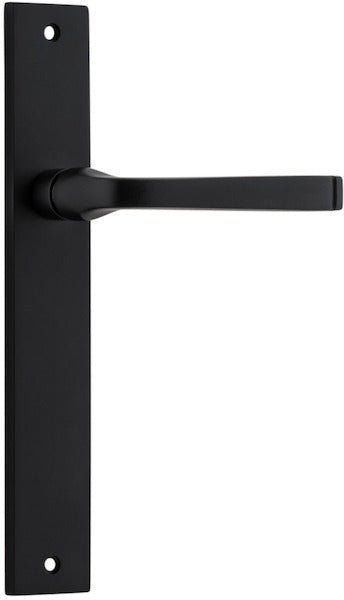

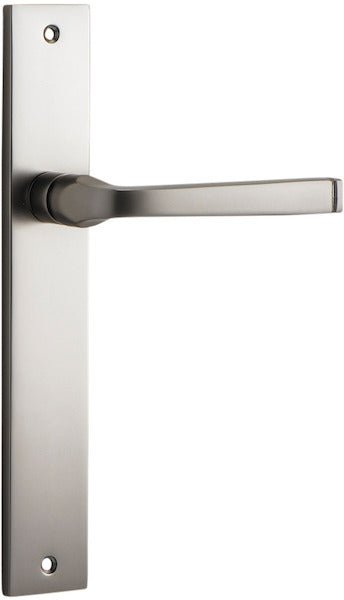

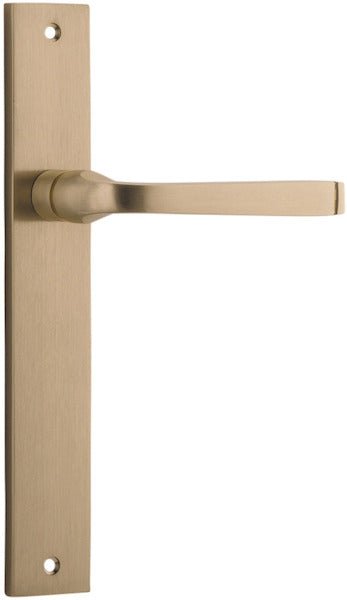

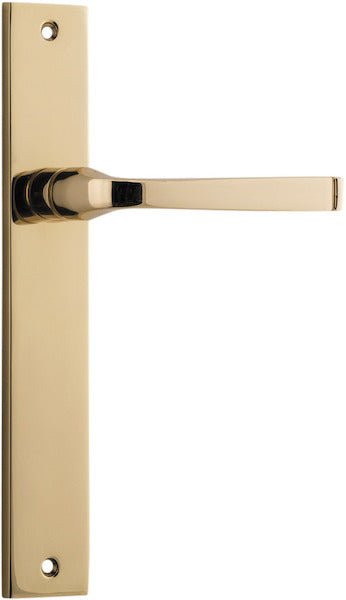

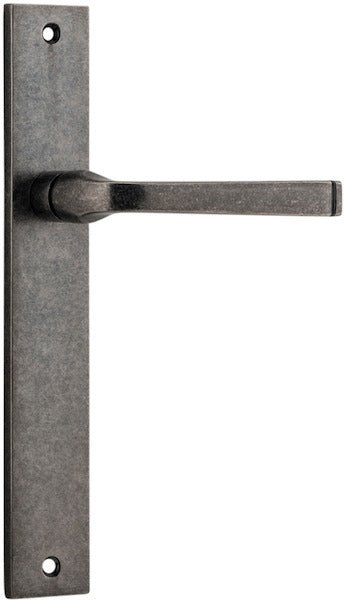

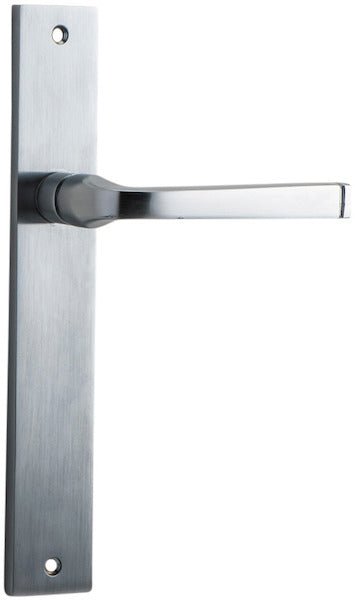

Lever Set Only	Includes the lever pair, roses, face-fix wood screws and tie bolts.	finish code only

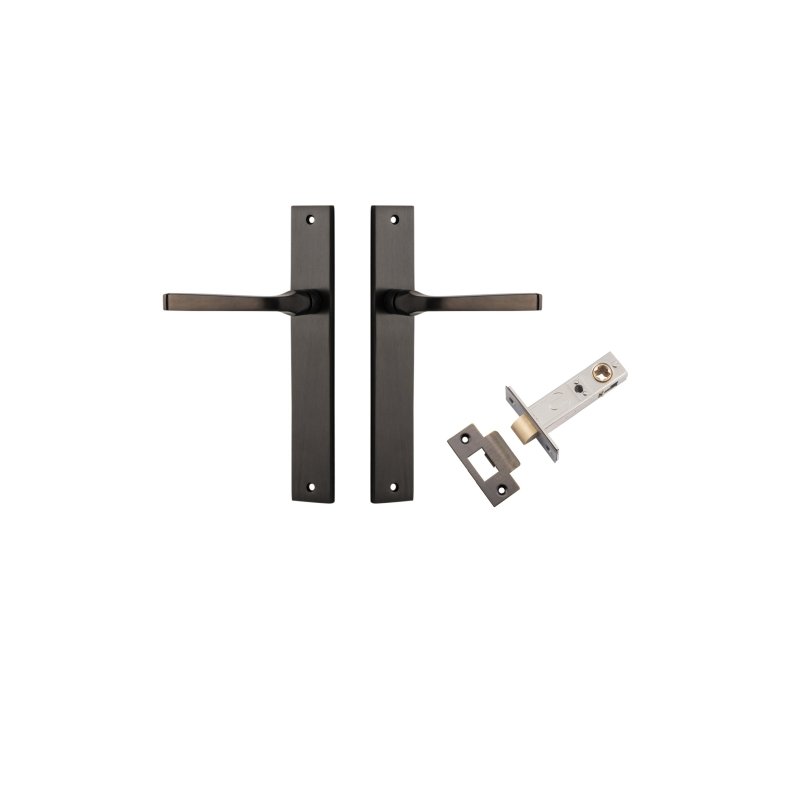

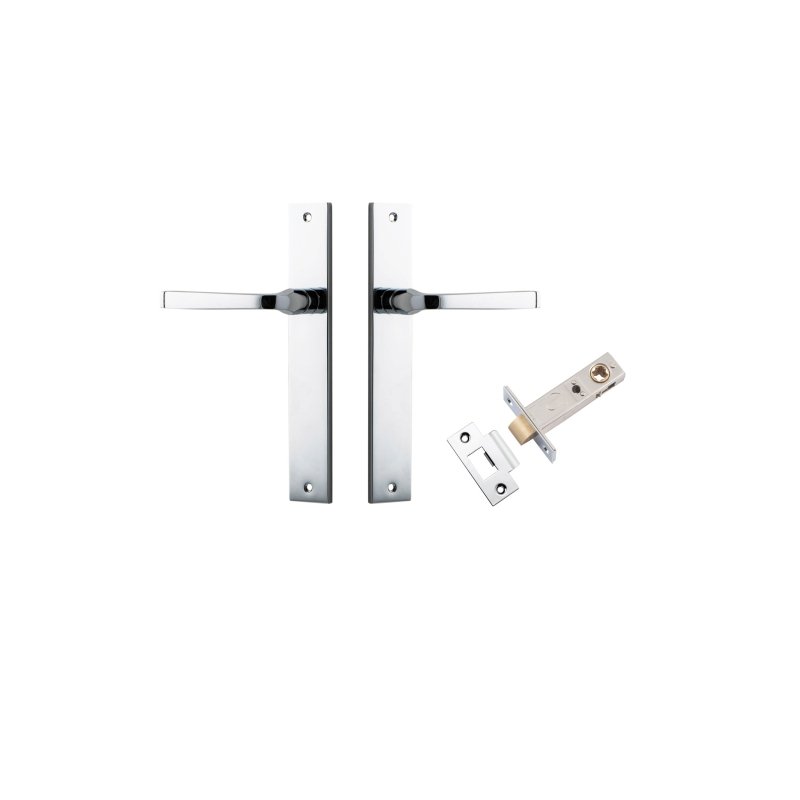

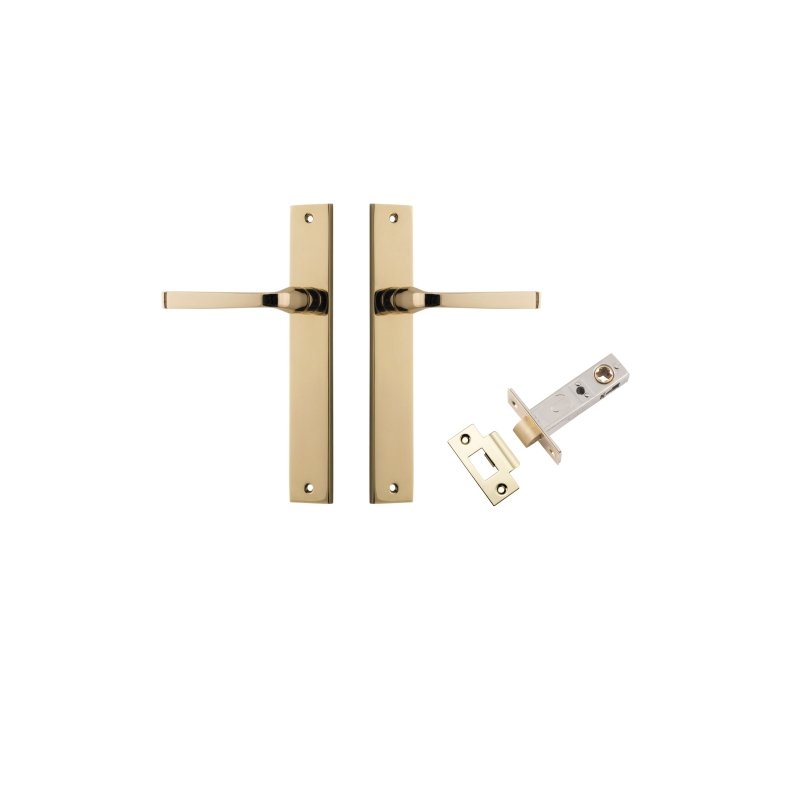

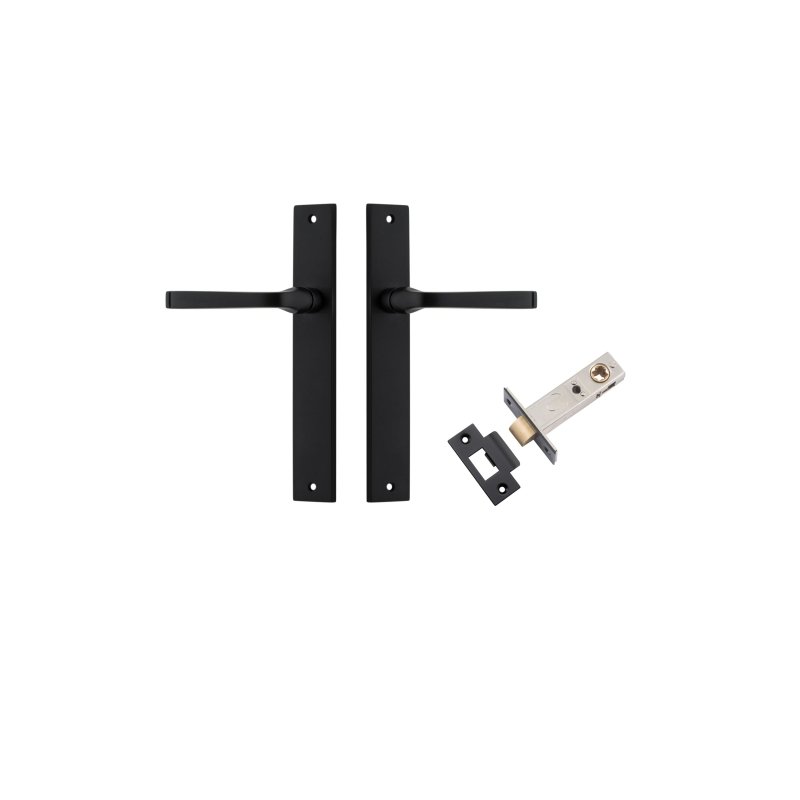

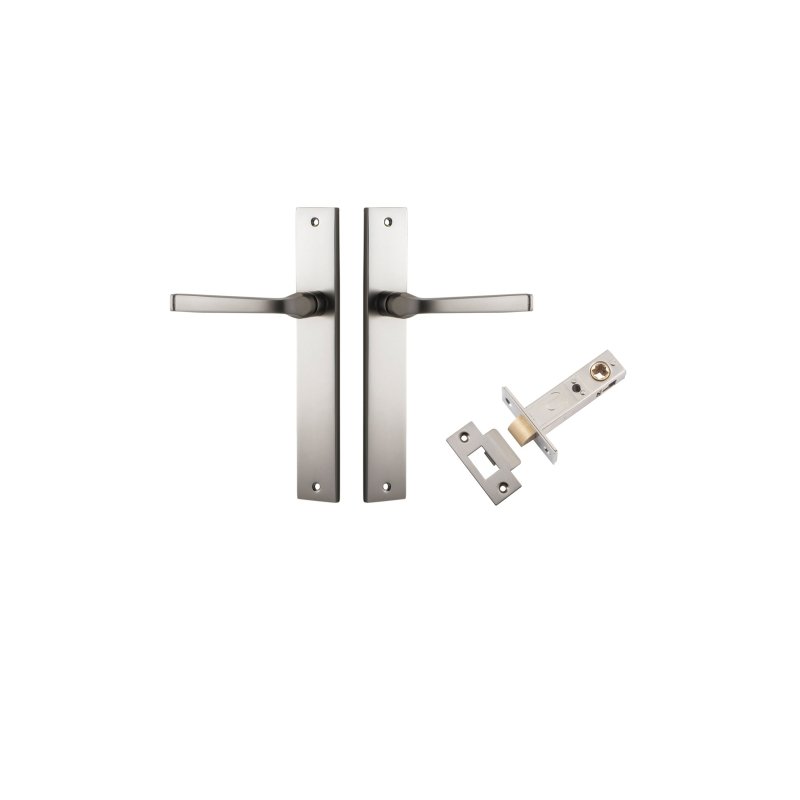

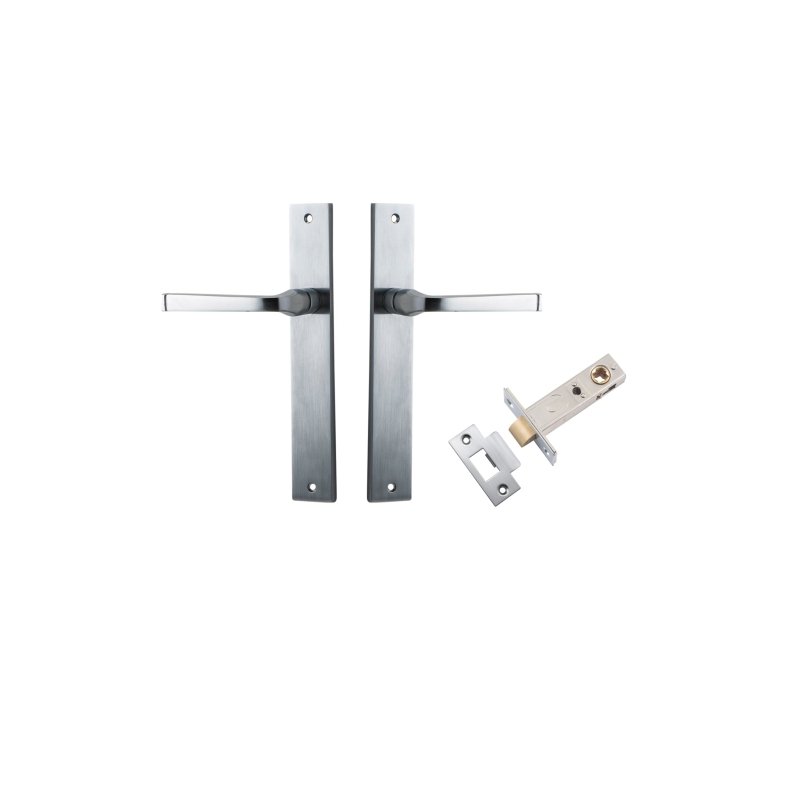

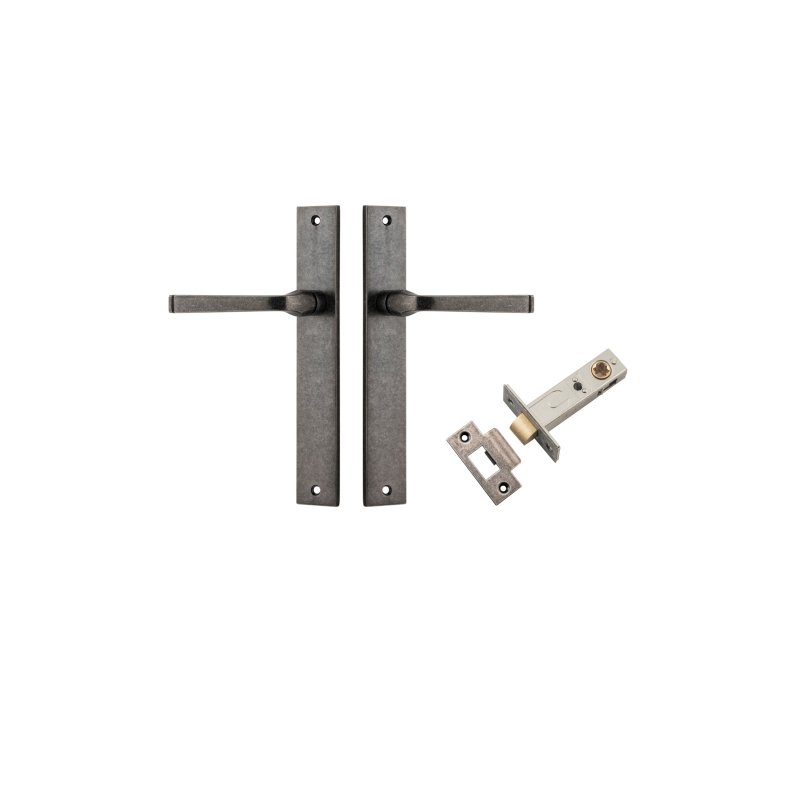

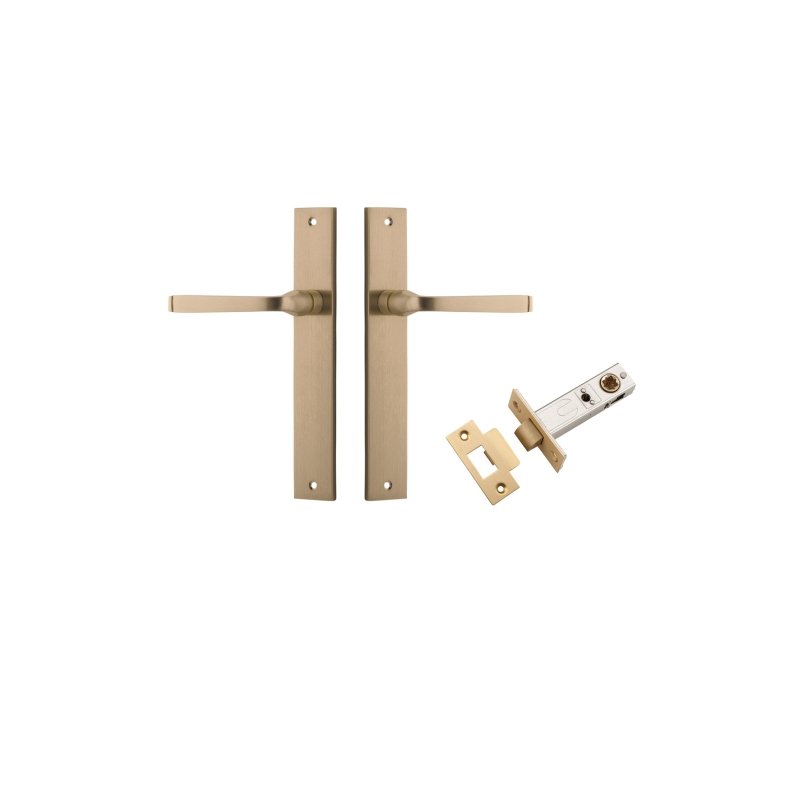

Passage Kit	Includes the lever set and a 60 mm backset tube latch.	KPASS60

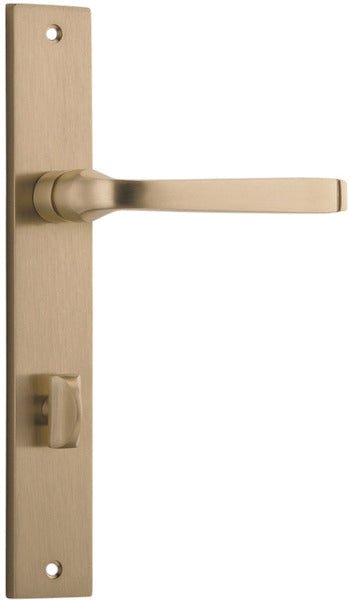

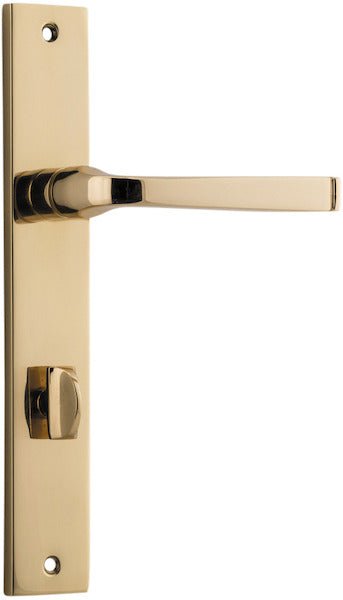

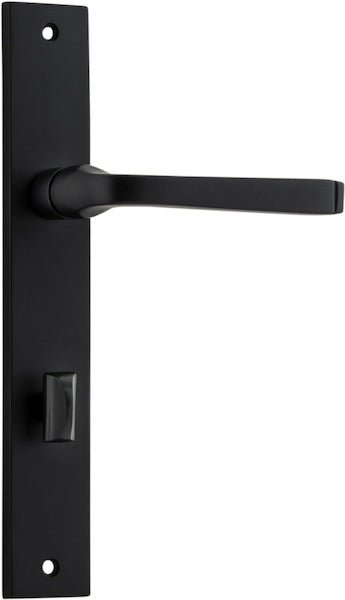

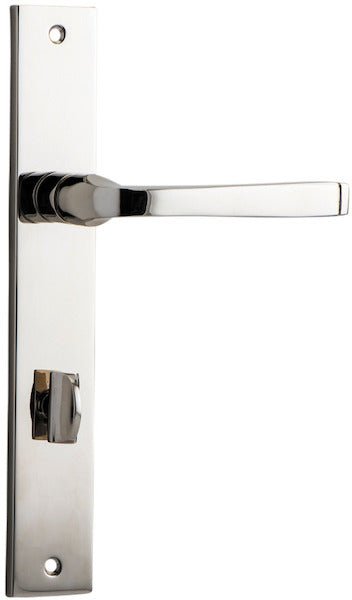

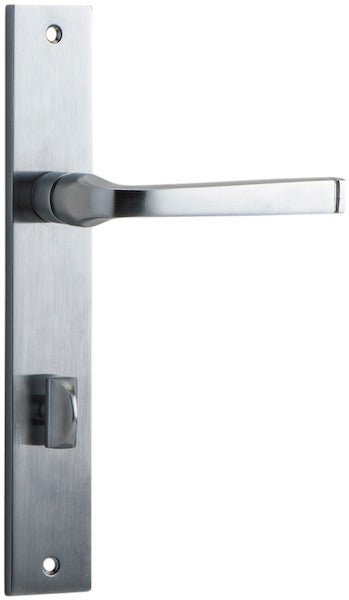

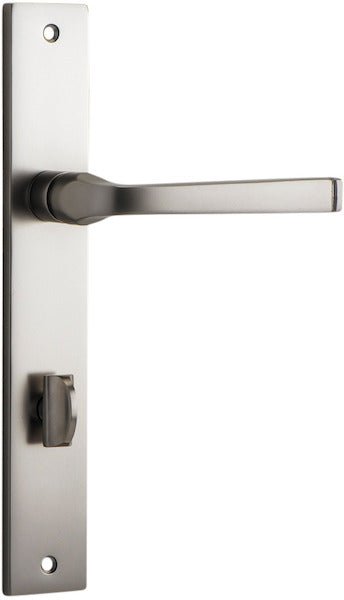

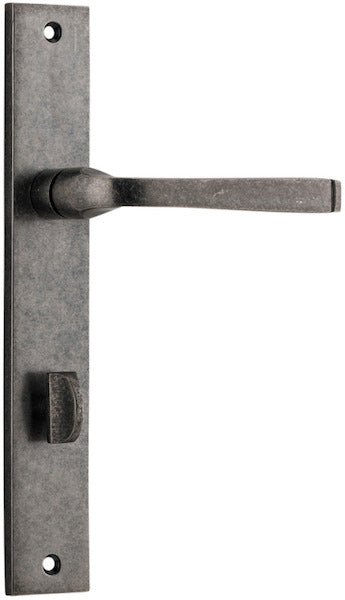

Inbuilt Privacy Kit	Includes the lever set with an inbuilt privacy turn on the rose and a 60 mm backset tube latch.	P85

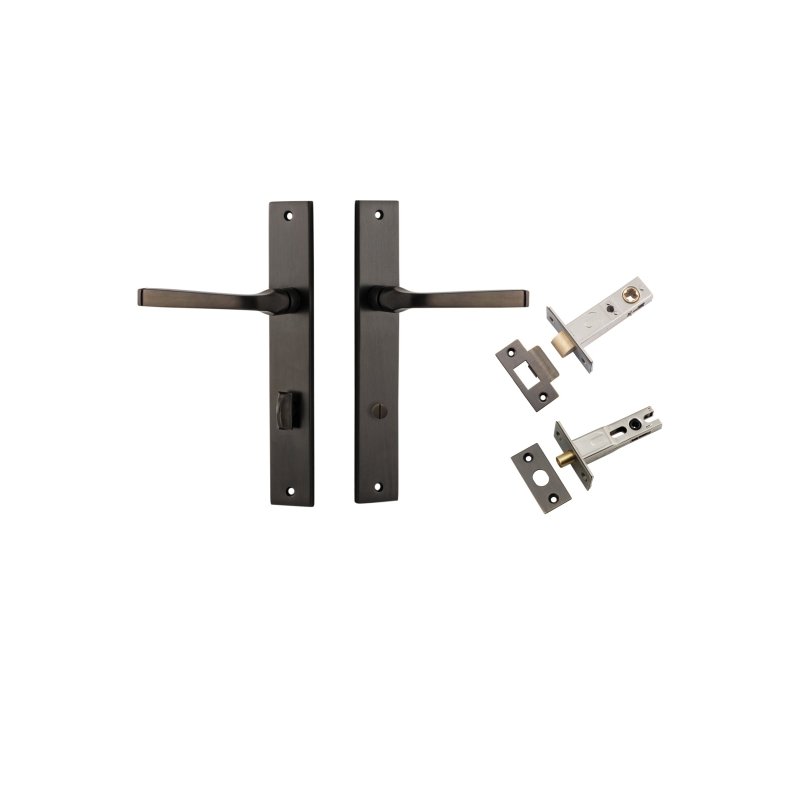

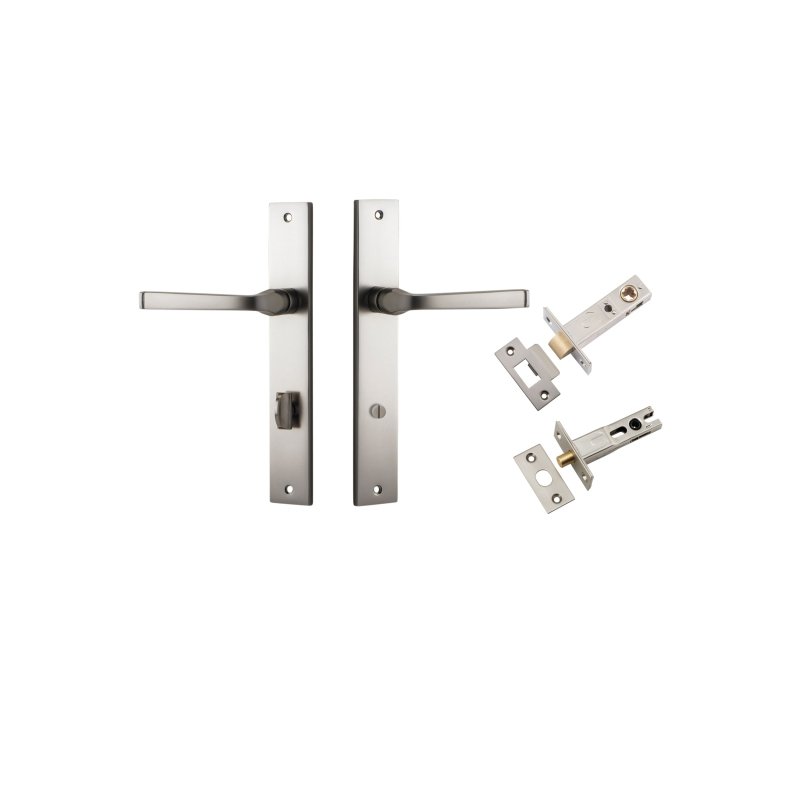

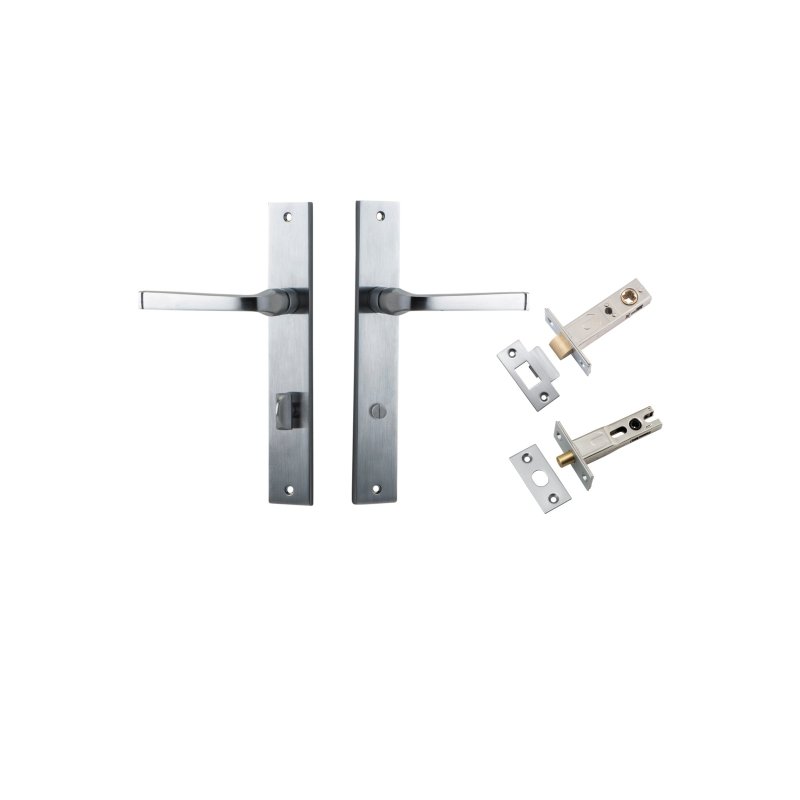

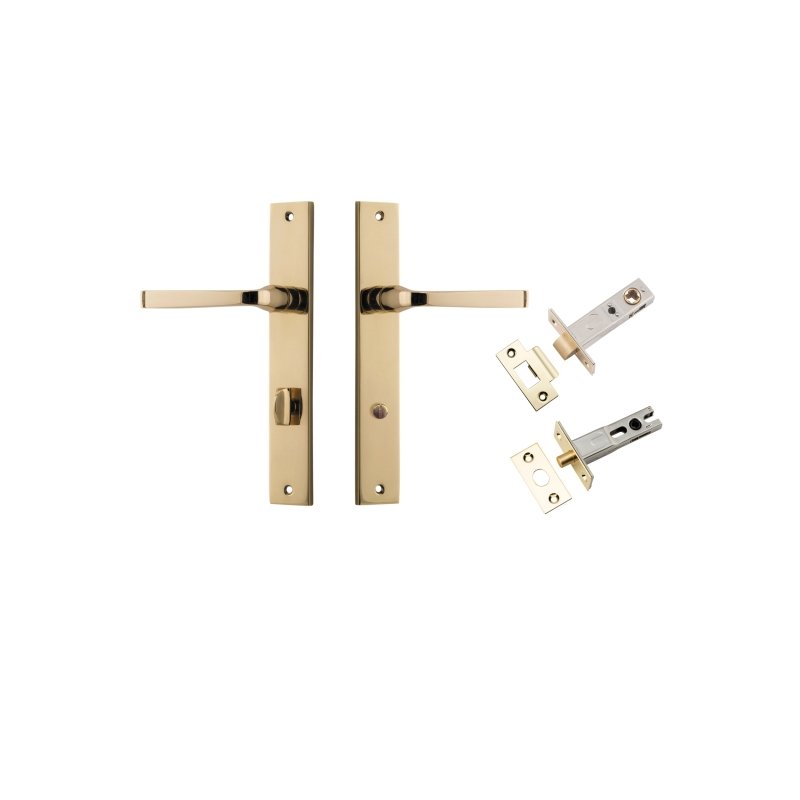

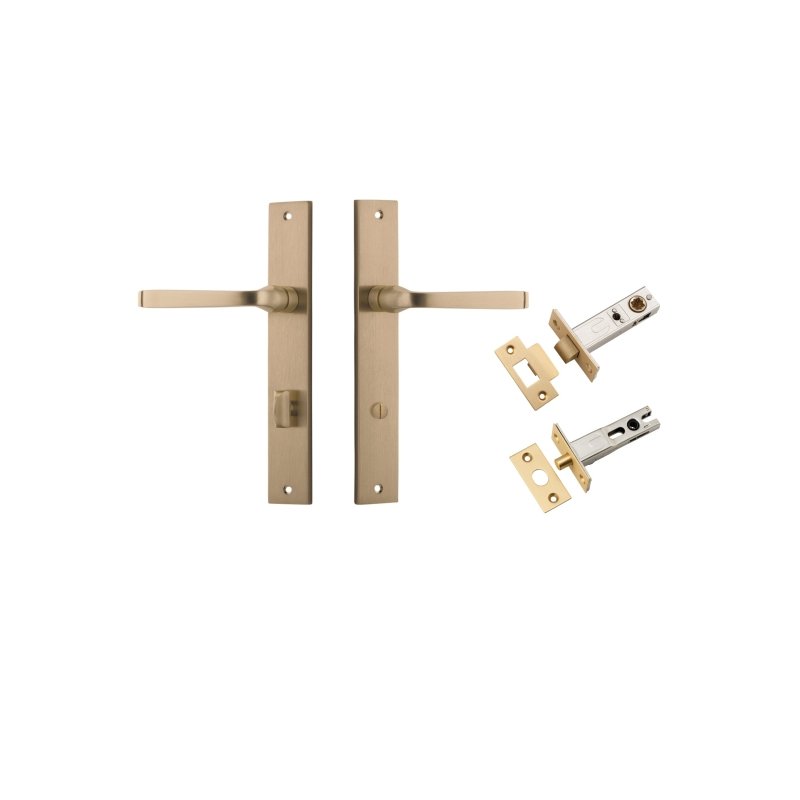

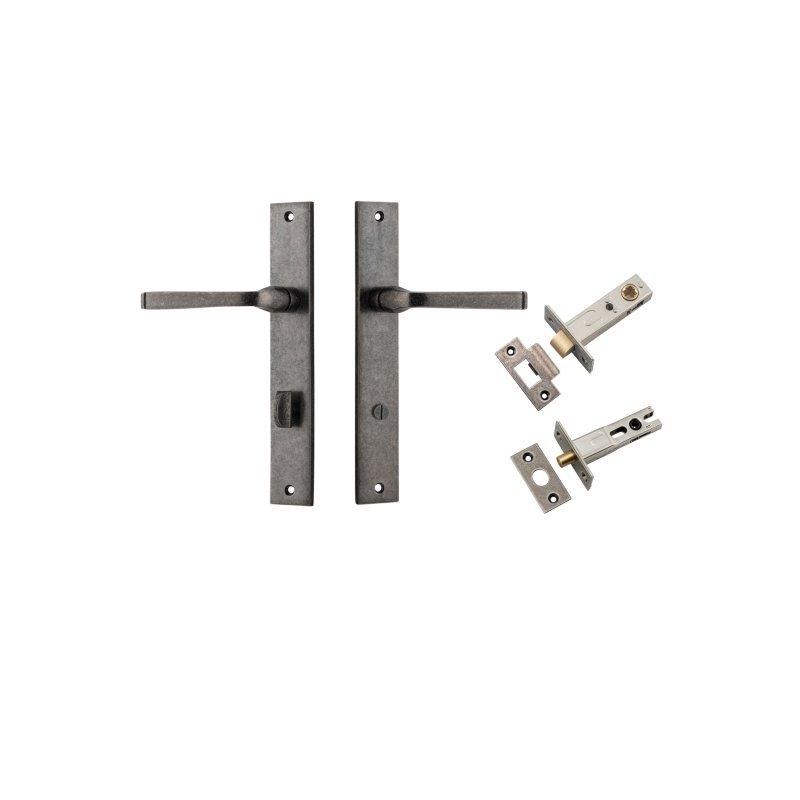

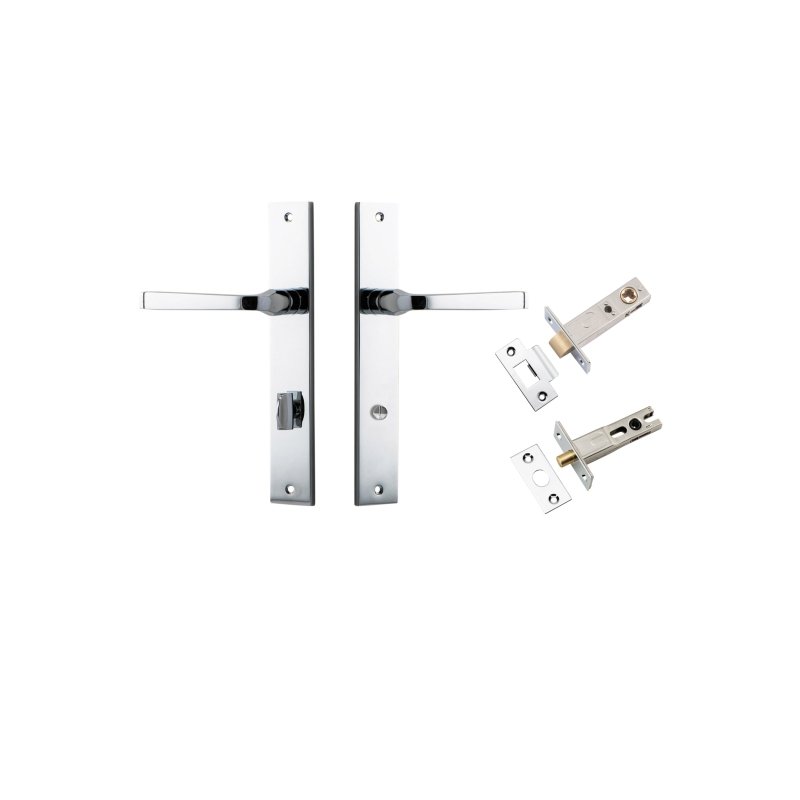

Separate Privacy Kit	Includes the lever set, a 60 mm backset tube latch and a separate privacy turn and release.	KPRIV60

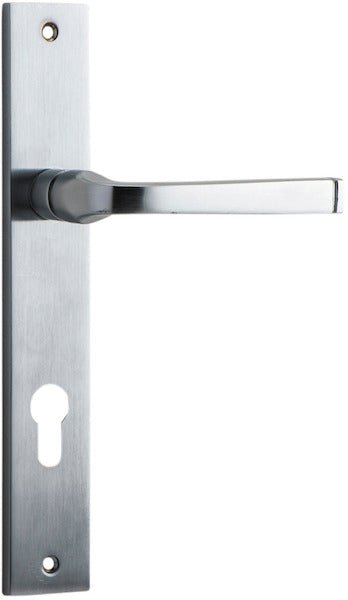

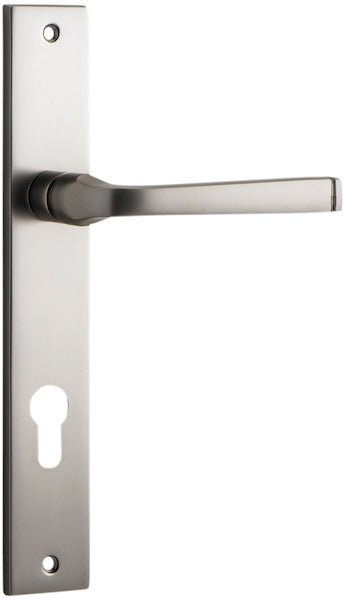

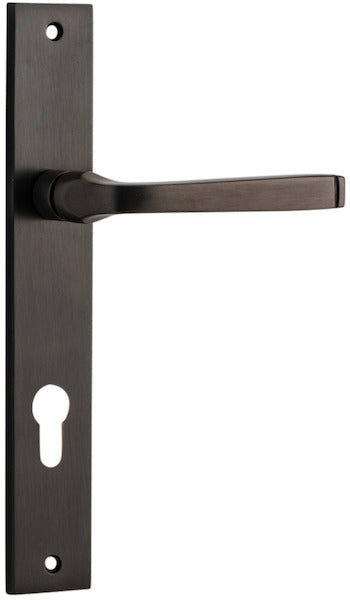

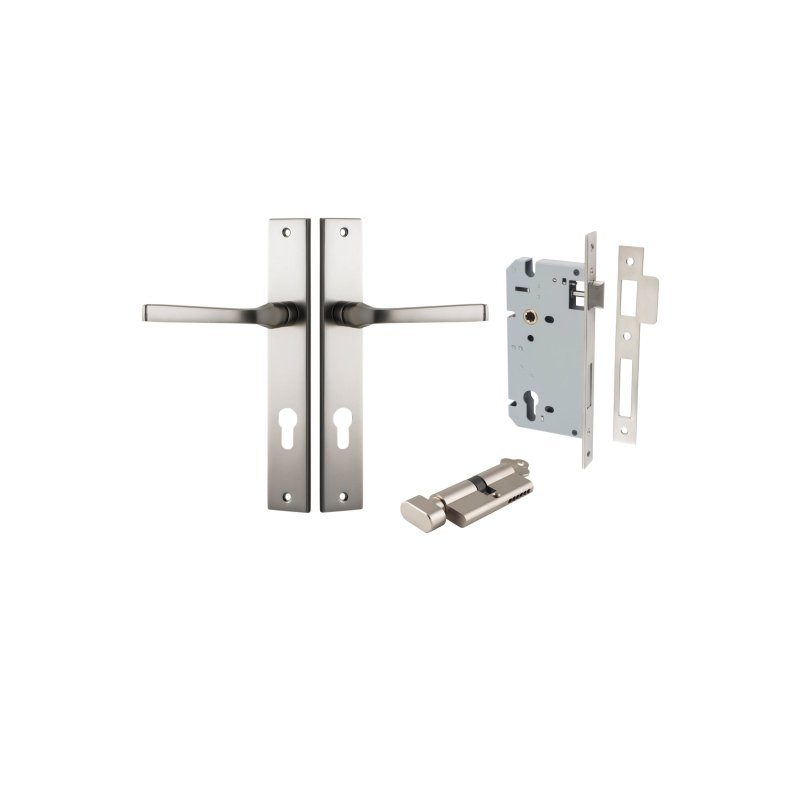

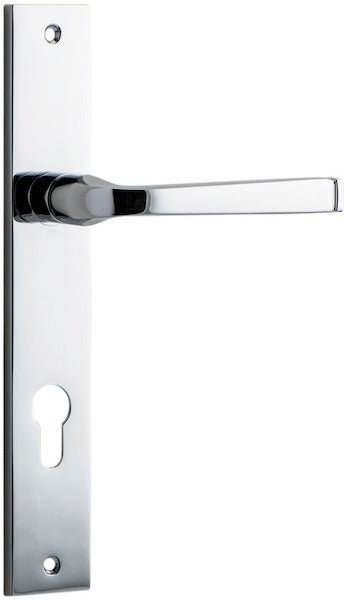

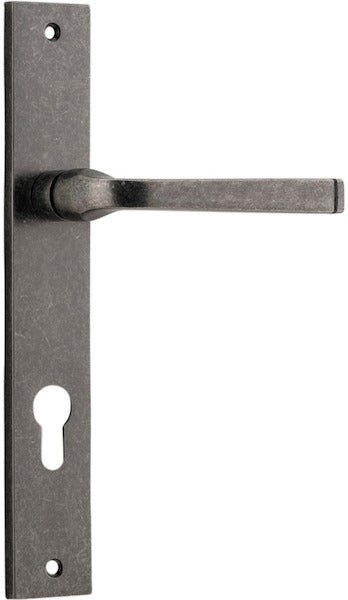

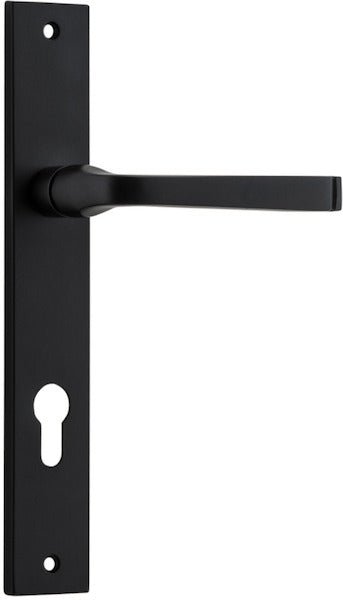

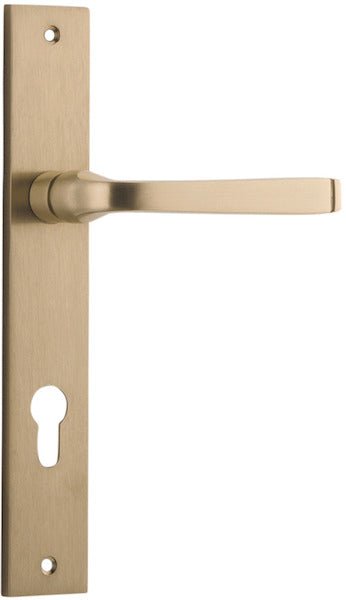

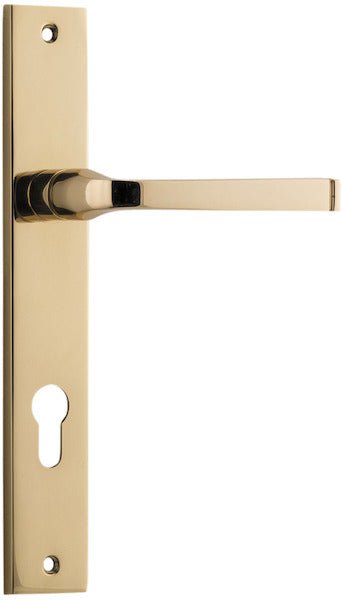

Entrance Kit (Key/Thumb)	Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose.	E85

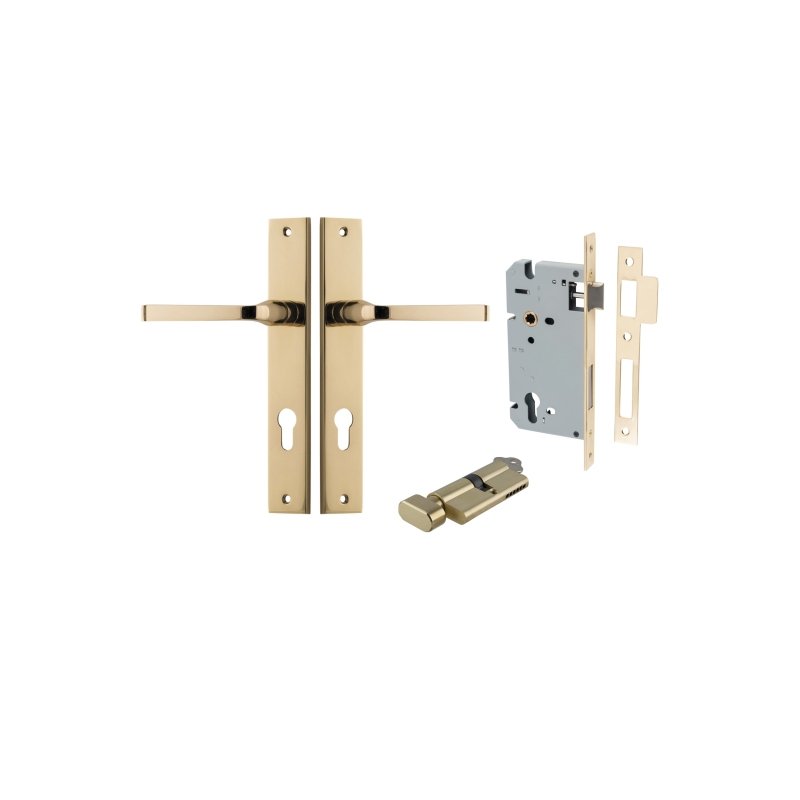

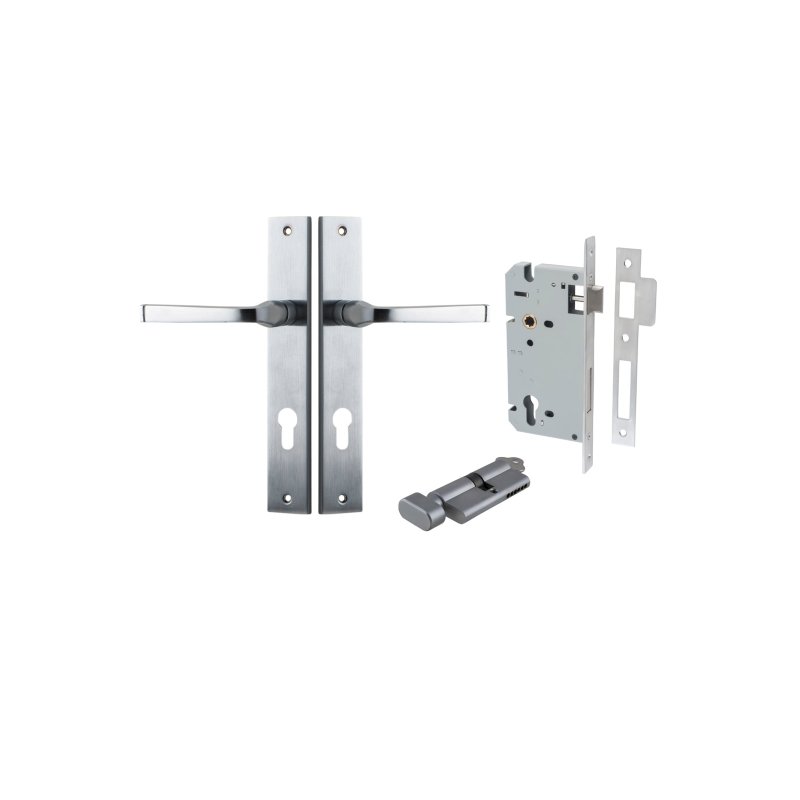

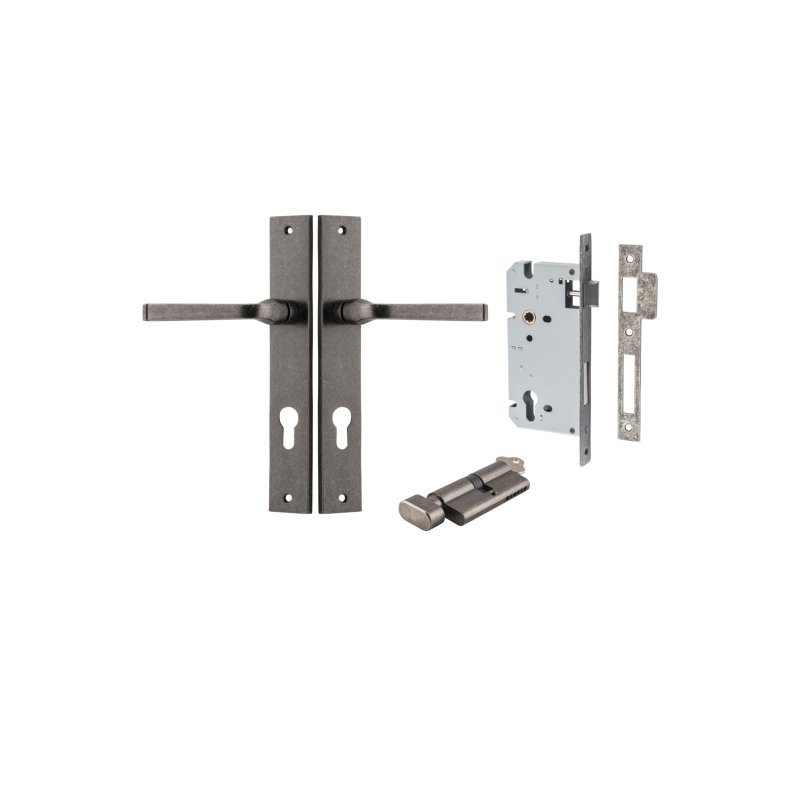

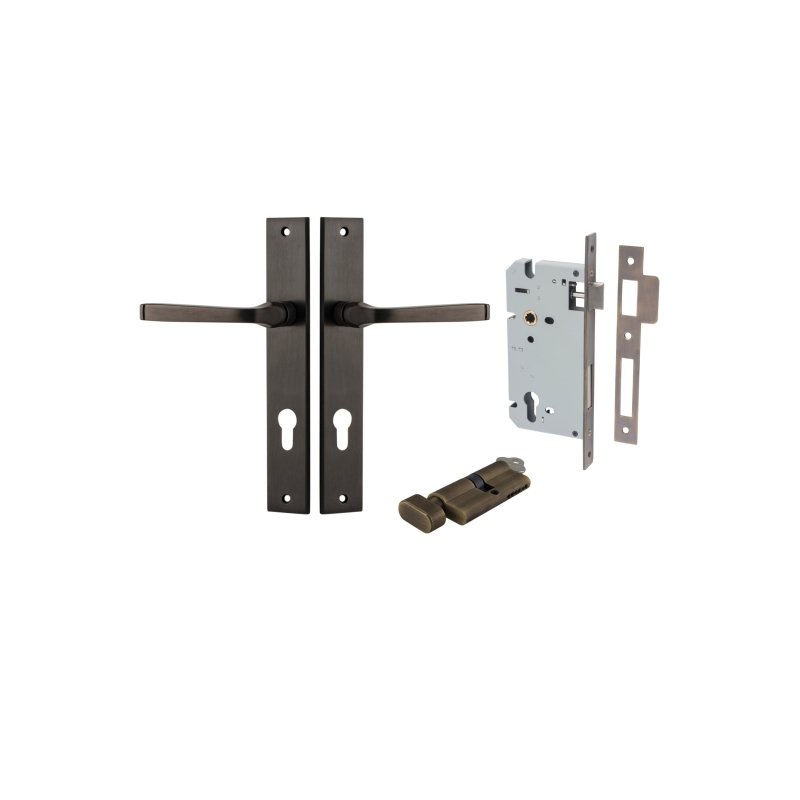

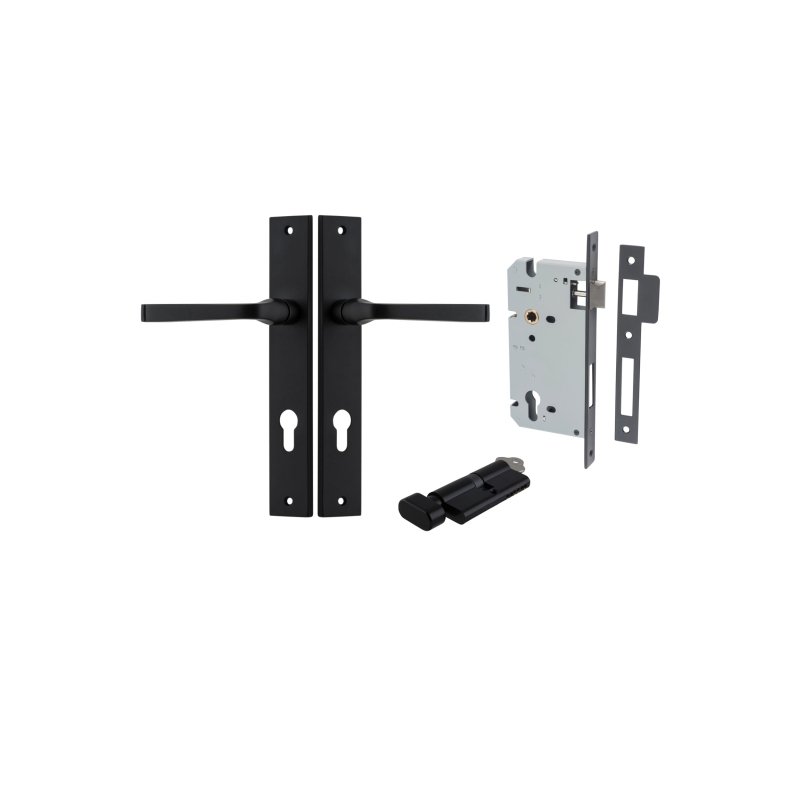

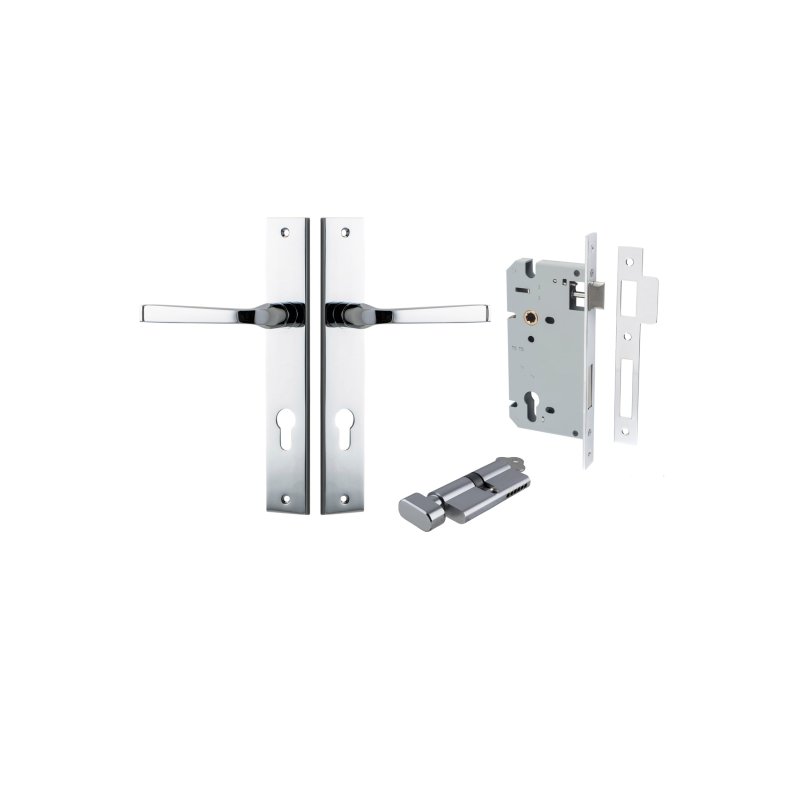

Entrance Kit (Key/Thumb)	Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose.	KENTR60KT

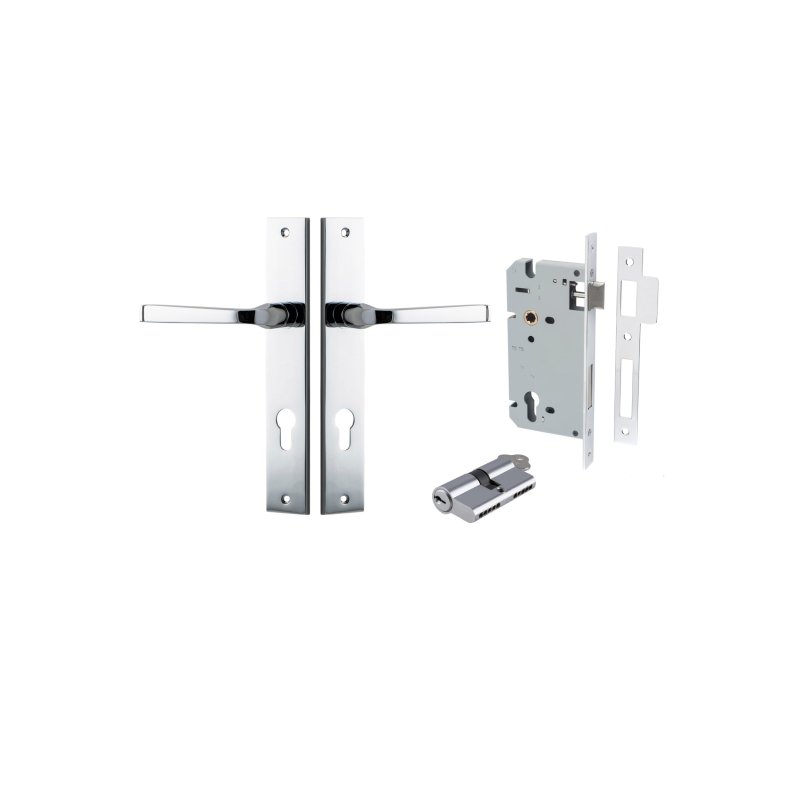

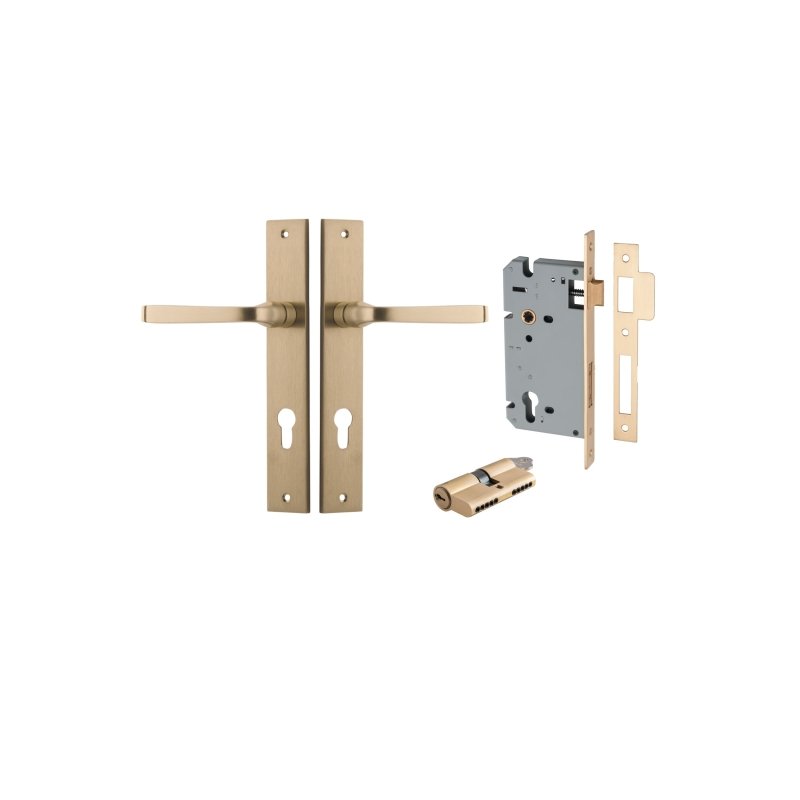

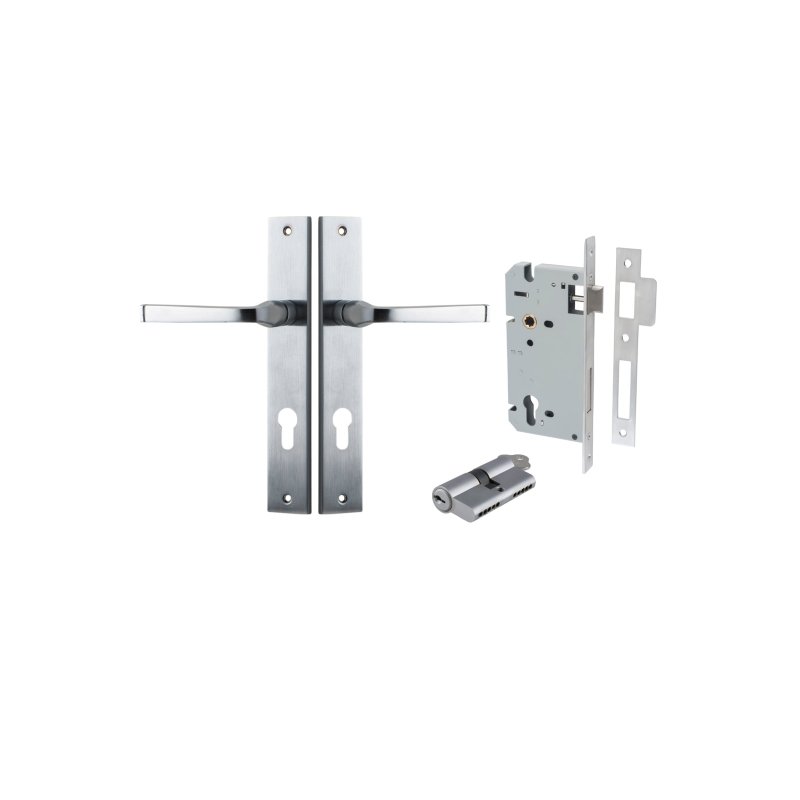

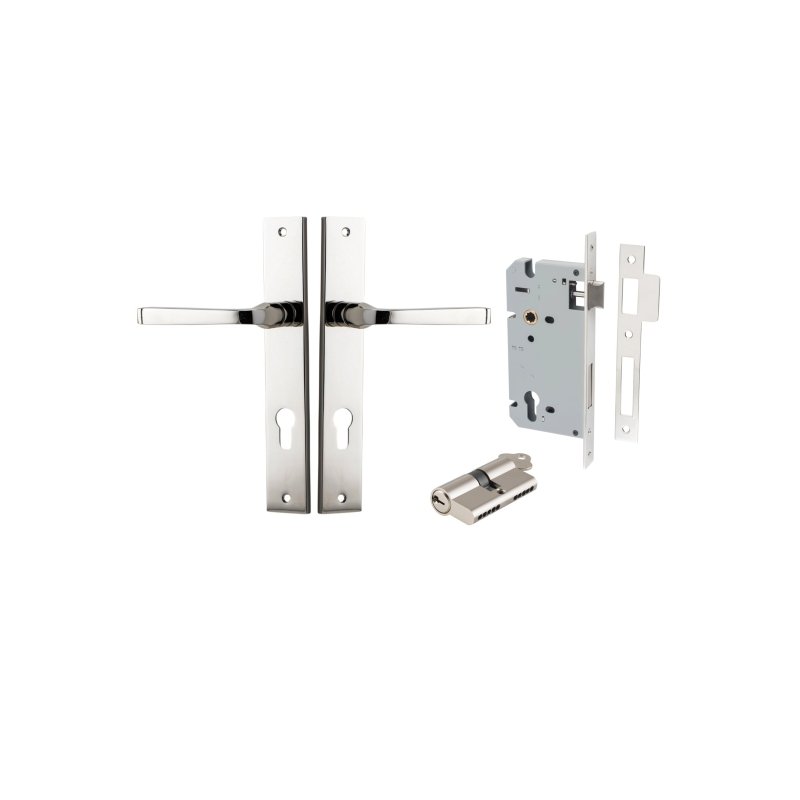

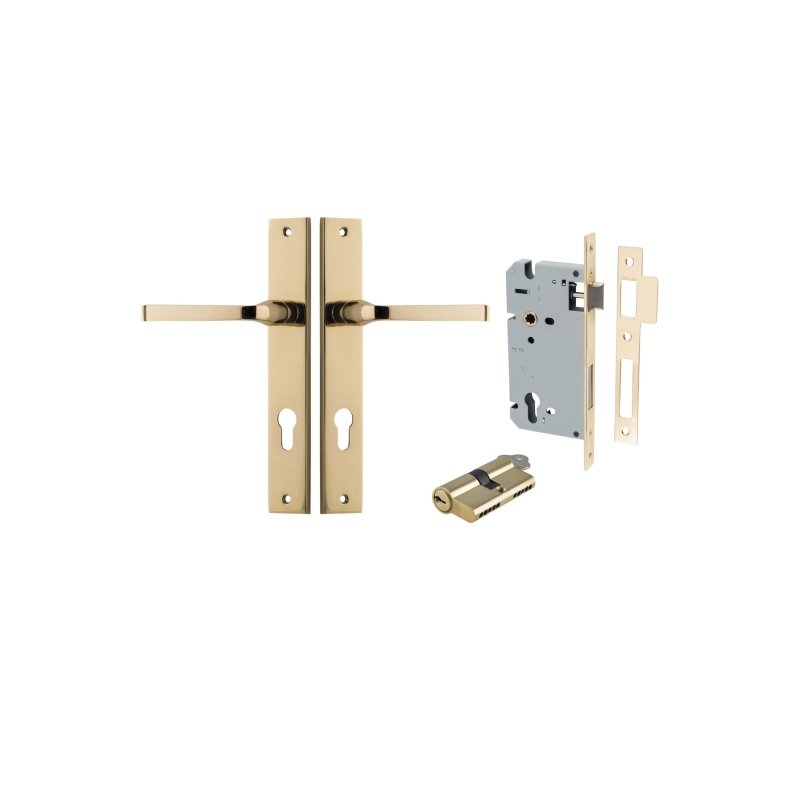

Entrance Kit — Dual Function (Key/Key)	Includes the lever set, a 60 mm backset mortice lock and cylinders keyed on both sides and a matching escutcheon to cover the keyhole on the rose.	KENTR60KK

The full product code is the finish code plus the kit suffix — e.g. a Brushed Brass Passage Kit is 15708. Full codes for every finish and kit are listed below.

Door Functions Explained

Passage	The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes.
Privacy	Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms.
Entrance	Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit.
Lever set only	The handles and roses on their own, with no latch or lock. Choose this if you already have a latch or lock, or are replacing handles only.

What's in the Box

1 pair of levers (or knobs) with roses / backplates
Face-fix wood screws and tie bolts
The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
Entrance kits on rose handles also include a matching escutcheon to cover the keyhole
Not included: hinges and flush bolts

Available Finishes (9) & Product Codes

Brushed BrassBrushed ChromeDistressed NickelMatt BlackPolished BrassPolished ChromePolished NickelSatin NickelSignature Brass

Finish	Lever Set Only	Passage Kit	Inbuilt Privacy Kit	Separate Privacy Kit	Entrance Kit (Key/Thumb)	Entrance Kit (Key/Thumb)	Entrance Kit — Dual Function (Key/Key)
Brushed Brass	15708	15708KPASS60	15708P85	15708KPRIV60	15708E85	15708KENTR60KT	15708KENTR60KK
Brushed Chrome	12208	12208KPASS60	12208P85	12208KPRIV60	12208E85	12208KENTR60KT	12208KENTR60KK

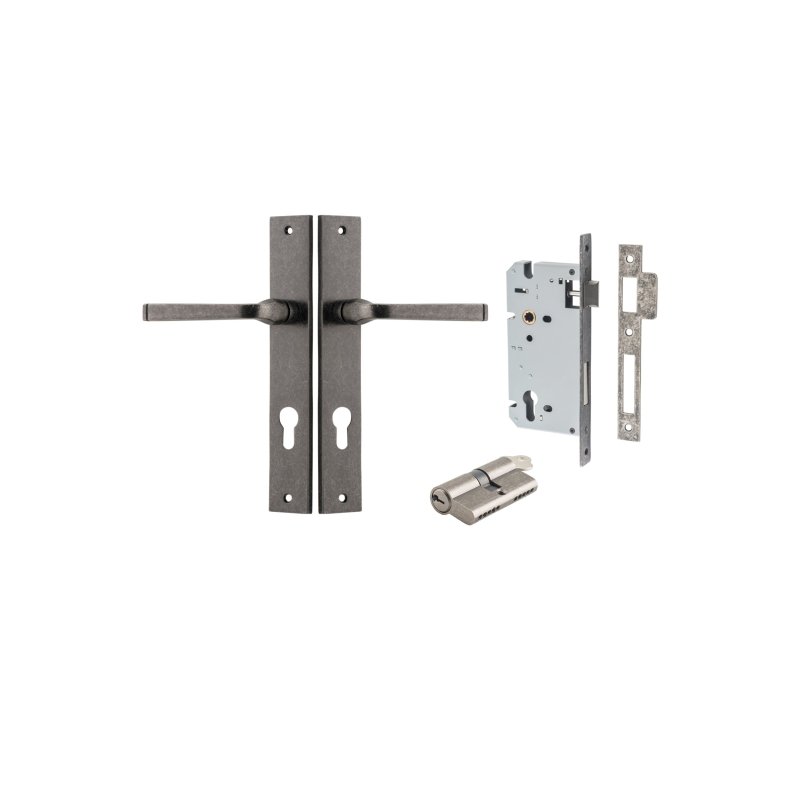

Distressed Nickel	13708	13708KPASS60	13708P85	13708KPRIV60	13708E85	13708KENTR60KT	13708KENTR60KK
Matt Black	12708	12708KPASS60	12708P85	12708KPRIV60	12708E85	12708KENTR60KT	12708KENTR60KK
Polished Brass	10208	10208KPASS60	10208P85	10208KPRIV60	10208E85	10208KENTR60KT	10208KENTR60KK

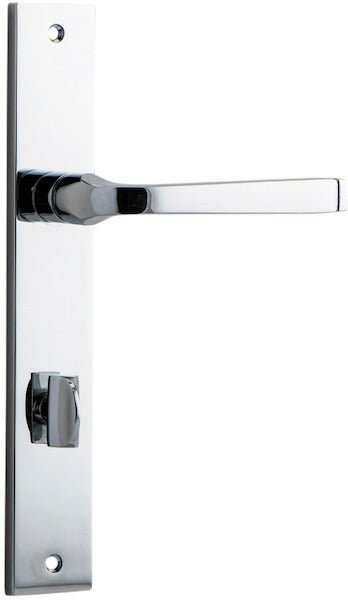

Polished Chrome	11708	11708KPASS60	11708P85	11708KPRIV60	11708E85	11708KENTR60KT	11708KENTR60KK

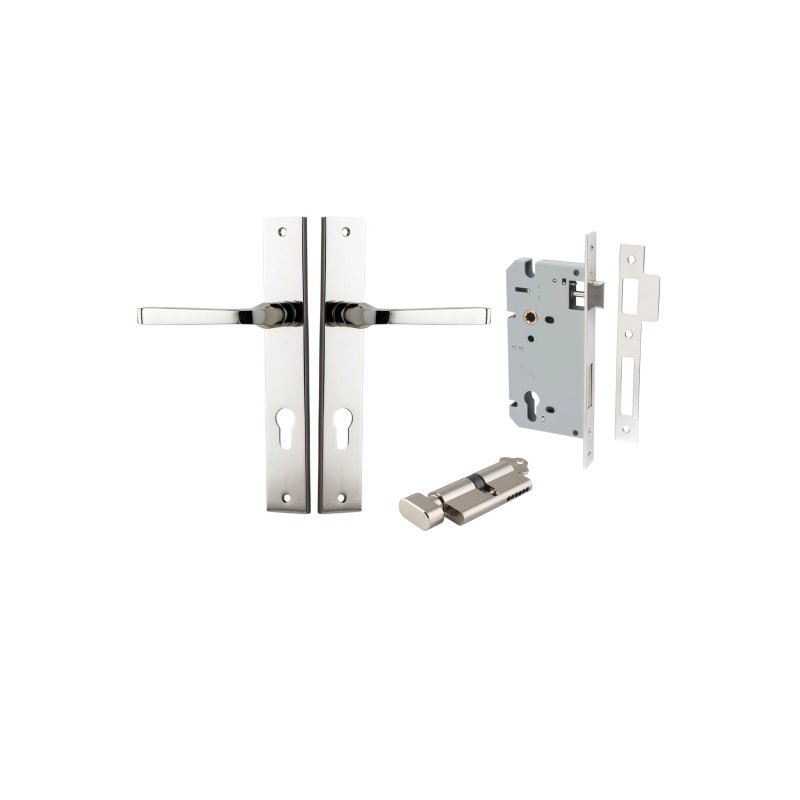

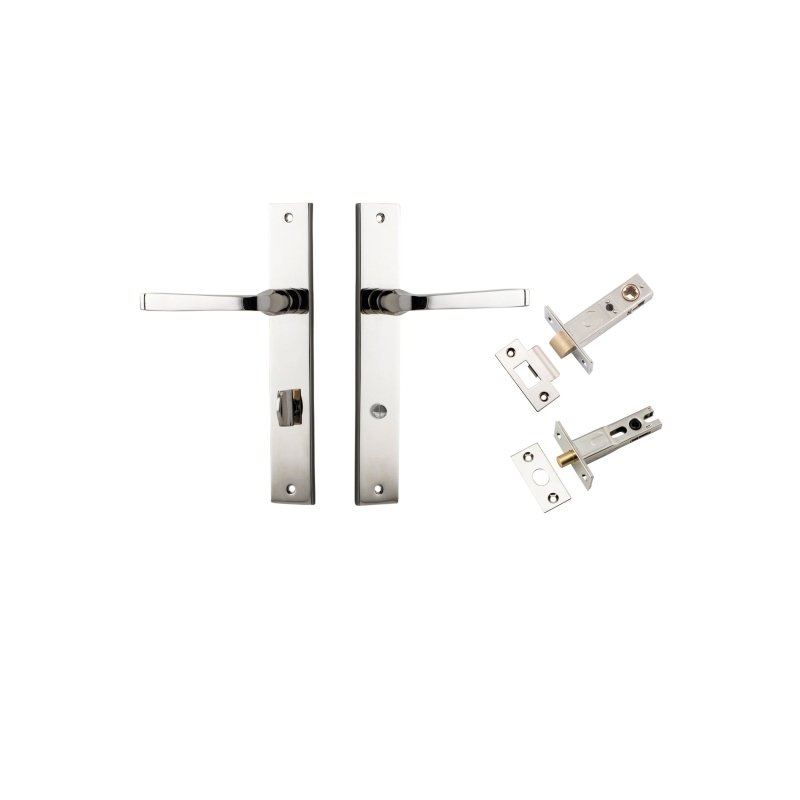

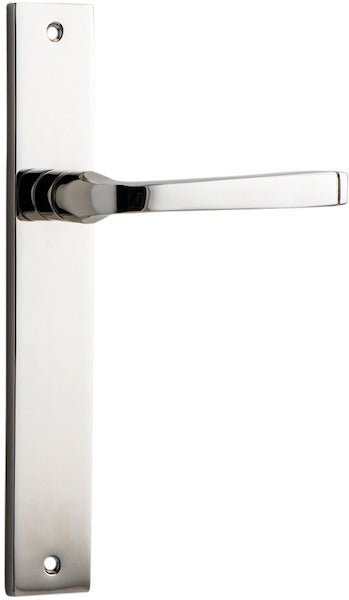

Polished Nickel	14208	14208KPASS60	14208P85	14208KPRIV60	14208E85	14208KENTR60KT	14208KENTR60KK
Satin Nickel	14708	14708KPASS60	14708P85	14708KPRIV60	14708E85	14708KENTR60KT	14708KENTR60KK

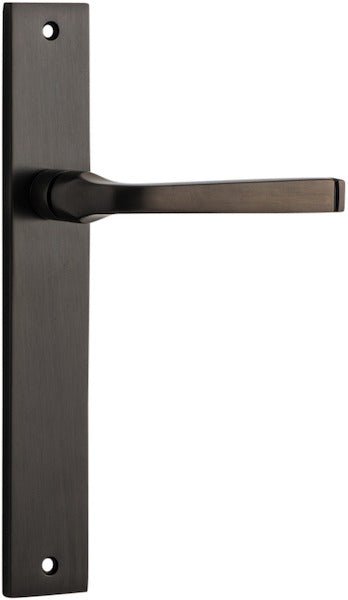

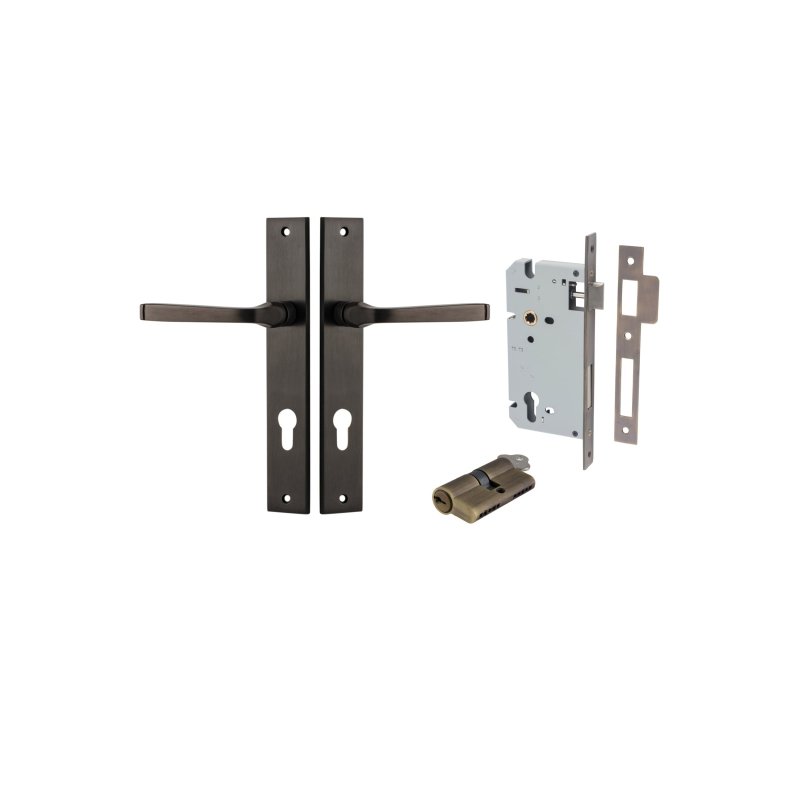

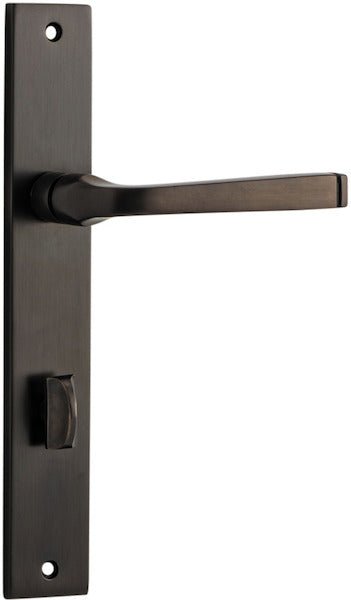

Signature Brass	10708	10708KPASS60	10708P85	10708KPRIV60	10708E85	10708KENTR60KT	10708KENTR60KK

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

Step 1 — What is your door made of?

Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.

Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm latch/lock compatibility with your frame profile.

Step 2 — What type of door is it?

Passage — no lockingBedrooms, living rooms, studies. You need: lever set + tube latch.

Privacy — locks insideBathrooms and ensuites, snib inside. You need: lever set + tube latch + privacy turn (or the Inbuilt Privacy Kit).

Entrance — keyedFront and back doors. You need: lever set + mortice lock. Key/Thumb = key outside, turn inside; Key/Key = key both sides.

Mortice lock by door thickness: 35–40 mm → standard mortice lock; 40–55 mm → heavy-duty or long-case mortice lock. Rebated double door → rebated mortice lock (includes the rebate kit).

Step 3 — Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: 150 mm bolt top and bottom. Doors 2100 mm and above: 300 mm top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable; a magnetic catch can be used in place of the bottom bolt.

Hinges — Which One Do You Need?

Hinge type	Best for	Why
Ball bearing	Entrance and heavier doors	Reduces friction and prevents squeaking and wear. Best for high-use doors.
Fixed pin	Internal and lighter entrance doors	A reliable all-rounder for most internal applications.
Loose pin	Internal use only — ideal for bathrooms	The door can be lifted off its hinges in an emergency, even when locked.

Three hinges per door is standard for internal and entrance doors.

Specifications

Material	Solid brass
Door Type	Timber & aluminium
Door Thickness	35mm – 55mm
Height	240mm
Width	38mm
Length	117mm
Projection	55mm
Centre To Centre	205mm
Sold As	Pair
Warranty	10-Year Mechanical Warranty

Warranty

✓10-Year Mechanical Warranty

Covers defects in materials and workmanship across all finishes.

✓Lifetime Finish Warranty

Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD.

ⓘLiving finishes

Finishes such as Polished Brass and Brushed Brass age and patina naturally over time, and are generally excluded from finish-defect cover.

What is the IVER Annecy Door Lever Handle On Rectangular Backplate?

It is an Iver door lever/knob set in solid brass, fire rated to 2 hours — AS 1530.4:2014.

What's the difference between Passage, Privacy and Entrance?

Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms. Entrance: Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit.

What's the difference between the Inbuilt and Separate Privacy Kits?

The Inbuilt Privacy Kit has the privacy turn built into the rose itself, so the snib sits on the handle rose. The Separate Privacy Kit uses a separate privacy turn and release mounted apart from the handle. Both include a 60 mm backset tube latch.

What is included in the box?

A pair of levers (or knobs) with roses/backplates, face-fix wood screws and tie bolts, plus the latch or lock that comes with the kit you select. Hinges and flush bolts are not included.

Which hinges do I need?

Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.

Do I need flush bolts?

Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

What finishes are available?

This model is available in Brushed Brass, Brushed Chrome, Distressed Nickel, Matt Black, Polished Brass, Polished Chrome, Polished Nickel, Satin Nickel, Signature Brass. Each finish has its own product code — see the finishes table in the description.

What door thickness does it suit?

It suits doors 35mm – 55mm. Check your door thickness before choosing a mortice lock — 35–40 mm takes a standard lock and 40–55 mm a heavy-duty or long-case lock.

Is it fire rated?

Yes — it is fire rated to 2 hours — AS 1530.4:2014.

What warranty applies?

Iver hardware carries a 10-Year Mechanical Warranty covering defects in materials and workmanship across all finishes, plus a Lifetime Finish Warranty on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD. Living finishes such as Polished and Brushed Brass patina naturally and are generally excluded from finish-defect cover.

How can I get help choosing the right kit?

Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
