IVER BALTIMORE DOOR LEVER HANDLE ON ROUND ROSE - CUSTOMISE TO YOUR NEEDS

Save 21%
Prime HardwareSKU: 9365
filler

-----
Price:
$133.50 $169

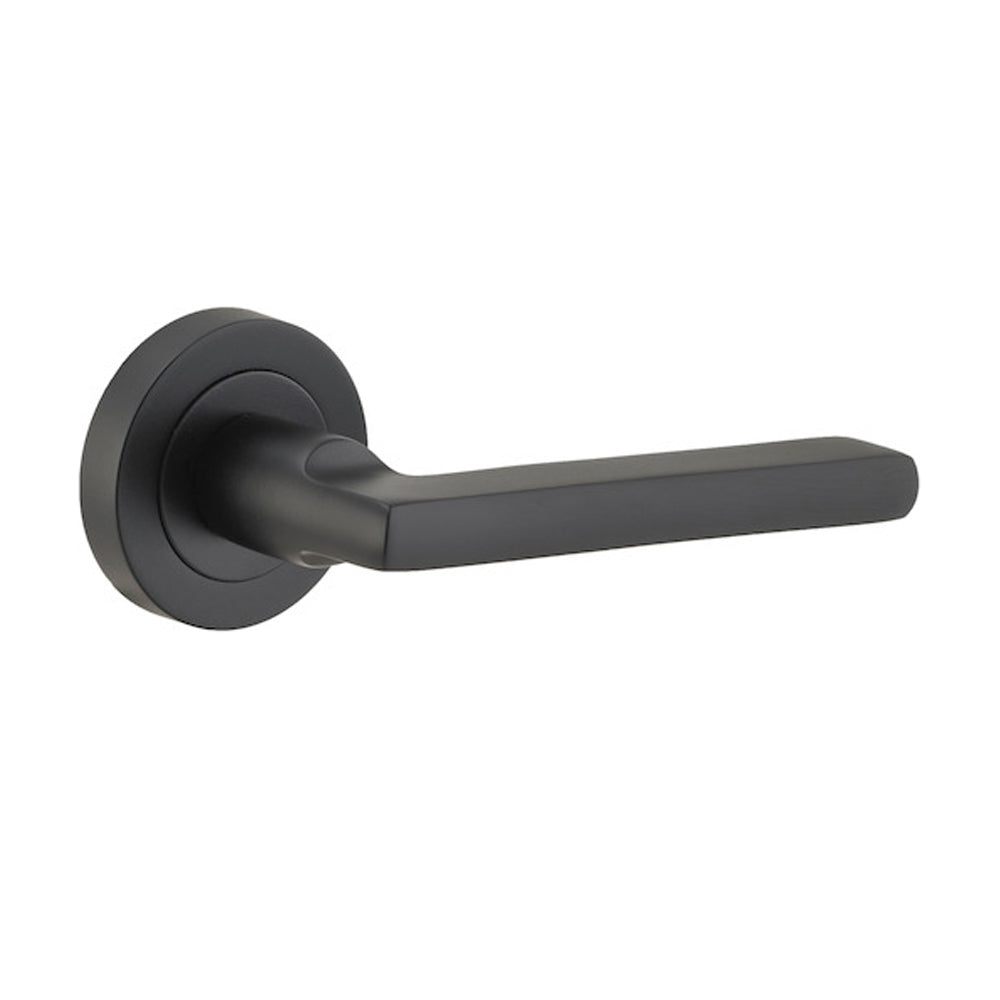

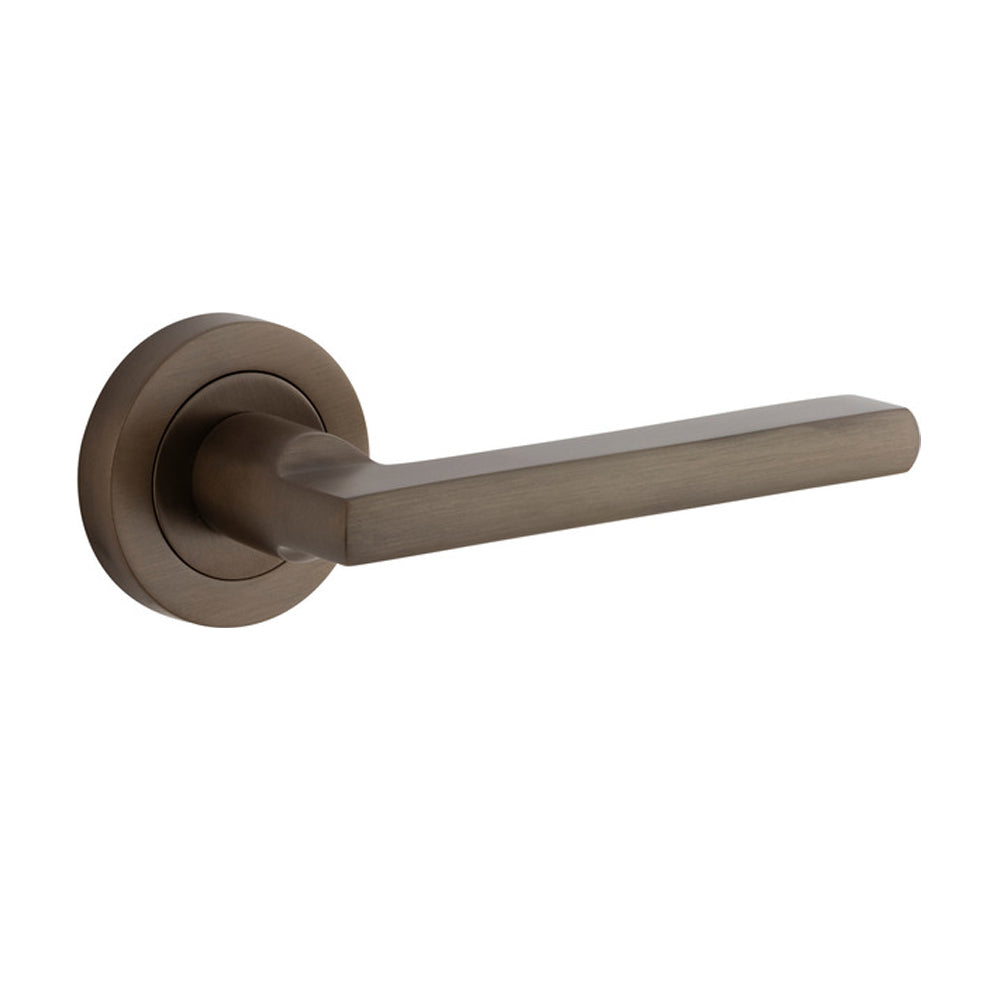

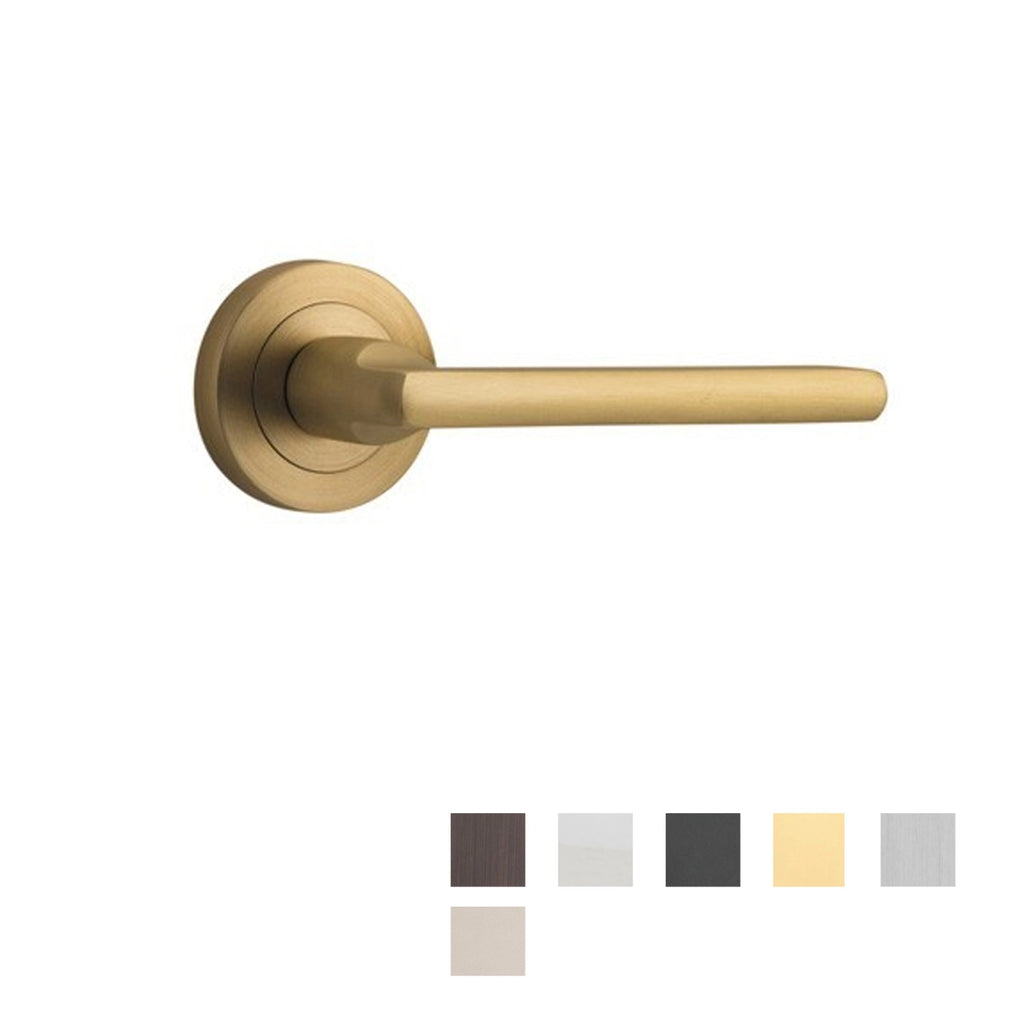

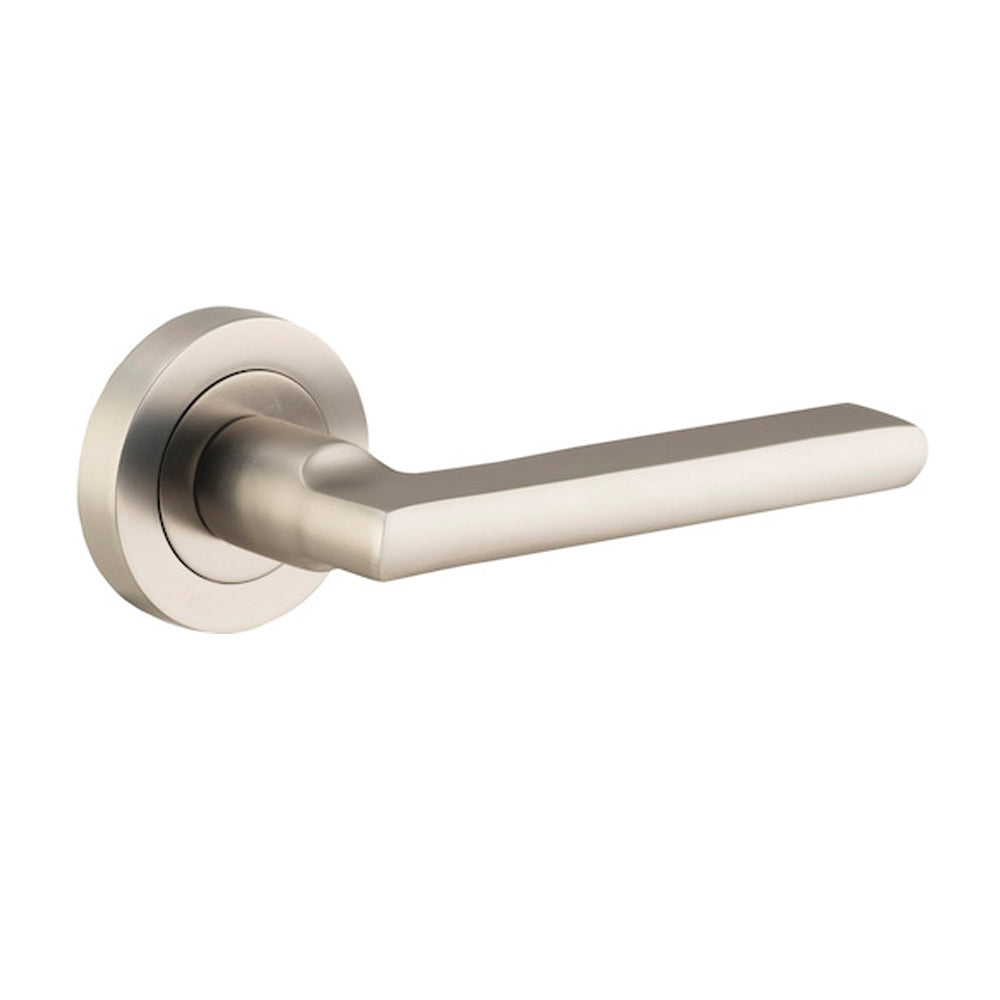

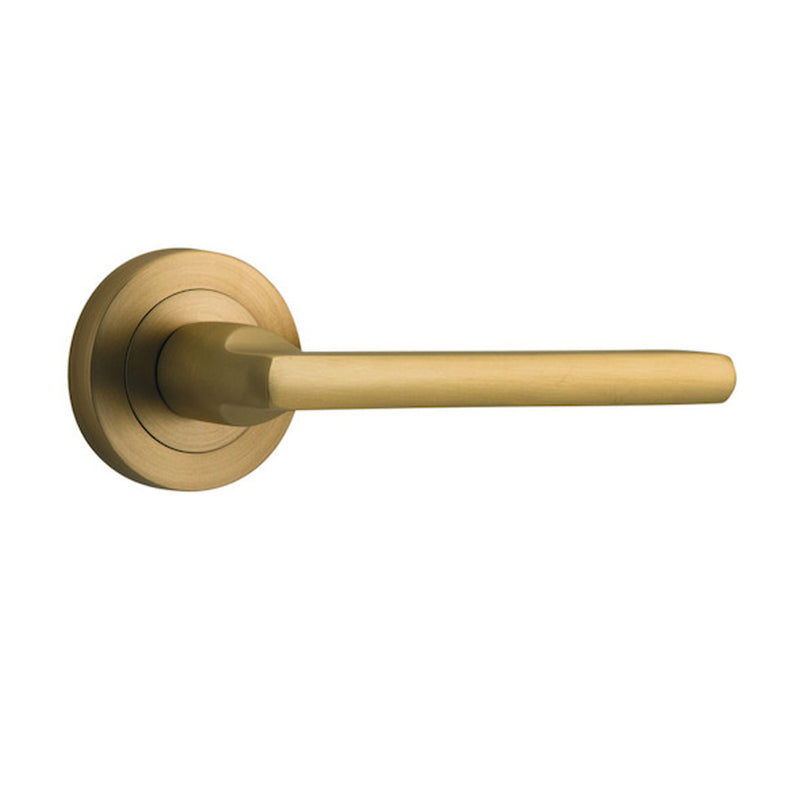

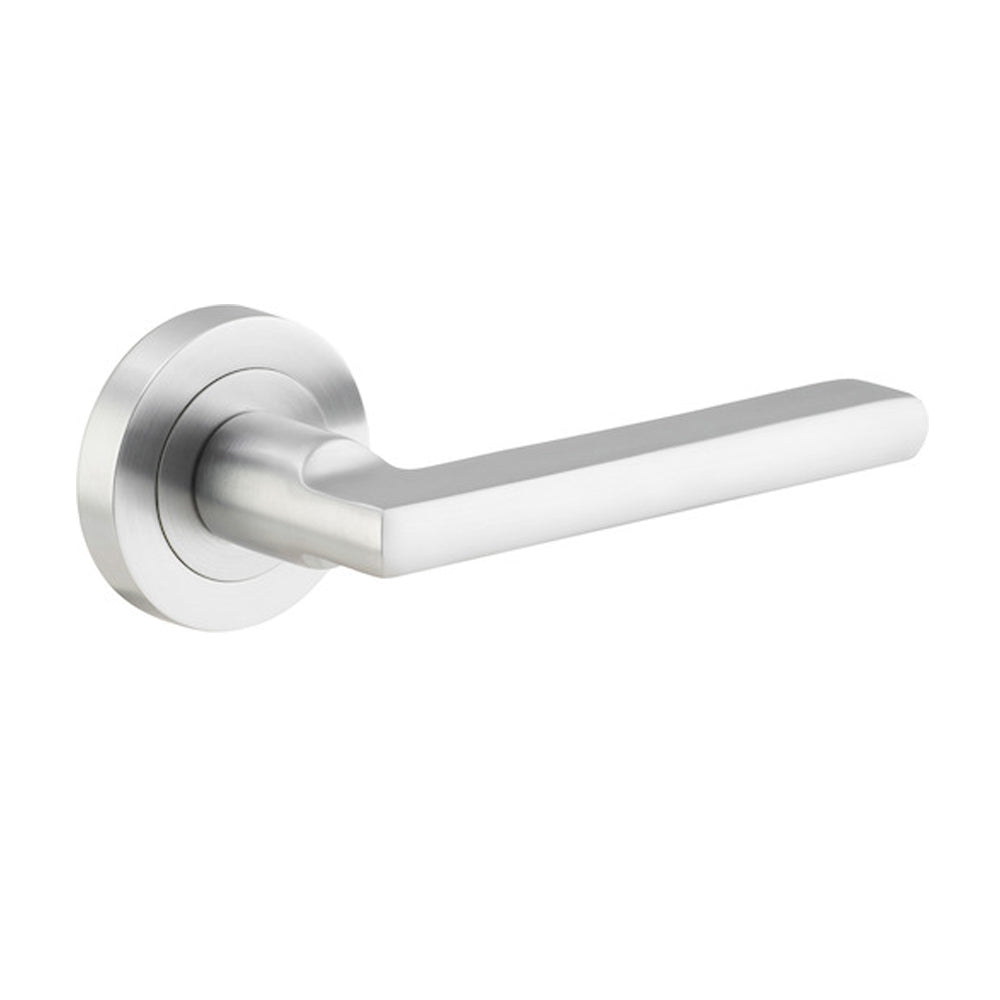

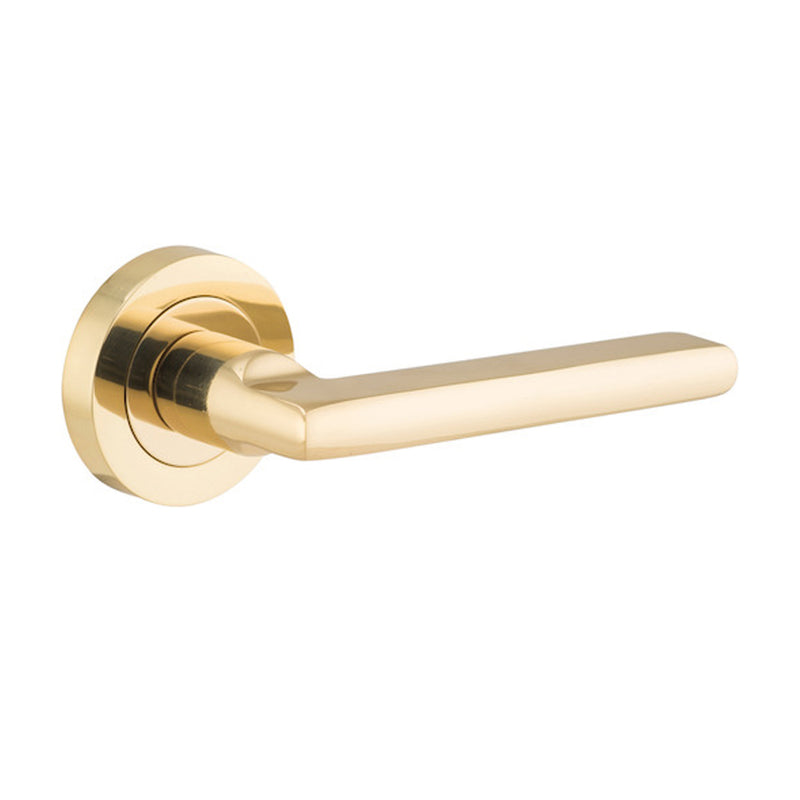

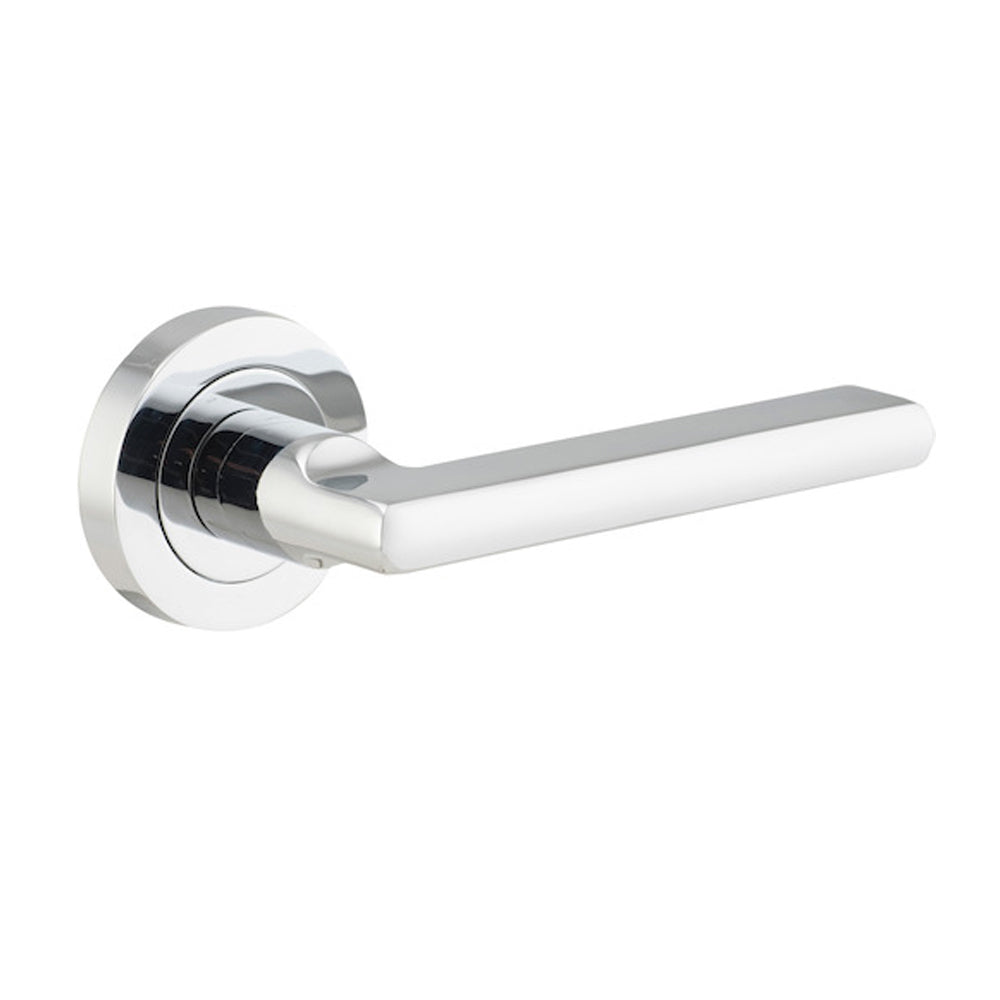

Iver Baltimore Door Lever on Round Rose

Door Lever on Rose can be used on any internal door inside your home. Simply combine the lever on rose door handle with a combination of latches, locks and thumb-turns, depending on the room and requirements.

Door Lever on Rose Function - a door handle where the lever is fixed to a circular plate.

  • Blends a minimalist aesthetic with clean lines and modern utility.
  • Designed for versatility, the Baltimore is as comfortable as a statement piece as it is a complement to the style of your home.

Features:

  • PDF
  • Successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team.
  • This product comes with face fix wood screws and tie bolts.

Specifications:

  • Brand: Iver
  • Backplate Diameter: 52mm
  • Height: 52mm/58mm
  • Width: 52mm/58mm
  • Length: 118mm
  • Projection: 57mm/58mm
  • Backset: 60mm
  • Centre to centre: 41.5mm
  • ​​​​Available Finish:
    • Brushed Brass
    • Brushed Chrome
    • Signature Brass
    • Chrome Plated
    • Matt Black
    • Polished Brass
    • Satin Nickel
  • Sold as Pair

What's in the box:

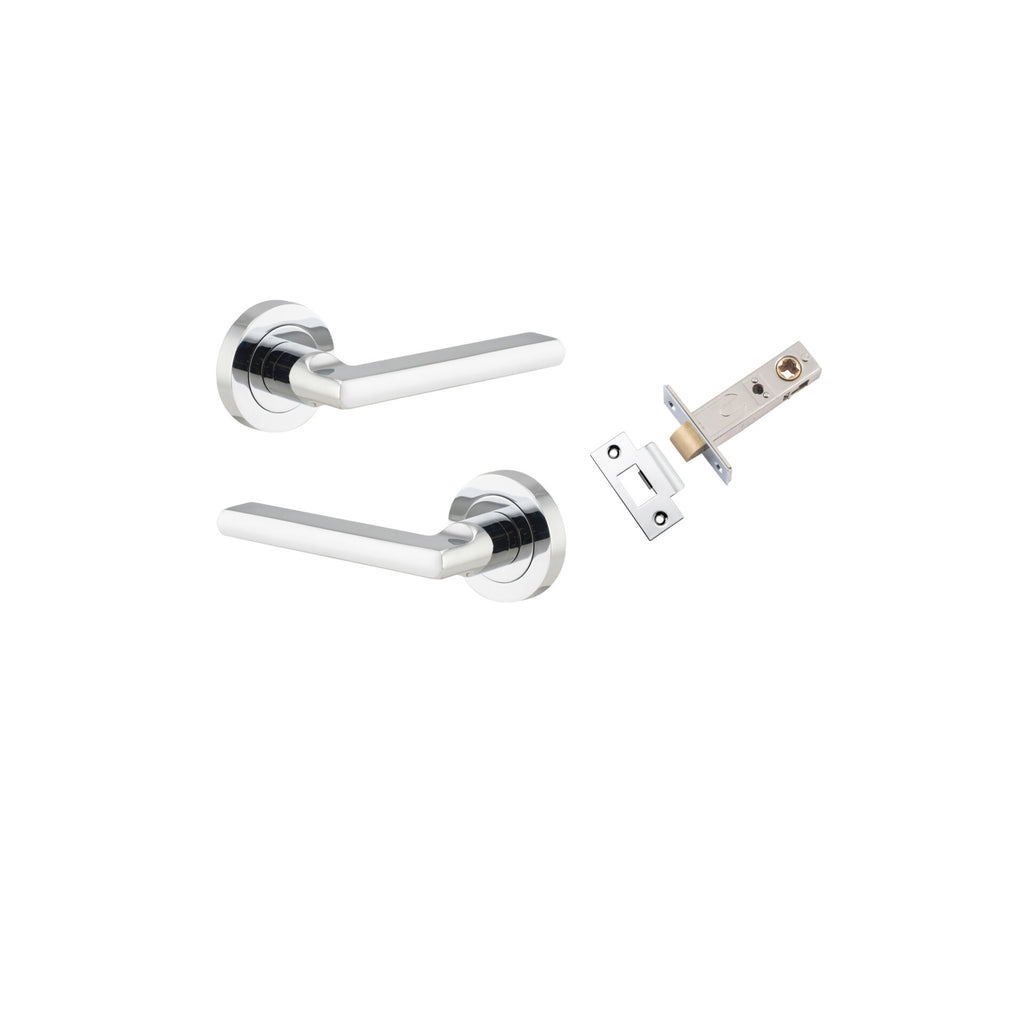

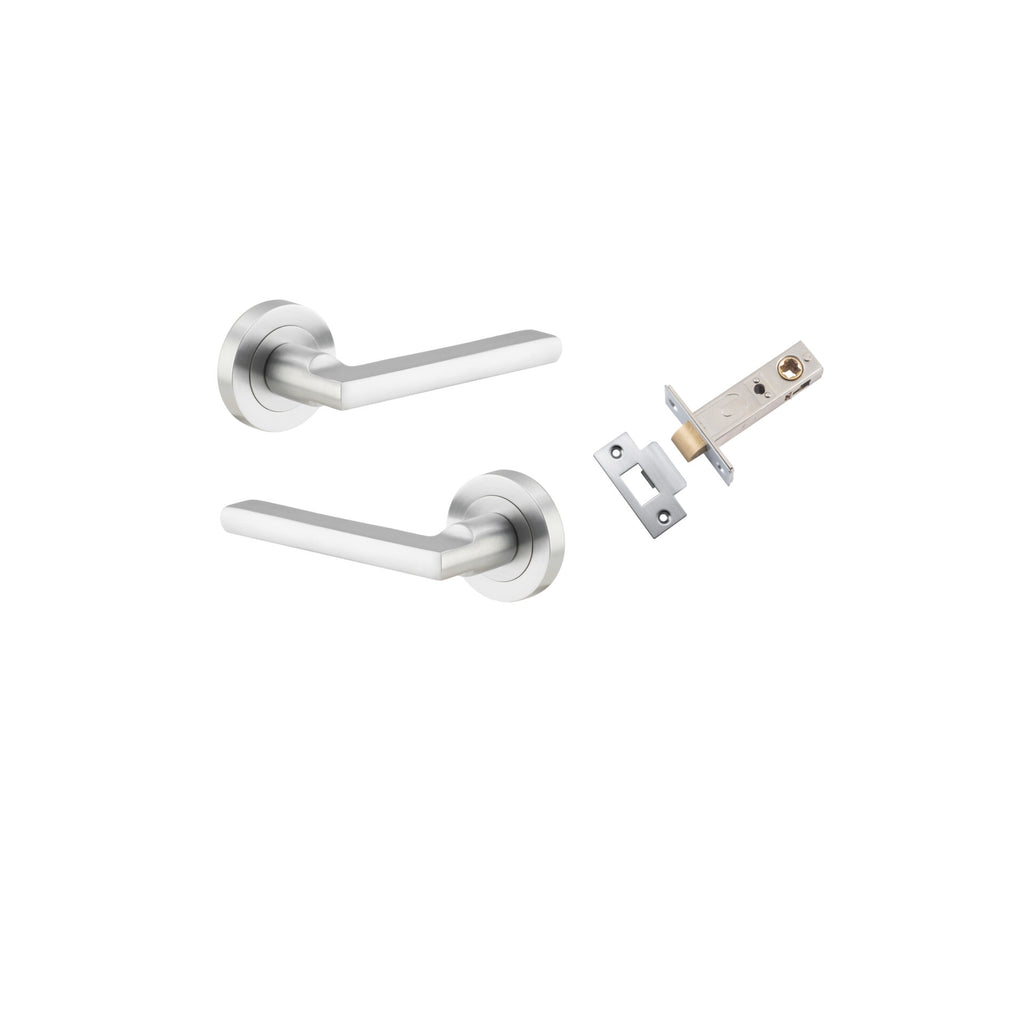

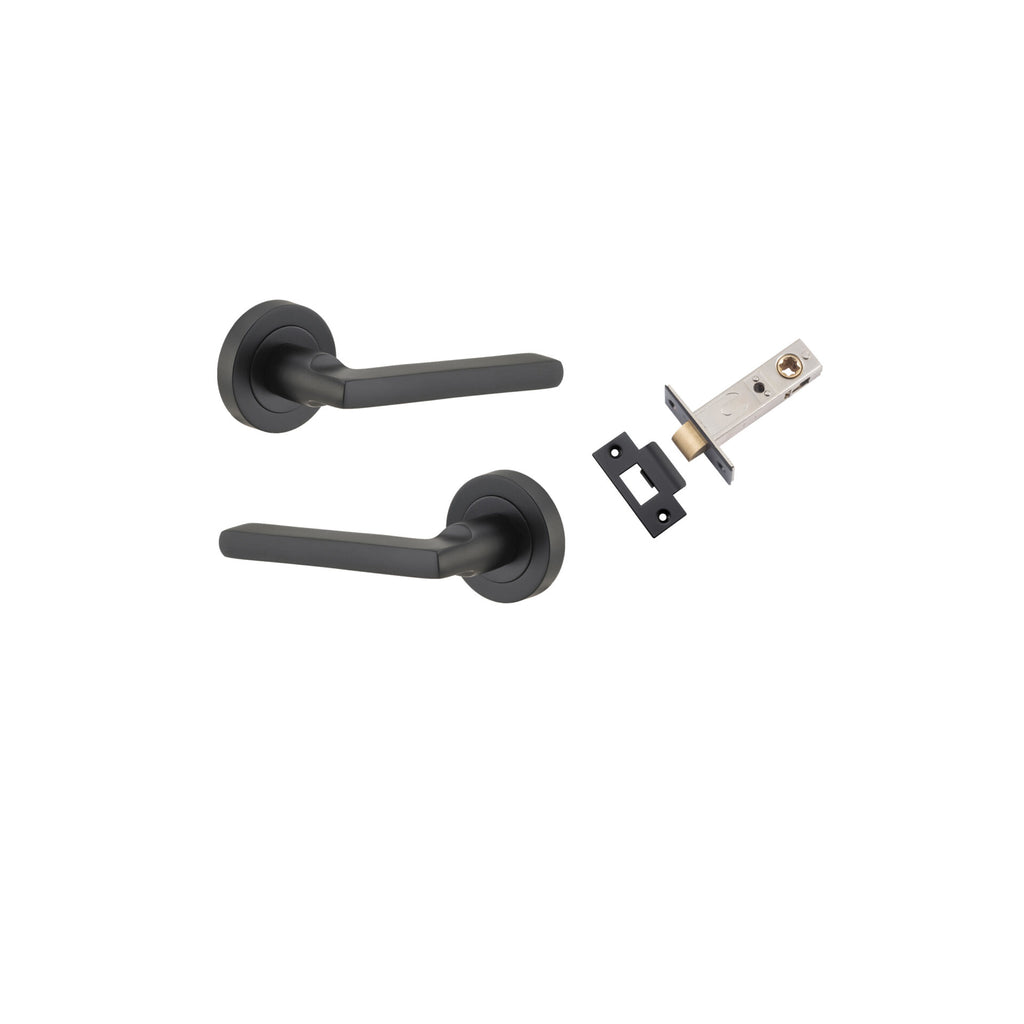

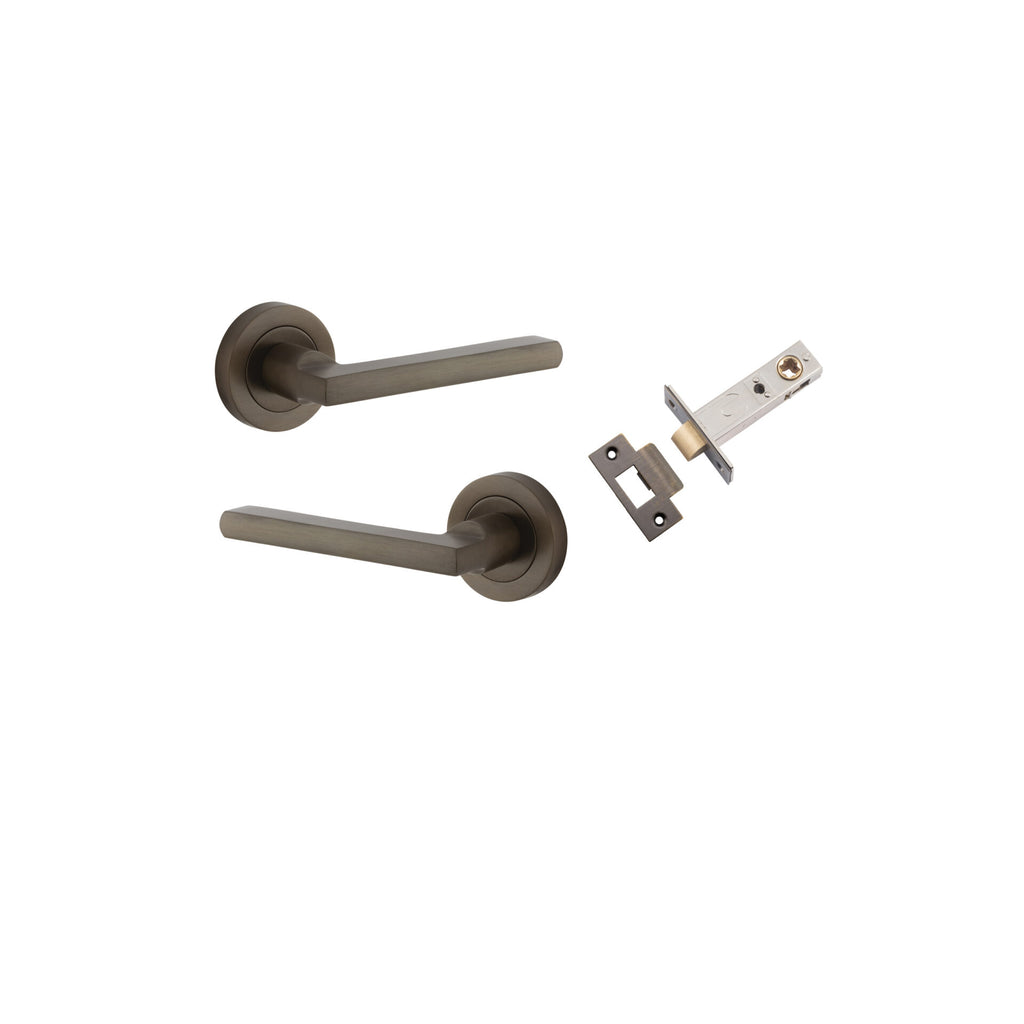

Passage Kit:

2 x Levers / Knobs on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
18 x Screws
1 x Standard Spindle
2 x Sprung Spindles
4 x Bolts
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
1 x Allen Key *
2 x Grub Screws*
*With Square Rose only

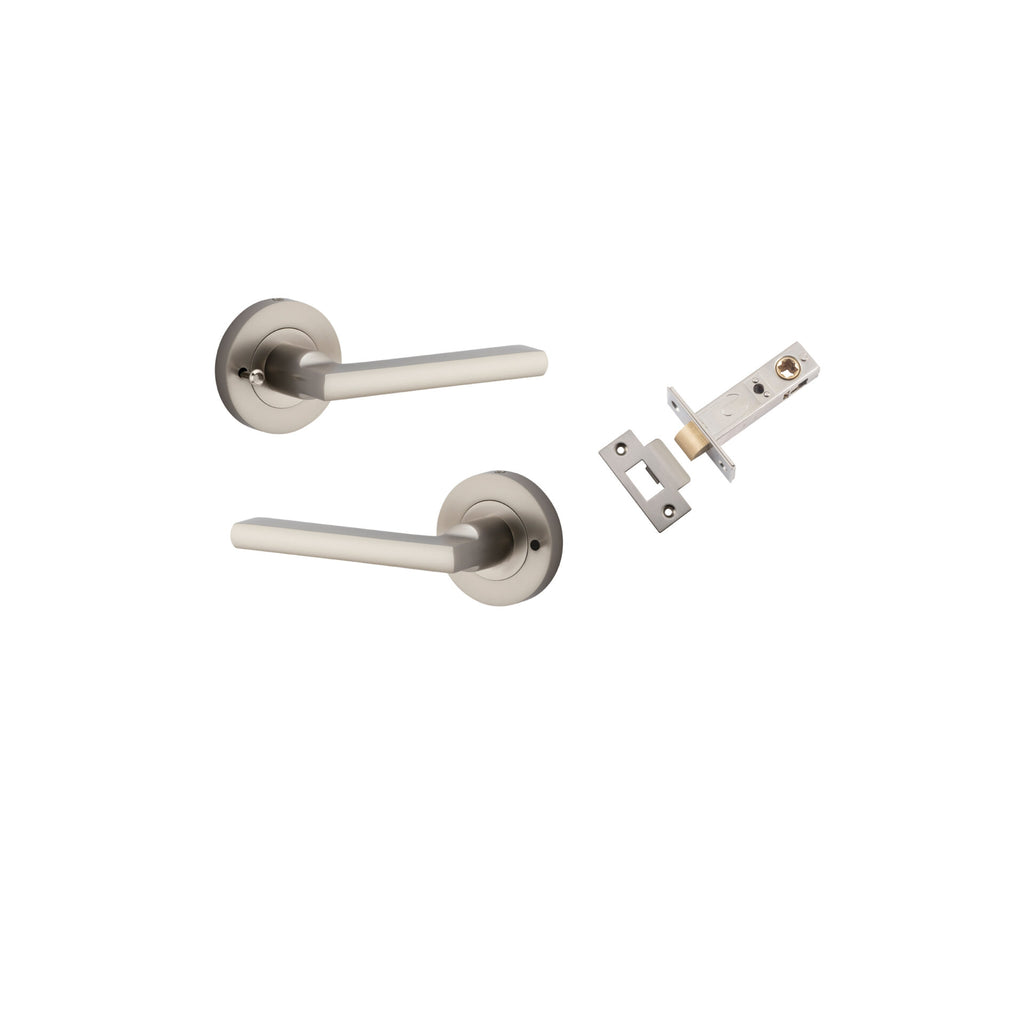

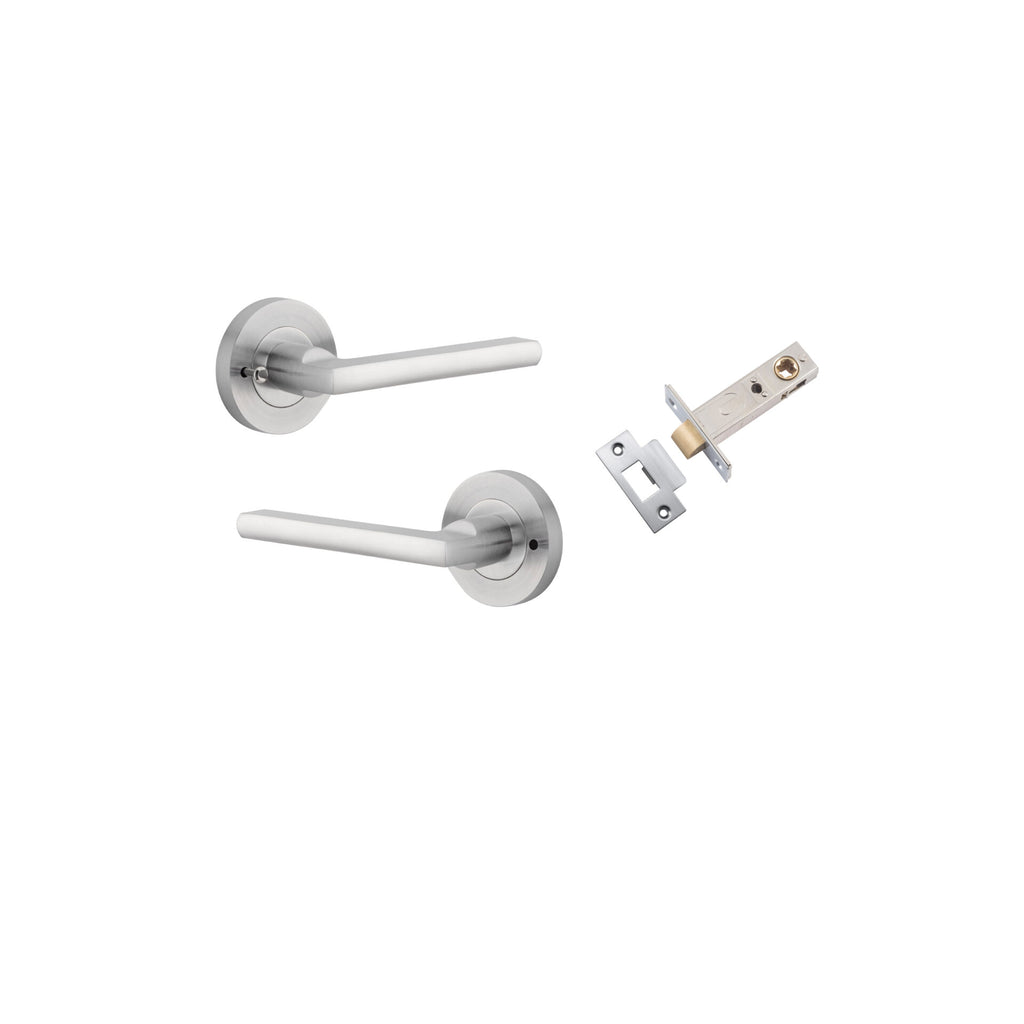

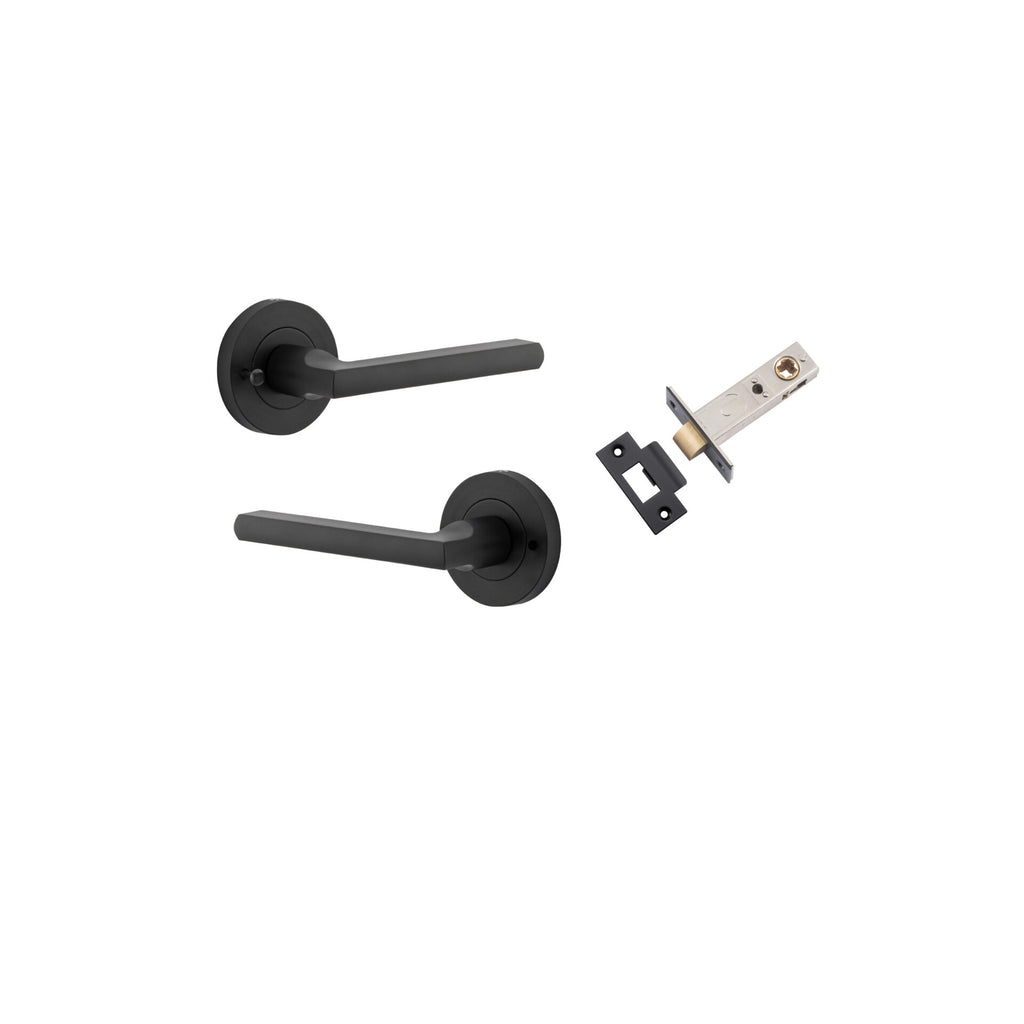

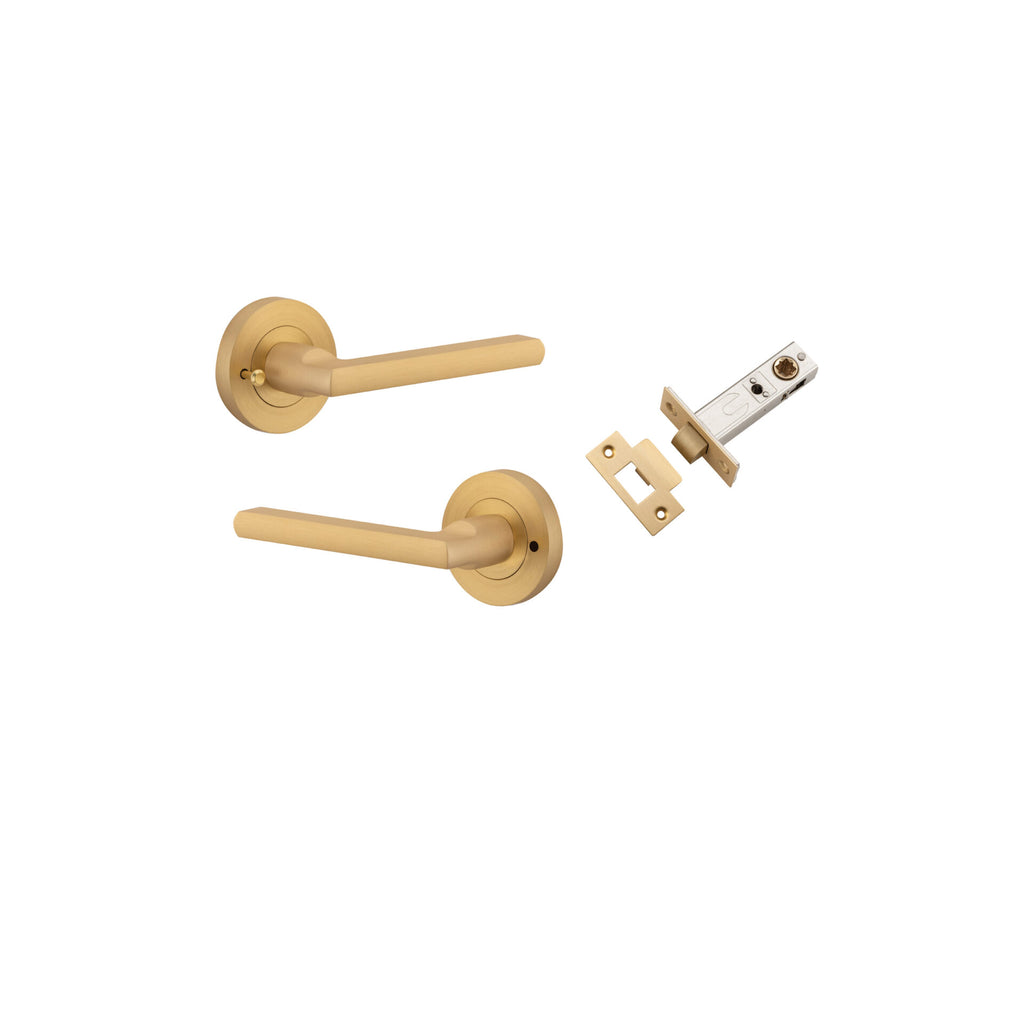

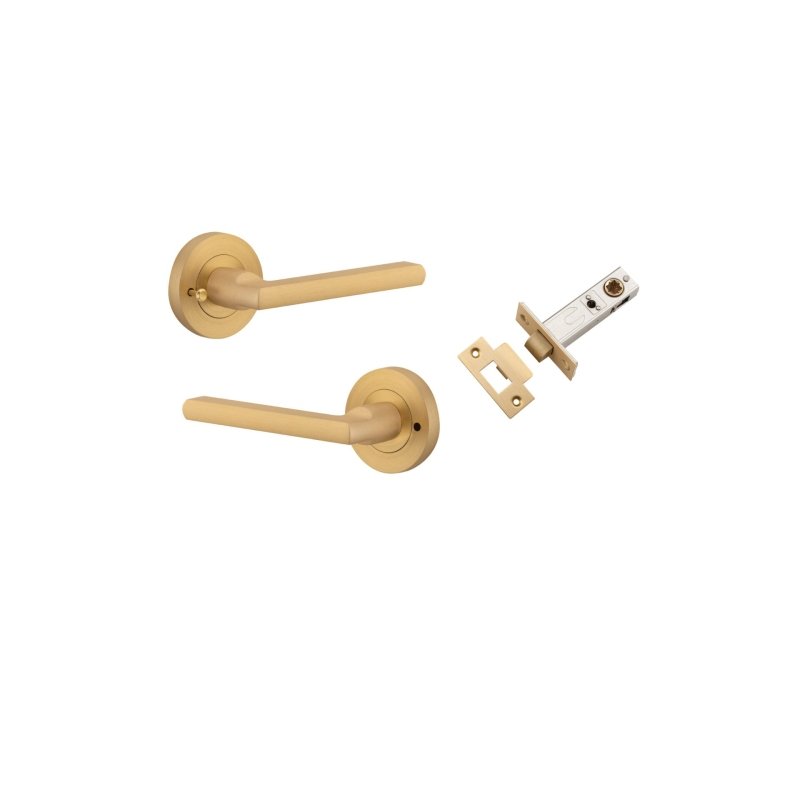

Inbuilt Privacy Kit:

2 x Levers on Round / Square Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manual

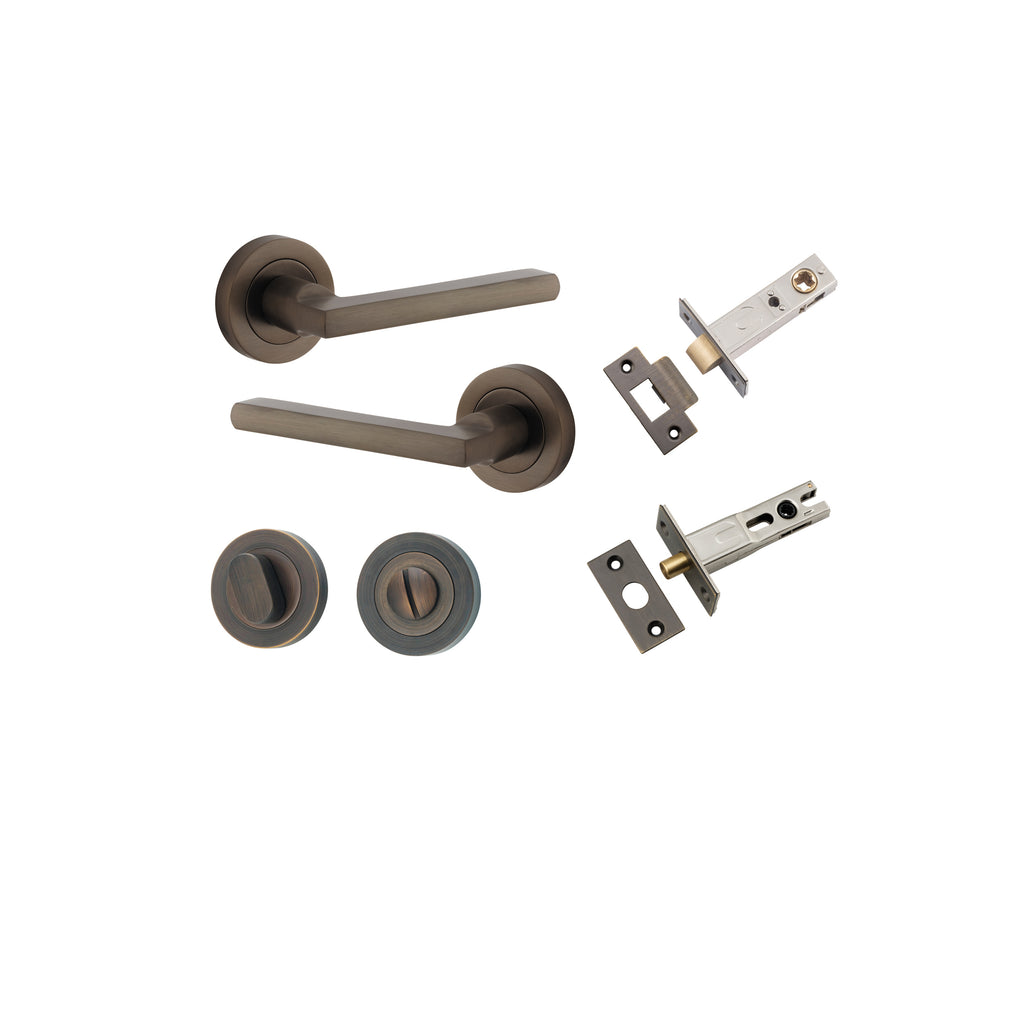

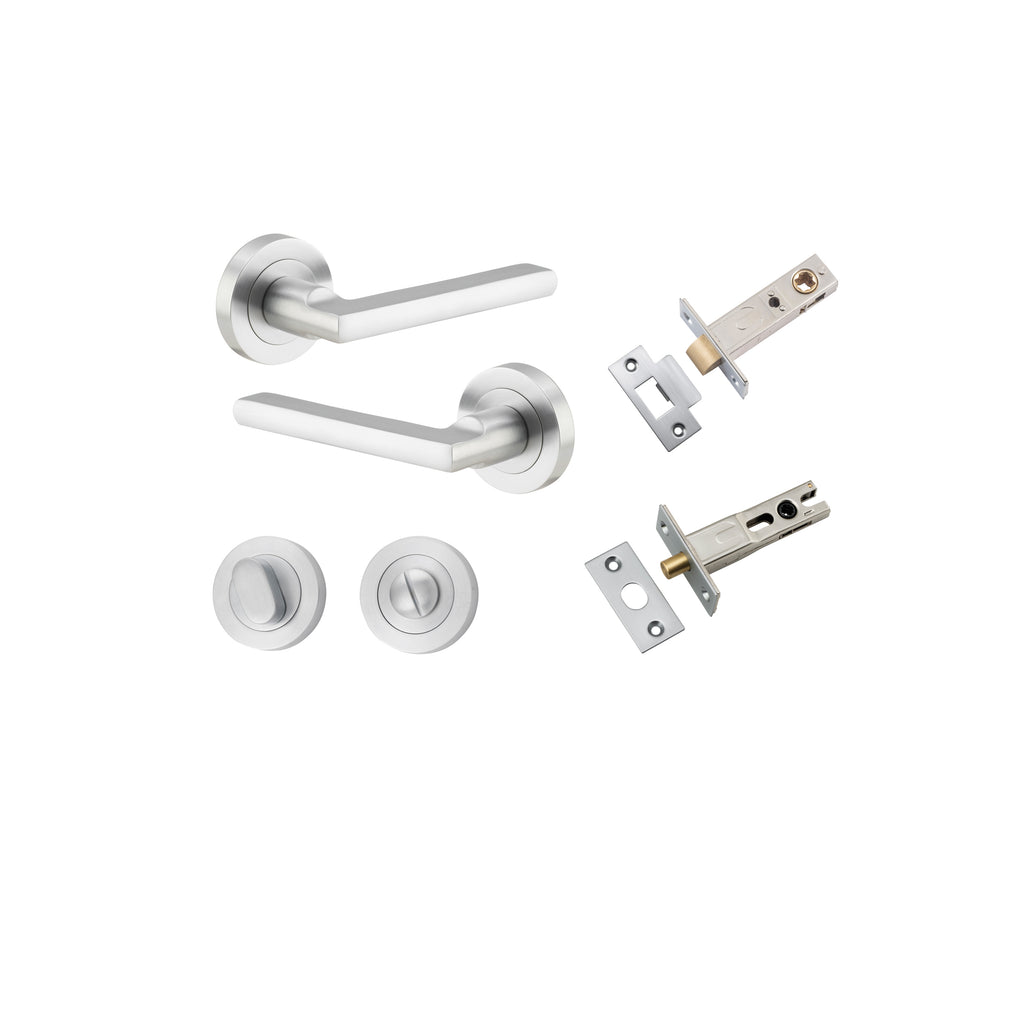

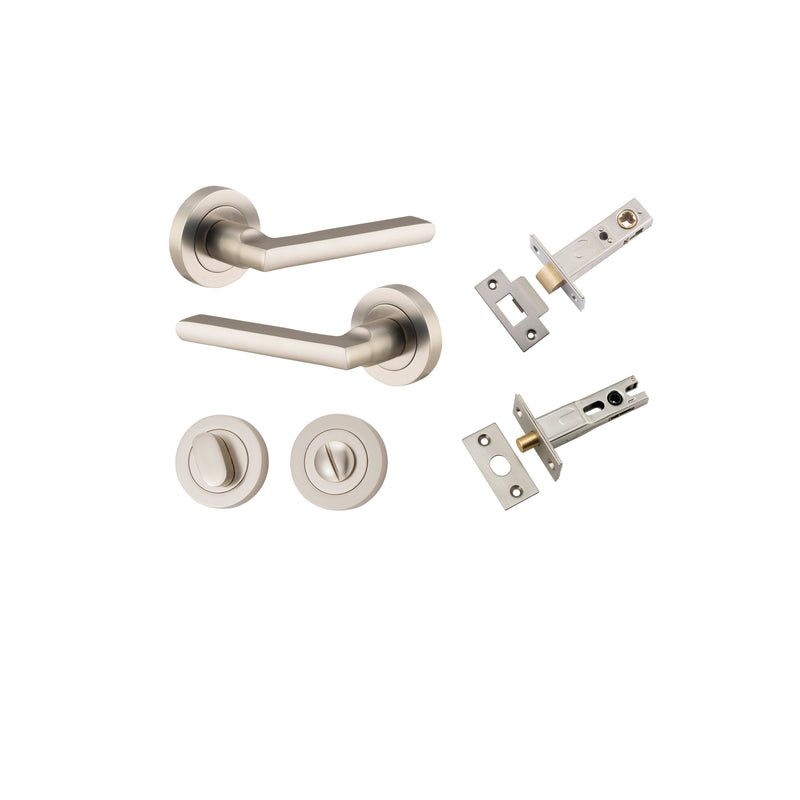

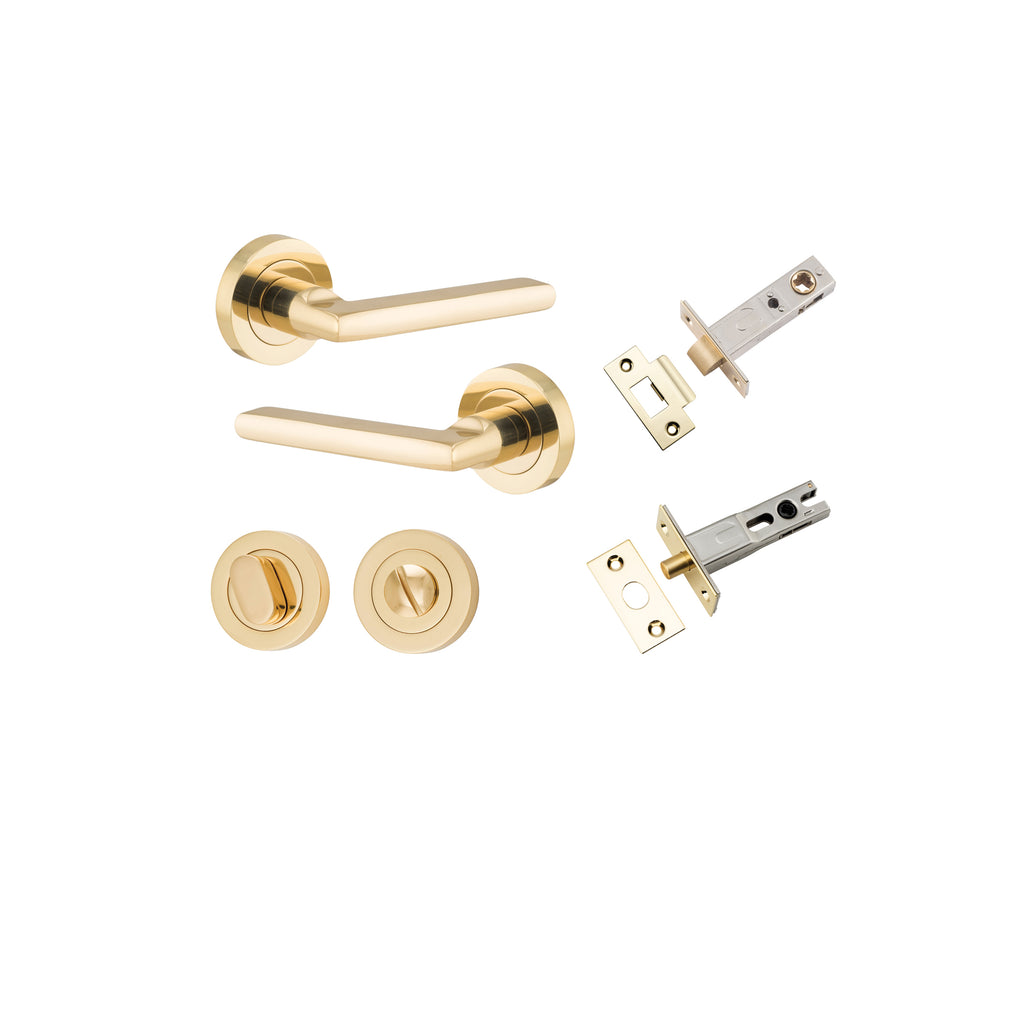

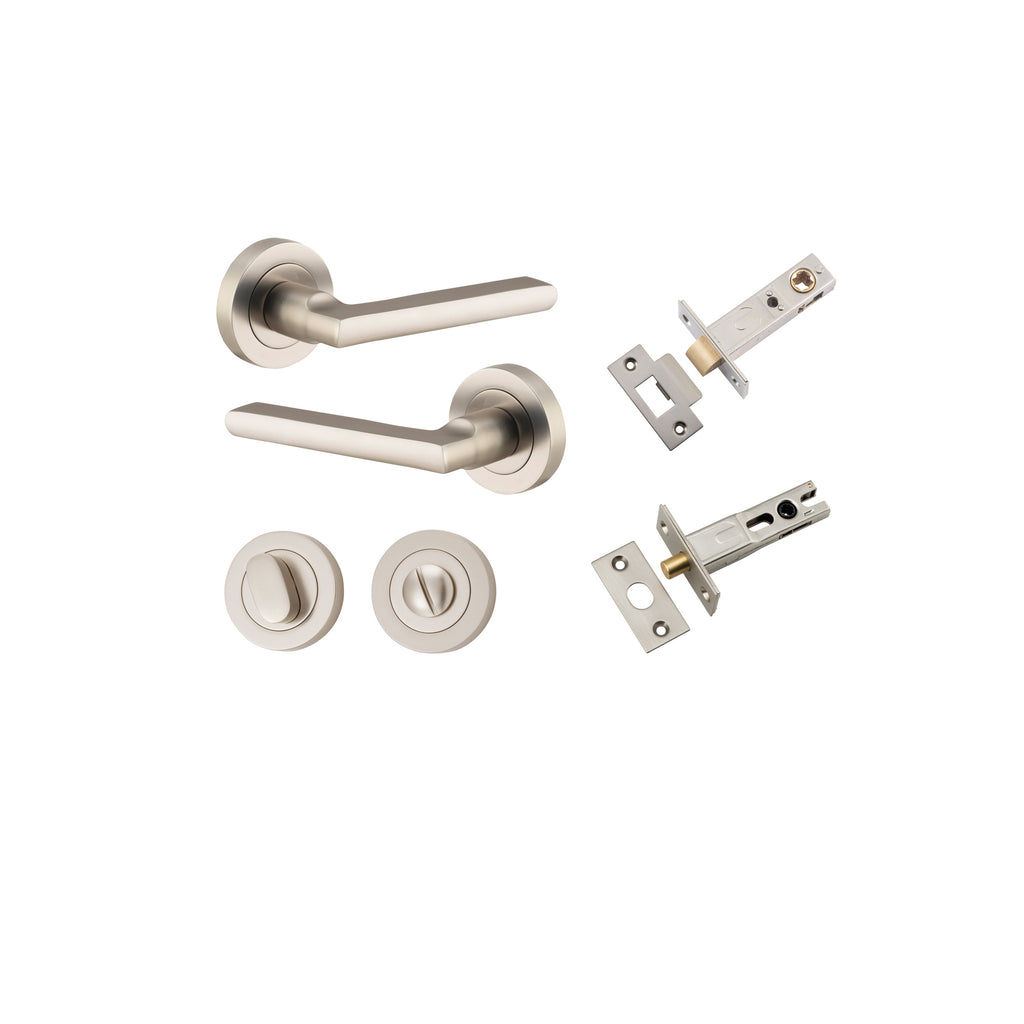

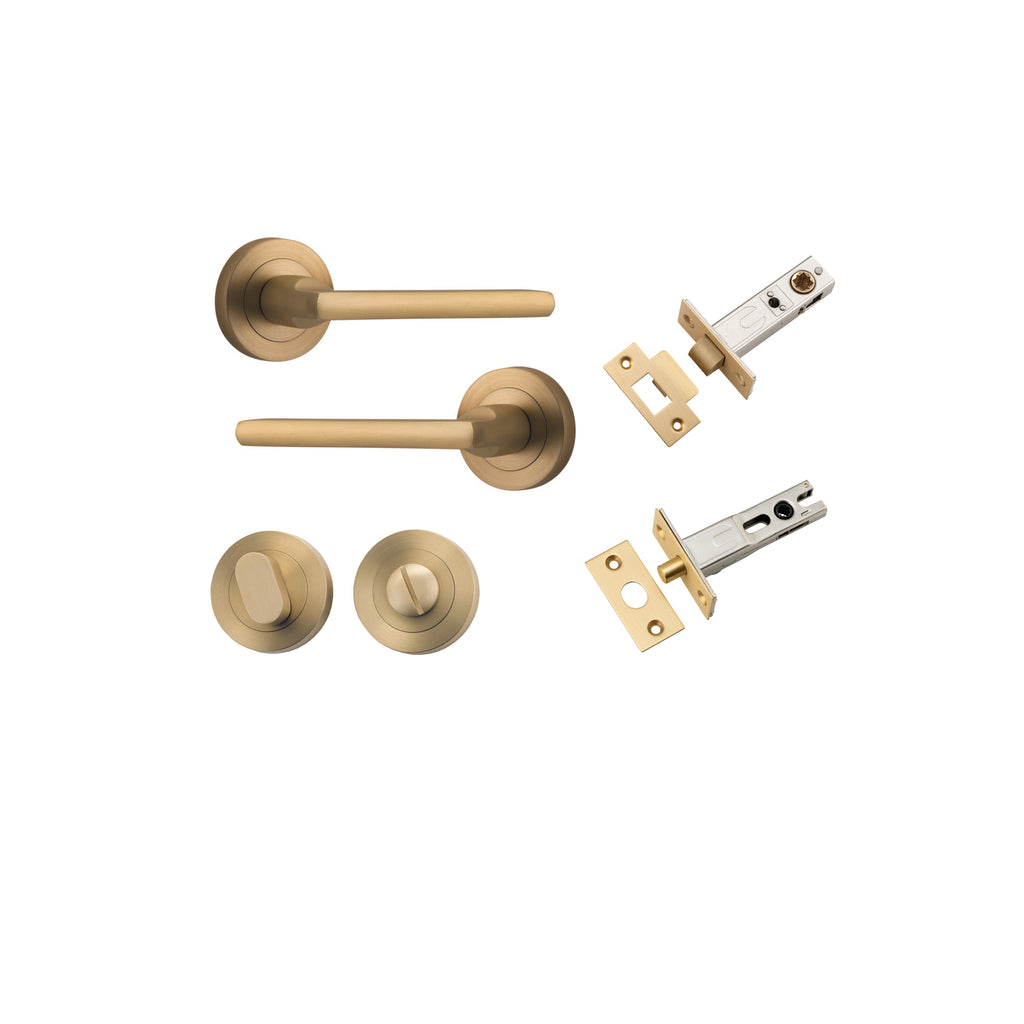

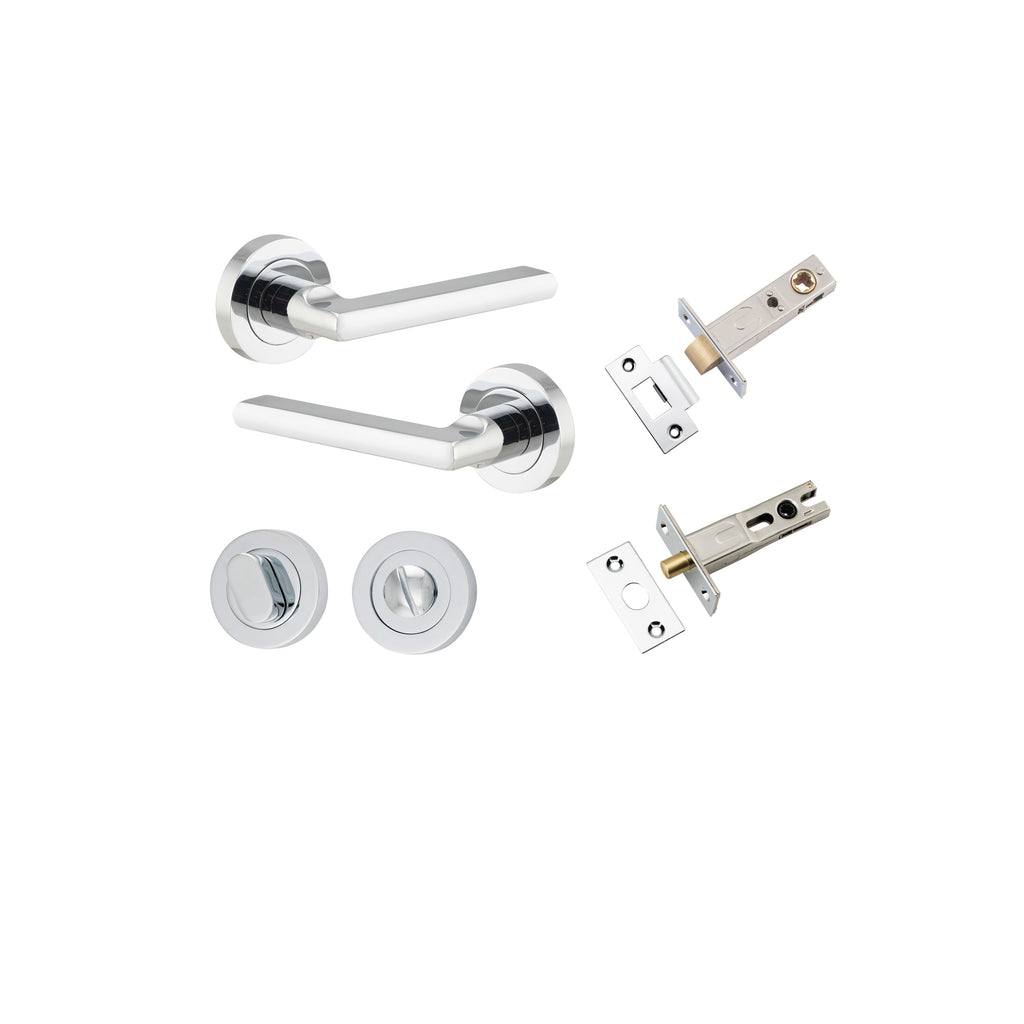

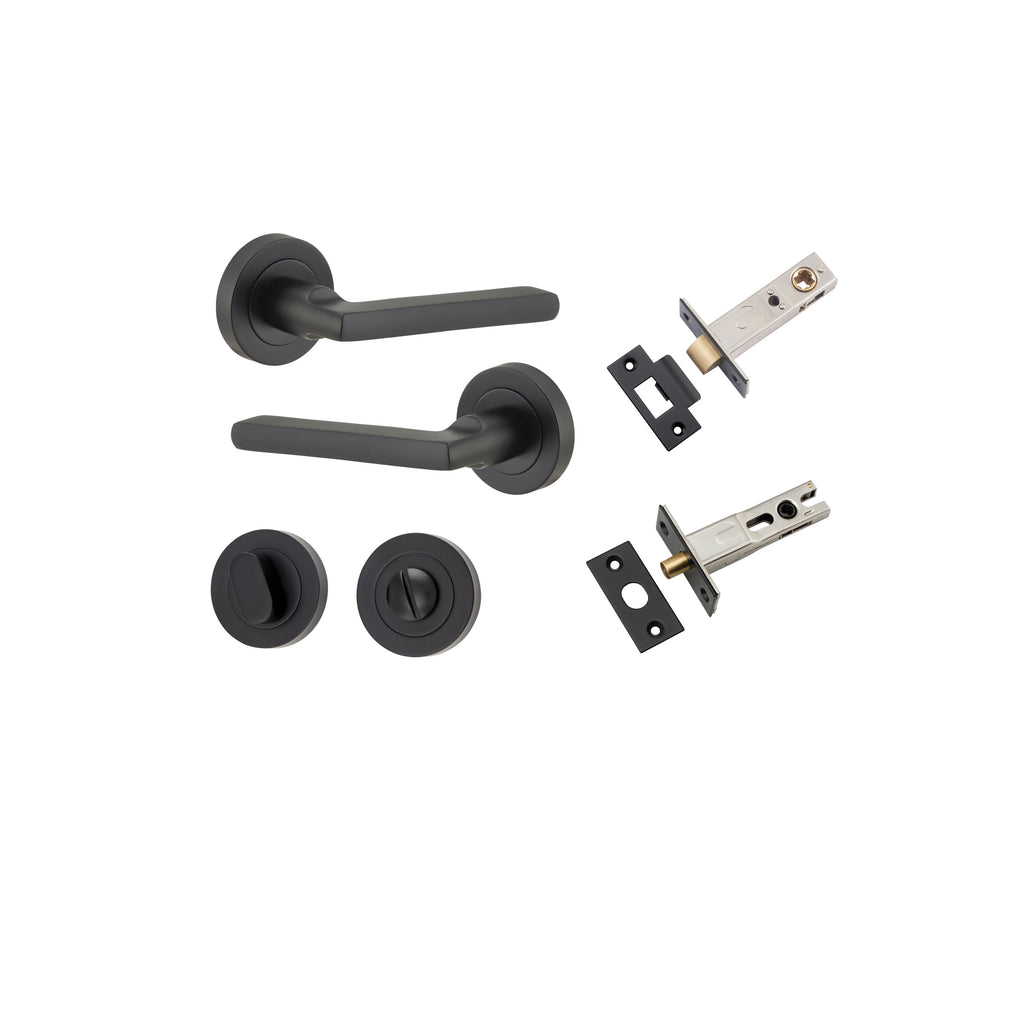

Separate Privacy Kit:



2 x Levers on Round / Square Roses of your choice
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Turn Oval Concealed Fix Round / Square
1 x Privacy Bolt Round Backset 60mm
1 x Standard Spindle
2 x Sprung Spindles
2 x Privacy Spindles
39 x Screws
2 x Dust Boxes
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
1 x Instruction Manual
*With Square Rose only

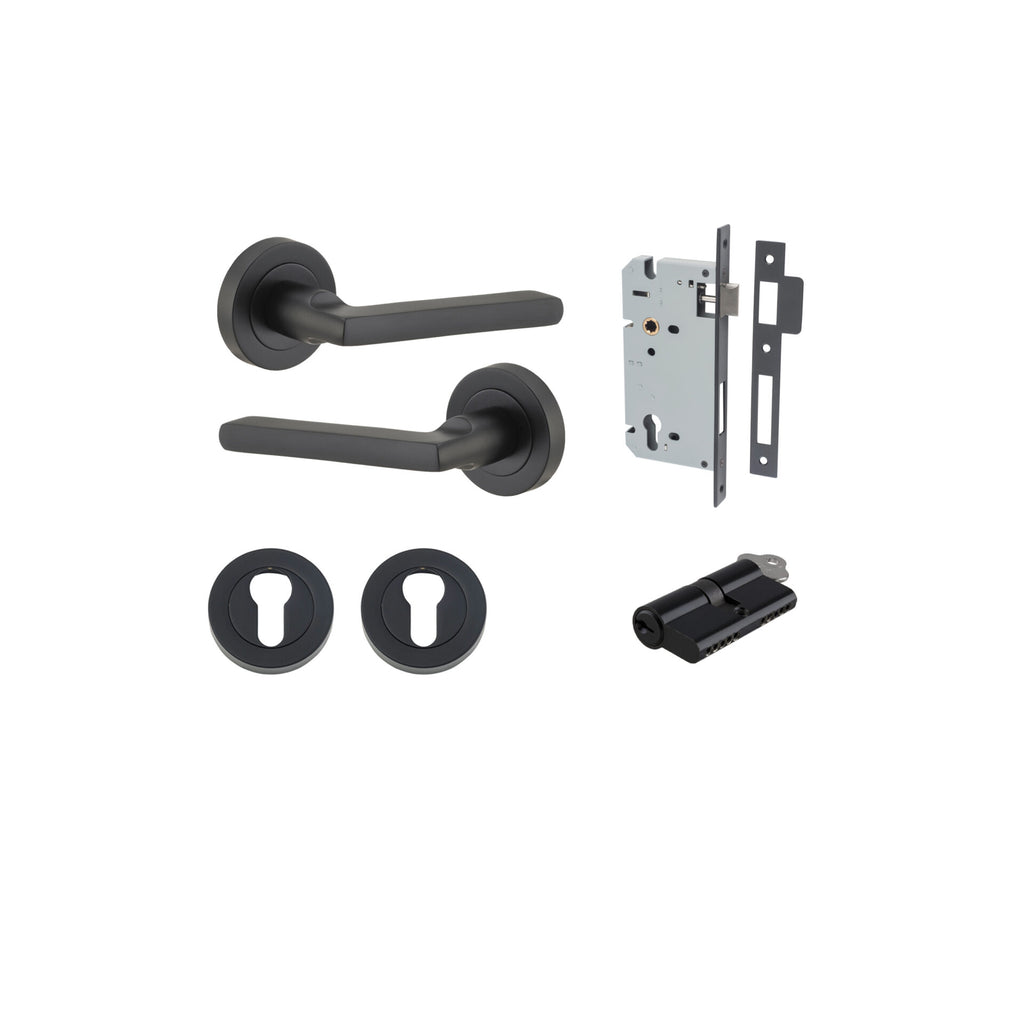

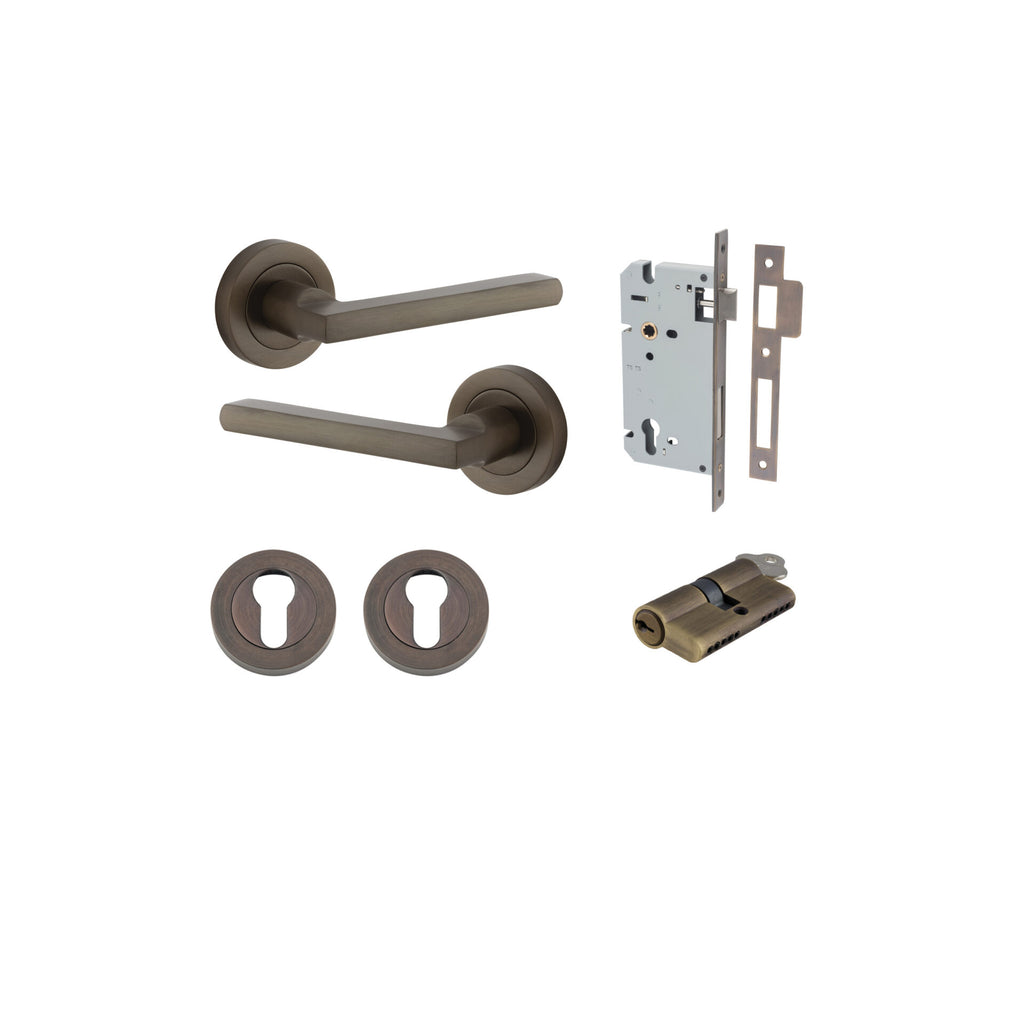

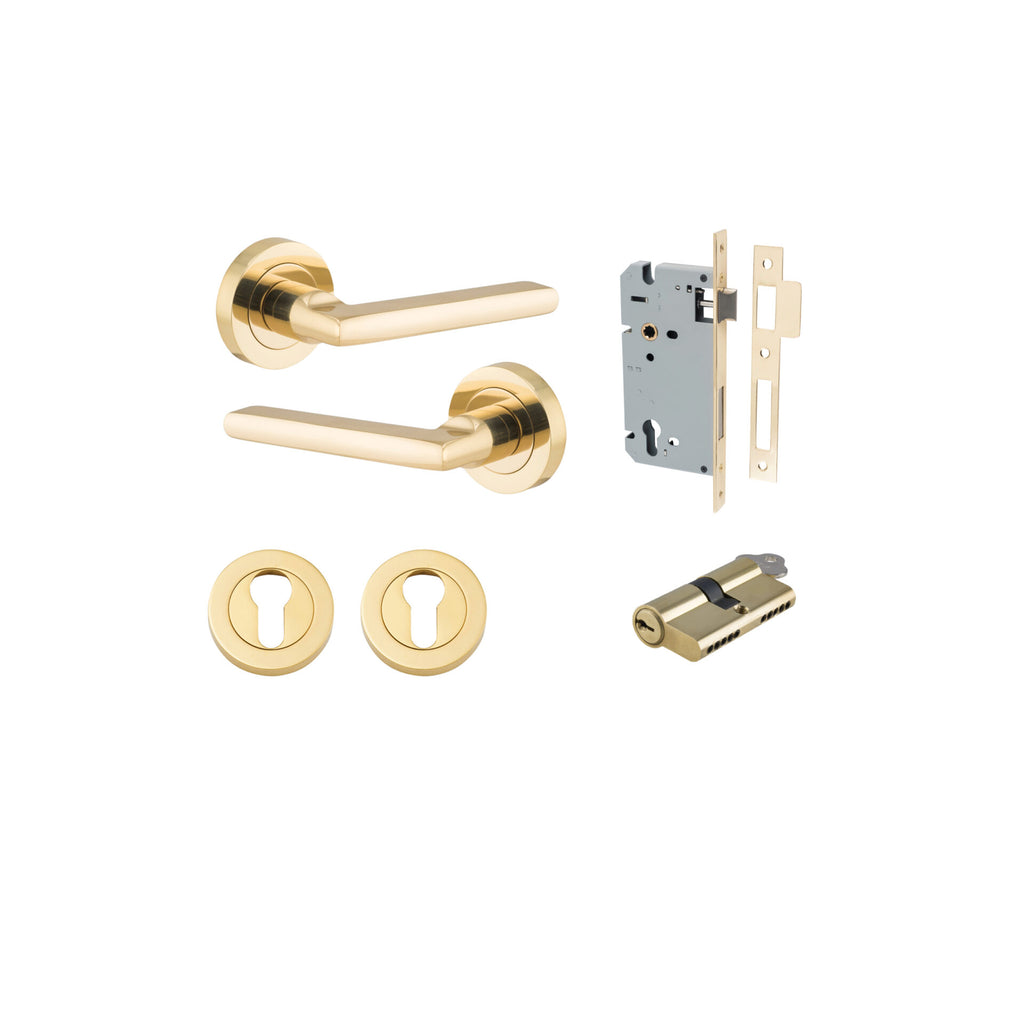

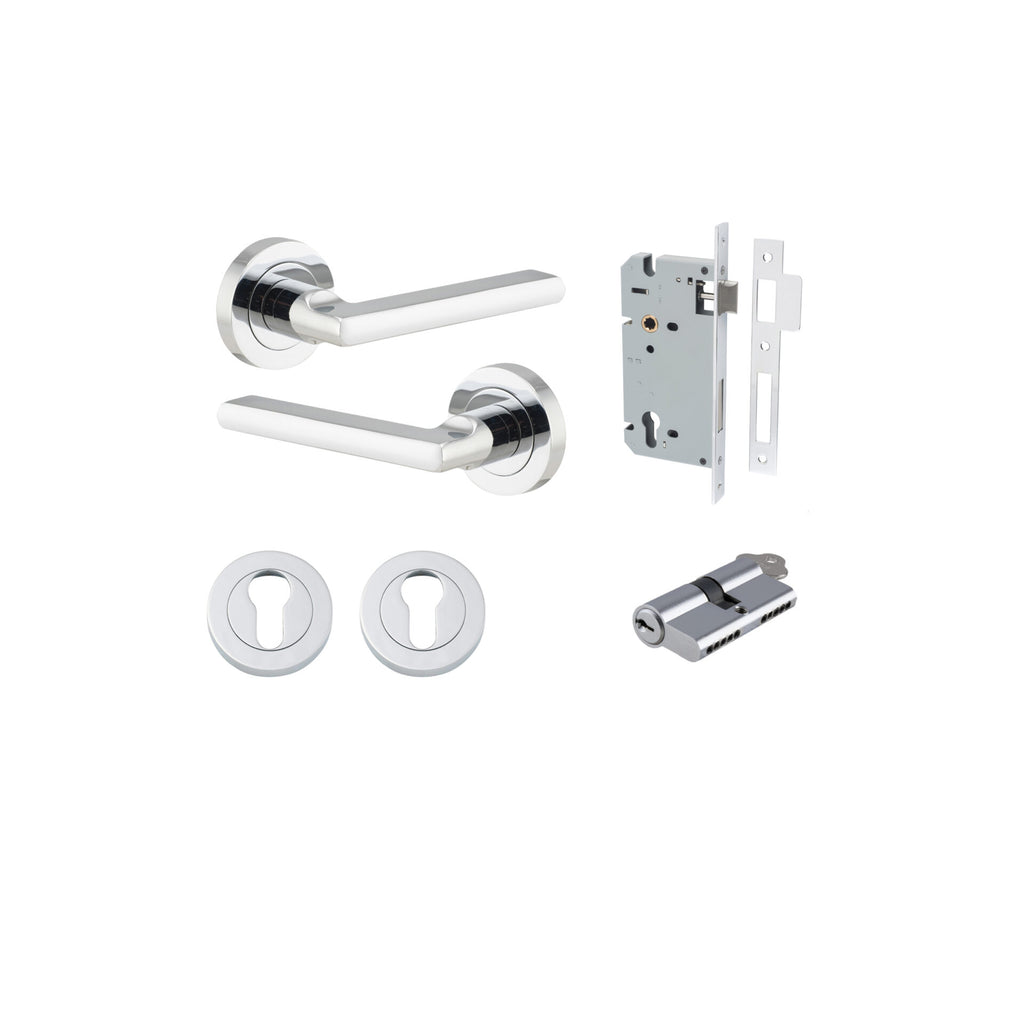

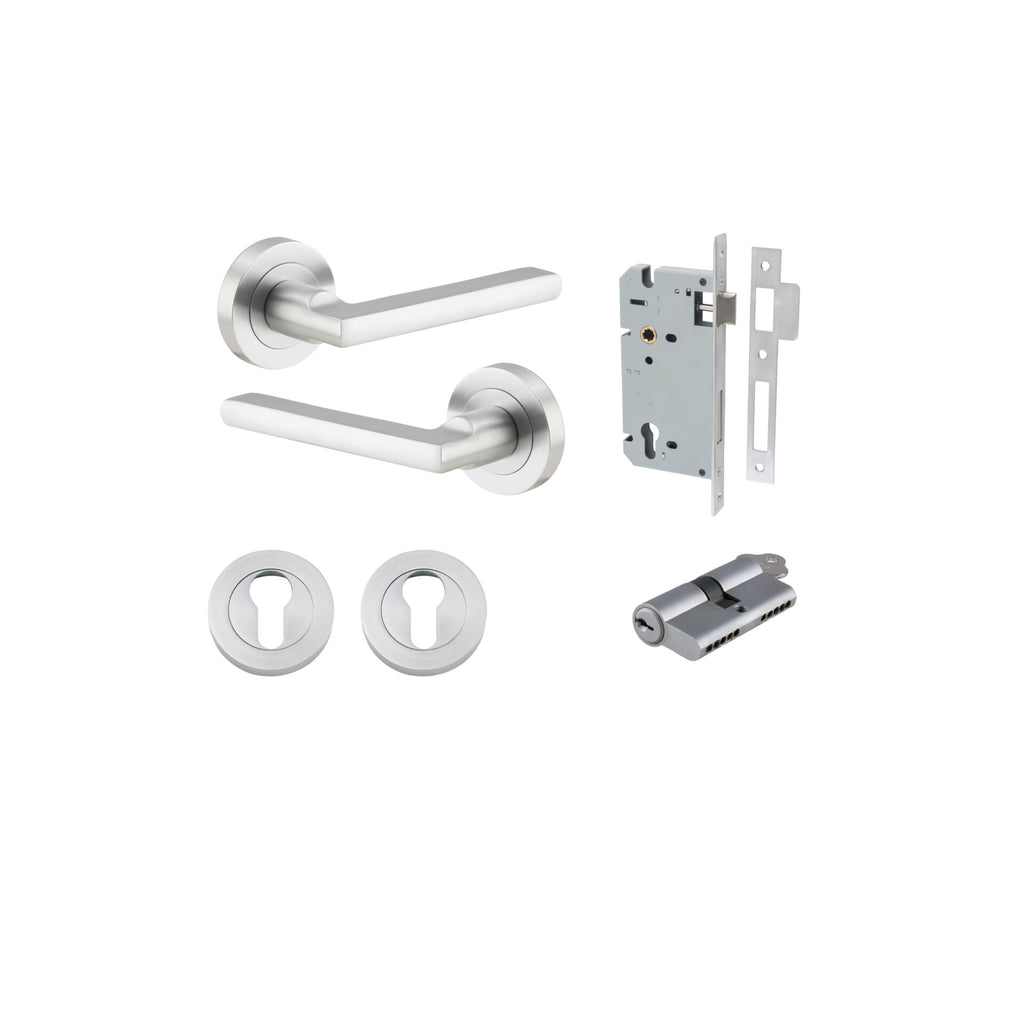

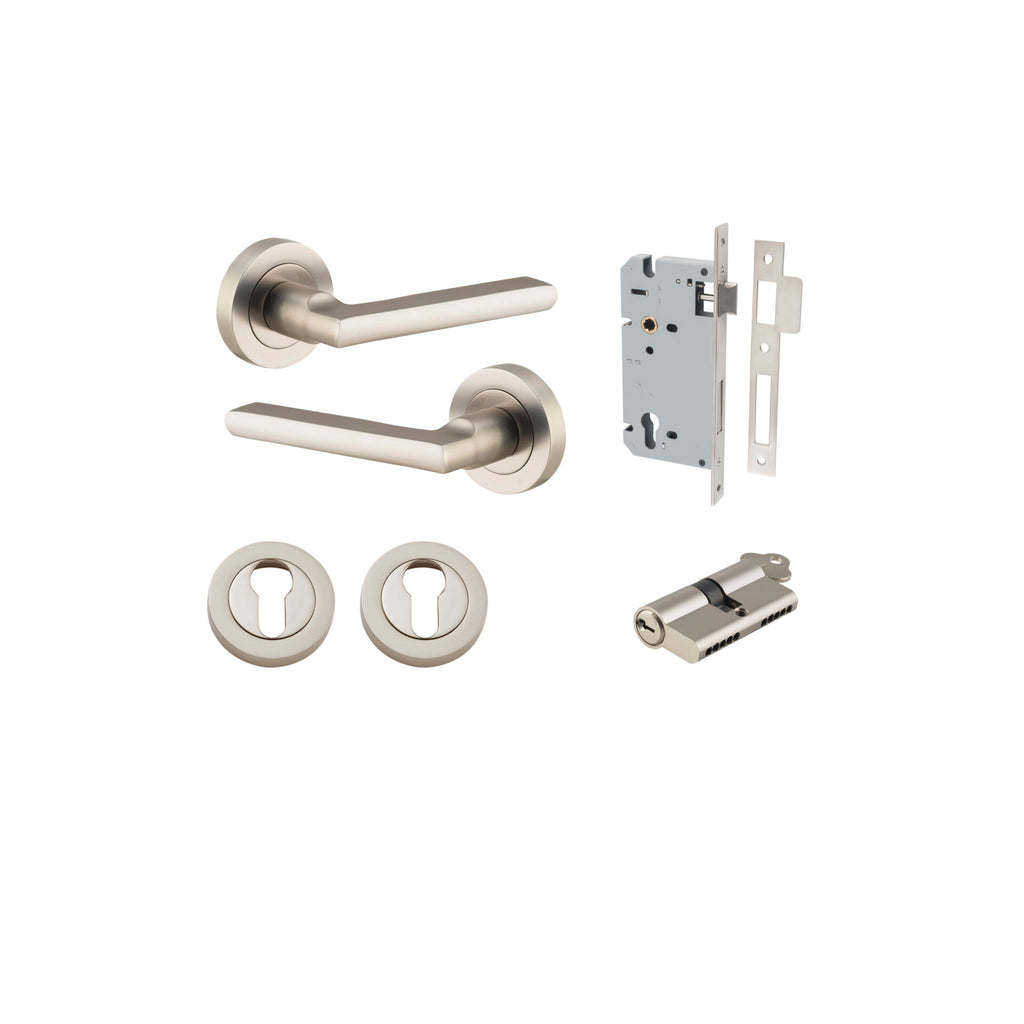

Entrance Kit Dual Function (Key/Key):

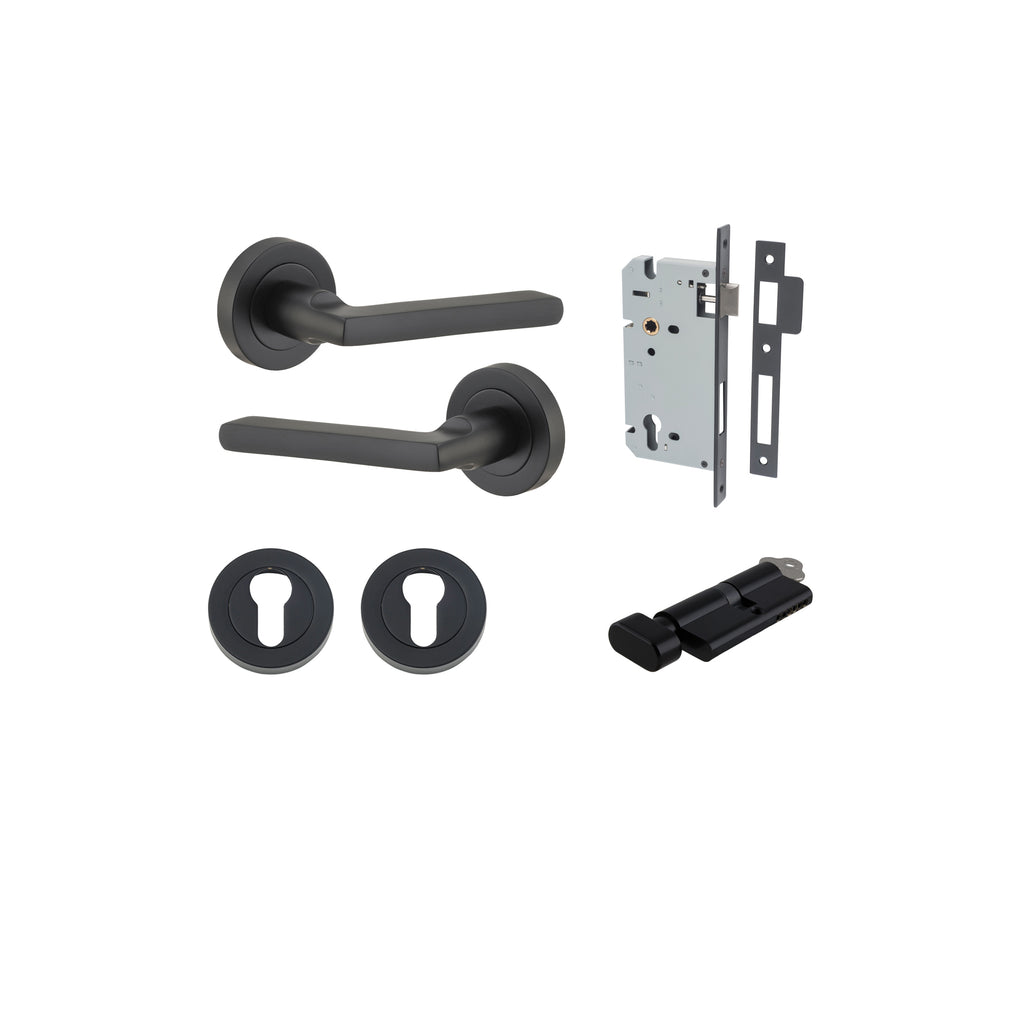

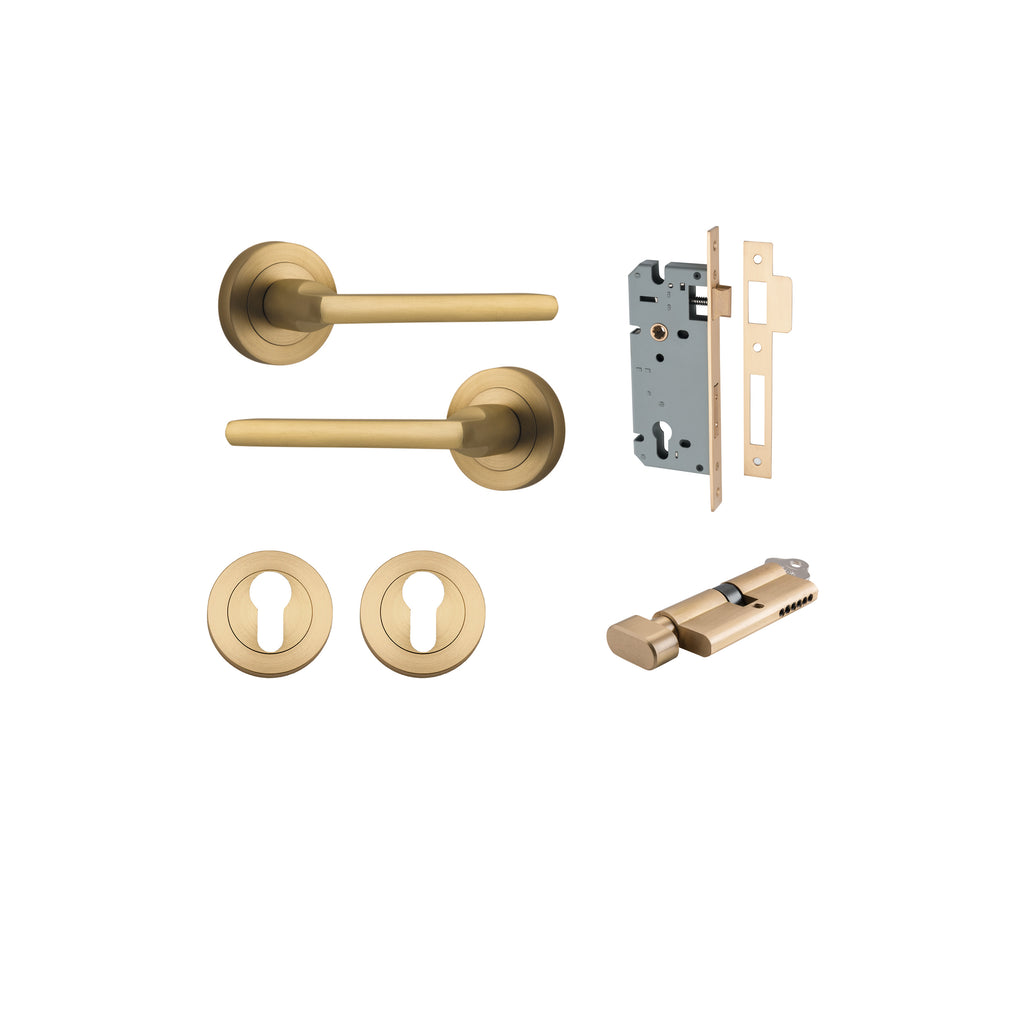

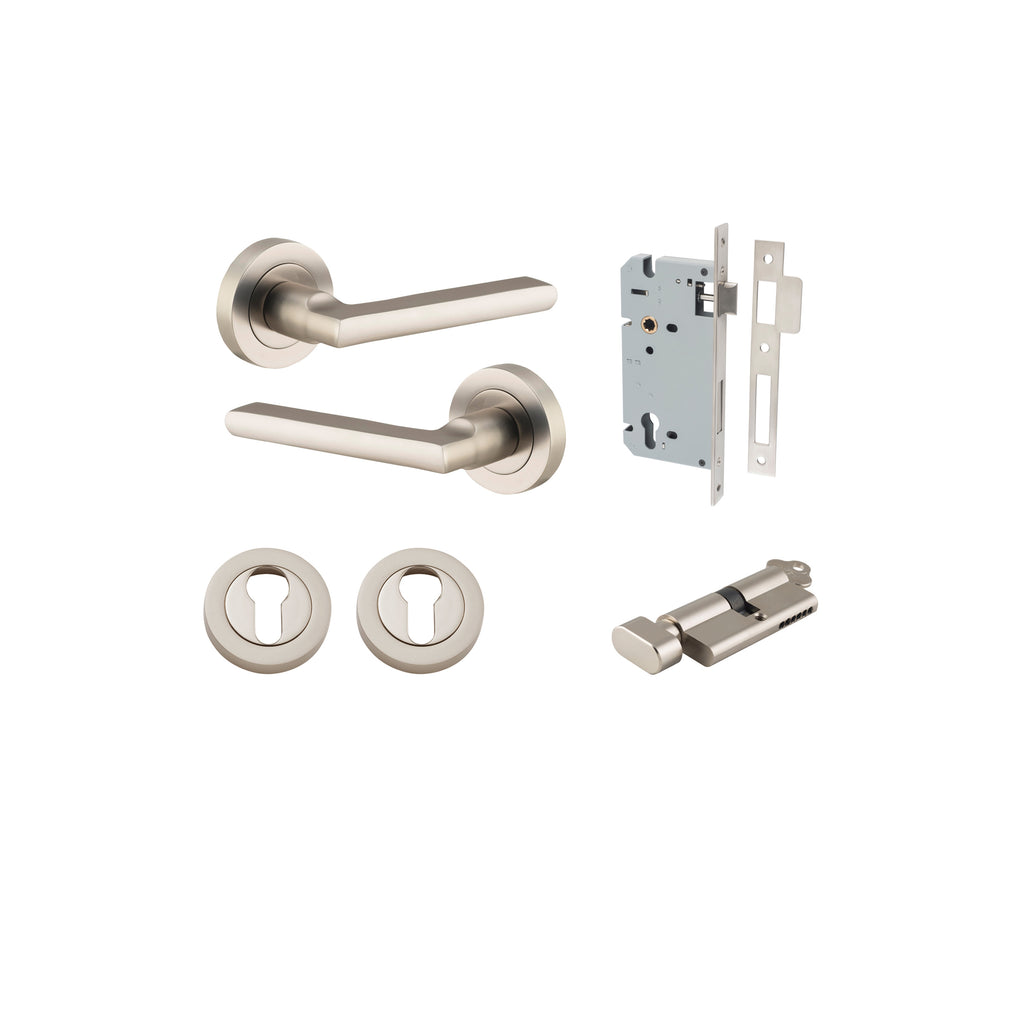

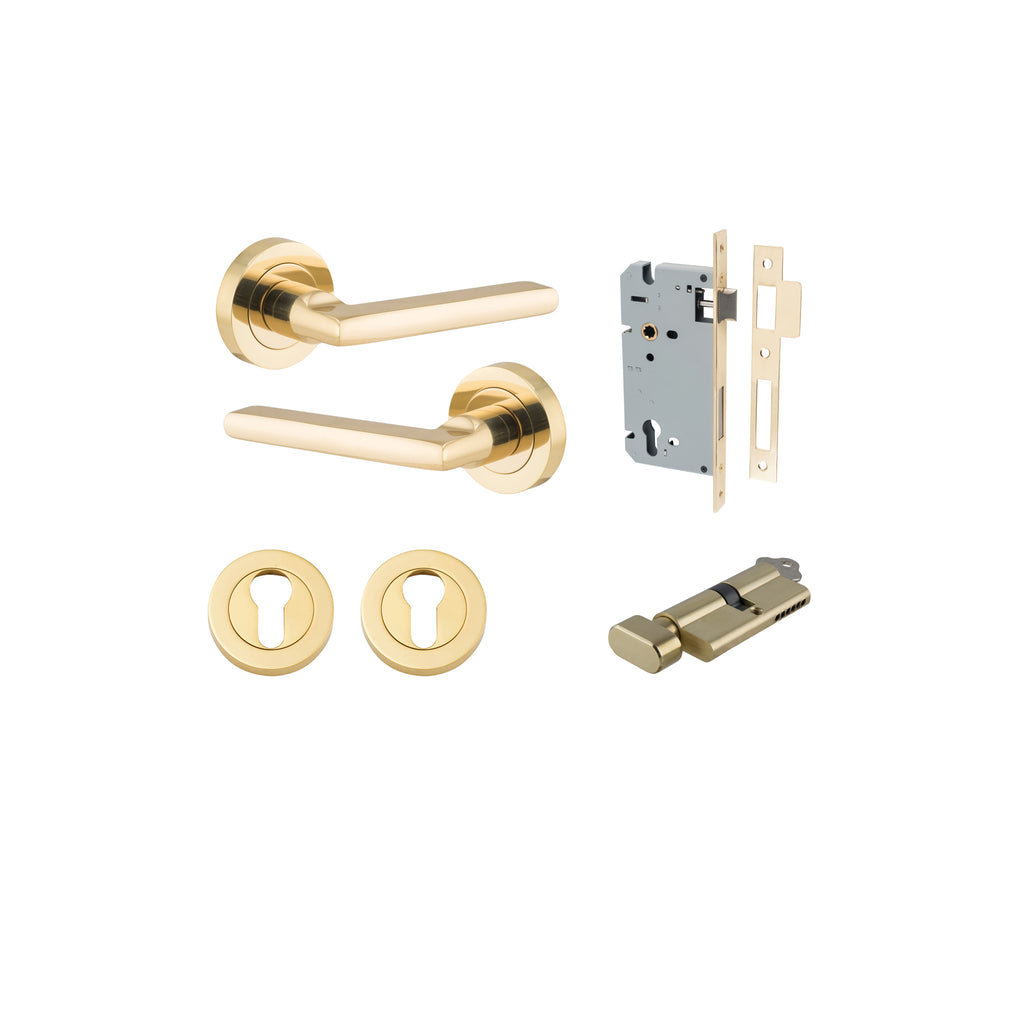

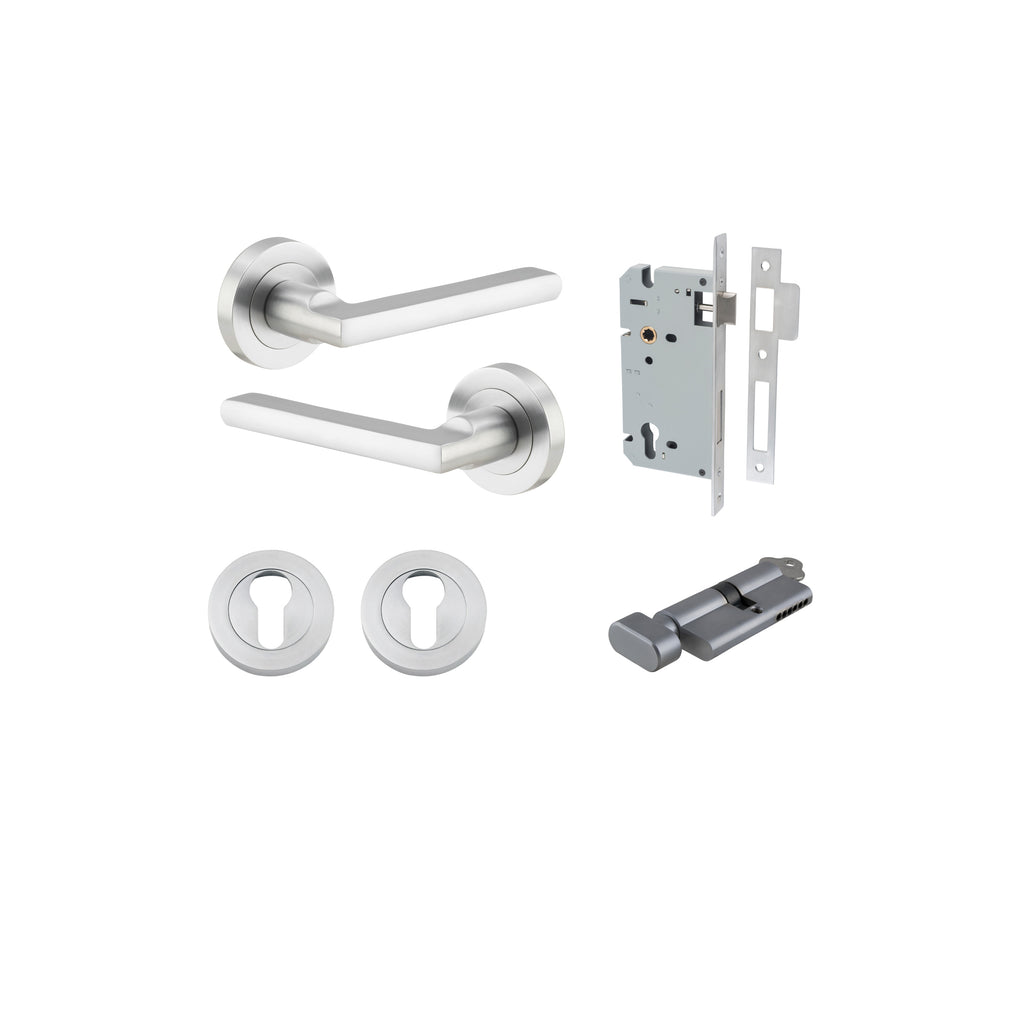

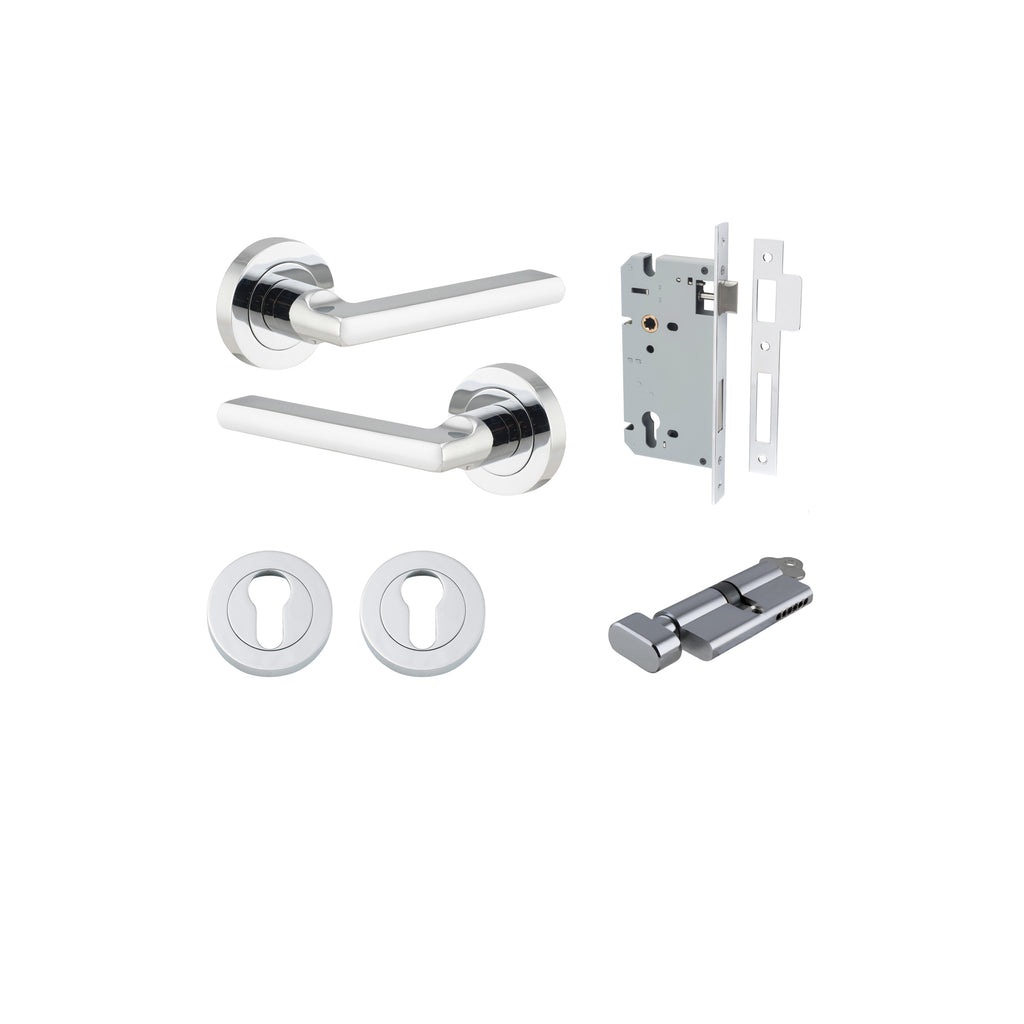

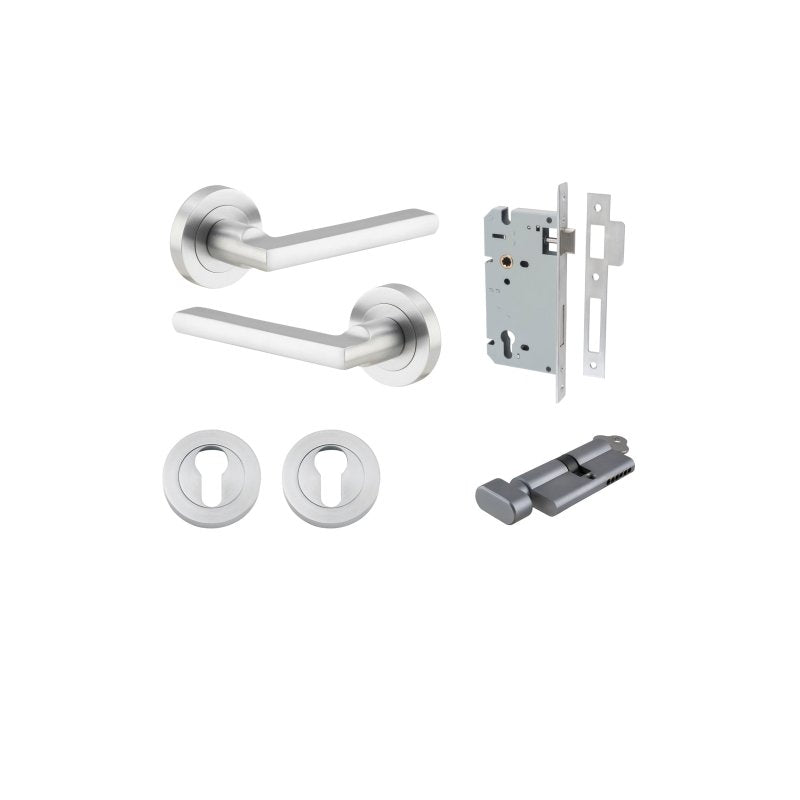

Entrance Kit (Key/Thumb):

2 x Levers / Knobs on Round / Square Roses of your choice
1 x Euro Mortice Lock CTC 85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
2 x Euro Escutcheon Concealed Fix Round / Square
1 x Euro Cylinder 5 Pin Dual Function or Key / Thumb
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
37 x Screws
1 x Dust Box
2 x Allen Keys*
4 x Grub Screws*
1 x Drill Template
2 x Instruction Manuals
*With Square Rose only

With this listing, by answering a couple of short questions, you can create a kit customised to your needs:

For "Passage" doors (e.g. a bedroom that doesn't need locking), you will generally need a Lever Door Handle/knob + a Tube Latch. If it's a double door, you may also require flush Bolts. If it's a rebated double door you will need a "rebate kit".

Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable option in various lengths.

When using flush bolts:

  • We recommend you use one at the top and another at the bottom to keep the door secure and from rattling.
  • For taller doors (2100mm and above) most customers prefer to use a 300mm on top of the door and 150mm on the bottom for extra security and protection against the wind. Alternatively, some customer's use a magnetic catch (such a PLS24PRO Magnetic Catch).

For "Privacy" doors (e.g. a bathroom, en suite or a bedroom that you want to lock from the inside by turning a snib) you will generally need a tube latch as well a privacy bolt

For "Entrance" doors (e.g. a front/back door or any door that you want to lock with a key) you will generally need:

  • A Mortice lock (if you have a rebated (slightly overlapping) double door, please choose a "rebated" version (which also comes with a rebate kit)
  • Once you've determined the thickness of your door, you can select either a "Key/Key" (lock and unlock with a key from both sides) or a "Key/Thumb" (meaning you can lock the door from the inside using thumb turn, instead of a key). The choice here is one of personal preference.

Flush Bolts

  • For double doors, you will also need flush bolts.
  • Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable options in various lengths.
  • When using flush bolts, most customers prefer to use a 300mm on top of the door (as it's easier to reach) and 150mm on the bottom for extra security and protection against the wind.

Hinges

(Amongst others) we offer Ball Bearing, Fixed Pin and Loose Pin hinges:

  • Ball Bearing - We recommend using these for Entrance and heavier doors. This is because the ball bearing reduces friction on the hinge and stops squeaking and wearing of the hinge
  • Fixed Pin - Mainly used on internal doors. They can also be used on entrance doors that are not heavy
  • Loose Pin - Internal use only. Mostly used on bathroom door so the door can be removed (lifted off) in the locked position (e.g. in case of an emergency)

Depending on the weight of your door, you will generally need 3 hinges for an Entrance door (which are more solid) and 2 hinges for internal doors.

Please use the tables below as a guide on the number of hinges you require, as well as the recommended hinge positioning.
