Iver Helsinki Door Lever Handle On Stepped Backplate

Name: Prime Hardware
Rating: 4.9 (110 reviews)

IVER Helsinki Door Lever Handle On Stepped Backplate

Description & Specifications FAQs

Iver

IVER Helsinki Door Lever Handle On Stepped Backplate

Product code (SKU): 10902–16402 (by finish)

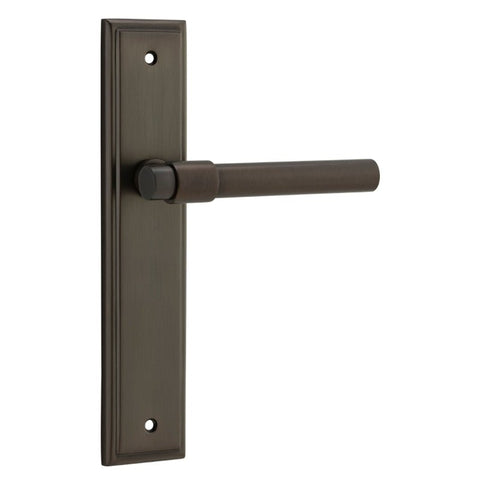

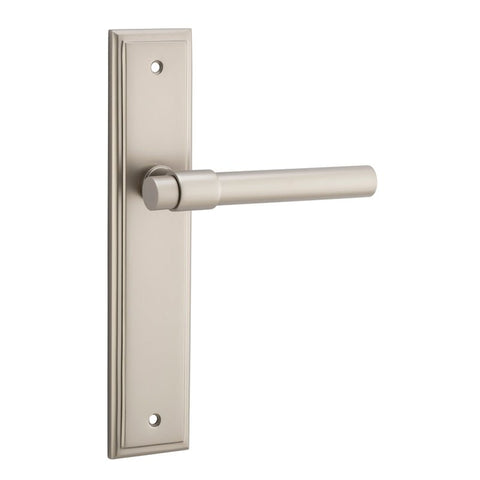

Iver Helsinki Door Lever Handle on Stepped Backplate The Iver Helsinki Door Lever Handle on Stepped Backplate is a solid brass lever set for timber doors, combining a slim Scandinavian profile with a stepped backplate. Supplied as a matched pair with spindle and fixings, it is available in seven finishes and in passage, privacy and entrance configurations to suit internal and external doors across residential and light commercial projects.

Solid BrassMaterial

7 FinishesAvailable Finishes

205 mmCentre To Centre

61 mmProjection

Functions, Kits & What's Included

Each kit is built on the same lever set; only the latch or lock changes.

Kit / Function	What’s included	SKU suffix

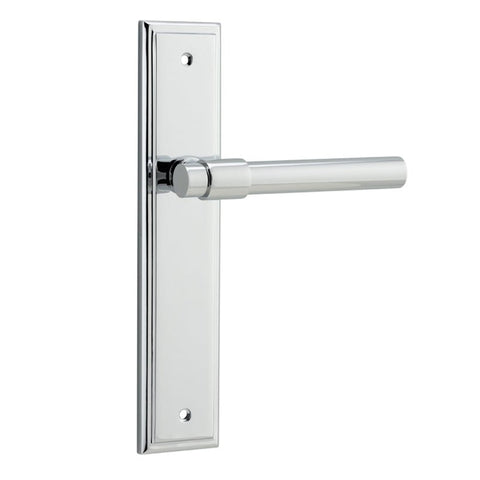

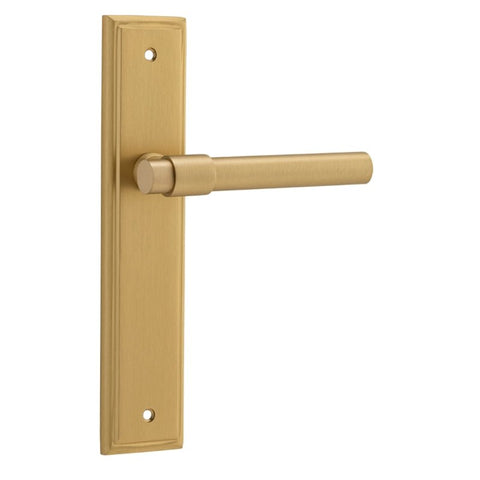

Lever Set Only	Includes the lever pair, roses, face-fix wood screws and tie bolts.	finish code only

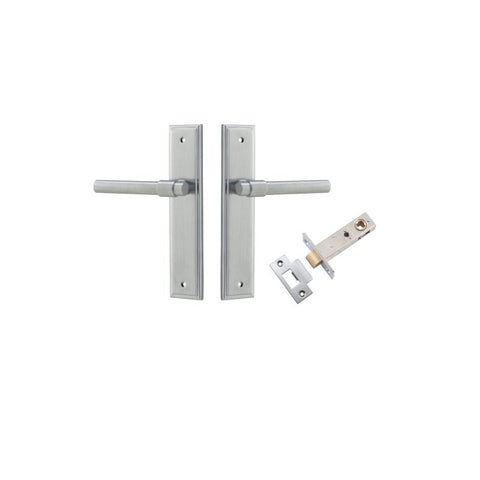

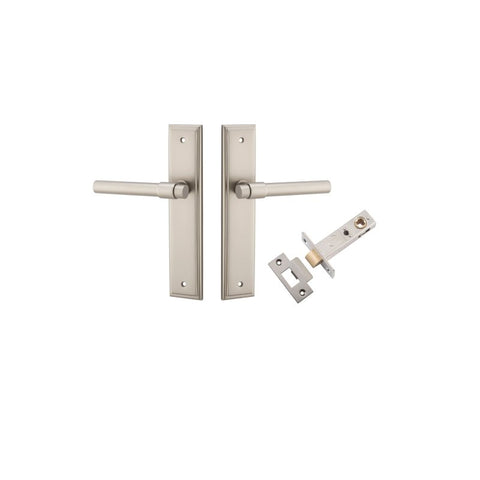

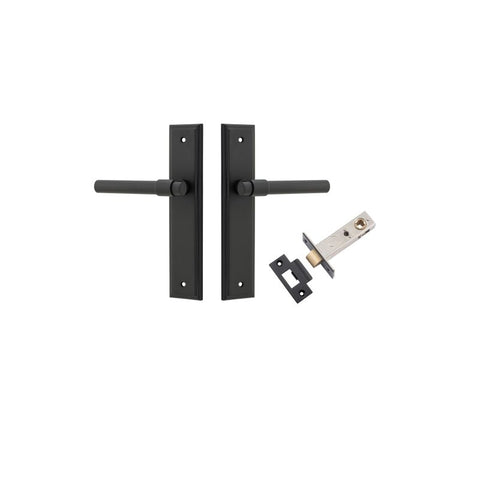

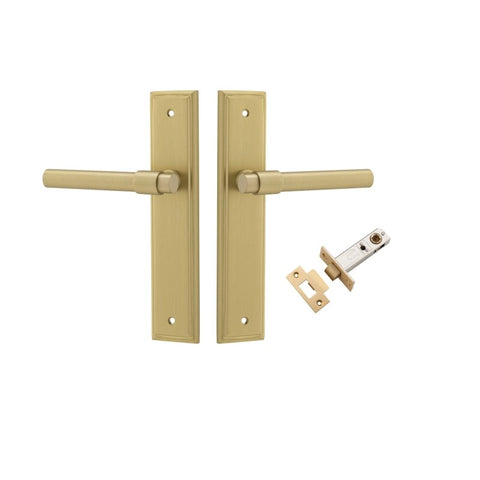

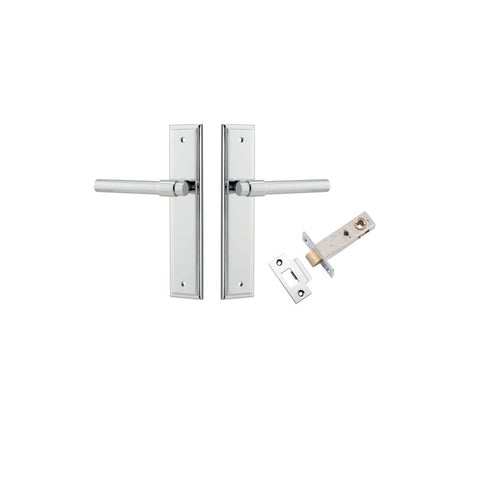

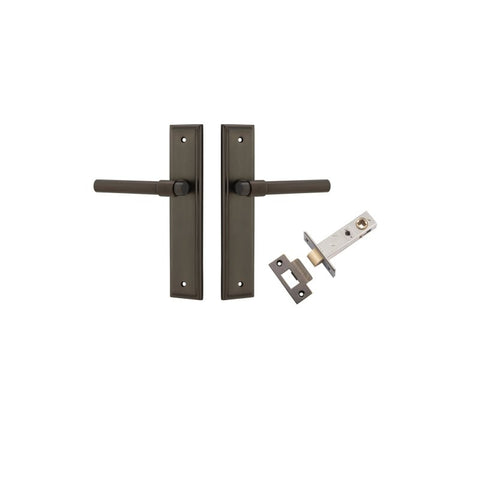

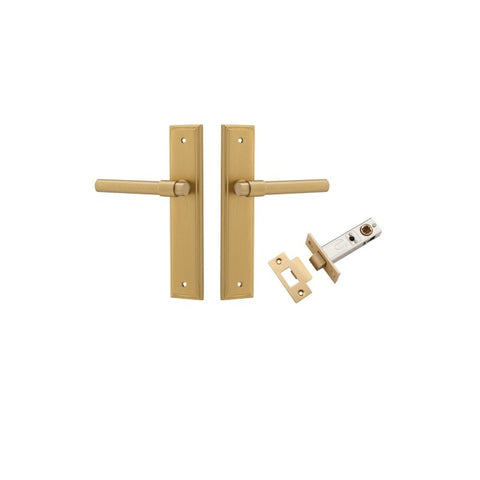

Passage Kit	Includes the lever set and a 60 mm backset tube latch.	KPASS60

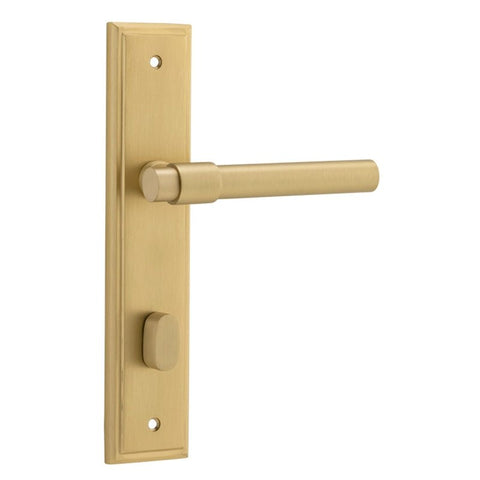

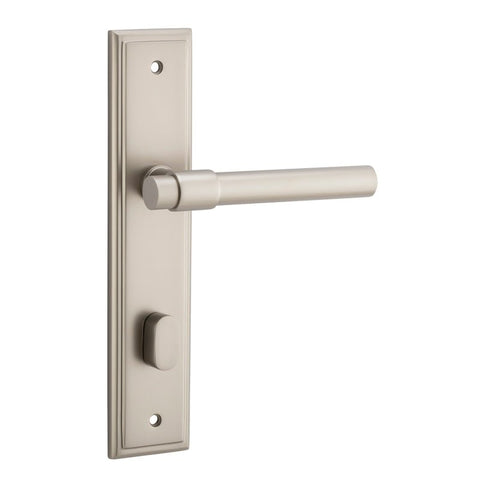

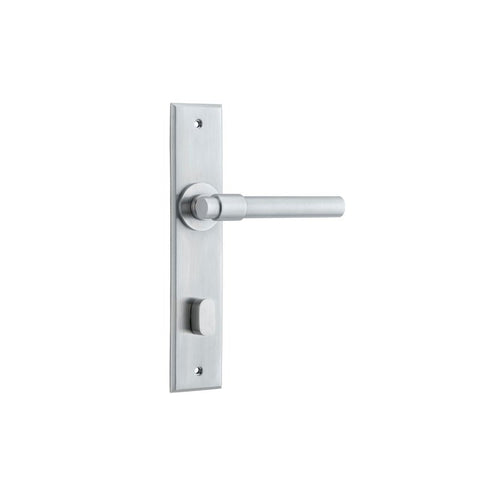

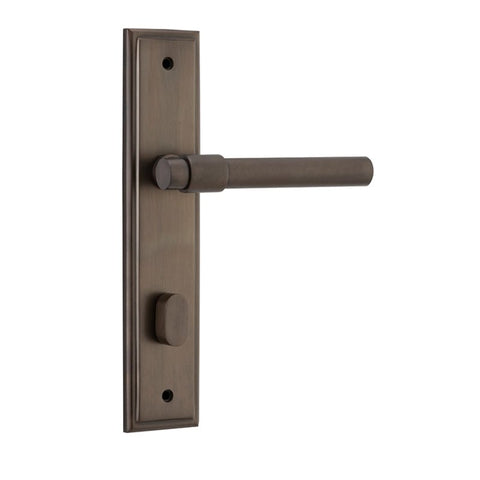

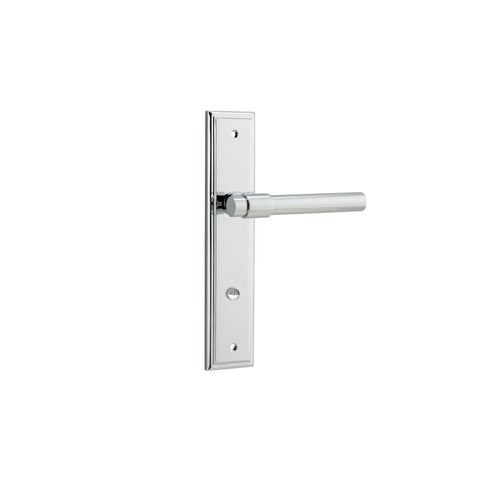

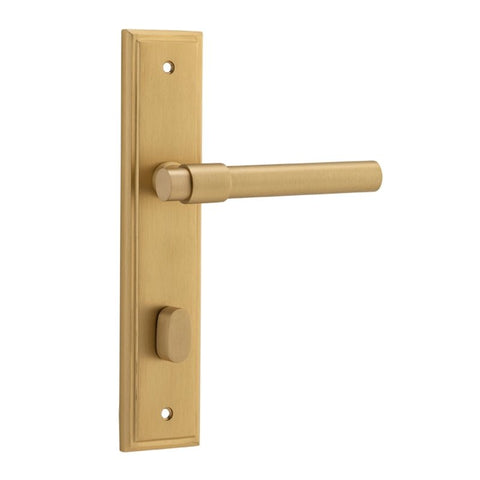

Inbuilt Privacy Kit	Includes the lever set with an inbuilt privacy turn on the rose and a 60 mm backset tube latch.	P85

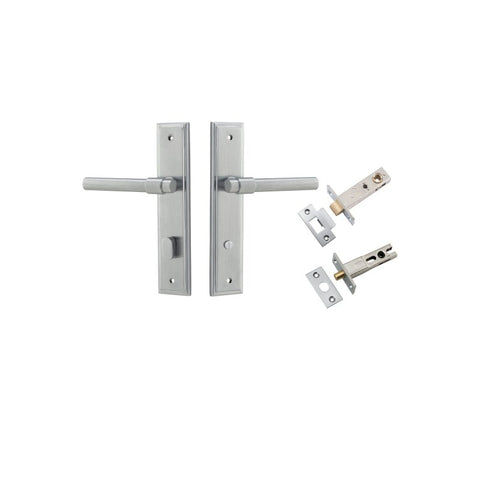

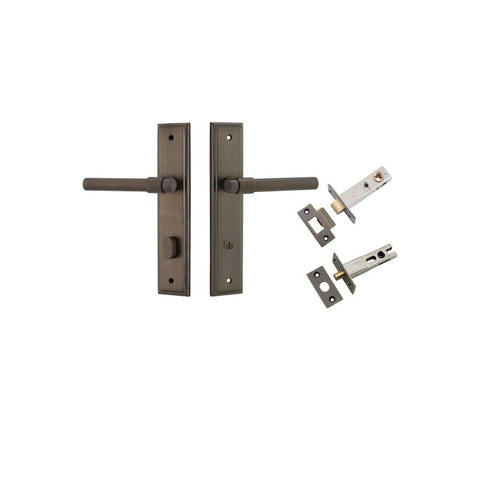

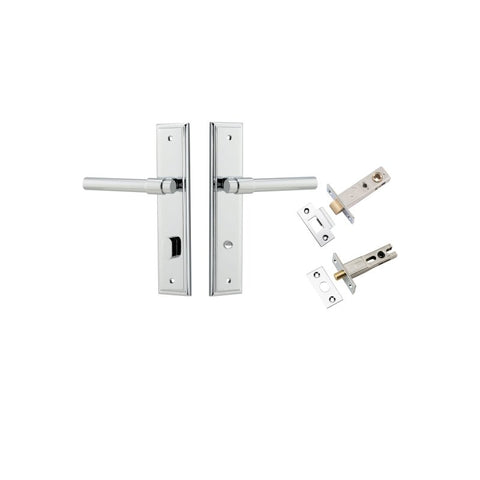

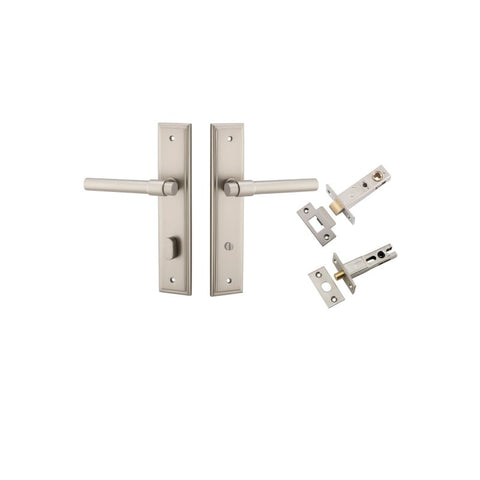

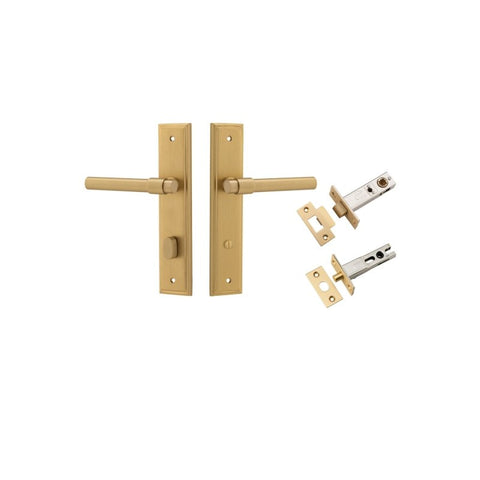

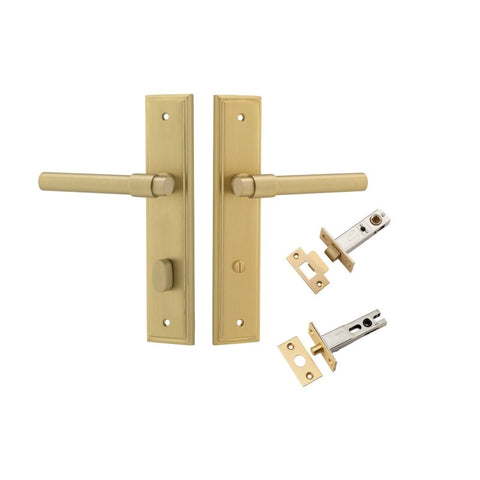

Separate Privacy Kit	Includes the lever set, a 60 mm backset tube latch and a separate privacy turn and release.	KPRIV60

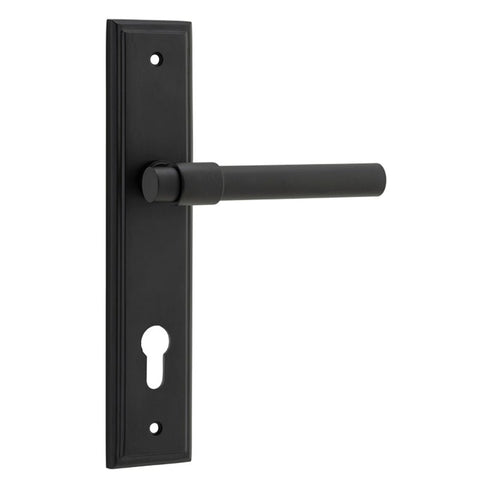

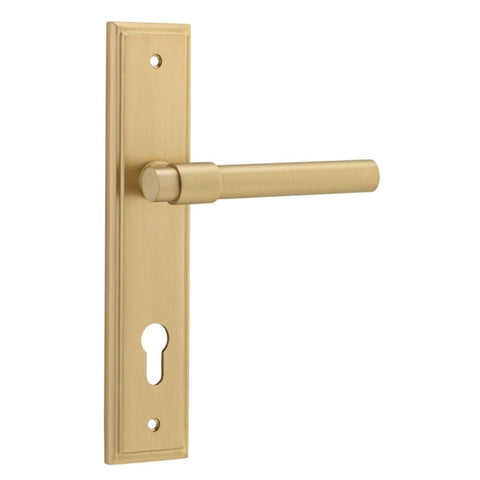

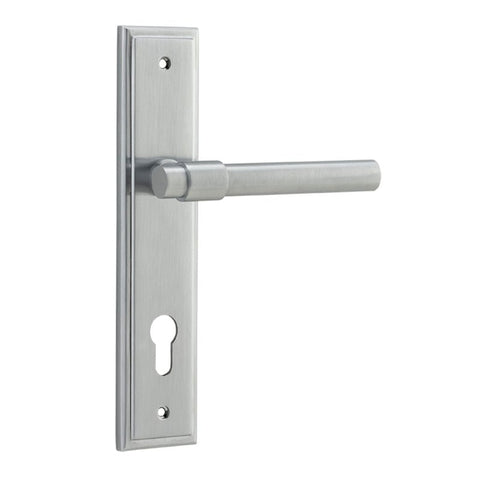

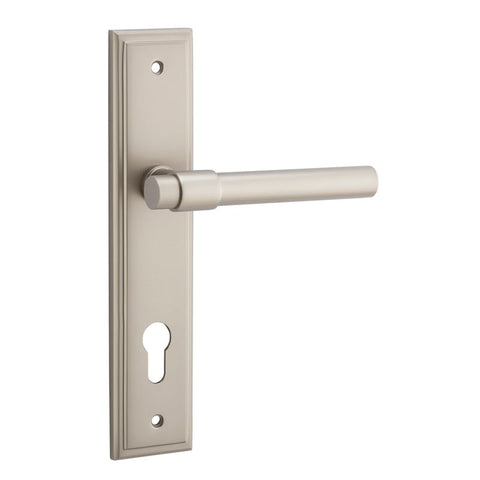

Entrance Kit (Key/Thumb)	Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose.	E85

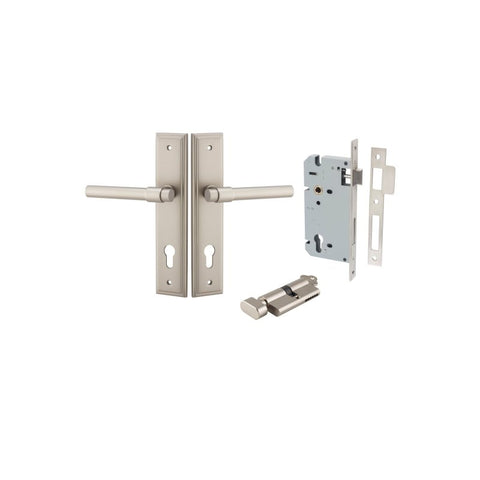

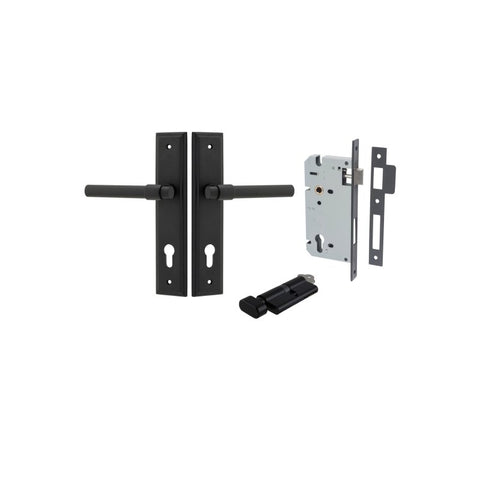

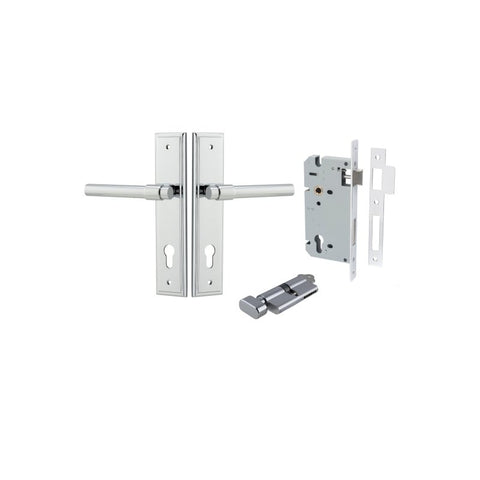

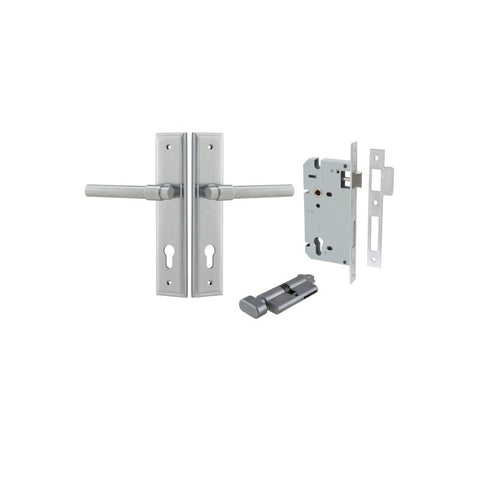

Entrance Kit (Key/Thumb)	Includes the lever set, a 60 mm backset mortice lock, an outside key cylinder and an inside thumbturn and a matching escutcheon to cover the keyhole on the rose.	KENTR60KT

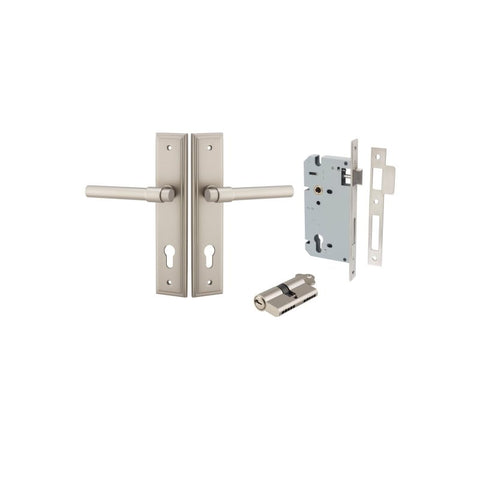

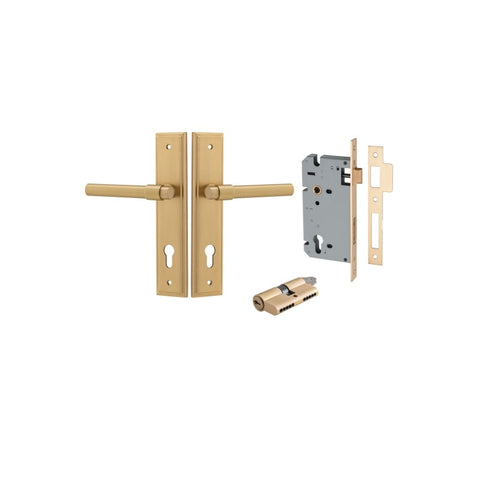

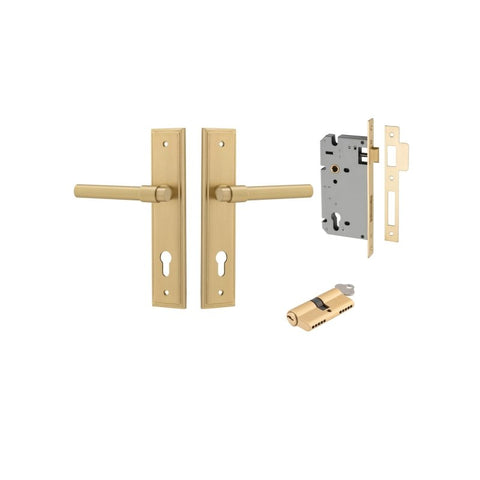

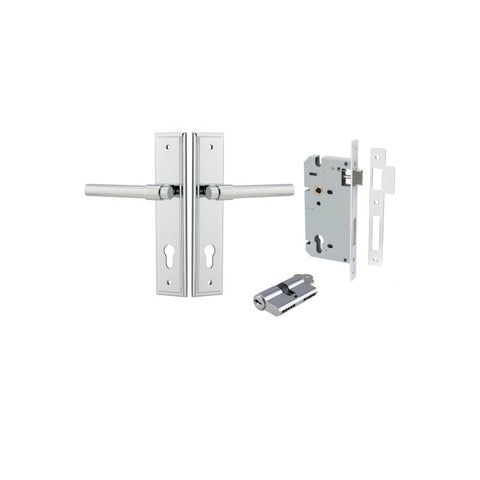

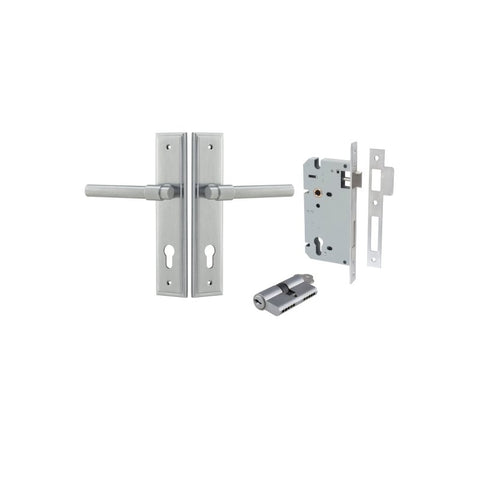

Entrance Kit — Dual Function (Key/Key)	Includes the lever set, a 60 mm backset mortice lock and cylinders keyed on both sides and a matching escutcheon to cover the keyhole on the rose.	KENTR60KK

The full product code is the finish code plus the kit suffix — e.g. a Brushed Gold PVD Passage Kit is 16402. Full codes for every finish and kit are listed below.

Door Functions Explained

Passage	The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes.
Privacy	Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms.
Entrance	Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit.
Lever set only	The handles and roses on their own, with no latch or lock. Choose this if you already have a latch or lock, or are replacing handles only.

What's in the Box

1 pair of levers (or knobs) with roses / backplates
Face-fix wood screws and tie bolts
The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
Entrance kits on rose handles also include a matching escutcheon to cover the keyhole
Not included: hinges and flush bolts

Available Finishes (7) & Product Codes

Brushed Gold PVDBrushed BrassBrushed ChromeMatt BlackPolished ChromeSatin NickelSignature Brass

Finish	Lever Set Only	Passage Kit	Inbuilt Privacy Kit	Separate Privacy Kit	Entrance Kit (Key/Thumb)	Entrance Kit (Key/Thumb)	Entrance Kit — Dual Function (Key/Key)

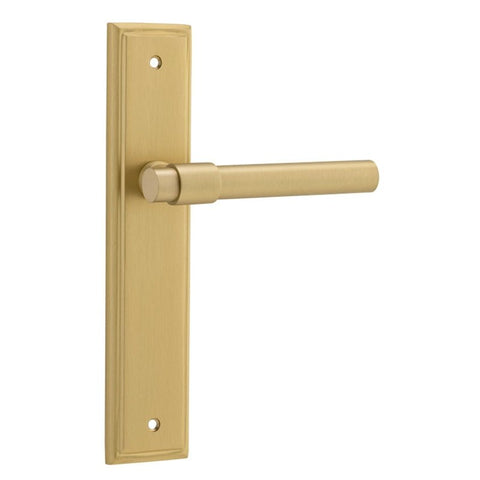

Brushed Gold PVD	16402	16402KPASS60	16402P85	16402KPRIV60	16402E85	16402KENTR60KT	16402KENTR60KK

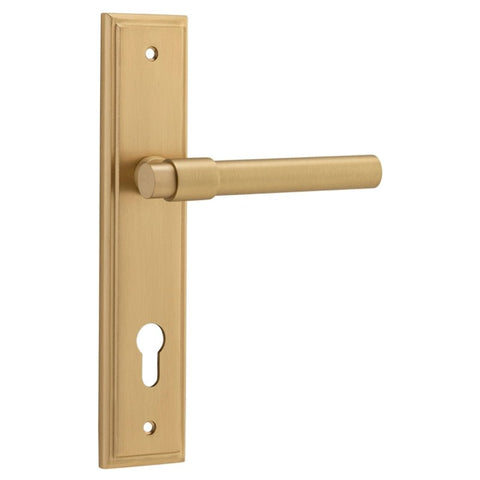

Brushed Brass	15402	15402KPASS60	15402P85	15402KPRIV60	15402E85	15402KENTR60KT	15402KENTR60KK

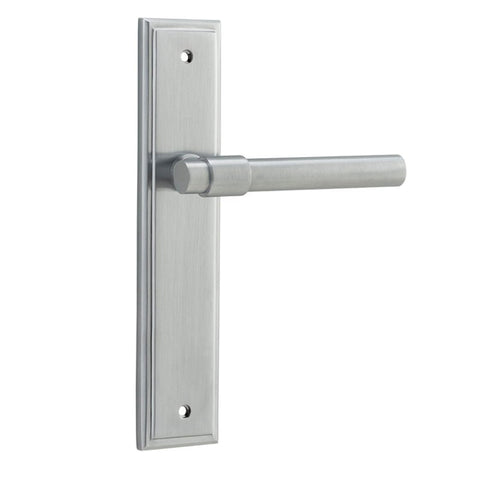

Brushed Chrome	12402	12402KPASS60	12402P85	12402KPRIV60	12402E85	12402KENTR60KT	12402KENTR60KK

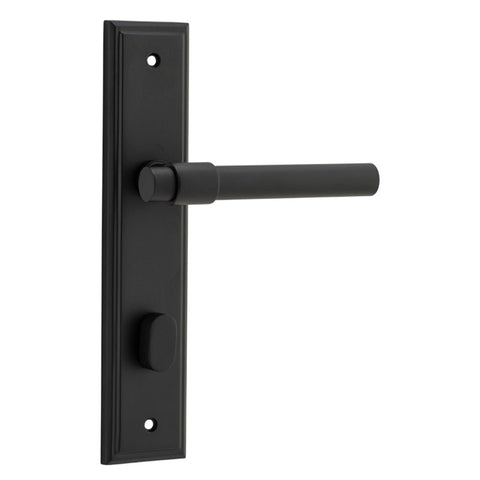

Matt Black	12902	12902KPASS60	12902P85	12902KPRIV60	12902E85	12902KENTR60KT	12902KENTR60KK

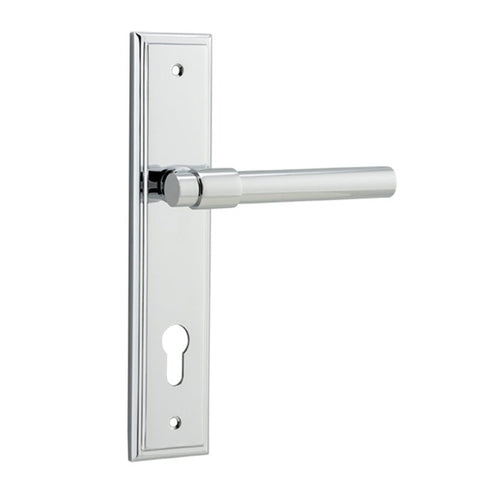

Polished Chrome	11902	11902KPASS60	11902P85	11902KPRIV60	11902E85	11902KENTR60KT	11902KENTR60KK
Satin Nickel	14902	14902KPASS60	14902P85	14902KPRIV60	14902E85	14902KENTR60KT	14902KENTR60KK

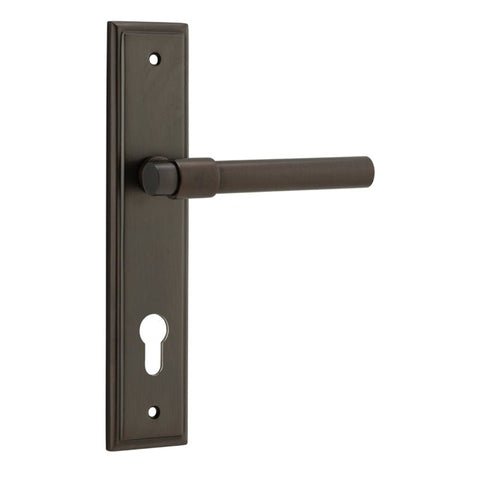

Signature Brass	10902	10902KPASS60	10902P85	10902KPRIV60	10902E85	10902KENTR60KT	10902KENTR60KK

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

Step 1 — What is your door made of?

Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.

Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm latch/lock compatibility with your frame profile.

Step 2 — What type of door is it?

Passage — no lockingBedrooms, living rooms, studies. You need: lever set + tube latch.

Privacy — locks insideBathrooms and ensuites, snib inside. You need: lever set + tube latch + privacy turn (or the Inbuilt Privacy Kit).

Entrance — keyedFront and back doors. You need: lever set + mortice lock. Key/Thumb = key outside, turn inside; Key/Key = key both sides.

Mortice lock by door thickness: 35–40 mm → standard mortice lock; 40–55 mm → heavy-duty or long-case mortice lock. Rebated double door → rebated mortice lock (includes the rebate kit).

Step 3 — Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: 150 mm bolt top and bottom. Doors 2100 mm and above: 300 mm top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable; a magnetic catch can be used in place of the bottom bolt.

Hinges — Which One Do You Need?

Hinge type	Best for	Why
Ball bearing	Entrance and heavier doors	Reduces friction and prevents squeaking and wear. Best for high-use doors.
Fixed pin	Internal and lighter entrance doors	A reliable all-rounder for most internal applications.
Loose pin	Internal use only — ideal for bathrooms	The door can be lifted off its hinges in an emergency, even when locked.

Three hinges per door is standard for internal and entrance doors.

Specifications

Material	Solid Brass
Height	237 mm
Width	50 mm
Lever Length	137 mm
Projection	61 mm
Centre To Centre	205 mm
Spindle	and
Warranty	10-Year Mechanical Warranty

Warranty

✓10-Year Mechanical Warranty

Covers defects in materials and workmanship across all finishes.

✓Lifetime Finish Warranty

Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD.

ⓘLiving finishes

Finishes such as Polished Brass and Brushed Brass age and patina naturally over time, and are generally excluded from finish-defect cover.

What is the IVER Helsinki Door Lever Handle On Stepped Backplate?

It is an Iver door lever/knob set in solid brass.

What's the difference between Passage, Privacy and Entrance?

Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib (turn), with an emergency release on the outside — for bathrooms, ensuites and bedrooms. Entrance: Key-lockable — for front and back doors, or any door you want to lock with a key. Choose Key/Thumb (key outside, thumbturn inside) or Key/Key (key both sides). On rose handles the keyhole is covered by a matching escutcheon, supplied with the kit.

What's the difference between the Inbuilt and Separate Privacy Kits?

The Inbuilt Privacy Kit has the privacy turn built into the rose itself, so the snib sits on the handle rose. The Separate Privacy Kit uses a separate privacy turn and release mounted apart from the handle. Both include a 60 mm backset tube latch.

What is included in the box?

A pair of levers (or knobs) with roses/backplates, face-fix wood screws and tie bolts, plus the latch or lock that comes with the kit you select. Hinges and flush bolts are not included.

Which hinges do I need?

Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.

Do I need flush bolts?

Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

What finishes are available?

This model is available in Brushed Gold PVD, Brushed Brass, Brushed Chrome, Matt Black, Polished Chrome, Satin Nickel, Signature Brass. Each finish has its own product code — see the finishes table in the description.

What warranty applies?

Iver hardware carries a 10-Year Mechanical Warranty covering defects in materials and workmanship across all finishes, plus a Lifetime Finish Warranty on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD. Living finishes such as Polished and Brushed Brass patina naturally and are generally excluded from finish-defect cover.

How can I get help choosing the right kit?

Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
