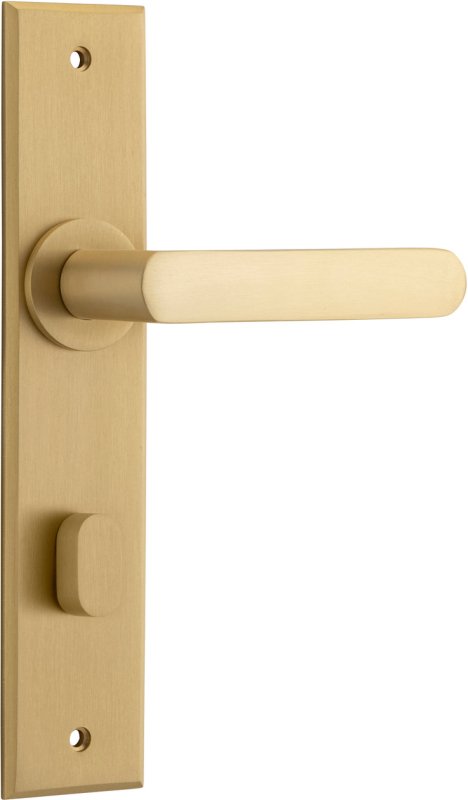

The Iver Osaka Door Lever on Rectangular Backplate — Privacy Set (Inbuilt) — combines the Osaka lever's smooth tapered barrel and minimal tip with a 240mm rectangular backplate that incorporates a built-in privacy locking mechanism. The privacy function is integrated directly into the backplate — a cleaner, more minimal appearance with no separate bolt on the door face. Ideal for bathrooms, ensuites and powder rooms where a streamlined look is preferred. Crafted from solid brass and fire rated to 2 hours to meet Australian Standard AS1530.4:2014. Available in 7 finishes.
|
Material
Solid brass
|
Backplate
Rectangular 240×38mm
|
Fire Rating
2 Hours AS1530.4
|
Finishes
7 Options
|
| Warranty | |
| ✓ 10-Year Mechanical Warranty | Covers defects in materials and workmanship across all finishes |
| ✓ Lifetime Finish Warranty | Available on Polished Chrome, Brushed Chrome, Polished Nickel and Brushed Gold PVD |
| ⓘ Living finishes | Polished Brass and Brushed Brass naturally age and patina over time — generally excluded from finish defect warranties |
| What's in the box | |
| ✓ 2 x Osaka Lever on Rectangular Backplate (privacy inbuilt) | ✓ 1 x Tube Latch Split Cam Backset 60mm |
| ✓ 1 x Face Plate & Striker Plate | ✓ 1 x Standard Spindle |
| ✓ 2 x Tie Bolts | ✓ Screws & Drill Template included |
| ✓ 1 x Instruction Manual | |
| Bundle guide — what else do you need? | |
| Follow these steps to complete your installation. | |
| Step 1 — What is your door made of? | |
|
Timber door Most common for internal doors. Installs directly using the included screws. ⌫ Typical thickness: 35mm – 45mm |
Aluminium door May require aluminium-specific fixings — contact us if unsure. ⌫ Typical thickness: 44mm – 55mm |
| Step 2 — Is it a double door? | |
|
Standard doors (under 2100mm) 150mm bolt top + 150mm bolt bottom |
Taller doors (2100mm and above) 300mm bolt top + 150mm bolt bottom |
| Step 3 — Add hinges | |
| 3 hinges are recommended per door. Choose a matching finish from the Iver hinge range. Contact us for a full hinge positioning guide. | |
| Hinges | ||
| Not sure which hinge to choose? Use this as your guide. | ||
|
Ball bearing Entrance and heavier doors Reduces friction, prevents squeaking and wear. |
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications. |
Loose pin Internal use only — ideal for bathrooms Door can be lifted off its hinges in an emergency, even when locked. |
| ⓘ As a general rule: 3 hinges for internal doors, 3 hinges for entrance or heavier doors. Contact us for a full hinge positioning guide. | ||
| Specifications | |
| Function | Privacy (Inbuilt) — privacy mechanism integrated into backplate. Lockable from inside only. |
| Latch backset | 60mm |
| Material | Solid brass |
| Door type | Timber & aluminium |
| Door thickness | 35mm – 55mm |
| Backplate height | 240mm |
| Backplate width | 38mm |
| Length | 117mm |
| Projection | 55mm |
| Centre to centre | 205mm |
| Backset | 60mm (all functions) |
| Fire rating | 2 hours — AS1530.4:2014 |
| Warranty | 10-Year Mechanical Warranty |
| Sold as | Pair |
| Available finishes | Brushed Brass | Brushed Chrome | Matt Black | Polished Brass | Polished Chrome | Satin Nickel | Signature Brass |
