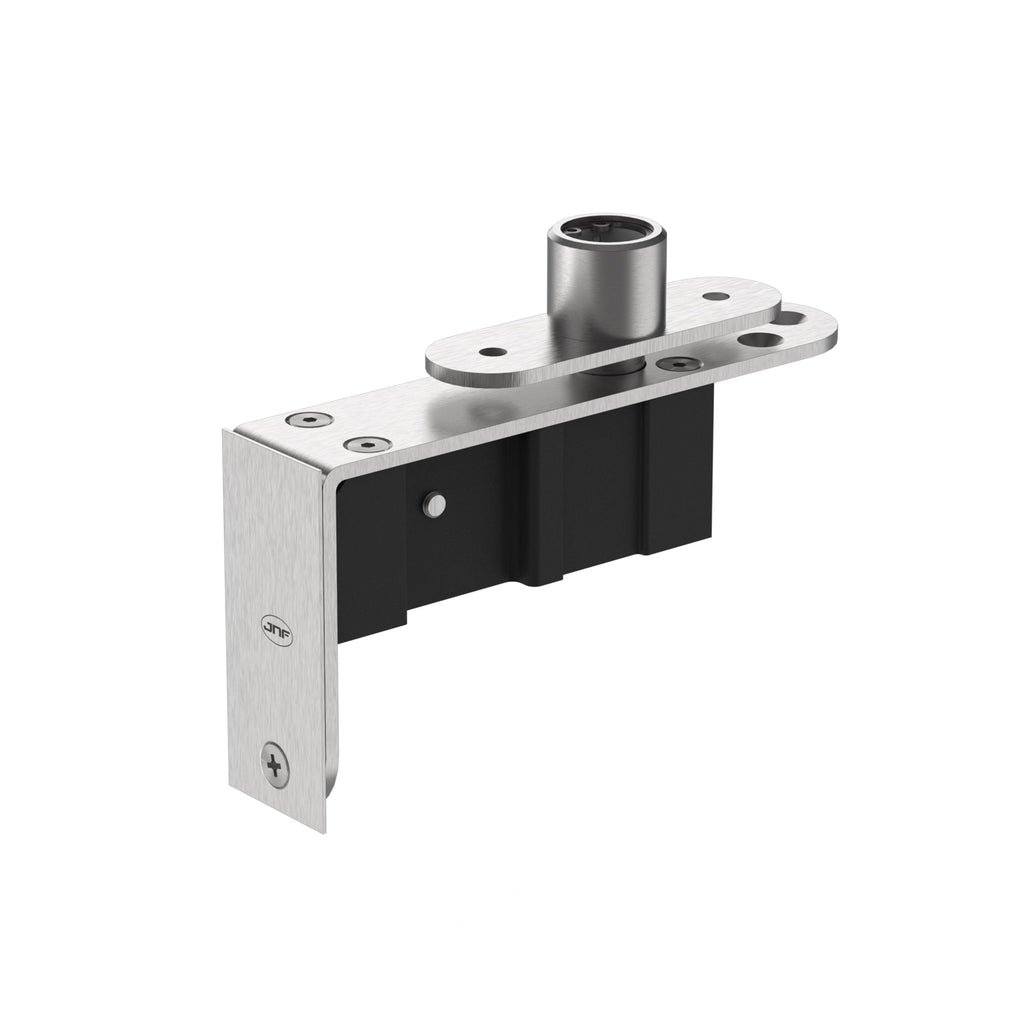

JNF IN.05.201.R Top pivot with Movable Adjustable Axle Stainless Steel

JNF IN.05.201.R is a high-quality top pivot specifically designed for doors that extend to the ceiling, offering precise alignment and smooth operation. Constructed from durable stainless steel (EN 1.4301) with a satin finish, this pivot is engineered for both reliability and aesthetic appeal, making it suitable for a variety of residential and commercial applications.

• • Movable Axle Design:
    • Adjustable Axle: The pivot features an adjustable axle, which can be fine-tuned using the lateral screw, allowing for precise door alignment and smooth operation.
    • Ceiling-Height Application: Ideal for doors that extend up to the ceiling, ensuring stability and ease of movement even for taller, heavier doors.
  • Durable Construction:
  • Stainless Steel Material: Made from high-grade stainless steel (EN 1.4301), the pivot offers excellent resistance to corrosion, ensuring long-lasting performance.
  • Satin Finish: The satin finish provides a sleek, modern appearance that complements contemporary interior designs.
  • Versatile Applications:
    • Residential: Perfect for modern homes where doors reach up to the ceiling, requiring precise and durable hardware.
    • Commercial: Suitable for office buildings, hotels, and other commercial spaces where high-quality door pivots are essential for both functionality and design.

Specifications:

• • Material: Stainless Steel (EN 1.4301)
  • Finish: Satin
  • Dimensions:
    • Length: 135 mm
    • Width: 30 mm
    • Height: 95 mm
    • Axle Diameter: Ø15 mm
  • Door Thickness Compatibility: Suitable for doors with a thickness of 35-45 mm.
  • Weight:
    • Unit Weight: 0.43 kg
    • Mounting Hardware: Includes 8 screws (4.7x25.5 mm) for secure installation.
