Raven RP8Si Concealed Automatic Door Bottom Seal – Various Sizes & Finishes

The Raven RP8Si is a concealed automatic door bottom seal designed for installation into the bottom edge of hinged doors. It features a spring-loaded mechanism that lifts the seal clear of the floor when the door is opened and lowers it when the door is closed.

This door seal is suitable for use on timber and metal doors and is designed to help reduce air, smoke, and sound transfer when installed correctly.


Key Features:

  • Concealed automatic door bottom seal
  • Spring-loaded mechanism activated by contact with door jamb
  • Adjustable seal pressure for accurate positioning

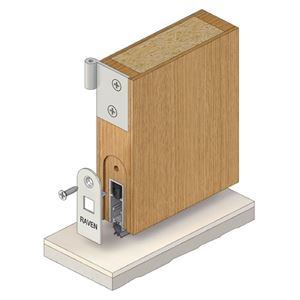

  • Designed for fully morticed installation into door bottom
  • Suitable for single and double hinged doors
  • Silicone gasket for sealing performance
  • Available in multiple sizes and finishes

Specifications:
Product Type: Automatic door bottom seal
Material: Aluminium carrier with silicone gasket
Installation: Fully morticed into door bottom

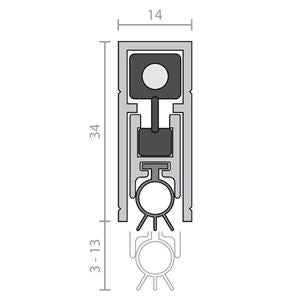

Groove Size: 15mm x 34mm
Minimum Gap: 3mm
Maximum Gap: 13mm
Operation: Automatic drop seal activated by door closure
Application: Timber and metal hinged doors


Available Sizes:
1220mm
1070mm
920mm
820mm
600mm
Adjustable down to minimum 295mm


Available Finishes:
Satin Clear (Silver Anodised)
Bronze Anodised
Black Anodised


Applications:
Suitable for use on internal and external hinged doors where sealing is required. Commonly used on residential and commercial doors, including applications where control of air, sound, or smoke transfer may be required when installed as part of a compliant door system.


Performance & Testing:

  • Acoustic testing conducted to AS1191 and ISO standards
  • Fire and smoke testing conducted to relevant Australian and international standards (refer to manufacturer documentation for full details)
  • Durability tested for repeated operation cycles

Installation & Inclusions:

  • Designed for morticed installation into the bottom edge of doors
  • Supplied with fixing screws and components
  • Installation requirements may vary depending on door type and configuration

Additional Information:
Ensure compatibility with door type, thickness, and application requirements before installation. Performance may vary depending on door assembly and installation method.
