Zanda Apollo Longplate Lever Handle BN Satin Chrome Passage Privacy En

Name: Prime Hardware
Rating: 4.9 (110 reviews)

Zanda Apollo Longplate Handle - primehardware

Description & Specifications FAQs

Zanda

Zanda Apollo Longplate Lever Handle BN Satin Chrome Passage Privacy Entrance

Product code (SKU): 7035.1.BN–7045.SC (by finish / function)

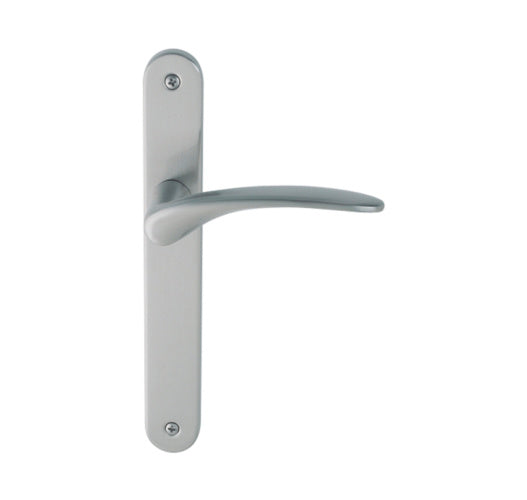

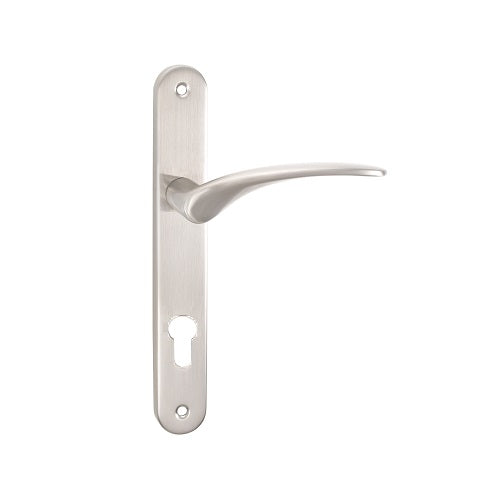

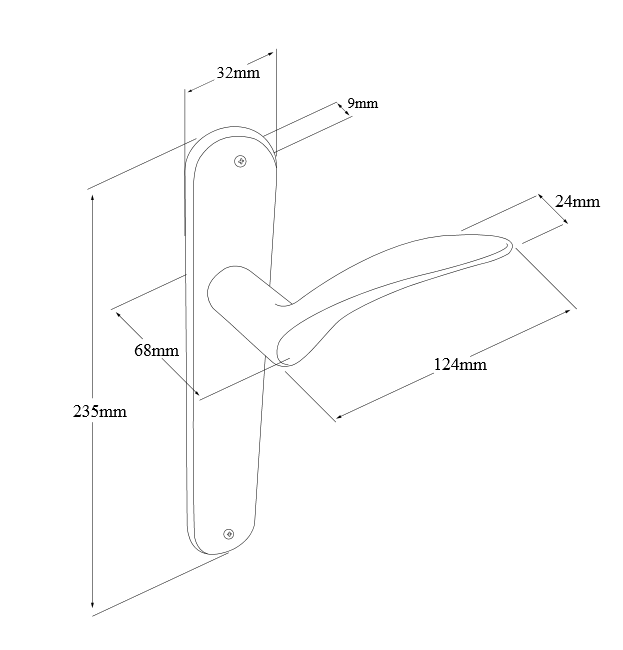

The Zanda Apollo Longplate Lever Handle (7045) features a 233mm long backplate in brushed nickel and satin chrome with passage, privacy, dummy and entrance configurations. 7045: Longplate set, 7045.E8: With euro keyhole, 7045.PA: Passage, 7045.PR: Privacy, 7045.D: Dummy, 7035: Entrance Backplate: 233mm length, 60mm width

Brushed Nickel, Satin ChromeAvailable Finishes

Door Functions Explained

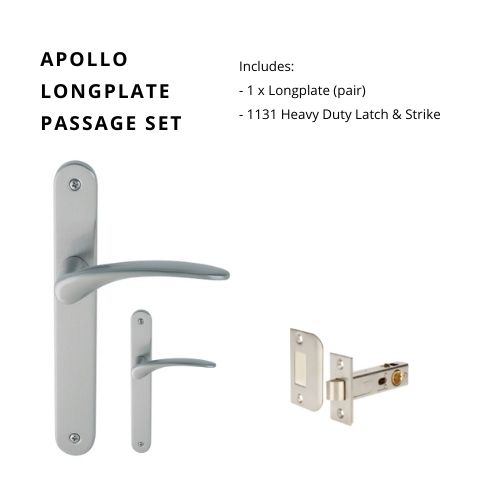

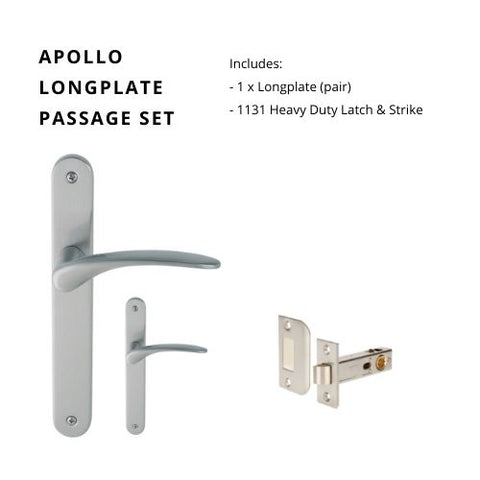

Passage	The latch operates from both sides and does not lock — for bedrooms, living rooms and studies.

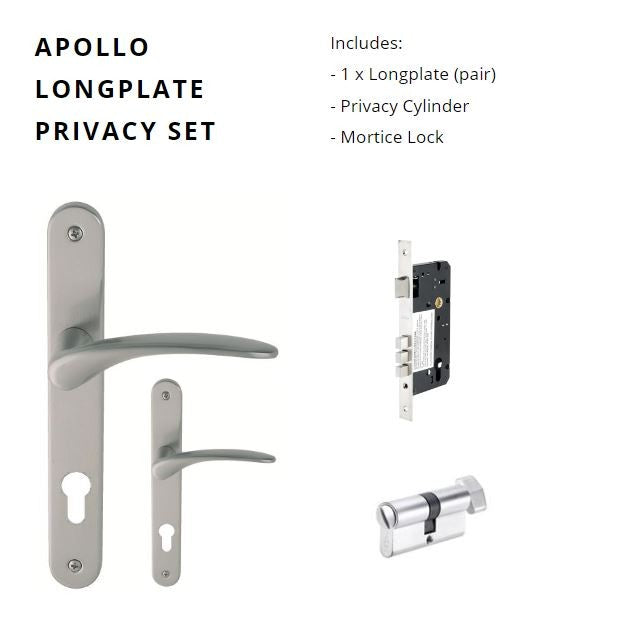

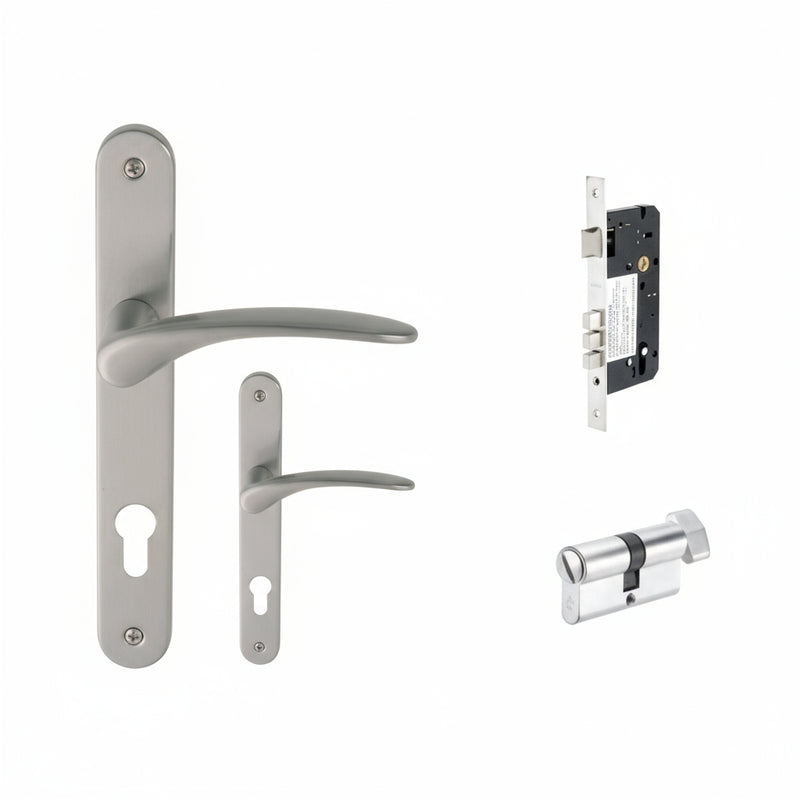

Privacy	Locks from the inside with a turn or snib, with an emergency release outside — for bathrooms and ensuites.

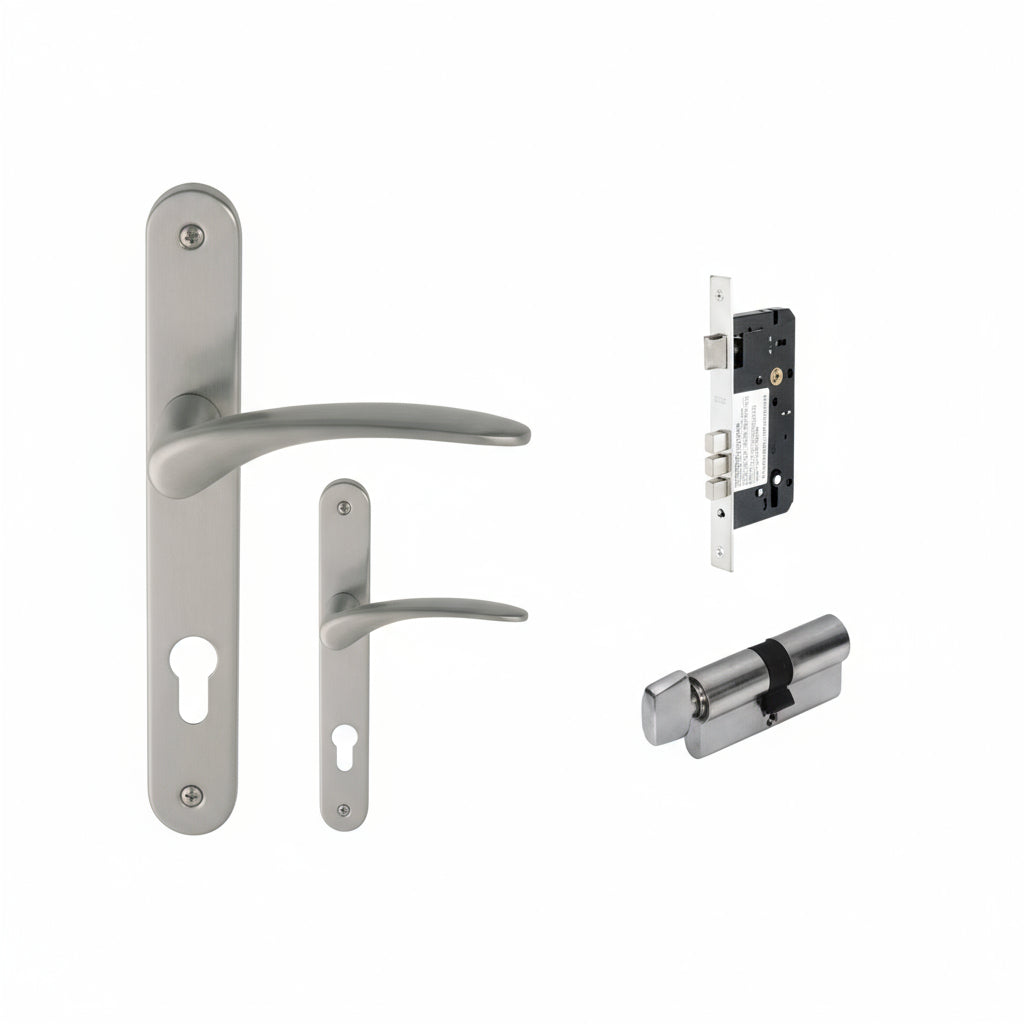

Entrance	Key-lockable using a euro cylinder — for front and back doors.

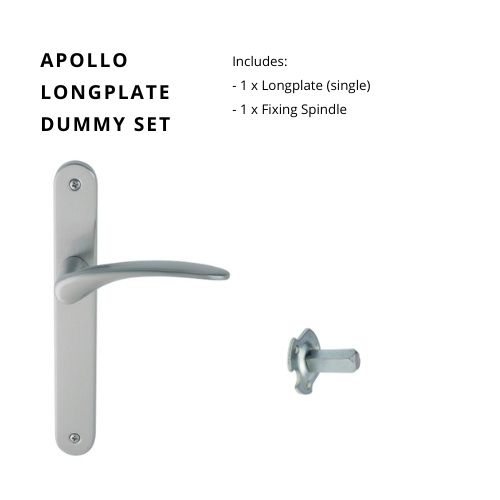

Dummy / Fixed	A fixed handle with no latch, used as a pull on a fixed panel or the inactive leaf of a double door.

What's in the Box

1 pair of levers (or knobs) with roses / backplates
Face-fix wood screws and tie bolts
The latch or lock supplied with the kit you select (Passage, Privacy or Entrance)
Not included: hinges and flush bolts

Complete Your Door Hardware

The items below are sold separately. The product code for each finish is listed.

Complete Your Door Hardware

Zanda Door Stop

Protects the wall and the handle when the door swings open. Floor, skirting and magnetic types available.

Brushed Nickel 5240.BNSatin Chrome 5240.SC

Zanda Hinges — 3 per door

Ball bearing suits heavy and high-use doors; butt hinges suit standard internal doors.

Ember Bronze 5901.EBMatt Black 5910BLKSatin Brass 5902SBGraphite Nickel 5910GNStainless Steel 5910SS

Zanda Flush Bolt

Secures the inactive leaf of a double door. A dust socket is used at the floor.

Ember Bronze 10423.EBSatin Brass 10423.SB

Available Finishes (2) & Product Codes

Brushed NickelSatin Chrome

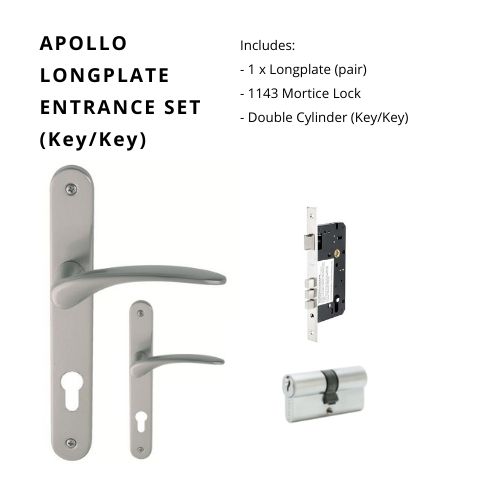

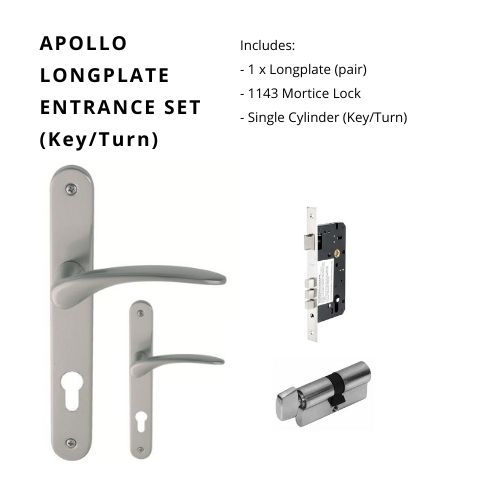

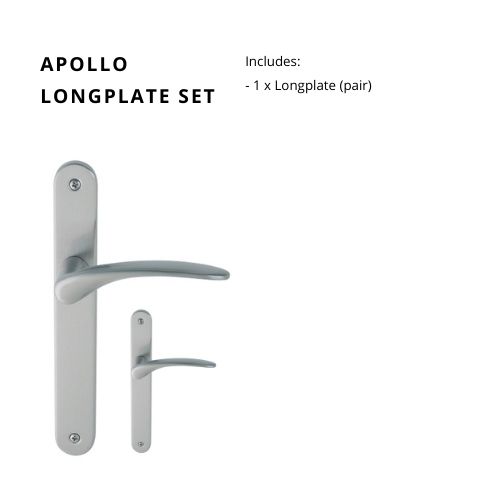

Finish	7045 - Apollo Longplate (Blank- As Pictured)	Euro	Passage	Privacy	Dummy	Dummy	7035.1 - Apollo Longplate Entrance Set includes 7045.E85 1143 & 1121 (60mm Key/Key)	7035.2 Apollo Longplate Entrance Set includes 7045.E85 1143 & 1122 (60mm Key/Turn)	7035.3 Apollo Longplate Entrance Set includes 7045.E85 1143 & 1147 (70mm Key/Key)	7035.4 Apollo Longplate Entrance Set includes 7045.E85 1143 & 1148 (70mm Key/Turn)
Brushed Nickel	7045.BN	7045.E85.BN	7045.PA.BN	7045.PR.BN	7045.DL.BN	7045.DR.BN	7035.1.BN	7035.2.BN	7035.3.BN	7035.4.BN
Satin Chrome	7045.SC	7045.E85.SC	7045.PA.SC	7045.PR.SC	7045.DL.SC	7045.DR.SC	7035.1.SC	7035.2.SC	7035.3.SC	7035.4.SC

Living finishes such as Polished and Brushed Brass develop a natural patina over time.

Bundle Guide — What Else Do You Need?

A complete door set depends on the door material, the function required and whether it is a double door.

1What is your door made of?

Timber doorMost internal doors. Installs with the included wood screws. Typical thickness 35–45 mm.

Aluminium doorTypical thickness 44–55 mm. May need aluminium-specific fixings — confirm the latch or lock suits your frame profile.

2What does the door need to do?

PassageBedrooms, living rooms, studies — the door opens and closes but never locks.

You need tube latch

PrivacyBathrooms, ensuites and bedrooms — locks from the inside with a snib, emergency release outside.

You need tube latch + privacy turn, or a privacy mortice lock

Euro — keyedFront and back doors — locks with a key using a euro-profile cylinder.

You need euro mortice lock + euro cylinder

Backset & door thickness The backset is the distance from the door edge to the spindle centre — tube latches come in 45, 60 and 70 mm; mortice locks in 44, 46 and 57 mm. Measure before ordering. A rebated double door needs the rebated version of the lock.

3Is it a double door?

Double doors need flush bolts to secure the inactive leaf. Doors under 2100 mm: a 150 mm bolt top and bottom. Doors 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

Hinges — Which One Do You Need?

Hinge type	Best for	Why
Ball bearing	Entrance and heavier doors	Bearings reduce friction and wear — best for high-use doors.
Fixed pin	Internal and lighter entrance doors	A reliable all-rounder for most internal applications.
Loose pin	Internal use — ideal for bathrooms	The pin withdraws so the door lifts off without unscrewing the hinge.
Parliament	Doors that must open 180°	Projects the door clear of the frame or architrave so it swings back against the wall.

Three hinges per door is standard for internal and entrance doors.

Specifications

Finishes	Brushed Nickel, Satin Chrome
Warranty	10-Year Mechanical Warranty

Warranty

✓Mechanical Warranty

Zanda hardware is warranted against defects in materials and workmanship under normal use, when correctly installed. The warranty period varies by product range.

ⓘFinish care

Wipe with a soft, damp cloth. Avoid abrasive cleaners. Living finishes develop a natural patina over time.

What is the Zanda Apollo Longplate Lever Handle BN Satin Chrome Passage Privacy Entrance?

It is a Zanda door handle in the stated material.

What's the difference between Passage, Privacy, Euro and Skeleton Key?

Passage: The latch operates from both sides at all times and does not lock — for bedrooms, living rooms, studies and any door that simply opens and closes. Privacy: Locks from the inside with a snib or turn, with an emergency release outside — for bathrooms, ensuites and bedrooms. Euro: Takes a euro-profile cylinder and is key-lockable — for entrance doors and any door you want to lock with a key. Skeleton Key: A traditional lock operated by a skeleton (lever) key — suits heritage and period doors.

What is included in the box?

A pair of handles on backplates, the spindle and fixing screws, plus the latch or lock for the function you select. Hinges and flush bolts are not included.

Which hinges do I need?

Ball bearing for entrance and heavier doors (reduces friction and wear); fixed pin for internal and lighter entrance doors; loose pin for internal use, ideal for bathrooms since the door can be lifted off in an emergency. Use 3 hinges per door as a general rule.

Do I need flush bolts?

Only on double doors, to secure the inactive leaf. Under 2100 mm: 150 mm bolts top and bottom. 2100 mm and above: a 300 mm bolt top and 150 mm bottom. Flush bolts are available non-lockable or key-lockable.

What finishes are available?

This model is available in Brushed Nickel, Satin Chrome. Each finish has its own product code — see the finishes table in the description.

What warranty applies?

Zanda hardware is warranted against defects in materials and workmanship under normal use, when correctly installed. The warranty period varies by product range and is stated on the product where applicable.

How can I get help choosing the right kit?

Our team is happy to help. Call Prime Hardware on 1800 329 028, email sales@primehardware.com.au, or visit the showroom at 2/249 Annangrove Road, Annangrove NSW 2156.
