Lift-Off Hinges Explained: Handing, Sizing and Installation
Some doors need to come off regularly — not once a decade for painting, but often enough that even tapping out loose pins becomes a chore. Lift-off hinges are the answer: the hinge separates into two halves, and the door lifts straight up and off. No tools, no pins, no fuss.
They're also the hinge type most often ordered wrong, because lift-off hinges are handed — and if you order the wrong hand, they simply won't work on your door. This guide covers how they work, how to get the handing right first time, and where they make sense.
How a Lift-Off Hinge Works

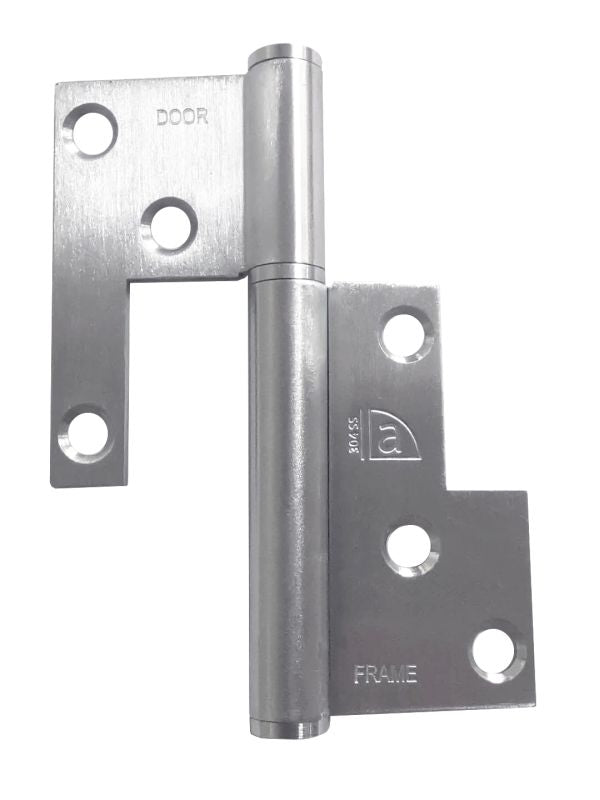

A lift-off hinge is made in two permanently separate parts:
- The frame half carries a fixed vertical pin pointing upward.
- The door half carries a hollow barrel that drops over that pin.
Hang the door by aligning the barrels over the pins and lowering it into place. Gravity holds everything together in normal use — the door can't jump off its pins because it would need to lift vertically by the full pin length, which doesn't happen in ordinary operation. To remove the door, you open it and lift straight up.
Compare this with a loose pin hinge, where the pin must be driven out of each barrel individually. For a door that comes off monthly rather than yearly, the difference in convenience is substantial. Our loose pin hinge guide covers when the simpler option is enough.
The Handing Question: Left Hand or Right Hand?
Because the pin points permanently upward on the frame half, a lift-off hinge only works one way around — which means it must match your door's handing.
The convention that avoids all confusion: stand on the side of the door where the hinge knuckles are visible (the side the door opens toward). If the hinges are on your left, you need left hand lift-off hinges. If they're on your right, you need right hand.
Two cautions worth flagging:
- Conventions vary between manufacturers and countries. Some brands define handing from the opposite side of the door. Always check the specific brand's handing diagram before ordering rather than assuming.
- Pairs of doors need one of each. French doors and double wardrobes typically take a set of left hand hinges on one leaf and right hand on the other.
When in doubt, photograph the door from the knuckle side and confirm against the product listing's handing diagram — or ask us before ordering. Handing errors are the single most common reason lift-off hinges get returned.
Where Lift-Off Hinges Make Sense
Doors removed regularly. Access panels, cavity and service cupboard doors, plant room doors.
Renovation and trade situations. Doors that must come off for equipment or material movement throughout a project.
Furniture and joinery. Wardrobe and cabinet doors where removability simplifies fit-out and adjustment. Smaller lift-off patterns are a joinery staple.
Tight spaces. Where there's no room to swing a hammer at a hinge pin, lifting the door off is the only practical removal method.
Hospitality and commercial fit-outs. Doors that come off seasonally or for cleaning regimes.
Installation Tips
- Fit the frame halves first, pins upward, checked for plumb — all pins must sit on a single vertical axis or the door will bind as it swings.
- Fit the door halves with barrels aligned to that same axis. A helper or door jacks make positioning much easier.
- Check vertical clearance above the door. The door must be able to rise by the pin length to come off. Tight head clearance under bulkheads can make removal impossible — check before specifying.
- Three hinges on full-size doors as usual; the load rules don't change just because the hinge separates.
- Some patterns include washers or bearing rings between the halves — keep these, as they're what the door rides on.
Sizing and Finishes
Lift-off hinges are sized like butt hinges (height × open width). For full-size internal doors, follow the same guidance as standard hinges — around 100 × 75mm for solid doors — and confirm the manufacturer's weight rating. Finish ranges from brands like Tradco cover the standard architectural palette, so lift-offs coordinate with the rest of your door furniture.
Security Note
Like loose pin hinges, lift-off hinges belong where the knuckle side is secure. An outward-opening external door on lift-off hinges could theoretically be lifted off from outside (once open) and offers less resistance than a fixed pin hinge. Keep lift-offs for internal and secured-side applications; external doors get fixed pin hinges.
Frequently Asked Questions
Can the door fall off lift-off hinges accidentally? Not in normal use — removal requires deliberately lifting the door vertically by the full pin length. Doors don't do that on their own.
Can I use two lift-off hinges and one fixed hinge on the same door? No. Mixing hinge types defeats the purpose (the door can't lift off past the fixed hinge) and creates alignment problems. All hinges on a door should match.
What if I ordered the wrong hand? They can't be reversed — the pin orientation is fixed. You'll need the correct hand. This is why we always suggest confirming handing against the brand's diagram before purchase.
Are lift-off hinges available in ball bearing versions? Some heavy-duty lift-off patterns incorporate bearing washers between the halves for smoother operation under load. Check the specific product listing.
Prime Hardware stocks lift-off hinges in left and right hand across leading brands. Unsure of your handing? Call us on 1800 329 028 with a photo and we'll confirm before you order. For the full hinge selection framework, read our Complete Guide to Door Hinges.
