Pivot Hinges and Pivot Sets: Hanging Doors That Butt Hinges Can't Carry

Every hinge in this series hangs the door off the frame. Pivot hardware breaks that rule. A pivot door rotates on two points — one in the floor, one in the head — and its weight travels straight down through the bottom pivot into the structure. The jamb carries almost nothing. That single change is what makes the doors you see on architectural magazine covers possible: 1200mm-wide entries, full-height panels, doors in solid timber, steel and stone-faced composites that would tear ordinary hinges out of the frame.

How a Pivot System Works

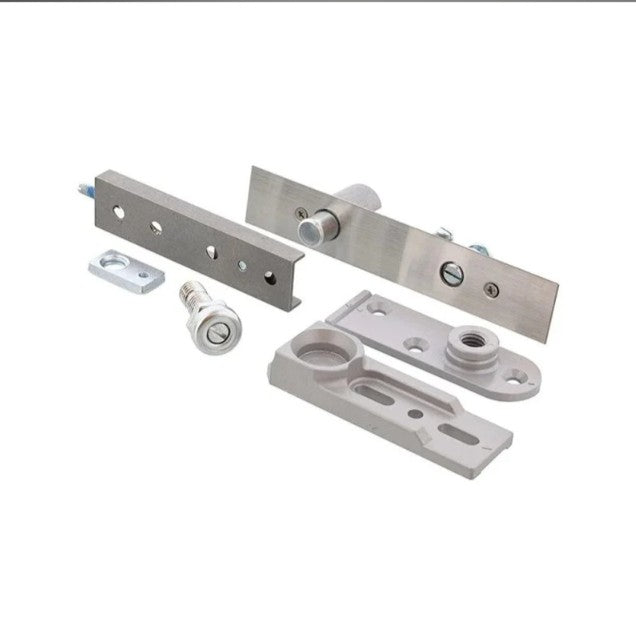

A pivot set has two components:

• The bottom pivot — floor-mounted (or recessed into the slab/threshold), carrying essentially the entire door weight on a bearing.
• The top pivot — mounted in the door head, locating the door's rotation axis and resisting lateral loads without carrying weight.

The door rotates about the vertical axis defined by these two points. Because the load path is vertical through a bearing rather than cantilevered off screws in a jamb, weight capacities jump dramatically — pivot systems routinely carry doors far beyond any butt or concealed hinge's range. Always work from the specific system's published capacity.

Offset vs Centre Pivots

Where the pivot axis sits changes the door's whole character:

Offset pivots place the axis near the door edge — typically a set distance in from the hinge stile. The door behaves much like a conventionally hinged door (swinging clear of the opening) while gaining the pivot's load capacity. This is the standard choice for heavy doors that should still act like normal doors, and for openings where the full clear width matters.

Centre (or intermediate) pivots place the axis further into the door's width — sometimes dead centre. The door rotates within the opening, part swinging in and part swinging out. This is the dramatic architectural move: a huge panel turning on its own axis, often used on statement entries. The trade-offs are real, though — the opening's clear width splits either side of the panel, weather sealing is more complex, and the door swings into space on both sides.

Where Pivot Hardware Belongs

Oversized entry doors. The core application: wide, tall, heavy front doors that announce a building.

Extra-heavy doors. Solid hardwood slabs, steel-framed doors, doors with stone or heavy cladding.

Frameless and minimal designs. With pivots at top and bottom and nothing on the stiles, the door edge stays completely clean — the pivot route to invisible hardware, alongside concealed hinges for lighter doors.

Interior statement doors. Full-height room dividers and feature doors that rotate rather than swing.

Commercial entrances. High-traffic doors where floor-borne load paths and robust bearings earn their keep.

Self-Closing and Controlled Pivots

Bottom pivots come in several behaviours: free-swinging bearings, spring-loaded self-closing units, and hydraulic floor-spring style pivots offering controlled closing speed and hold-open positions. On heavy external pivot doors, a controlled-closing pivot is usually worth specifying — a large panel moving in wind is a lot of momentum to manage by hand. Match the unit's capacity and closing behaviour to the door weight and exposure.

Planning a Pivot Door: The Essentials

Pivot doors are systems, not a hardware swap. Get these right early:

• Structure first. The bottom pivot needs solid fixing into the slab or threshold, and the head must be rigid enough to locate the top pivot without deflection. This is designed in, not retrofitted casually.
• Door weight and dimensions drive everything. Calculate honestly — cladding, glazing and hardware add up — and select the pivot set from the manufacturer's capacity tables with margin to spare.
• Sealing takes design effort. External pivot doors, especially centre-pivot designs, need carefully planned perimeter and threshold sealing for weather performance.
• Locking and furniture. Pivot doors typically pair with long entry pulls and mortice or multi-point locking planned around the pivot geometry — the pull handle ranges from brands like Austyle and Zanda are natural partners.
• Clearances through the full arc. Model the swing on both sides of a centre-pivot door; the panel occupies space in two rooms at once.

Pivot vs Concealed Hinges

Both deliver the no-visible-hardware aesthetic. The practical split: concealed hinges for doors within their weight tables in conventional slim frames; pivot systems when the door's size and weight exceed hinge-in-jamb territory, or when the design calls for the rotating-panel effect only a pivot gives. Our concealed hinge guide covers the other path.

Frequently Asked Questions

Can any door be converted to a pivot door? Rarely as a simple retrofit — the floor fixing, head structure and door prep are designed as a system. New doorsets and planned renovations are pivot territory; a casual conversion usually isn't.

Do pivot doors slam in the wind? Free-swinging pivots can. Exposed external pivot doors should use self-closing or hydraulically controlled pivot units matched to the door weight.

How heavy can a pivot door be? Capacities vary widely by system — from standard architectural sets to heavy-duty units for very large panels. Work from the specific manufacturer's published capacity, never assumptions.

Are pivot doors secure? Yes, when specified properly — the locking hardware, not the pivot, provides security. Multi-point locks and quality cylinders on a heavy pivot door make a formidable entry.
