Fixed Pin Hinges: The Security Detail Most People Miss
Fixed Pin Hinges: The Security Detail Most People Miss
You can fit the best deadbolt on the market, and it won't matter if your door can be lifted off its hinges from outside. Fixed pin hinges close that gap — and if you have any outward-opening external door, this is a detail worth checking today.

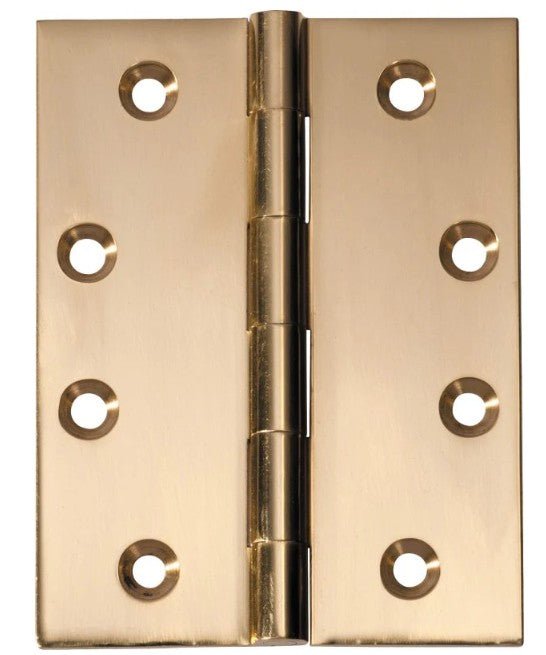

What Is a Fixed Pin Hinge?
In a standard loose pin hinge, the pin drops into the knuckle from the top and can be tapped back out with a nail punch and hammer. That's a feature on internal doors — it makes door removal easy. On a hinge that's accessible from outside your home, it's a vulnerability.
A fixed pin hinge secures the pin permanently in the barrel. It's staked, welded, or otherwise retained during manufacture so it cannot be driven out. The hinge works identically in every other respect; it simply can't be dismantled in place.
Why This Matters: The Outward-Opening Door Problem
Hinge knuckles always sit on the side the door opens toward. On an inward-opening front door, the knuckles are inside your home — protected. But plenty of doors open outward:
- Laundry and side access doors
- Doors to garages and sheds
- Screen and security doors
- External doors in tight hallways where an inward swing won't fit
- Commercial egress doors
On every one of these, the hinge knuckles face the street. With loose pin hinges fitted, an intruder doesn't need to defeat your lock at all: drive out two or three pins, lever the hinge edge, and the entire door comes away — deadbolt still locked, in a frame that's no longer holding a door.
Fixed pin hinges remove that option entirely.
Where to Specify Fixed Pin Hinges
Every external door, as a simple blanket rule. Even on inward-opening doors where the knuckle is protected, fixing the pin costs nothing in function and future-proofs against the door ever being re-hung the other way.
Any door securing valuables — garage internal access doors, storerooms, workshops.
Gates with accessible hinges.
For external doors, the ideal specification combines both security and performance: fixed pin ball bearing hinges. You get a pin that can't be removed and a bearing barrel that carries a heavy entry door smoothly for decades. See our ball bearing hinge guide for the full detail.
Fixed Pin vs Loose Pin at a Glance
| Fixed Pin | Loose Pin | |
|---|---|---|
| Pin removable? | No | Yes, taps out from top |
| Door removal | Unscrew hinges | Lift door after removing pins |
| External doors | Yes — recommended | No, if knuckle is accessible |
| Internal doors | Fine | Ideal — easy door removal |
| Security | Higher | Standard |
Read the companion guide to loose pin hinges for the other side of this comparison.
An Alternative: Security Studs
Some hinges tackle the same threat differently, using interlocking security studs on the leaves — when the door closes, a stud on one leaf engages a hole in the other, so even with the pin removed the door can't be lifted clear. These are worth knowing about for retrofit situations, but if you're buying new hinges for an external door, a fixed pin is the simpler, cleaner answer.
Installation Notes
Fixed pin hinges install exactly like any butt hinge. The one practical difference appears at door-hanging time: because the pin doesn't separate, the door must be held in position while all hinges are screwed on — you can't fix the leaves separately and drop the pins in afterwards. A second pair of hands or door wedges makes this straightforward.
Three hinges per external door is the standard, sized typically at 100 × 75mm for residential entry doors, in a finish matched to your external levers and pull handles.
Frequently Asked Questions
Can I convert my loose pin hinges to fixed pin? Not properly. Some people peen or glue existing pins, but this is unreliable and ruins the hinge for future servicing. Replacement fixed pin hinges are inexpensive and fit the existing recesses.
How do I tell if my current hinges are fixed or loose pin? Look at the top of the barrel. A loose pin usually has a visible pin head sitting proud or a removable finial. If in doubt, try lifting the pin gently with a flat screwdriver under the head — a fixed pin won't budge.
Do fixed pin hinges come in ball bearing versions? Yes, and that combination is the recommended standard for external doors.
What warranty applies? Hinges carry the manufacturer's warranty for the specific product and finish. Check the product listing for the applicable terms.
Prime Hardware stocks fixed pin hinges across Tradco, Zanda and other leading brands in finishes to match your entry hardware. Browse online at primehardware.com.au or visit our Annangrove showroom. For the full hinge landscape, start with our [Complete Guide to Door Hinges].
