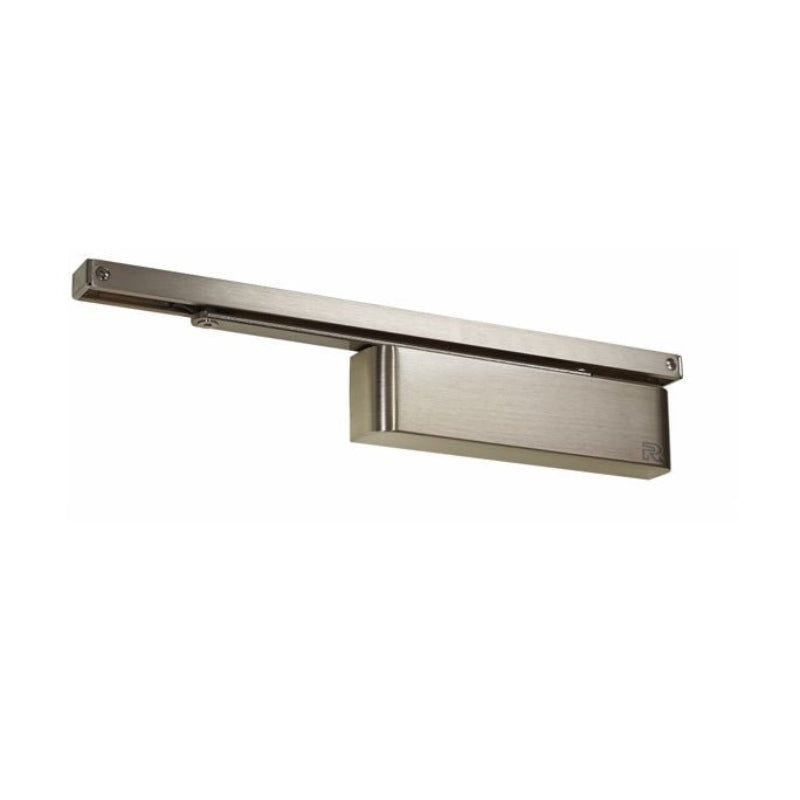

Zanda Ts.11205 – Cam Action Door Closer

Intro
The Zanda TS.11205 Cam Action Door Closer offers premium-grade door control engineered for performance and accessibility. With its adjustable EN2–5 power range and cam-and-roller mechanism, it ensures smooth opening and reliable closing for a wide variety of doors. Perfect for architects, builders and specifiers seeking high-quality, long-lasting hardware that meets modern building standards.

Key Features & Benefits

✅ Function: Cam action door closer with adjustable power between EN2 and EN5
✅ Finish: Matt Black, Satin Nickel, Silver (and other optional finishes)
✅ Material: Robust metal construction with high precision internal components
✅ Compatibility: Suitable for doors up to width 1250 mm and weight up to approx. 110 kg; universal mounting (push, pull or transom)
✅ Operation: Smooth cam-and-roller mechanism for ease of opening; adjustable closing speed & latch speed; available with back-check & delayed action options
✅ Inclusions: Door closer body, slide arm, cover plate and mounting hardware (as per kit)
✅ Certification: Complies with EN 1154 standard, fire tested to EN 1634, assists compliance with disabled access regulations (e.g., BS8300)

Specifications

• Power Size: EN2–5 (adjustable)

• Opening Angle: 120° typical

• Maximum Door Width: 1250 mm

• Maximum Door Weight: Up to approx. 110kg

• Projection: approx. 43 mm from door face

• Function: Cam action door closer, non-handed, universal mounting

• Finish Options: Matt Black, Satin Nickel, Silver (and sometimes others)

• Material: High-grade metal body with cam & roller mechanism

Applications

This door closer is ideal for commercial entrances, offices, institutional buildings, hospitals and high-use environments where both performance and aesthetics matter. Its adjustable power and cam action design make it especially suited for accessibility applications, retrofits or new builds where compliance and durability are required.

Installation & Inclusions

• Installation: Suitable for push-side, pull-side or transom mounting; installation should follow template and torque settings to ensure correct performance.

• Package Includes: Closer body, slide arm assembly, cover plate, mounting screws and instructions.

• Note: Select correct power setting (EN2-5) based on door size/weight; ensure proper alignment and mounting for optimum performance.

Available Finishes

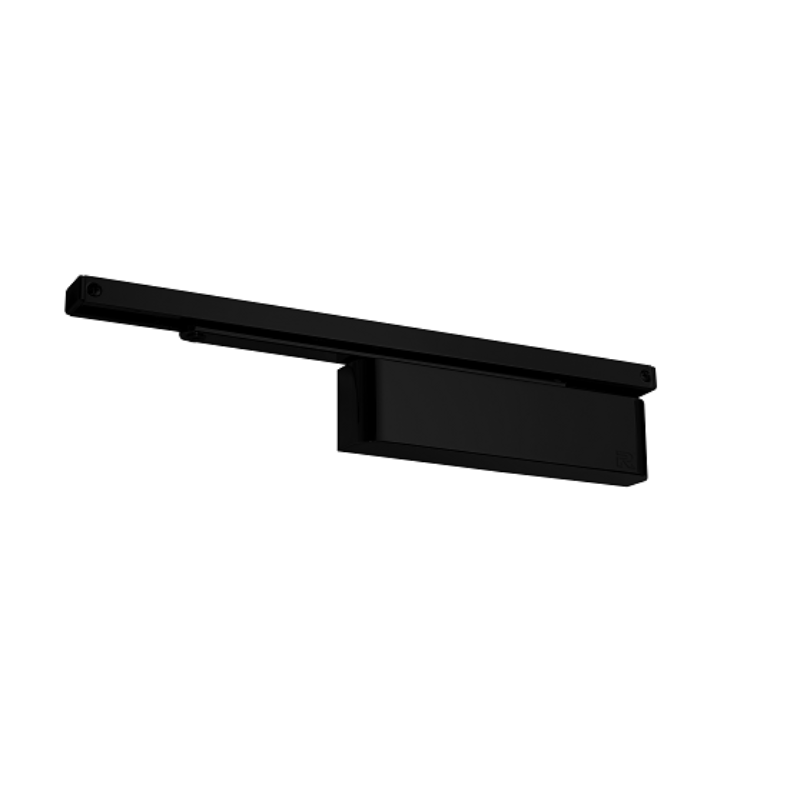

• Matt Black

• Satin Nickel

• Silver


Why Choose Zanda TS.11205 Cam Action Door Closer?

Zanda is a trusted name in architectural hardware, known for high reliability and specification-level performance. The TS.11205 stands out thanks to its cam action mechanism (which reduces opening force while maintaining strong closing), broad power range (EN2–5) and suitability for accessibility compliance. If you’re specifying door hardware that needs to perform in demanding environments and look premium at the same time, this closer delivers.
