Intro

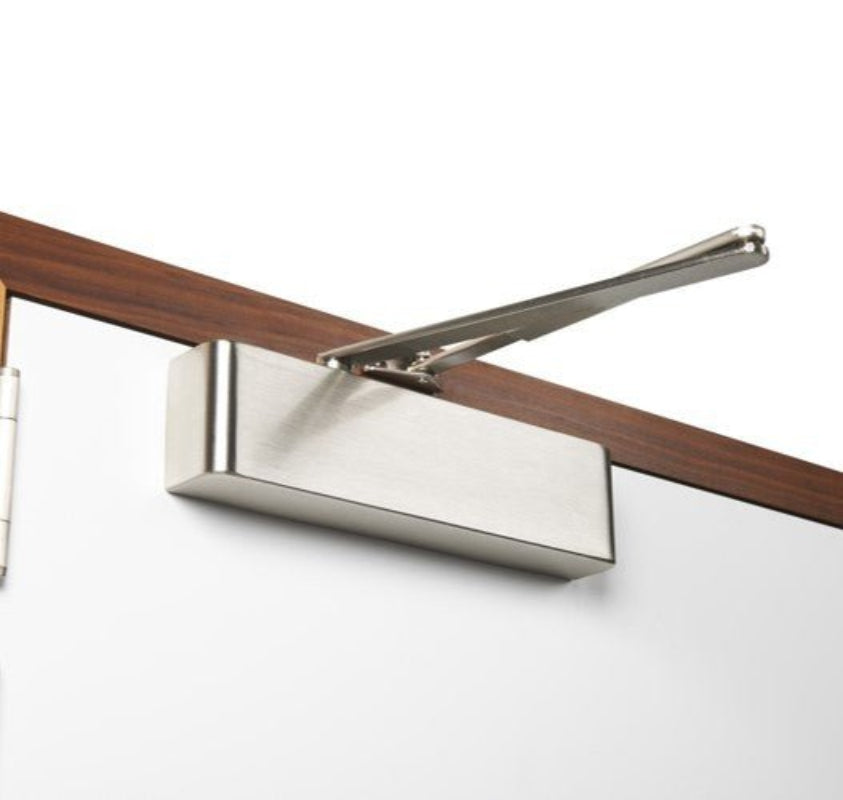

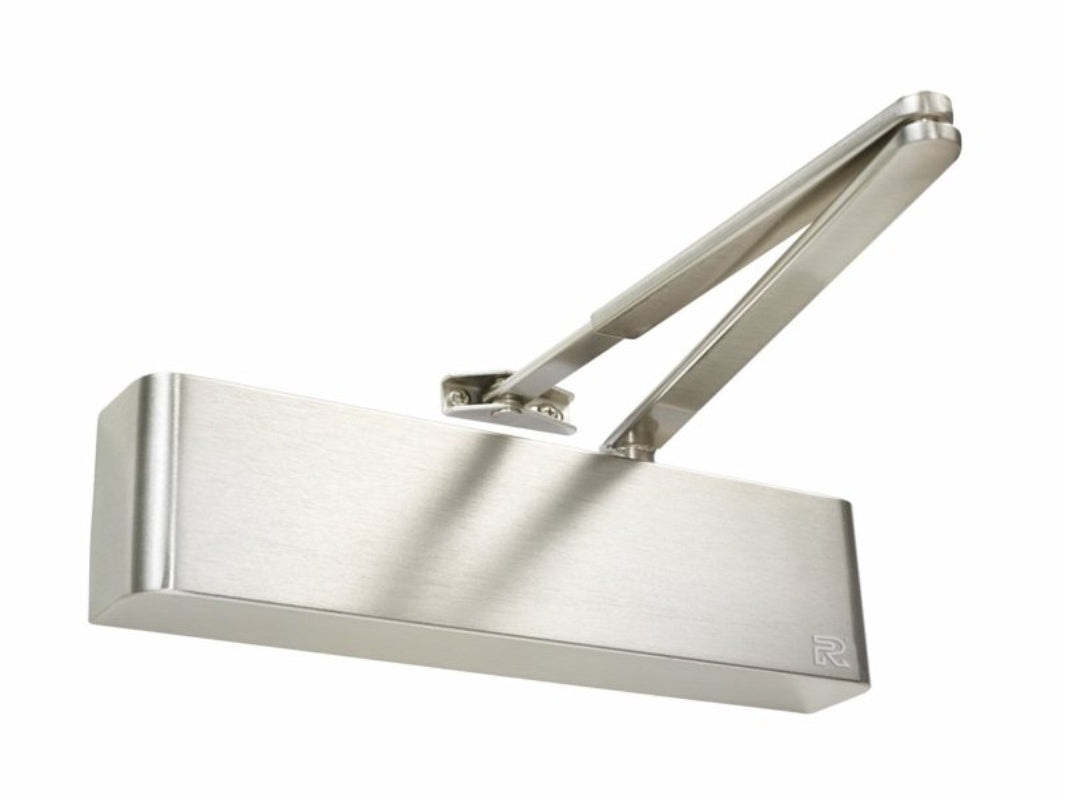

The Zanda TS.9206 Architectural Door Closer is a high-performance, specification-grade hydraulic door closer built for demanding commercial and institutional applications. With an adjustable power range from EN2 to EN6, it caters to doors up to 1400 mm wide and 120 kg in weight, delivering smooth operation, back-check, delayed action and universal mounting options for maximum flexibility.
Key Features & Benefits
✅ Function: Cam-action door closer with variable power (EN2–6)
✅ Finish: Silver, Brushed Nickel, Polished Brass, 316 Stainless Steel
✅ Material: Heavy-duty metal body with precision hydraulic components
✅ Compatibility: Suitable for single or double-action doors, up to approx. 1400 mm width and 120 kg weight
✅ Operation: Adjustable closing speed, latch speed, delayed action, back-check; universal mounting (standard, transom or parallel arm)
✅ Inclusions: Door closer body, slide or scissor arm, mounting hardware and instructions
✅ Certification: Complies with EN 1154 and third-party tested for EN2-6 power range
Specifications
-
Power Size: EN2–6 (adjustable)
-
Maximum Door Width: Up to approx. 1400 mm
-
Maximum Door Weight: Up to approx. 120 kg
-
Opening Angle: Up to 180° in many mounting setups
-
Material: High-grade metal body with hydraulic cam mechanism
-
Finish Options: Silver / Brushed Nickel / Polished Brass / 316 Stainless Steel
-
Function: Architectural door closer for heavy-use doors
Applications

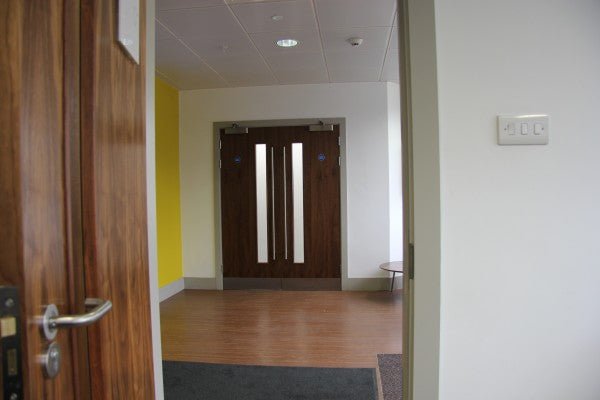

Ideal for commercial entrances, institutional buildings, hospitals, retail flagship stores, and high-traffic architectural projects. The TS.9206’s robust specification and versatile mounting options make it a top choice for developers and specifiers seeking a premium, long-life door closer that meets rigorous standards.
Installation & Inclusions
-

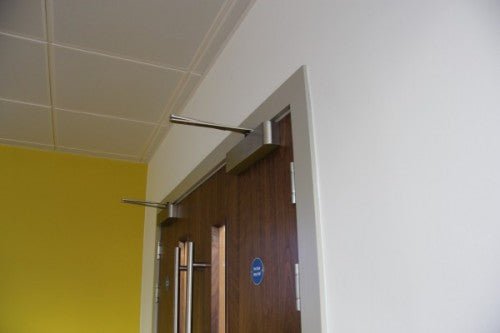

Installation: Suitable for standard arm, parallel arm and transom mounting; proper alignment and power setting required for optimum performance.
-
Package Includes: Door closer body, arm (slide or scissor style), cover, mounting screws and fixing kit, installation instructions detailing power selection and mounting type.
-
Note: Choose correct power setting (EN2 to EN6) according to door width/weight. Ensure clearances and correct mounting position are observed.
Available Finishes
-
Silver
-
Brushed Nickel
-
Polished Brass
Why Choose Zanda TS.9206 Architectural Door Closer?
Zanda is recognised for delivering specification-level architectural hardware that consistently meets performance demands. The TS.9206 stands out with its broad adjustable power range, robust mechanism, flexible mounting options and premium finishes. For projects where longevity, smooth operation and refined aesthetics matter, this door closer delivers exceptional value and reliability.
👉 This is an architectural hydraulic door closer designed to provide smooth, controlled closing and latching for heavy-use doors in commercial and institutional environments.
Q2. What material is it made from?
👉 It is constructed from high-grade metal with a hydraulic cam mechanism and finishes in Silver, Brushed Nickel, Polished Brass or 316 Stainless Steel.
Q3. Does it include installation screws and hardware?
👉 Yes — the kit includes the closer body, slide or scissor arm assembly, cover plate, mounting screws and installation instructions.
Q4. What finishes are available?
👉 Available finishes are Silver, Brushed Nickel, Polished Brass and 316 Stainless Steel.
Q5. What is the warranty on this product?
👉 According to Zanda’s warranty terms for door closers, this product carries a 10-year mechanical warranty and a 5-year finish warranty, assuming correct installation and normal use.
