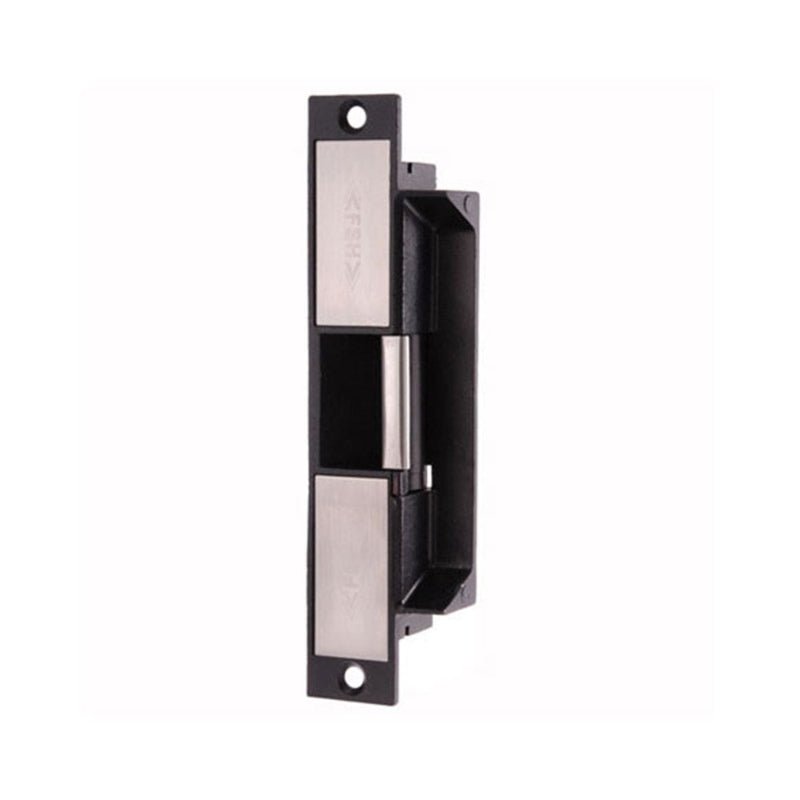

FSH FES20 Electric Strike Non Monitored 4 Hour Fire Rated

lscSKU: LSCFES20
filler

Price:
$217.50

Tax included. Shipping calculated at checkout
Stock In stock with supplier - ships in 5 - 8 days
Easy 30-day returns
🔒 Secure checkout with multiple payment options

Intro

The FSH FES20 Electric Strike is a robust and reliable access control solution designed for secure door locking applications. Engineered for compatibility with all access control systems, this non-monitored electric strike combines high holding strength, flexible power configuration, and certified fire-rated performance, making it ideal for commercial and regulated environments.


Key Features & Benefits

  • Function: Electric strike for access control door locking

  • Monitoring: Non-monitored configuration

  • Fire Rating: Certified fire rated up to 4 hours on approved fire door assemblies

  • Material: Heavy-duty stainless steel construction

  • Voltage: Multi-voltage operation from 12V to 36V DC

  • Operation: Power to lock or power to open selectable on site

  • Safety Design: 10mm strike lip supplied as standard to reduce injury and clothing damage

  • Strength: Holding strength exceeding 1490kg for high-security applications

  • Installation: Supplied with self-adhesive installation template and tab mounting kit


Specifications

  • Brand: FSH

  • Product Code: FES20

  • Fire Rating: Up to 4 hours

  • Voltage Range: 12–36V DC

  • Current Draw:

    • 12V DC at 220mA

    • 24V DC at 120mA

    • 36V DC at 80mA

  • Monitoring Type: Non-monitored

  • Holding Strength: Over 1490kg

  • Strike Lip: 10mm standard with optional 5mm extension

  • Door Type Compatibility: Hinged doors

  • Latch Compatibility: Suitable for 18mm latch with a 3mm door gap

  • Power Configuration: Field selectable power to lock or power to open


Available Finishes

  • Stainless Steel


Applications

This electric strike is ideal for use in commercial buildings, offices, apartment complexes, fire-rated door assemblies, access-controlled areas, and security-sensitive environments. Its professional-grade design makes it suitable for both new installations and retrofit projects.


Installation & Inclusions

  • Easy installation using the supplied self-adhesive template

  • Pre-drilled fixing points for optional extension lips

  • Includes tab mounting kit

  • Supports optional extension lips

  • Solenoid designed for continuous power operation


Why Choose FSH FES20 Electric Strike?

The FSH FES20 Electric Strike offers a dependable balance of fire safety compliance, high holding force, and flexible electrical configuration. Designed for demanding access control applications, it delivers long-term reliability while meeting strict regulatory requirements.

Frequently Asked Questions
Q1. What type of product is this?
👉 This is a non-monitored electric strike designed for use with access control systems on hinged doors.

Q2. Is this electric strike fire rated?
👉 Yes, it is fire rated up to 4 hours when installed on approved fire door assemblies in accordance with recognised fire resistance standards.

Q3. Can the operating mode be changed during installation?
👉 Yes, the electric strike allows field selection between power to lock and power to open, providing flexibility for different security requirements.

Q4. What finishes are available for this model?
👉 The FES20 Electric Strike is supplied in a stainless steel finish for durability and corrosion resistance.

Q5. What warranty applies to this electric strike?
👉 This electric strike is covered by a 5-year warranty against faulty workmanship and materials from the date of purchase. The warranty provides replacement with the same or a similar product if a manufacturing defect is confirmed, subject to correct installation, normal use, and proper maintenance conditions.
