Intro

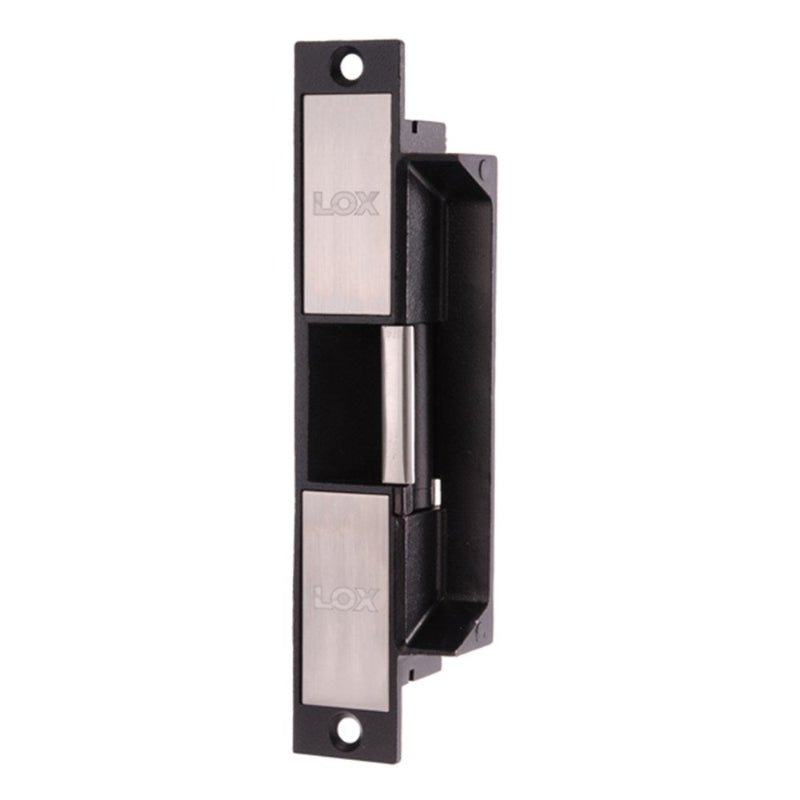

The LOX ES20 High Security Electric Strike is a robust access control solution designed for reliable performance on hinged doors. Engineered for use with a wide range of access control systems, it combines high holding strength, site-selectable fail safe or fail secure operation, and certified fire-rated performance for demanding commercial applications.
Key Features & Benefits
-
✅ Function: Electric door strike for access control systems
-
✅ Security: High holding strength of over 1000 kg for secure door locking
-
✅ Voltage: Multi-voltage operation from 10–30V DC for flexible integration
-
✅ Fire Rating: Successfully fire rated up to 4 hours on approved fire door assemblies
-
✅ Operation: Field selectable fail safe or fail secure configuration
-
✅ Construction: Durable stainless steel body with continuous-duty solenoid
-
✅ Design: 10 mm strike lip standard to reduce risk of injury and clothing damage
-
✅ Installation: Supplied with self-adhesive installation template and tab mounting kit
Specifications
-
Brand: LOX Locking
-
Working Voltage: 10 VDC to 28 VDC
-
Current Draw: 250 mA at 12 VDC / 125 mA at 24 VDC
-
Holding Strength: Approximately 1000 kg
-
Fire Rating: Up to 4 hours
-
Locking Mode: Fail secure or fail safe (field selectable)
-
Monitoring: Non-monitored
-
Latch Compatibility: Suitable for 18 mm latch with a 3 mm door gap
Applications
This electric strike is ideal for commercial buildings, offices, controlled entry points, and fire-rated door assemblies. Its high-strength and fire-certified design makes it suitable for professional security and access control installations.
Installation & Inclusions
-
Easy installation using the supplied self-adhesive template
-

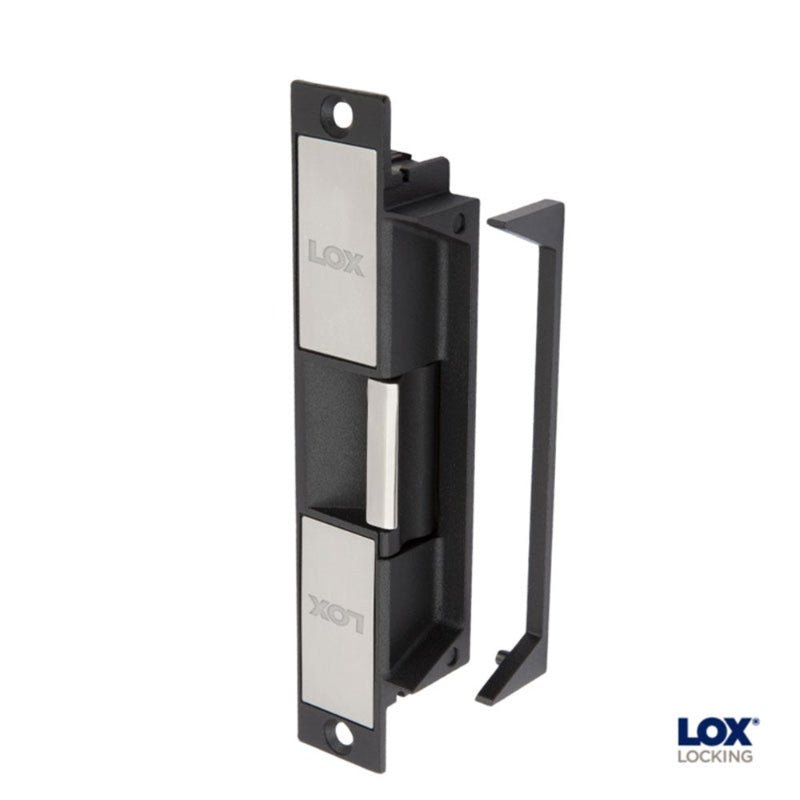

Package includes electric strike, tab mounting kit, and 5 mm optional lip extension
-
Pre-drilled for extension lips to suit different door configurations
Available Finishes
-
Stainless Steel
Why Choose LOX ES20 Electric Strike?
LOX Locking products are trusted for their durability, safety compliance, and dependable performance. The ES20 delivers strong holding force, flexible configuration, and certified fire resistance—making it a reliable choice for secure access control systems.
👉 This is a high security electric door strike designed for use with access control systems on hinged doors.
Q2. Is this electric strike fire rated?
👉 Yes, the LOX ES20 is fire rated up to 4 hours when installed on approved fire door assemblies in accordance with relevant standards.
Q3. Can the locking mode be changed on site?
👉 Yes, the unit allows field selection between fail safe and fail secure operation to suit site requirements.
Q4. What warranty does this product include?
👉 This LOX electric door strike is covered by a 5-year manufacturer warranty against defects in materials and workmanship from the date of purchase, subject to LOX warranty terms and conditions.
Q5. What voltage range does the LOX ES20 support?
👉 The strike supports multi-voltage operation from 10 VDC up to 28 VDC, making it compatible with most access control power supplies.
