SKU: 62325
Austyle 52mm All-In-One Passage & Privacy Lever Set on Round Rose | Bronze & Graphite Nickel
✓ Trusted by Builders, Designers & Renovators
🚚 Ships Australia Wide
↩ Easy 30 Day Returns
🔒 Secure Checkout Protection

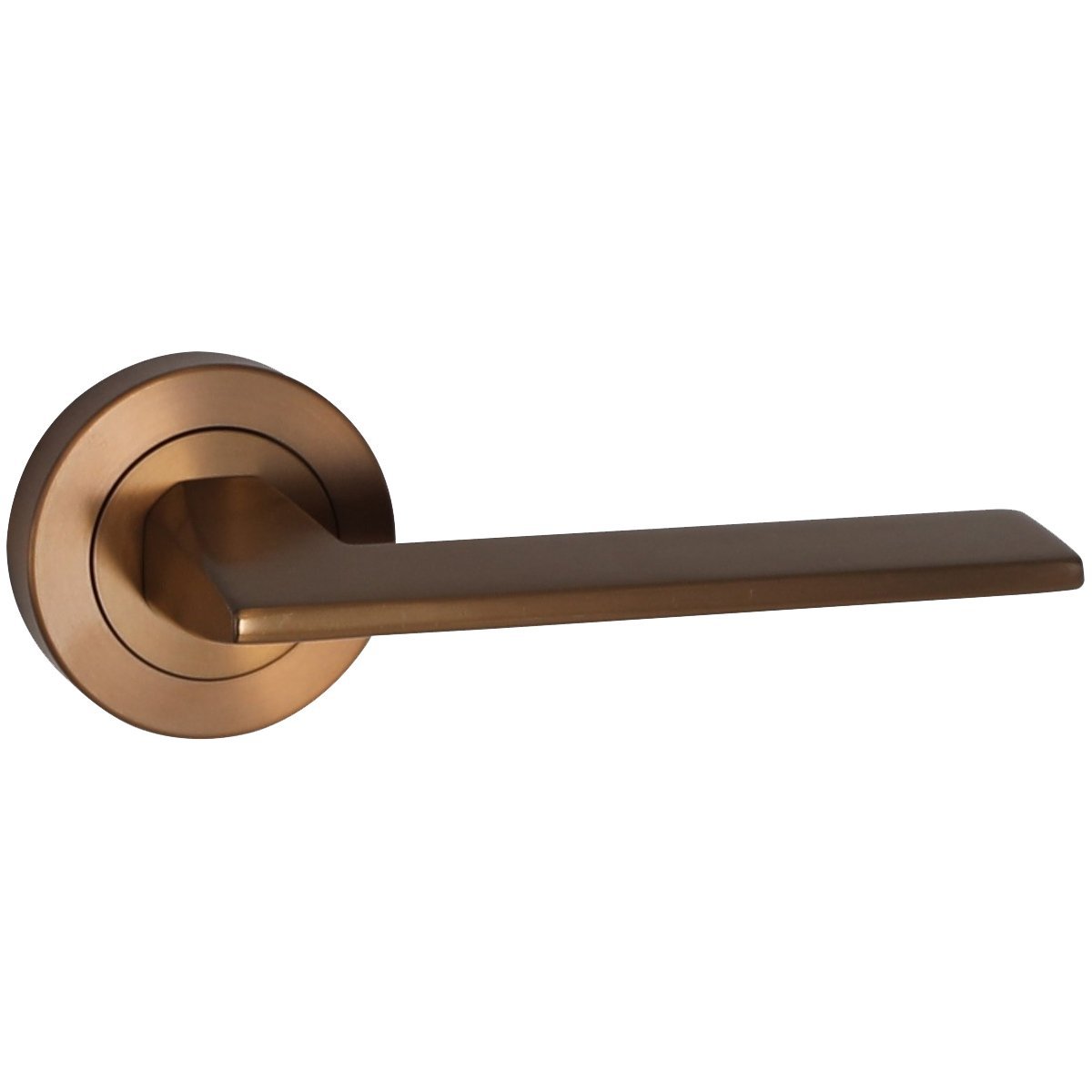

The Austyle 52mm All-In-One Passage and Privacy Lever Set on Round Rose is a precision-engineered architectural lever built for residential and commercial applications. Featuring a slim tapered flat blade with a bevelled top edge and clean pointed tip — an elegant contemporary profile that brings quiet architectural confidence to any internal door. Mounted on a 52mm round rose with concealed fix for a clean, uncluttered appearance on the door face. Crafted from 316 stainless steel for superior corrosion resistance and long-term durability. Fire rated to 4 hours. Engineered with a patented stainless steel ball bearing mechanism and backed by a 20-Year Mechanical Warranty. Available in Bronze and Graphite Nickel. The set includes a multi-function 60mm passage/privacy latch — no additional latch required. Secured with tamper-proof 75mm stainless steel screw fixings accessible from either side.
|
Material
316 Stainless Steel
|
Rose Diameter
52mm Round
|
Fire Rating
4 Hours
|
Warranty
20-Year Mechanical
|
| Available Colours | |
|
Bronze Barcode: 9315198623254 |
Graphite Nickel Barcode: 9315198723251 |
| Key Features | |
| ✓ 316 stainless steel — superior corrosion resistance | ✓ Fire rated to 4 hours |
| ✓ Patented stainless steel ball bearing mechanism | ✓ 20-Year Mechanical Warranty |
| ✓ Dual-function — configurable for Passage or Privacy | ✓ Includes multi-function 60mm passage/privacy latch |
| ✓ 52mm round rose — concealed fix | ✓ 55mm projection from door face |
| ✓ Tamper-proof 75mm stainless steel screw fixings | ✓ Fixings accessible from either side of the door |
| ✓ Slim tapered blade — elegant contemporary profile | ✓ Sold as a complete pair for one door |
| Warranty | |
| ✓ 20-Year Mechanical Warranty | Covers defects in materials and workmanship |
| ⓘ All products are covered by Australian Consumer Law. Contact us for full warranty terms and conditions. | |
| What's in the box | |
| ✓ 2 x Lever handles (inside + outside) | ✓ 2 x 52mm round roses |
| ✓ 1 x Multi-function 60mm passage/privacy latch | ✓ Tamper-proof 75mm stainless steel screw fixings |
| ⓘ Complete all-in-one set — no additional latch or hardware required for standard installation. | |
| Bundle guide — what else do you need? | |
| Follow these steps to ensure you have everything for a complete installation. | |
| Step 1 — Choose your function during setup | |
|
Passage Door latches shut, no locking. Suited to hallways, living rooms, bedrooms and studies — any door that simply opens and closes. |
Privacy Lockable from inside with a turn-lock (snib). Suited to bathrooms, ensuites and powder rooms where internal privacy locking is required. |
| Step 2 — Check your door type | |
|
Timber door Most common for internal doors. Installs directly using the included tamper-proof fixings. Typical thickness: 35mm – 45mm. |
Aluminium door May require aluminium-specific fixings. Contact us if unsure about compatibility with your door frame profile. |
| Step 3 — Add hinges | |
| 3 hinges are recommended per door. Choose a matching finish hinge to complete the installation. Contact us for a hinge recommendation to suit your door weight and type. | |
| Hinges | ||
| Not sure which hinge to choose? Use this as your guide. | ||
|
Ball bearing Entrance and heavier doors Reduces friction, prevents squeaking and wear. |
Fixed pin Internal and lighter entrance doors A reliable all-rounder for most internal applications. |
Loose pin Internal use only — ideal for bathrooms Door can be lifted off its hinges in an emergency, even when locked. |
| ⓘ As a general rule: 3 hinges for internal doors, 3 hinges for entrance or heavier doors. Contact us for a full hinge positioning guide. | ||
| Specifications | |
| Brand | Austyle |
| Product Code | 62325 |
| Available finishes | Bronze (9315198623254) | Graphite Nickel (9315198723251) |
| Base material | 316 Stainless Steel |
| Internal mechanism | Patented stainless steel ball bearing |
| Rose type | Round rose — 52mm diameter, concealed fix |
| Projection | 55mm |
| Latch included | Multi-function 60mm passage/privacy latch |
| Fixing type | Tamper-proof 75mm stainless steel screw fix (either side) |
| Available functions | Passage | Privacy (configured during setup) |
| Fire rating | 4 hours |
| Sold as | Pair (includes 2 levers for 1 door) |
| Warranty | 20-Year Mechanical Warranty |
What does "All-In-One" mean for this lever set?
All-In-One means the set includes everything needed for a complete installation — both lever handles, 52mm round roses, a multi-function 60mm passage/privacy latch and tamper-proof fixings. You do not need to purchase a separate latch or any additional hardware. During setup, you configure the set for either Passage (no locking) or Privacy (internal turn-lock) function depending on where it is being installed.
What colours are available?
This lever set is available in two finishes — Bronze and Graphite Nickel. Bronze offers a warm, rich tone that complements timber joinery and earthy interior palettes. Graphite Nickel delivers a cool, sophisticated grey tone suited to contemporary and industrial-style interiors. Both finishes share identical specifications.
Why is 316 stainless steel better than standard stainless steel?
316 stainless steel contains molybdenum, which provides significantly superior resistance to corrosion compared to standard 304 stainless steel — particularly in environments with moisture, salt air or cleaning chemicals. This makes it the preferred choice for coastal properties, commercial kitchens, healthcare facilities and any high-use application where long-term corrosion resistance is essential.
Is this lever set fire rated?
Yes. The Austyle 52mm Lever Set is fire rated to 4 hours across both colour variants. This makes it suitable for installation on fire-rated doors in residential and commercial buildings where fire-rated hardware is required by building code or specification. Contact us or your building certifier for further details on fire rating documentation.
What is the difference between Passage and Privacy function?
Passage function means the door latches shut automatically but cannot be locked — suited to hallways, living rooms, bedrooms and studies where no locking is required. Privacy function adds an internal turn-lock (snib) that allows the occupant to lock the door from the inside — suited to bathrooms, ensuites and powder rooms. This set can be configured for either function during installation.
What latch is included?
This set includes a multi-function 60mm passage/privacy latch. The 60mm measurement refers to the backset — the distance from the door edge to the centre of the latch bolt. The multi-function design means the same latch can be used for either passage or privacy configuration, depending on how the lever set is set up during installation.
What is concealed fix and why does it matter?
Concealed fix means the fixing screws are hidden behind the rose — not visible on the face of the door. This creates a cleaner, more refined appearance and is the preferred fixing method for architectural door hardware, particularly in commercial and high-specification residential projects.
What are tamper-proof fixings and why do they matter?
Tamper-proof fixings use a specialised screw head that cannot be removed with standard screwdrivers, making the installation more secure and resistant to unauthorised removal. The 75mm stainless steel screws are accessible from either side of the door, simplifying installation without compromising security. Particularly valuable in commercial and high-traffic applications.
What is the projection of this lever handle?
The lever handle projects 55mm from the door face. This is measured from the surface of the door to the furthest point of the lever handle when in the horizontal (resting) position. A 55mm projection provides a comfortable, ergonomic grip clearance from the door surface.
What warranty is included?
The Austyle 52mm All-In-One Lever Set is backed by a 20-Year Mechanical Warranty covering defects in materials and workmanship across both colour variants — one of the longest warranties available for door hardware in Australia. All products are covered by Australian Consumer Law. Contact us for full warranty terms and conditions.
Is this sold as a single unit or a pair?
This lever set is sold as a complete pair for one door — it includes lever handles for both the inside and outside of a single door, along with the multi-function latch and all required fixings. Order one set per door.
What doors is this suitable for?
The Austyle 52mm All-In-One Lever Set is designed for internal timber and aluminium doors in residential and commercial applications. It is not intended for external entrance doors requiring keyed locking. For external doors requiring key access, an entrance set with a euro mortice lock and cylinder is required. Contact us if you need assistance selecting the right product for your application.
